ZX05-30W: DescriptionFrequency Mixer Level 7 (LO Power +7 dBm) 300 to 4000; CategoryWireless rf/communication Radio frequency and microwave; File Size173KB，2 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com

Download Datasheet Parametric Compare View All

ZX05-30W Overview

Frequency Mixer Level 7 (LO Power +7 dBm) 300 to 4000

ZX05-30W Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mini-Circuits
Reach Compliance Code	unknow
Other features	SMA-F
structure	COAXIAL
Maximum frequency conversion loss	9 dB
Maximum input power (CW)	17 dBm
JESD-609 code	e0
Maximum operating frequency	4000 MHz
Minimum operating frequency	300 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
RF/Microwave Device Types	DOUBLE BALANCED
Terminal surface	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	1.52

Preview

Download Datasheet

View All

Coaxial

Frequency Mixer

Level 7 (LO Power +7 dBm)

Operating Temperature

Storage Temperature

RF Power

IF Current

ZX05-30W+

ZX05-30W

300 to 4000

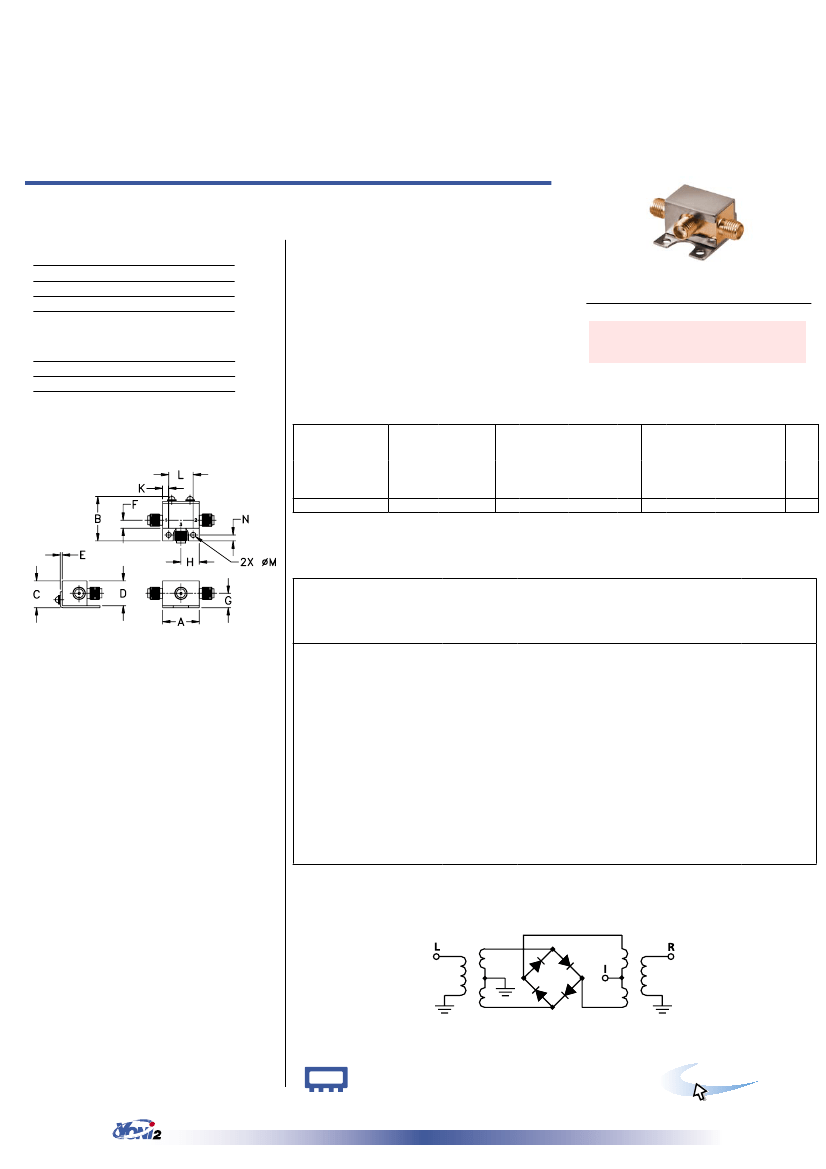

Features

• rugged construction

• small size

• low convesion loss

• high L-R isolation

• protected by US Patents 6,133,525 & 6,790,049

Maximum Ratings

-40°C to 85°C

-55°C to 100°C

50mW

40mA

CASE STYLE: FL905

Connectors

SMA

Model

ZX05-30W-S(+)

Price

Qty.

$37.95 ea. (1-24)

Coaxial Connections

LO

RF

IF

Applications

1

2

3

• cellular

• PCS

• instrumentation

• satellite communication

+ RoHS compliant in accordance

with EU Directive (2002/95/EC)

The + sufﬁx identiﬁes RoHS Compliance. See our web site

for RoHS Compliance methodologies and qualiﬁcations.

Electrical Speciﬁcations (T

AMB

=25°C)

Outline Drawing

FREQUENCY

(MHz)

LO/RF

f

L

-f

U

300-4000

DC-950

1 dB COMP.: +1 dBm typ.

m= mid band [2f

L

to f

U

/2]

CONVERSION LOSS

(dB)

Mid-Band

m

—

X

6.8

σ

0.2

Total

Range

Max. Max.

9.0

9.8

LO-RF ISOLATION

(dB)

LO-IF ISOLATION

(dB)

IF

IP3

at

center

band

(dBm)

Typ.

12

Typ.

35

Min.

17

Typ.

16

Min.

7

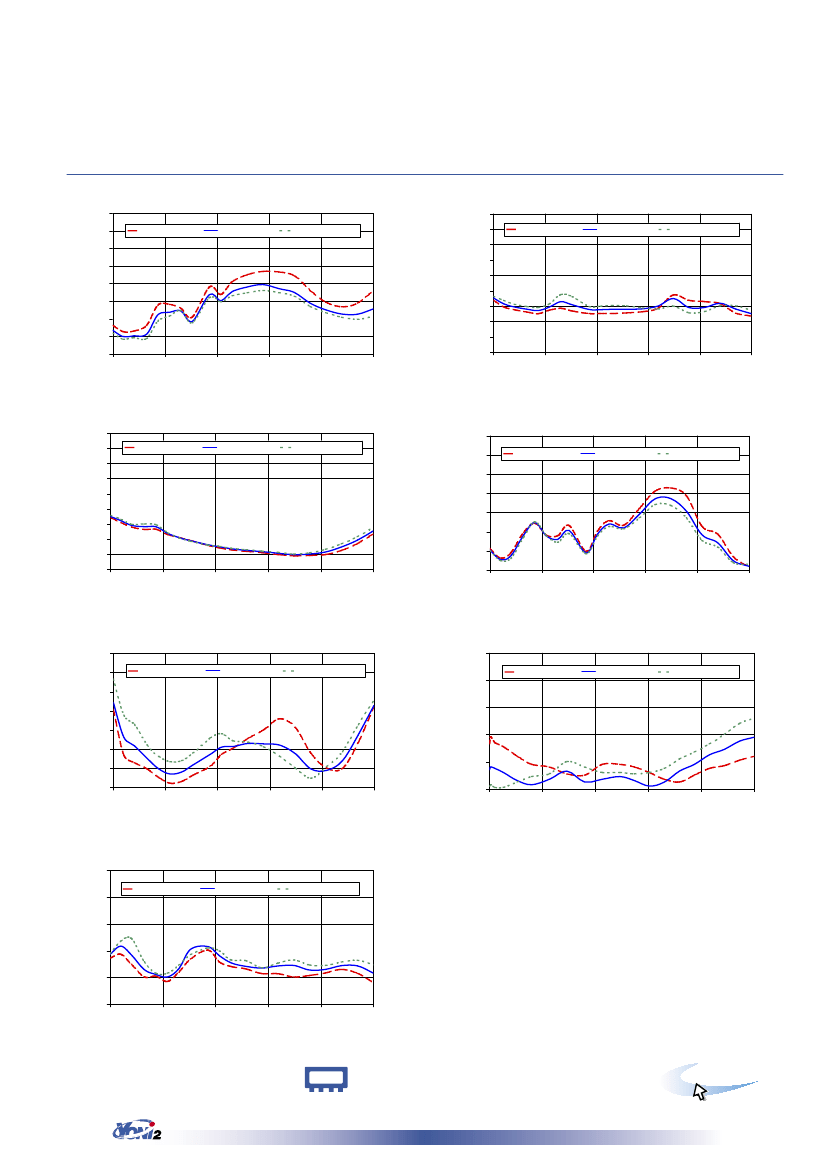

Typical Performance Data

Frequency

(MHz)

Conversion

Loss

(dB)

LO

330.10

480.10

630.10

751.35

913.85

1076.35

1238.85

1401.35

1645.10

1807.60

1970.10

2181.87

2405.39

2628.92

2852.45

3075.98

3299.51

3523.04

3746.57

3970.10

LO

+7dBm

5.34

4.98

5.02

5.11

6.22

6.36

6.45

5.84

7.37

7.03

7.54

7.80

7.94

7.71

7.49

6.88

6.50

6.26

6.25

6.55

Isolation

L-R

(dB)

LO

+7dBm

45.30

41.41

39.35

37.95

37.02

39.38

42.76

40.76

37.69

37.60

37.84

37.90

38.15

39.90

44.86

38.93

39.01

41.76

38.02

34.99

Isolation

L-I

(dB)

LO

+7dBm

34.86

32.02

28.89

28.09

28.05

23.65

20.82

18.75

16.07

14.80

13.54

12.47

11.59

10.55

9.56

10.01

11.39

14.66

19.20

25.24

VSWR

RF Port

(:1)

LO

+7dBm

2.04

1.54

1.73

2.81

3.48

2.77

2.59

3.06

1.89

2.87

3.39

3.19

3.90

4.70

4.72

4.06

2.83

2.41

1.48

1.19

VSWR

LO Port

(:1)

LO

+7dBm

5.44

3.61

3.17

2.51

1.97

1.70

1.80

2.17

2.72

3.10

3.13

3.29

3.27

3.21

2.76

1.96

1.89

2.39

3.74

5.27

RF

300.10

450.10

600.10

781.35

943.85

Outline Dimensions (

inch

)

mm

A

.74

18.80

H

.37

9.40

B

.90

22.86

J

--

C

.54

13.72

K

.122

3.10

D

.50

12.70

L

.496

12.60

E

.04

1.02

M

.106

2.69

F

.16

4.06

G

.29

7.37

1106.35

1268.85

1431.35

1675.10

1837.60

2000.10

2211.87

2435.39

2658.92

2882.45

3105.98

3329.51

3553.04

3776.57

4000.10

N

wt

.122 grams

3.10

20.0

Electrical Schematic

Mini-Circuits

ISO 9001 ISO 14001

CERTIFIED

RF/IF MICROWAVE COMPONENTS

®

minicircuits.com

REV. C

M98898

ZX05-30W

RAV/TD/CP

070117

Page 1 of 2

EW

ALL N

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661 For detailed performance specs & shopping online see Mini-Circuits web site

The Design Engineers Search Engine

Provides ACTUAL Data Instantly From MINI-CIRCUITS At:

www.minicircuits.com

ZX05-30W Related Products

	ZX05-30W	ZX05-30W+
Description	Frequency Mixer Level 7 (LO Power +7 dBm) 300 to 4000	Frequency Mixer Level 7 (LO Power +7 dBm) 300 to 4000
Is it lead-free?	Contains lead	Lead free
Is it Rohs certified?	incompatible	conform to
Maker	Mini-Circuits	Mini-Circuits
Reach Compliance Code	unknow	unknow
Other features	SMA-F	SMA-F
structure	COAXIAL	COAXIAL
Maximum frequency conversion loss	9 dB	9.8 dB
Maximum input power (CW)	17 dBm	17 dBm
Maximum operating frequency	4000 MHz	4000 MHz
Minimum operating frequency	300 MHz	300 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
RF/Microwave Device Types	DOUBLE BALANCED	DOUBLE BALANCED
Terminal surface	Tin/Lead (Sn/Pb)	Nickel (Ni)
Maximum voltage standing wave ratio	1.52	5.44
