EVERLIGHT ELECTRONICS CO.,LTD.
Technical Data Sheet
Luminosity White Color LED
47-23UWD/TR8
Features
․Super
luminosity white LED.
․Built
in 3 LED chips.
․Wide
viewing angle.
․Soldering
methods: Reflow soldering.
․High
performance.
․Package
in 12mm tape on 7〞diameter reel.
․Pb-free.
․The
product itself will remain within RoHS
compliant version.
Descriptions
․The
47-23 SMD LED is much smaller than lead
frame type components, thus enable smaller
board size, higher packing density, reduced
storage space and finally smaller equipment to be
obtained.
․Besides,
lightweight makes them ideal for
miniature applications. etc.
Applications
․Amusement
equipment.
․Information
boards.
․Flashlight
for digital camera of cellular phone.
․Lighting
for small size device.
Device Selection Guide
Chip
Lens Color
Material
InGaN
Emitted Color
White
Yellow diffused
Everlight Electronics Co., Ltd.
Device No.: DSE-473-001
http://www.everlight.com
Prepared date: 16-Mar-2006
Rev. 4
Page: 1 of 10
Prepared by: Jay Chou
EVERLIGHT ELECTRONICS CO.,LTD.
47-23UWD/TR8

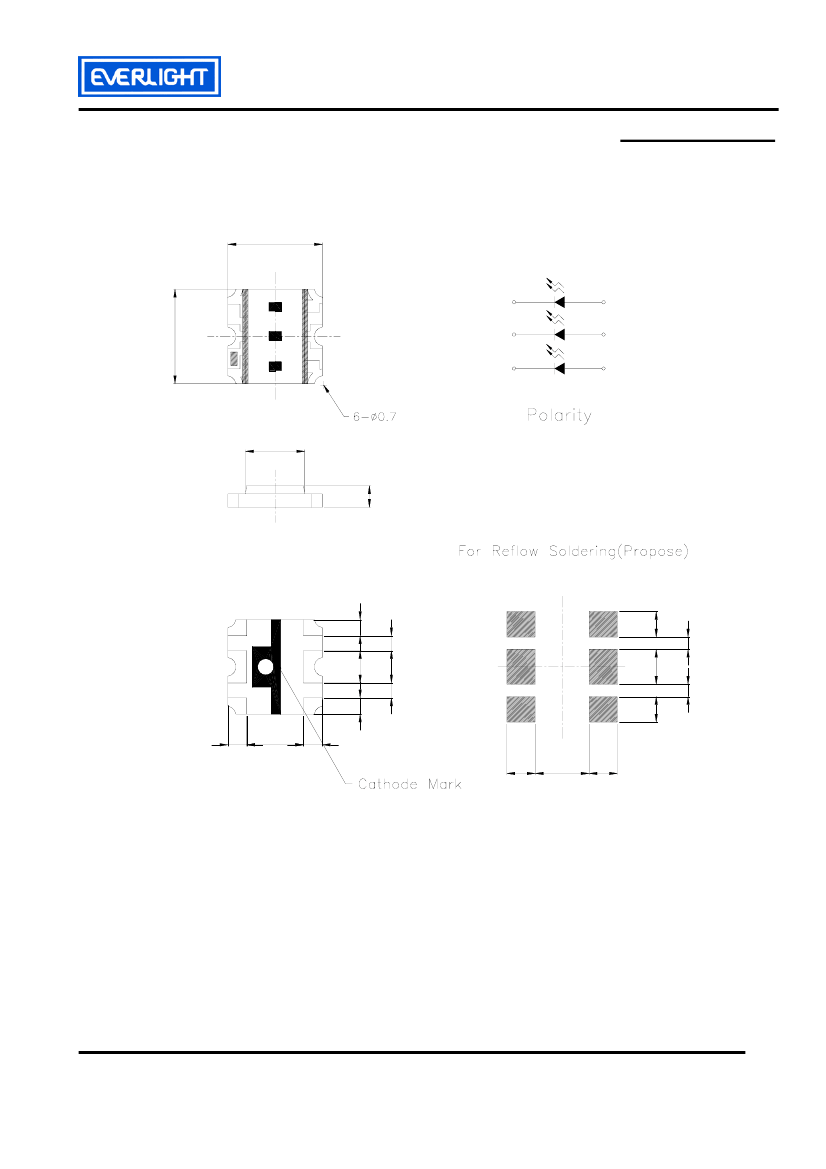

Package Outline Dimensions
3.5
6
3.5
5
4
C
L
1
2
3
2.2
0.8
0.6
0.95
1.3
1.05
4
5
6
0.7
2.1
0.7
3
2
1
1.2
0.55
0.55
2.0
1.05
Note:
The tolerance unless mentioned is
±0.1mm
,unit is mm
Everlight Electronics Co., Ltd.
Device No.: DSE-473-001
http://www.everlight.com
Prepared date: 16-Mar-2006
Rev. 4
Page: 2 of 10
Prepared by: Jay Chou
0.95
0.6
0.45
0.45
-
4
-
5
C
L
-
6
1
2
3
+
+
+
EVERLIGHT ELECTRONICS CO.,LTD.
47-23UWD/TR8
Absolute Maximum Ratings (Ta=25℃)
Parameter
Reverse Voltage
Forward Current
Operating Temperature
Storage Temperature
Electrostatic Discharge(HBM)
Power Dissipation
Peak Forward Current
I
FP
(Duty 1/10 @400ms)
Reflow Soldering : 260
℃
for 10 sec.
Soldering Temperature
Tsol
Hand Soldering : 350
℃
for 3 sec.
100
mA
Symbol
V
R
I
F
Topr
Tstg
ESD
Pd
Rating
5
30
-40 ~ +85
-40 ~ +90
1000
111
Unit
V
mA
℃
℃
V
mW
*. The value is based on the 1-die performance.
Electro-Optical Characteristics (Ta=25℃)
Parameter
Luminous Intensity
*1
Viewing Angle
*1
Forward Voltage
*2
Reverse Current
*2
Symbol
Iv
2θ
1/2
V
F
I
R
Min.
1500
-----
2.7
-----
Typ.
2000
130
-----
-----
Max.
-----
-----
3.7
50
Unit
mcd
deg
V
μA
Condition
I
F
=20mA
*2
V
R
=5V
*2
*1 When three LED dies are operated simultaneously.
*2 For each die.
Note:
1. The products are sensitive to static electricity and care must be fully taken when
handling products.
2.We only guarantee the ESD <1000V after customer to process.
Everlight Electronics Co., Ltd.
Device No.: DSE-473-001
http://www.everlight.com
Prepared date: 16-Mar-2006
Rev. 4
Page: 3 of 10
Prepared by: Jay Chou
EVERLIGHT ELECTRONICS CO.,LTD.
47-23UWD/TR8
Color Ranks
x
y
0.280
0.248
Rank A0
0.264
0.283
0.267
0.305
0.296
0.276
x
y
0.287
0.295
Rank B3
0.283
0.304
0.305
0.330
0.307
0.315
Rank B4
x
y
0.307
0.315
0.304
0.330
0.330
0.360
0.330
0.339
x
y
0.296
0.276
Rank B5
0.287
0.295
0.307
0.315
0.311
0.294
x
y
0.311
0.294
Rank B6
0.307
0.330
0.315
0.339
0.330
0.318
*The C.I.E. 1931 chromaticity diagram ( Tolerance
±0.01).

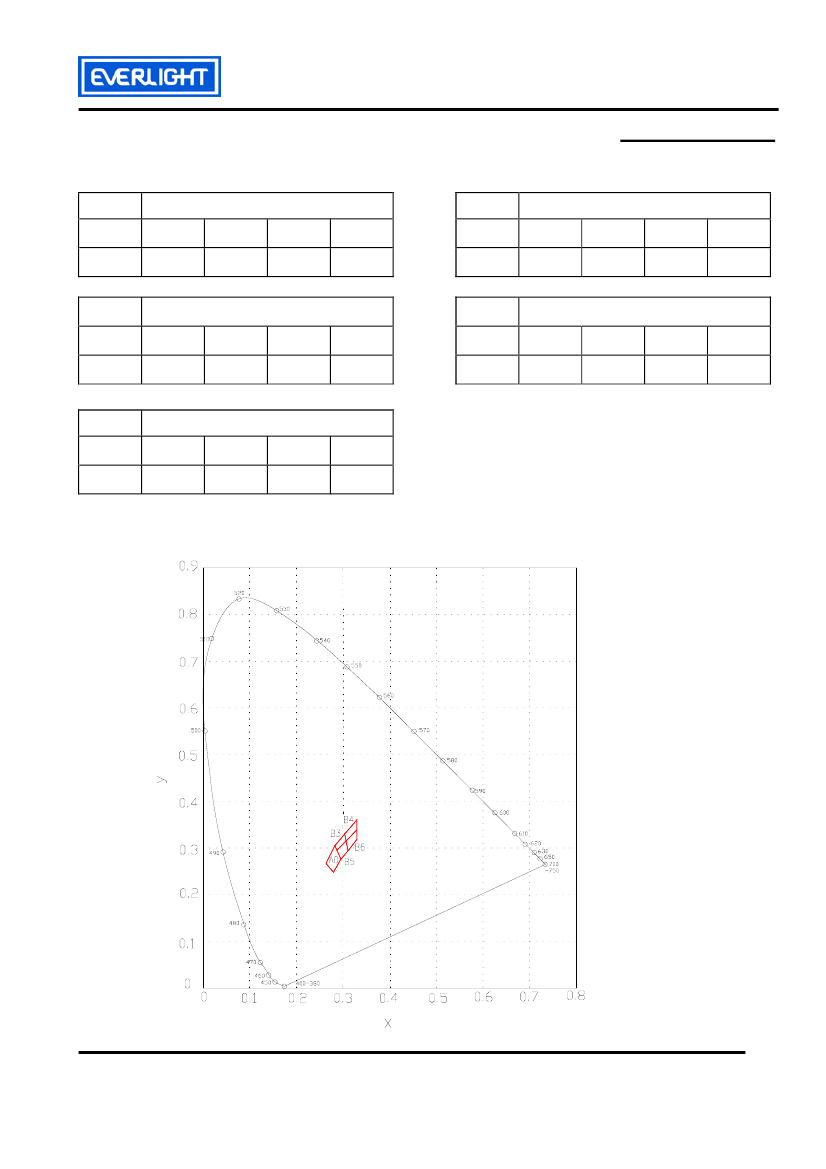

CIE Chromaticity Diagram
Everlight Electronics Co., Ltd.
Device No.: DSE-473-001
http://www.everlight.com
Prepared date: 16-Mar-2006
Rev. 4
Page: 4 of 10
Prepared by: Jay Chou
EVERLIGHT ELECTRONICS CO.,LTD.
47-23UWD/TR8

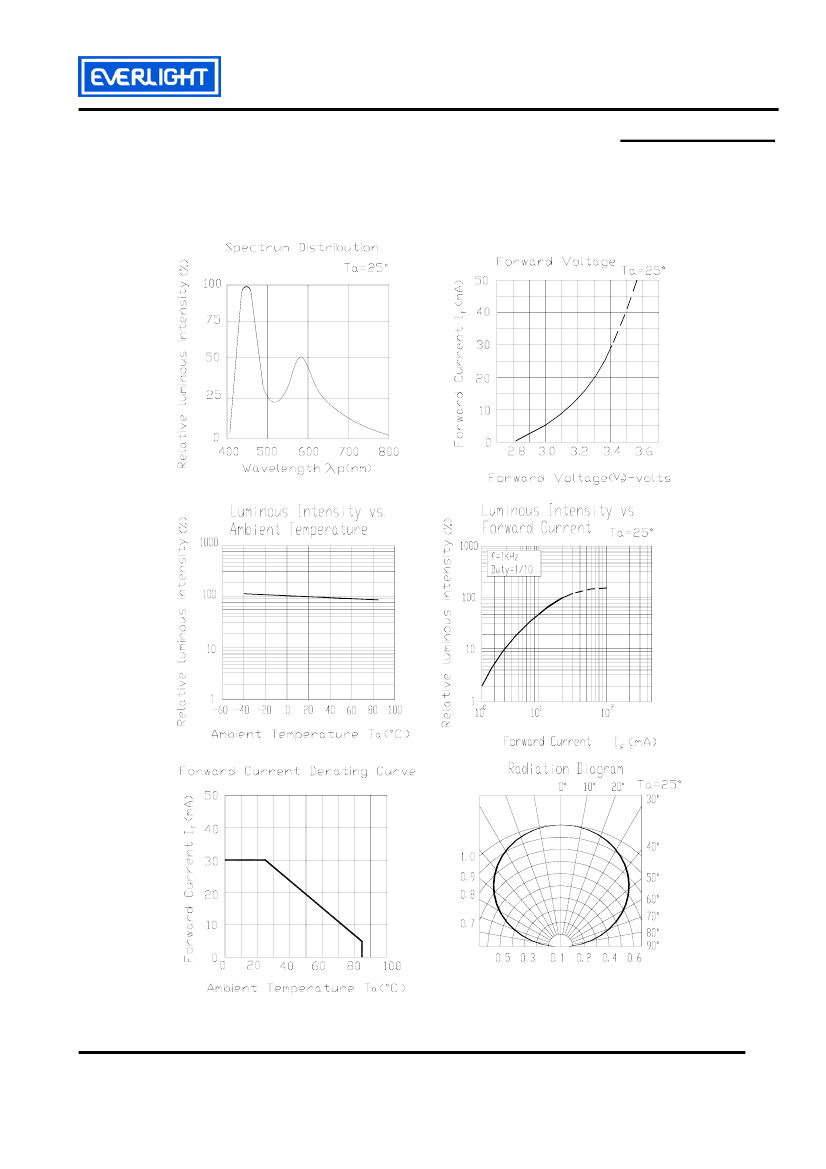

Typical Electro-Optical Characteristics Curves
Everlight Electronics Co., Ltd.
Device No.: DSE-473-001
http://www.everlight.com
Prepared date: 16-Mar-2006
Rev. 4
Page: 5 of 10
Prepared by: Jay Chou
