0603 Package Chip LED (0.6mm Height)
19-213/Y2C-FN1P1VZ/DT
Features
․Package
in 8mm tape on 7〞diameter reel.
․Compatible
with automatic placement equipment.
․Compatible
with infrared and vapor phase reflow
solder process.
․Mono-color
type.
․Pb-free.
․The
product itself will remain within RoHS compliant version.
Descriptions
․The
19-213 SMD Taping is much smaller than
lead frame type components, thus enable smaller
board size, higher packing density, reduced
storage space and finally smaller equipment to be
obtained.
․Besides,
lightweight makes them ideal for
miniature applications. etc.
Applications
․Backlighting
in dashboard and switch.
․Telecommunication:
indicator and backlighting in
telephone and fax.
․Flat
backlight for LCD, switch and symbol.
․General
use.
Device Selection Guide
Chip
Material
19-213/Y2C-FN1P1VZ/DT
AlGaInP
Emitted Color
Brilliant Yellow
Water Clear
Part No.
Lens Color
Everlight Electronics Co., Ltd.
Device No. : SZDSE-193-Y15
http://www.everlight.com
Prepared date:28-Mar-2006
Rev.1
Page: 1 of 10
Prepared by: Xiaoyan
EVERLIGHT ELECTRONICS CO.,LTD.
19-213/Y2C-FN1P1VZ/DT
Package Outline Dimensions
-
+
Note:
The tolerances unless mentioned is
±0.1mm
,Unit = mm
Everlight Electronics Co., Ltd.
Device No. :SZDSE-193-Y15
http://www.everlight.com
Prepared date:16-Mar-2006
Rev.1
Prepared by:
Page: 2 of 10
Xiaoyan
EVERLIGHT ELECTRONICS CO.,LTD.
19-213/Y2C-FN1P1VZ/DT
Absolute Maximum Ratings (Ta=25℃)
Parameter
Reverse Voltage
Forward Current
Peak Forward Current
(Duty 1/10 @1KHz)
Power Dissipation
Electrostatic Discharge(HBM)
Operating Temperature
Storage Temperature
Soldering Temperature
Symbol
V
R
I
F
I
FP
Pd
ESD
Topr
Tstg
Tsol
Rating
5
25
60
60
2000
-40 ~ +85
-40 ~ +90
Unit
V
mA
mA
mW
V
℃
℃
Reflow Soldering : 260
℃
for 10 sec
Hand Soldering : 350
℃
for 3 sec.
Electro-Optical Characteristics (Ta=25℃)
Parameter
Luminous Intensity
Peak Wavelength
Dominant Wavelength
Spectrum Radiation
Bandwidth
Viewing Angle
Forward Voltage
Symbol
I
V
λp
λd
△λ
2θ1/2
V
F
I
R
Min.
28.5
----
586
----
----
1.7
----
Typ.
-----
591
----
15
120
----
----
Max.
57.0
----
594
----
----
2.2
10
Unit
mcd
nm
nm
Condition
I
F
=10mA
nm
deg
V
μA
V
R
=5V
Reverse Current
Notes:
1.Tolerance of Luminous Intensity
±10%
2.Tolerance of Dominant Wavelength
±1nm
3.Tolerance of Forward Voltage
±0.05V
Everlight Electronics Co., Ltd.
Device No. :SZDSE-193-Y15
http://www.everlight.com
Prepared date:16-Mar-2006
Rev.1
Prepared by:
Page: 3 of 10
Xiaoyan
EVERLIGHT ELECTRONICS CO.,LTD.
19-213/Y2C-FN1P1VZ/DT
Bin Range Of Dom. Wavelength
Group
Bin
DD1
F
DD2
DD3
DD4
Min
586
588
590
592
Max
588
590
592
594
nm
I
F
=10mA
Unit
Condition
Bin Range Of Luminous Intensity
Bin
N1
N2
P1
Min
28.5
36.0
45.0
Max
36.0
45.0
57.0
mcd
I
F
=10mA
Unit
Condition
Bin Range Of Forward Voltage
Group
Bin
19
20
V
21
22
23
Min
1.70
1.80
1.90
2.00
2.10
Max
1.80
1.90
2.00
2.10
2.20
V
I
F
=10mA
Unit
Condition
Notes:
1.Tolerance of Luminous Intensity
±10%
2.Tolerance of Dominant Wavelength
±1nm
3.Tolerance of Forward Voltage
±0.05V
Everlight Electronics Co., Ltd.
Device No. :SZDSE-193-Y15
http://www.everlight.com
Prepared date:16-Mar-2006
Rev.1
Prepared by:
Page: 4 of 10
Xiaoyan
EVERLIGHT ELECTRONICS CO.,LTD.
19-213/Y2C-FN1P1VZ/DT

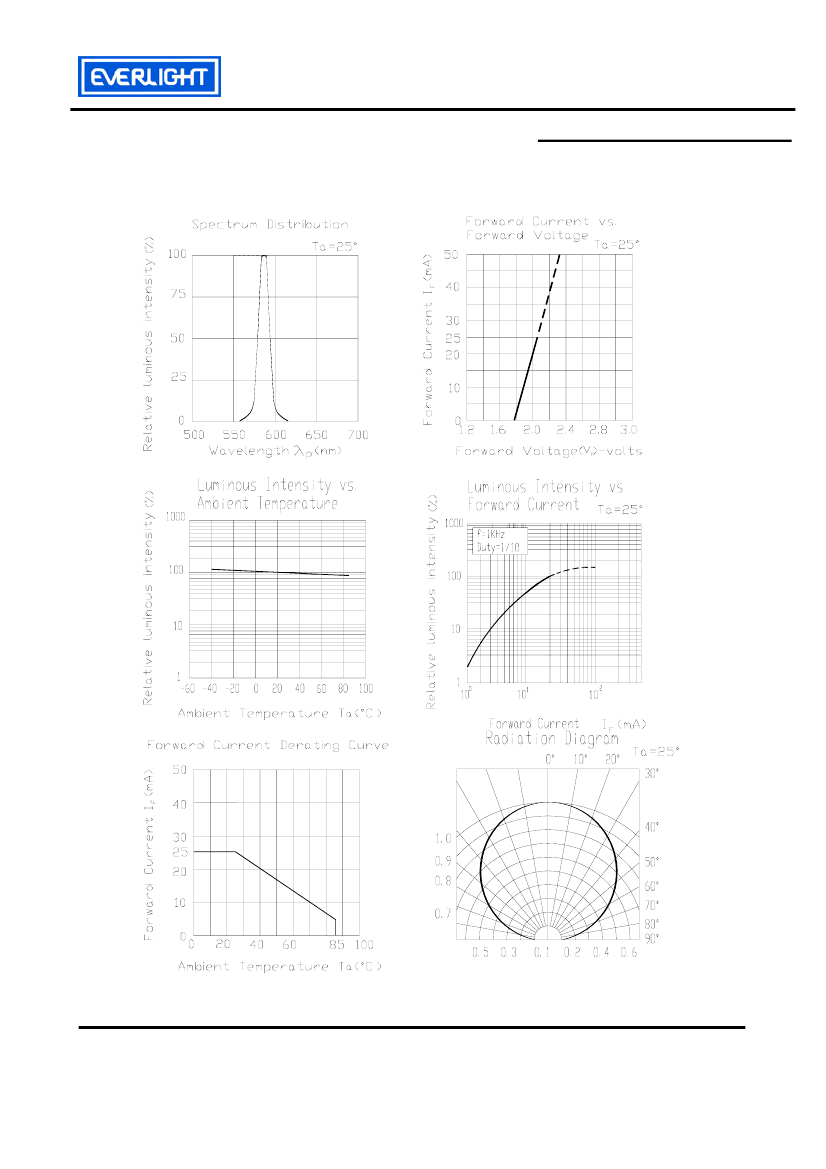

Typical Electro-Optical Characteristics Curves
Everlight Electronics Co., Ltd.
Device No. :SZDSE-193-Y15
http://www.everlight.com
Prepared date:16-Mar-2006
Rev.1
Prepared by:
Page: 5 of 10
Xiaoyan
