EVERLIGHT ELECTRONICS CO.,LTD.

Technical Data Sheet

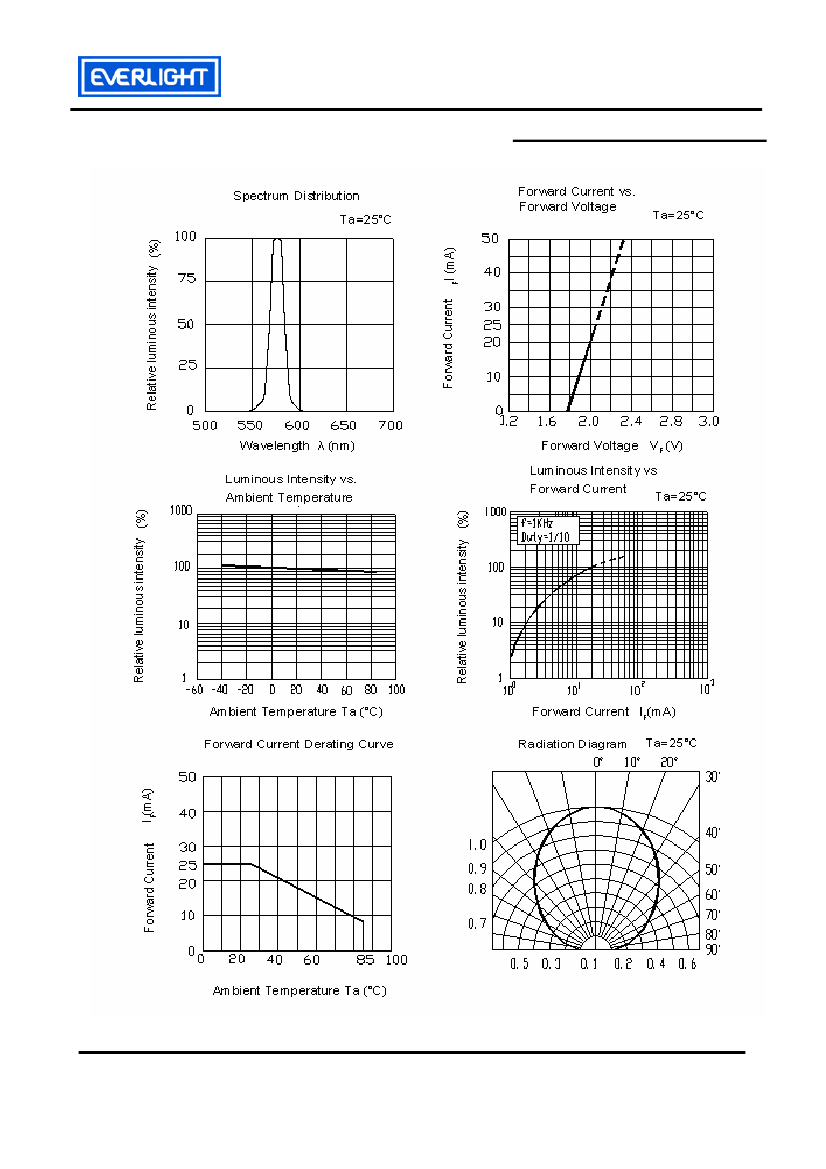

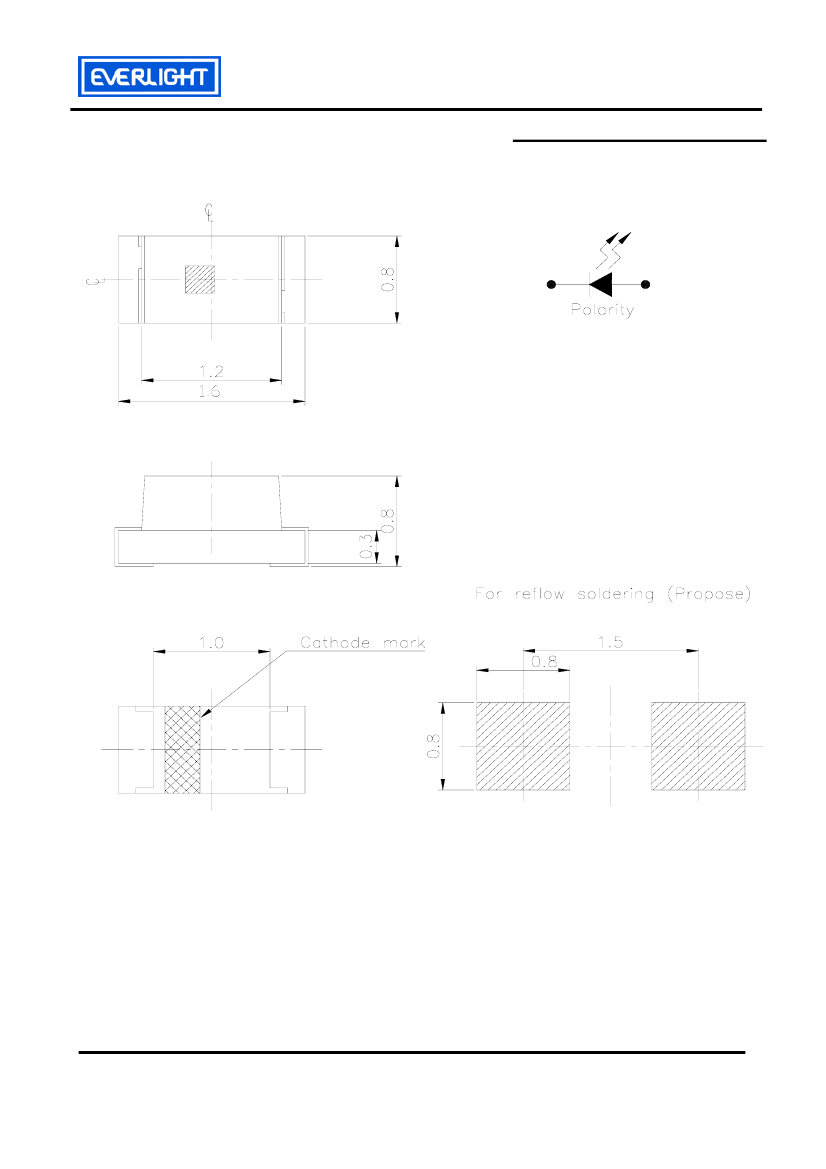

0603 Package Chip LED (0.8 mm Height)

19-21SYGC/S530-XX/TR8

Features

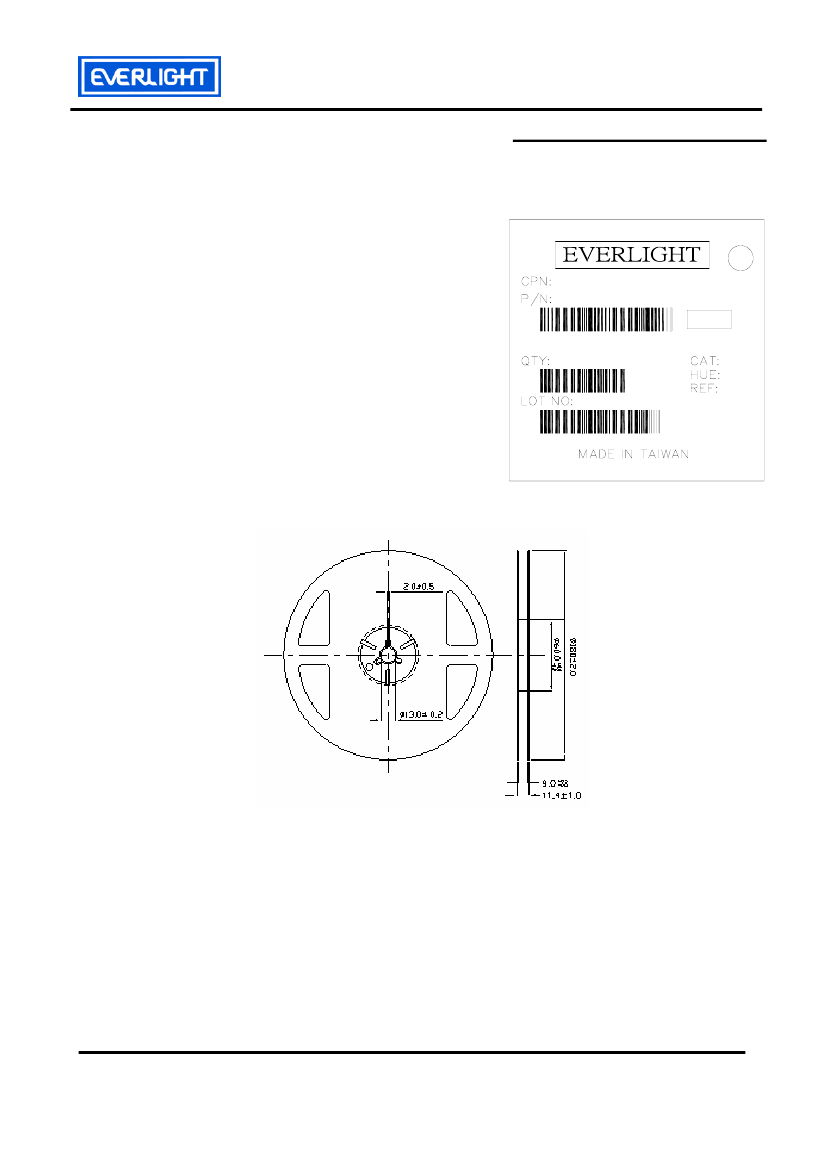

․Package

in 8mm tape on 7〞diameter reel.

․Compatible

with automatic placement equipment.

․Compatible

with infrared and vapor phase reflow

solder process.

․Mono-color

type.

․Pb-free.

․The

product itself will remain with in RoHS complaint version.

Descriptions

․The

19-21 SMD LED is much smaller than lead

frame type components, thus enable smaller

board size, higher packing density, reduced

storage space and finally smaller equipment to be

obtained.

․Besides,

lightweight makes them ideal for

miniature applications. etc.

Applications

․Backlighting

in dashboard and switch.

․Telecommunication:

indicator and backlighting in

telephone and fax.

․Flat

backlight for LCD, switch and symbol.

․General

use.

Device Selection Guide

Part No.

19-21SYGC/S530-XX/TR8

Chip

Material

AlGaInP

Emitted Color

Brilliant Yellow Green

Resin Color

Water Clear

Everlight Electronics Co., Ltd.

Device No:SZDSE-191-015

http://www.everlight.com

Prepared date: 27-Oct-2007

Rev 2

Page: 1 of 9

Prepared by: Zhouhua
