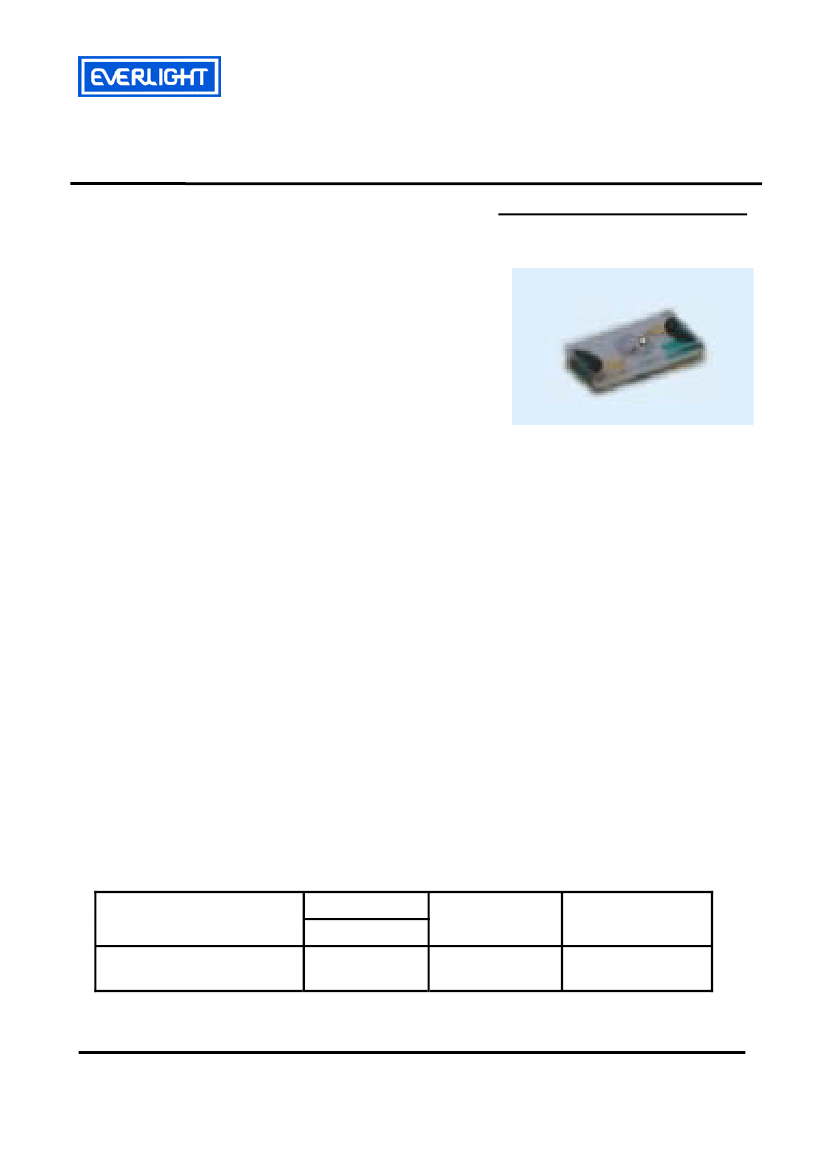

0603 Package Chip LED (0.2mm Height)
19-219/B6C-ZN1P2TY/3T
Features
․Package
in 8mm tape on 7〞diameter reel.
․Compatible
with automatic placement equipment.
․Compatible
with infrared and vapor phase reflow
solder process.
․Pb-free.
․The
product itself will remain within RoHS
compliant version.
․The
maximum height is 0.25mm.
․The
component weight is approximately 0.68 mg
Descriptions
․The
19-219 SMD Taping is much smaller than
lead frame type components, thus enable smaller
board size, higher packing density, reduced
storage space and finally smaller equipment to be
obtained.
․Besides,
lightweight makes them ideal for
miniature applications. etc.
Applications
․Backlighting
in dashboard and switch.
․Telecommunication:
indicator and backlighting in
telephone and fax.
․Flat
backlight for LCD, switch and symbol.
․General
use.
Device Selection Guide
Part No.
19-219/B6C-ZN1P2TY/3T
Chip
Material
InGaN
Emitted Color
Blue
Lens Color
Water Clear
Everlight Electronics Co., Ltd.
Device No. : DSE- 199-B01
http://www.everlight.com
Prepared date: 29-Nov-2006
Rev.1
Page: 1 of 9
Prepared by: Jay Chou
EVERLIGHT ELECTRONICS CO.,LTD.
19-219/B6C-ZN1P2TY/3T

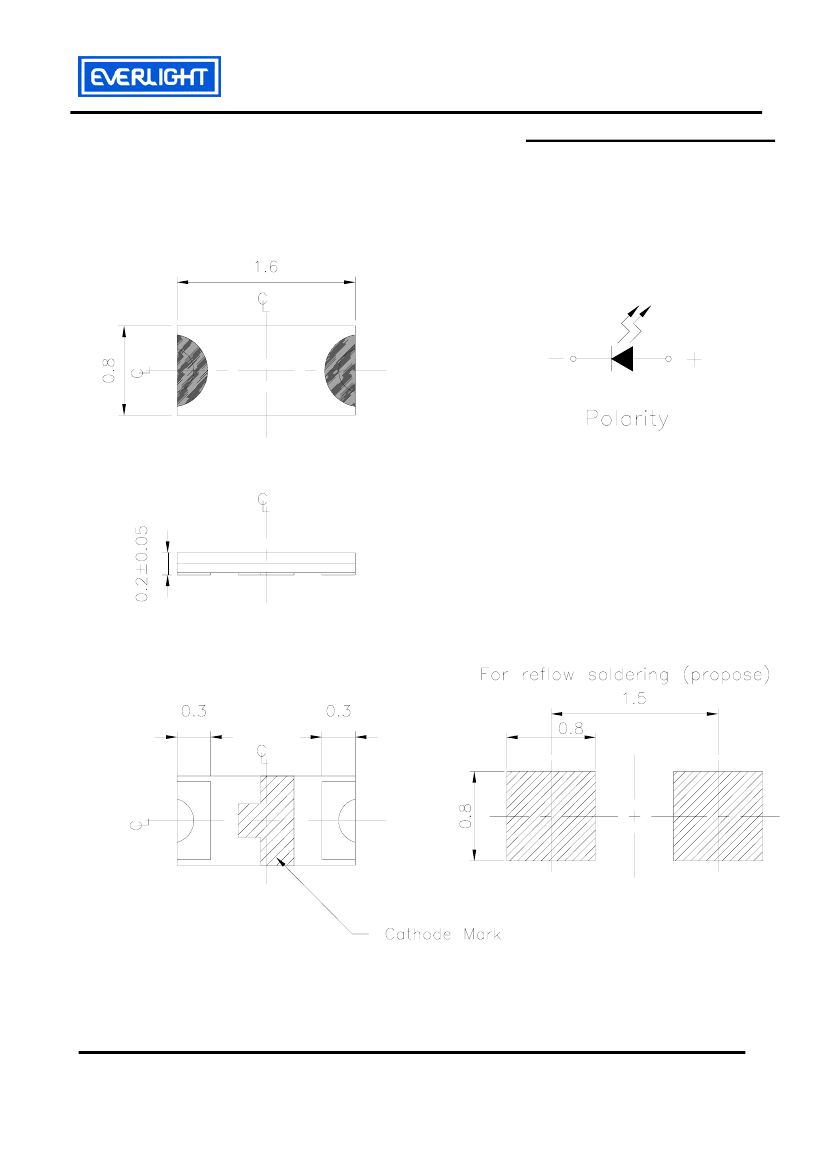

Package Outline Dimensions
Note:
The tolerances unless mentioned is
±0.1mm
,Unit = mm
Everlight Electronics Co., Ltd.
Device No. : DSE- 199-B01
http://www.everlight.com
Prepared date: 29-Nov-2006
Rev.1
Page: 2 of 9
Prepared by: Jay Chou
EVERLIGHT ELECTRONICS CO.,LTD.
19-219/B6C-ZN1P2TY/3T
Absolute Maximum Ratings (Ta=25℃)
Parameter
Reverse Voltage
Forward Current
Peak Forward Current
I
FP
(Duty 1/10 @1KHz)
Power Dissipation
Electrostatic Discharge(HBM)
Operating Temperature
Storage Temperature
Soldering Temperature
Pd
ESD
Topr
Tstg
Tsol
40
1000
-40 ~ +85
-40 ~ +90
mW
V
℃
℃
30
mA
Symbol
V
R
I
F
Rating
5
10
Unit
V
mA
Reflow Soldering : 260
℃
for 10 sec.
Hand Soldering : 350
℃
for 3 sec.
Electro-Optical Characteristics (Ta=25℃)
Parameter
Luminous Intensity
Viewing Angle
Peak Wavelength
Dominant Wavelength
Spectrum Radiation
Bandwidth
Forward Voltage
Reverse Current
Symbol
Iv
2θ1/2
λp
λd
△λ
VF
IR
Min.
28.5
-----
-----
465
-----
2.60
-----
Typ.
-----
120
468
-----
35
----
-----
Max.
72
-----
-----
475
-----
3.0
50
Unit
mcd
deg
nm
nm
nm
V
μA
VR=5V
IF=5mA
Condition
Notes:
1.Tolerance of Luminous Intensity
±10%
2.Tolerance of Dominant Wavelength
±1nm
3.Tolerance of Forward Voltage
±0.05V
Everlight Electronics Co., Ltd.
Device No. : DSE- 199-B01
http://www.everlight.com
Prepared date: 29-Nov-2006
Rev.1
Page: 3 of 9
Prepared by: Jay Chou
EVERLIGHT ELECTRONICS CO.,LTD.
19-219/B6C-ZN1P2TY/3T
Bin Range Of Dom. Wavelength
Group
Z
Bin
X
Y
Min
465
470
Max
470
475
Unit
nm
Condition
I
F
=5mA
Bin Range Of Luminous Intensity
Bin
N1
N2
P1
P2
Min
28.5
36.0
45.0
57.0
Max
36.0
45.0
57.0
72.0
mcd
I
F
=5mA
Unit
Condition
Bin Range Of Forward Voltage
Group
Bin
28
T
29
30
31
Min
2.60
2.70
2.80
2.90
Max
2.70
2.80
2.90
3.00
V
I
F
=5mA
Unit
Condition
Notes:
1.Tolerance of Luminous Intensity
±10%
2.Tolerance of Dominant Wavelength
±1nm
3.Tolerance of Forward Voltage
±0.05V
Everlight Electronics Co., Ltd.
Device No. : DSE- 199-B01
http://www.everlight.com
Prepared date: 29-Nov-2006
Rev.1
Page: 4 of 9
Prepared by: Jay Chou
EVERLIGHT ELECTRONICS CO.,LTD.
19-219/B6C-ZN1P2TY/3T

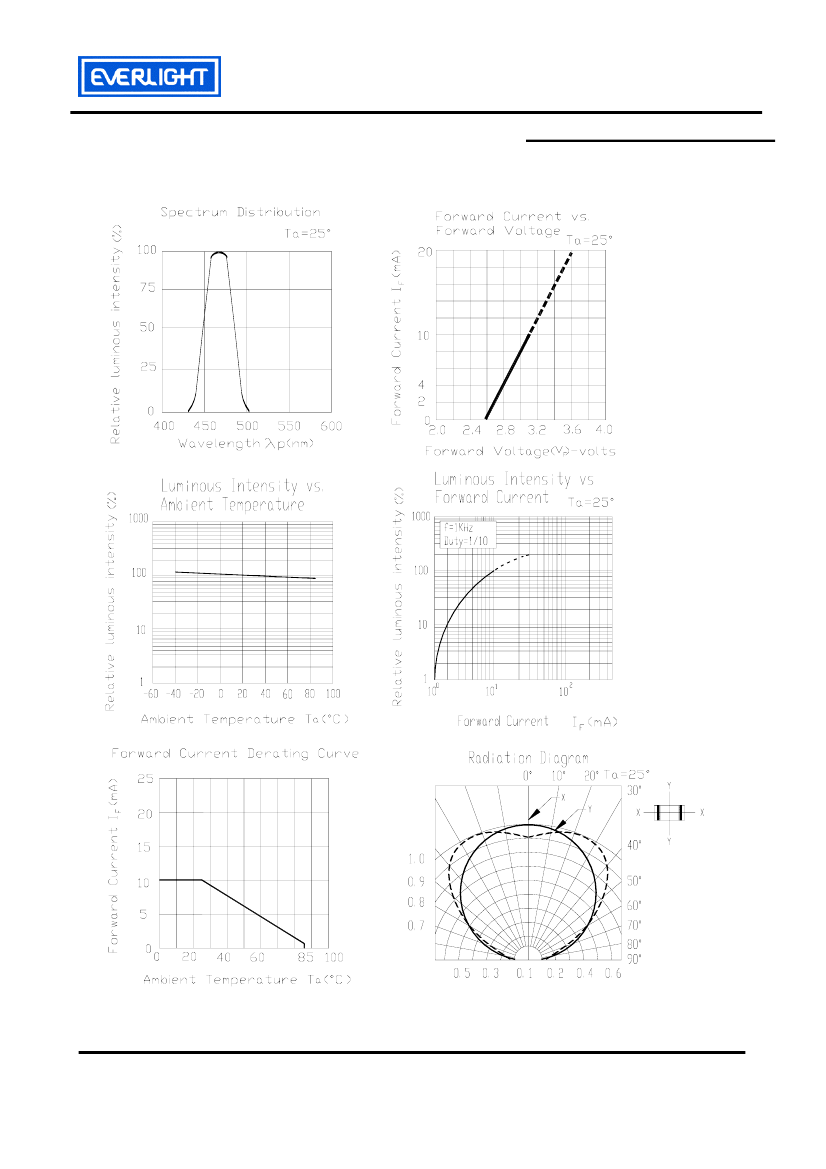

Typical Electro-Optical Characteristics Curves
Everlight Electronics Co., Ltd.
Device No. : DSE- 199-B01
http://www.everlight.com
Prepared date: 29-Nov-2006
Rev.1
Page: 5 of 9
Prepared by: Jay Chou
