PIC16C67-20I/PREL datasheet, PDF

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> PIC16C67-20I/PREL

PIC16C67-20I/PREL: Description40 Pin, 14 KB OTP, 368 RAM, 33 I/O, -40C to +85C, 40-PDIP, TUBE; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，337 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com; Environmental Compliance

Download Datasheet Parametric Compare View All

PIC16C67-20I/PREL Overview

40 Pin, 14 KB OTP, 368 RAM, 33 I/O, -40C to +85C, 40-PDIP, TUBE

PIC16C67-20I/PREL Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Parts packaging code	DIP
package instruction	DIP,
Contacts	40
Reach Compliance Code	compliant
Has ADC	NO
Address bus width
bit size	8
maximum clock frequency	20 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-CDIP-T40
length	52.07 mm
Number of I/O lines	33
Number of terminals	40
On-chip program ROM width	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
ROM programmability	OTPROM
Filter level	TS 16949
Maximum seat height	5.715 mm
speed	20 MHz
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER, RISC
Base Number Matches	1

Preview

Download Datasheet

View All

PIC16C6X

8-Bit CMOS Microcontrollers

Devices included in this data sheet:

• PIC16C61

• PIC16C62

• PIC16C62A

• PIC16CR62

• PIC16C63

• PIC16CR63

• PIC16C64

• PIC16C64A

• PIC16CR64

• PIC16C65

• PIC16C65A

• PIC16CR65

• PIC16C66

• PIC16C67

• Low-power, high-speed CMOS EPROM/ROM

technology

• Fully static design

• Wide operating voltage range: 2.5V to 6.0V

• Commercial, Industrial, and Extended

temperature ranges

• Low-power consumption:

•

< 2 mA @ 5V, 4 MHz

•

A typical @ 3V, 32 kHz

•

< 1

A typical standby current

PIC16C6X Microcontroller Core Features:

• High performance RISC CPU

• Only 35 single word instructions to learn

• All single cycle instructions except for program

branches which are two-cycle

• Operating speed: DC - 20 MHz clock input

DC - 200 ns instruction cycle

• Interrupt capability

• Eight level deep hardware stack

• Direct, indirect, and relative addressing modes

• Power-on Reset (POR)

• Power-up Timer (PWRT) and

Oscillator Start-up Timer (OST)

• Watchdog Timer (WDT) with its own on-chip RC

oscillator for reliable operation

• Programmable code-protection

• Power saving SLEEP mode

• Selectable oscillator options

PIC16C6X Features

Program Memory

(EPROM) x 14

(ROM) x 14

Data Memory (Bytes) x 8

I/O Pins

Parallel Slave Port

Capture/Compare/PWM

Module(s)

Timer Modules

Serial Communication

In-Circuit Serial

Programming

Brown-out Reset

Interrupt Sources

—

PIC16C6X Peripheral Features:

• Timer0: 8-bit timer/counter with 8-bit prescaler

• Timer1: 16-bit timer/counter with prescaler,

can be incremented during sleep via

external crystal/clock

• Timer2: 8-bit timer/counter with 8-bit period

• Capture/Compare/PWM (CCP) module(s)

• Capture is 16-bit, max resolution is 12.5 ns,

Compare is 16-bit, max resolution is 200 ns,

PWM max resolution is 10-bit.

• Synchronous Serial Port (SSP) with SPI

™

and I

™

• Universal Synchronous Asynchronous Receiver

Transmitter (USART/SCI)

• Parallel Slave Port (PSP) 8-bits wide, with

external RD, WR and CS controls

• Brown-out detection circuitry for

Brown-out Reset (BOR)

R63

—

192

—

128

—

SPI/

62A

—

128

—

SPI/

R62

—

128

—

192

—

128

Yes

64A

—

128

Yes

SPI/

R64

—

128

Yes

—

192

Yes

65A

—

192

Yes

R65

—

192

Yes

—

368

—

368

Yes

SPI/ SPI/I C, SPI/I C, SPI/

C USART USART I

SPI/ SPI/I C, SPI/I C, SPI/I C, SPI/I C, SPI/I

C USART USART USART USART USART

Yes

—

Yes

—

Yes

—

Yes

—

Yes

25/25

Yes

25/25

Yes

25/25

Yes

25/25

Sink/Source Current (mA) 25/20 25/25 25/25 25/25 25/25

25/25 25/25 25/25 25/25 25/25

1997 Microchip Technology Inc.

DS30234D-page 1

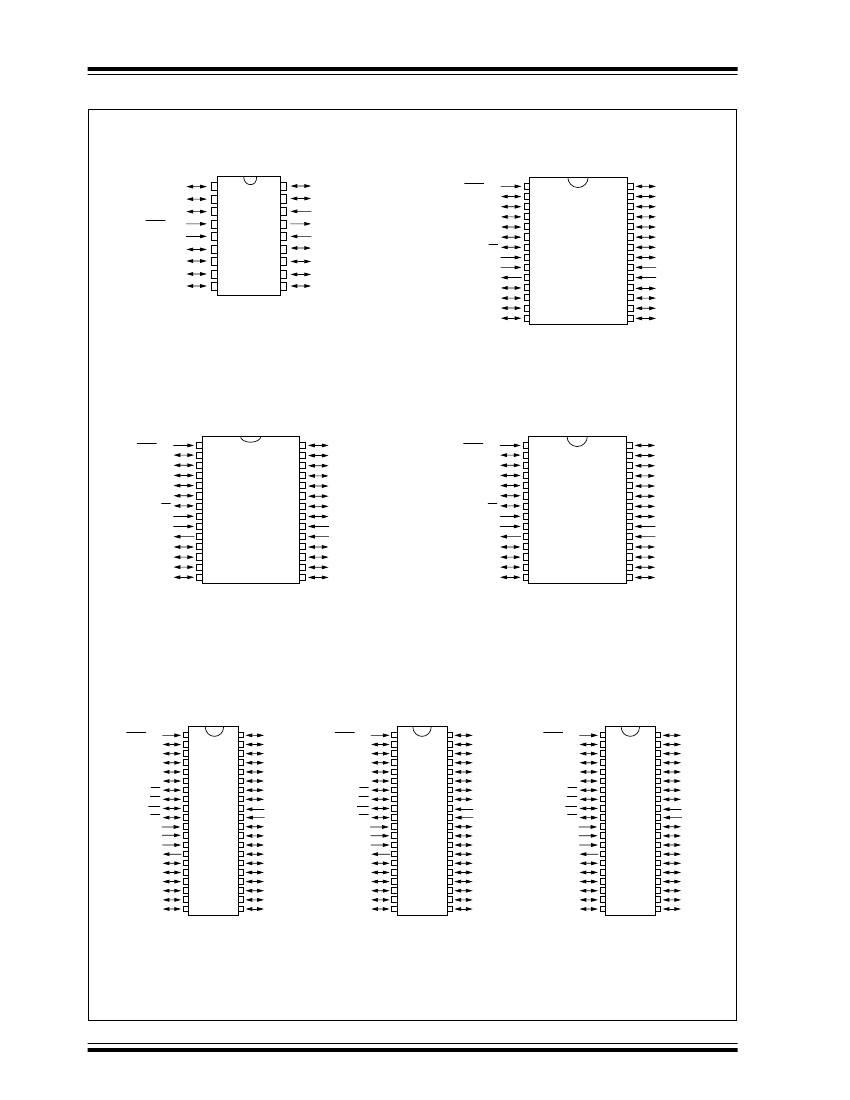

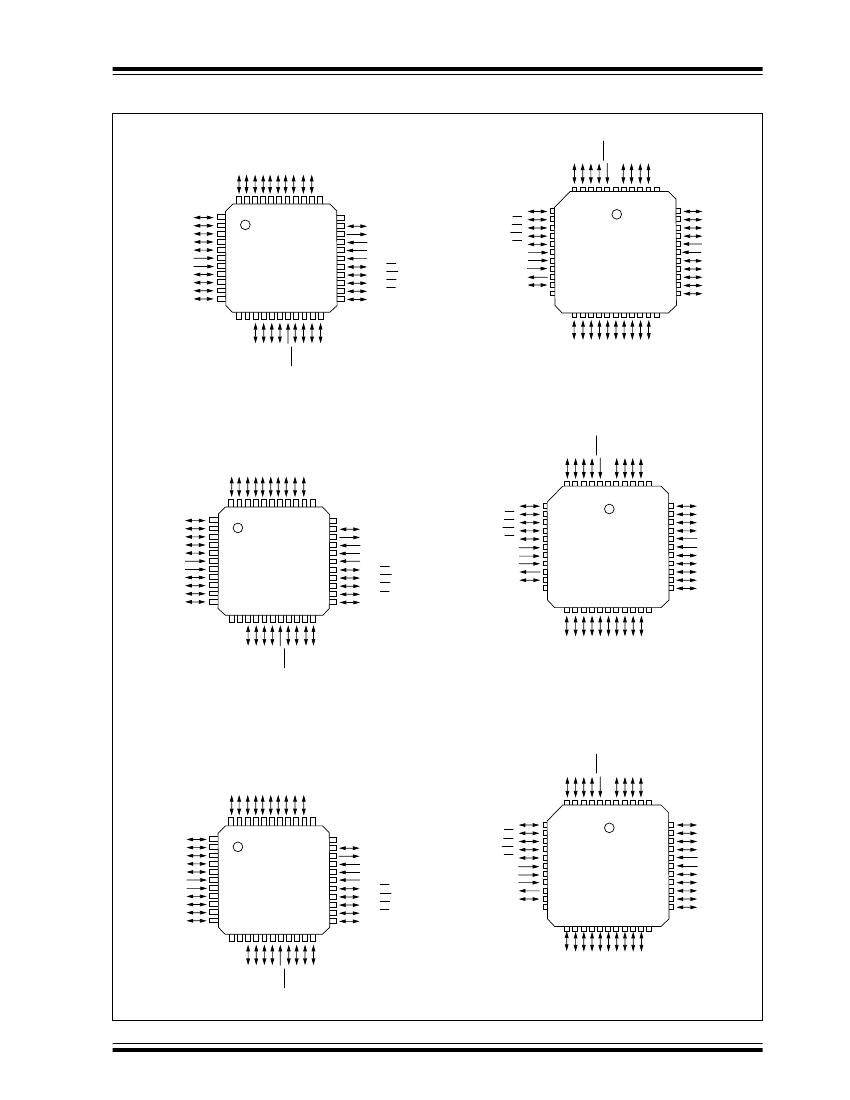

PIC16C6X

Table Of Contents

General Description ....................................................................................................................................................................... 5

PIC16C6X Device Varieties ........................................................................................................................................................... 7

Architectural Overview ................................................................................................................................................................... 9

Memory Organization................................................................................................................................................................... 19

I/O Ports....................................................................................................................................................................................... 51

Overview of Timer Modules ......................................................................................................................................................... 63

Timer0 Module ............................................................................................................................................................................. 65

Timer1 Module ............................................................................................................................................................................. 71

Timer2 Module ............................................................................................................................................................................. 75

Capture/Compare/PWM (CCP) Module(s)................................................................................................................................... 77

Synchronous Serial Port (SSP) Module....................................................................................................................................... 83

Universal Synchronous Asynchronous Receiver Transmitter (USART) Module ....................................................................... 105

Special Features of the CPU ..................................................................................................................................................... 123

Instruction Set Summary............................................................................................................................................................ 143

Development Support ................................................................................................................................................................ 159

Electrical Characteristics for PIC16C61..................................................................................................................................... 163

DC and AC Characteristics Graphs and Tables for PIC16C61.................................................................................................. 173

Electrical Characteristics for PIC16C62/64................................................................................................................................ 183

Electrical Characteristics for PIC16C62A/R62/64A/R64............................................................................................................ 199

Electrical Characteristics for PIC16C65..................................................................................................................................... 215

Electrical Characteristics for PIC16C63/65A ............................................................................................................................. 231

Electrical Characteristics for PIC16CR63/R65........................................................................................................................... 247

Electrical Characteristics for PIC16C66/67................................................................................................................................ 263

DC and AC Characteristics Graphs and Tables for:

PIC16C62, PIC16C62A, PIC16CR62, PIC16C63, PIC16C64, PIC16C64A, PIC16CR64,

PIC16C65A, PIC16C66, PIC16C67........................................................................................................................................... 281

25.0 Packaging Information ............................................................................................................................................................... 291

Appendix A: Modifications.............................................................................................................................................................. 307

Appendix B: Compatibility .............................................................................................................................................................. 307

Appendix C: What’s New................................................................................................................................................................ 308

Appendix D: What’s Changed ........................................................................................................................................................ 308

Appendix E:

PIC16/17 Microcontrollers ....................................................................................................................................... 309

Pin Compatibility ................................................................................................................................................................................ 315

Index .................................................................................................................................................................................................. 317

List of Equation and Examples........................................................................................................................................................... 326

List of Figures..................................................................................................................................................................................... 326

List of Tables...................................................................................................................................................................................... 330

Reader Response .............................................................................................................................................................................. 334

PIC16C6X Product Identification System........................................................................................................................................... 335

1.0

2.0

3.0

4.0

5.0

6.0

7.0

8.0

9.0

10.0

11.0

12.0

13.0

14.0

15.0

16.0

17.0

18.0

19.0

20.0

21.0

22.0

23.0

24.0

For register and module descriptions in this data sheet, device legends show which devices apply to those sections. For

example, the legend below shows that some features of only the PIC16C62A, PIC16CR62, PIC16C63, PIC16C64A,

PIC16CR64, and PIC16C65A are described in this section.

Applicable Devices

61 62 62A R62 63 R63 64 64A R64 65 65A R65 66 67

To Our Valued Customers

We constantly strive to improve the quality of all our products and documentation. We have spent an exceptional

amount of time to ensure that these documents are correct. However, we realize that we may have missed a few

things. If you ﬁnd any information that is missing or appears in error, please use the reader response form in the

back of this data sheet to inform us. We appreciate your assistance in making this a better document.

DS30234D-page 4

1997 Microchip Technology Inc.

PIC16C67-20I/PREL Related Products

	PIC16C67-20I/PREL	PIC16C65A-20I/PREL
Description	40 Pin, 14 KB OTP, 368 RAM, 33 I/O, -40C to +85C, 40-PDIP, TUBE	40 Pin, 7 KB OTP, 192 RAM, 33 I/O, -40C to +85C, 40-PDIP, TUBE
Is it lead-free?	Lead free	Lead free
Parts packaging code	DIP	DIP
package instruction	DIP,	DIP,
Contacts	40	40
Reach Compliance Code	compliant	compliant
Has ADC	NO	NO
bit size	8	8
maximum clock frequency	20 MHz	20 MHz
DAC channel	NO	NO
DMA channel	NO	NO
JESD-30 code	R-CDIP-T40	R-CDIP-T40
length	52.07 mm	52.07 mm
Number of I/O lines	33	33
Number of terminals	40	40
On-chip program ROM width	14	14
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
PWM channel	NO	NO
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
ROM programmability	OTPROM	OTPROM
Filter level	TS 16949	TS 16949
Maximum seat height	5.715 mm	5.715 mm
speed	20 MHz	20 MHz
Maximum supply voltage	5.5 V	6 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	NO	NO
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
width	15.24 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER, RISC	MICROCONTROLLER, RISC
Base Number Matches	1	1
