DS52-001-RTR Overview

Analog Circuit,

DS52-001-RTR Parametric

Parameter Name	Attribute value
Maker	MACOM
package instruction	,
Reach Compliance Code	compli

Preview

Download Datasheet

View All

Low Cost Two-way SMT Power Divider,

824 - 960 MHz

Features

•

Small Size and Low Profile

Industry Standard SOIC-8 SMT Plastic Package

Excellent Amplitude and Phase Balance

Superior Repeatability

Typical Insertion Loss 0.5 dB

Typical Isolation 23 dB

1 Watt Power Handling

DS52-0001

SOW-16

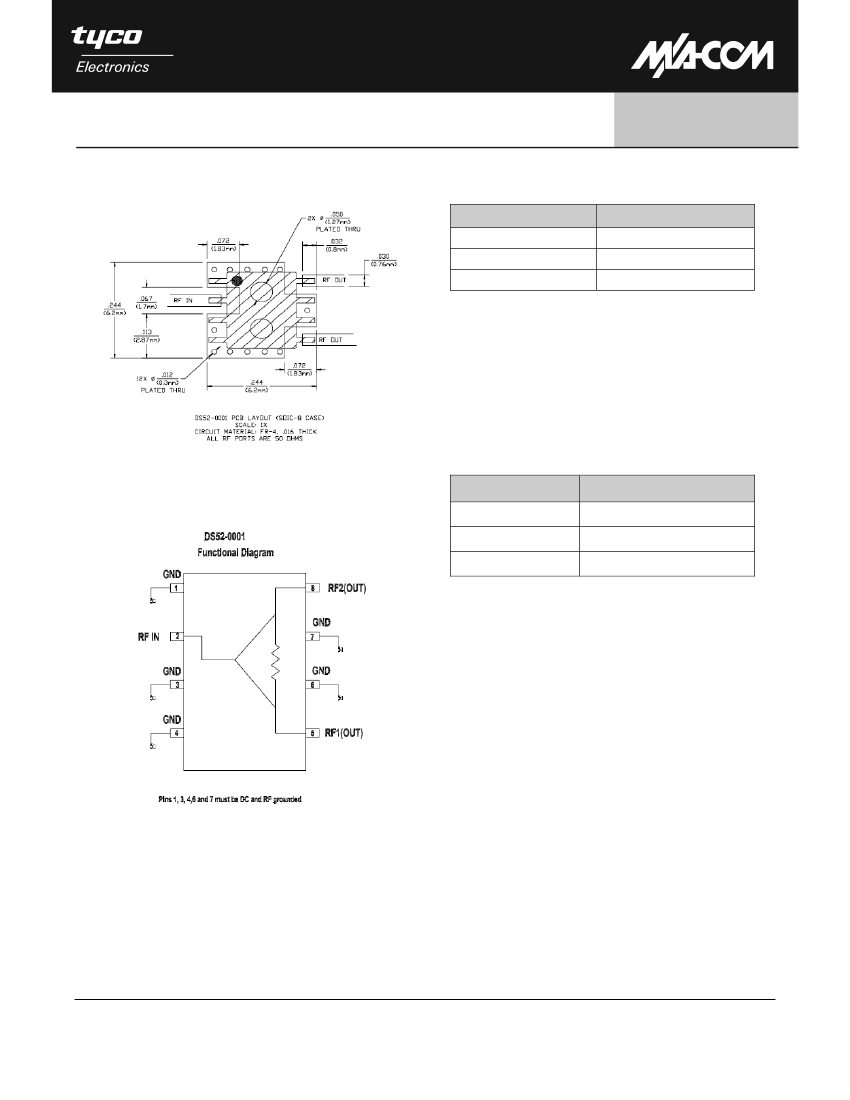

Description

M/A-COM’s DS52-0001 is an IC-based monolithic

power divider in a low cost SOIC-8 plastic package.

This 2-way power divider is ideally suited for applica-

tions where small size, low insertion loss, superior

phase/amplitude tracking and low cost are required.

Typical applications include base station switching

networks and other communication applications

where size and PCB real estate are a premium.

Available in tape and reel. The DS52-0001 is fabri-

cated using a passive-integrated circuit process. The

process features full-chip passivation for increased

performance and reliability.

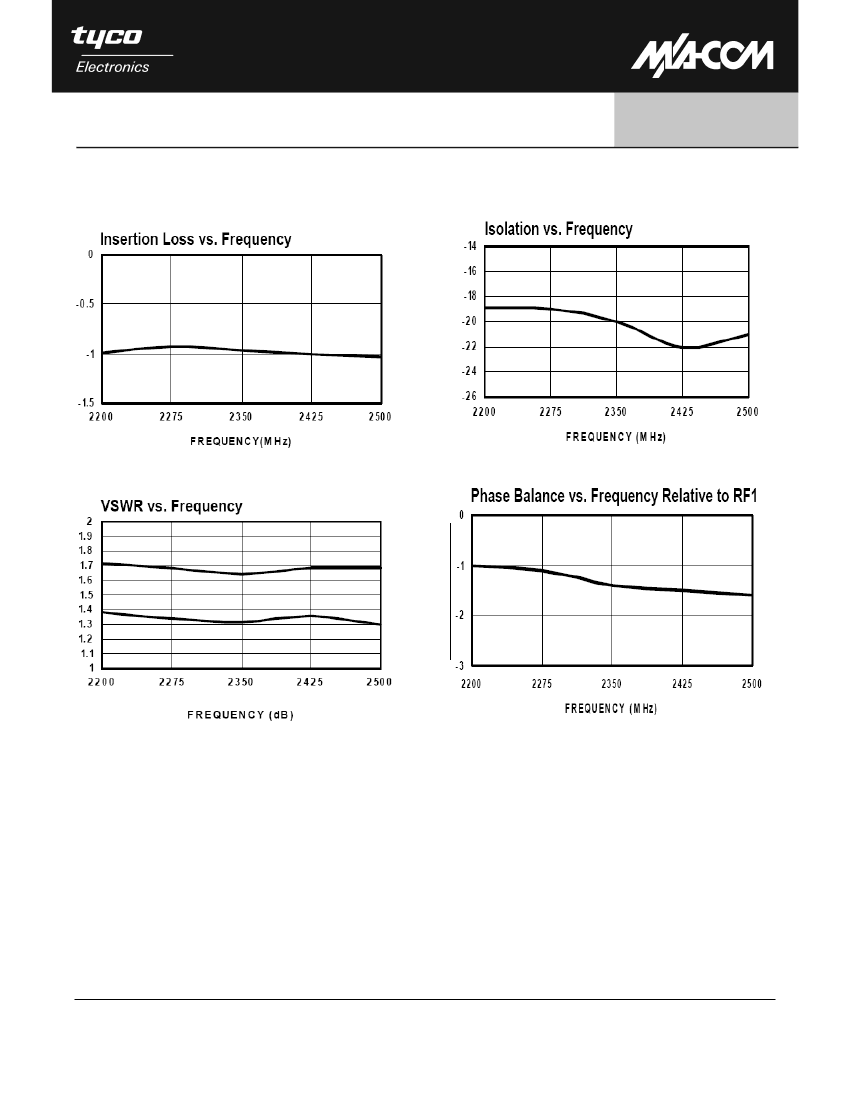

Electrical Specifications

: T

= 25 °C

Parameter

Insertion Loss

Isolation

Input RL VSWR

Amplitude Balance

Phase Balance

Frequency

824 - 960 MHz

Units

Ratio

deg

Min

—

Typ

0.5

1.2:1

0.05

0.5

Max

0.6

—

1.4:1

0.15

1.5

1. All specifications apply with a 50-ohm source and load impedance.

M/A-COM Inc. and its affiliates reserve the right to make changes to the

product(s) or information contained herein without notice. M/A-COM makes

no warranty, representation or guarantee regarding the suitability of its

products for any particular purpose, nor does M/A-COM assume any liability

whatsoever arising out of the use or application of any product(s) or

information.

•

North America

Tel: 800.366.2266 / Fax: 978.366.2266

•

Europe

Tel: 44.1908.574.200 / Fax: 44.1908.574.300

•

Asia/Pacific

Tel: 81.44.844.8296 / Fax: 81.44.844.8298

Visit www.macom.com for additional data sheets and product information.
