Last Update:
11/21/06
Dimensions: mm (in.)
Ref. #:
MS-10114
7.62
(.30)
O
N
ø.80 (ø.0315)

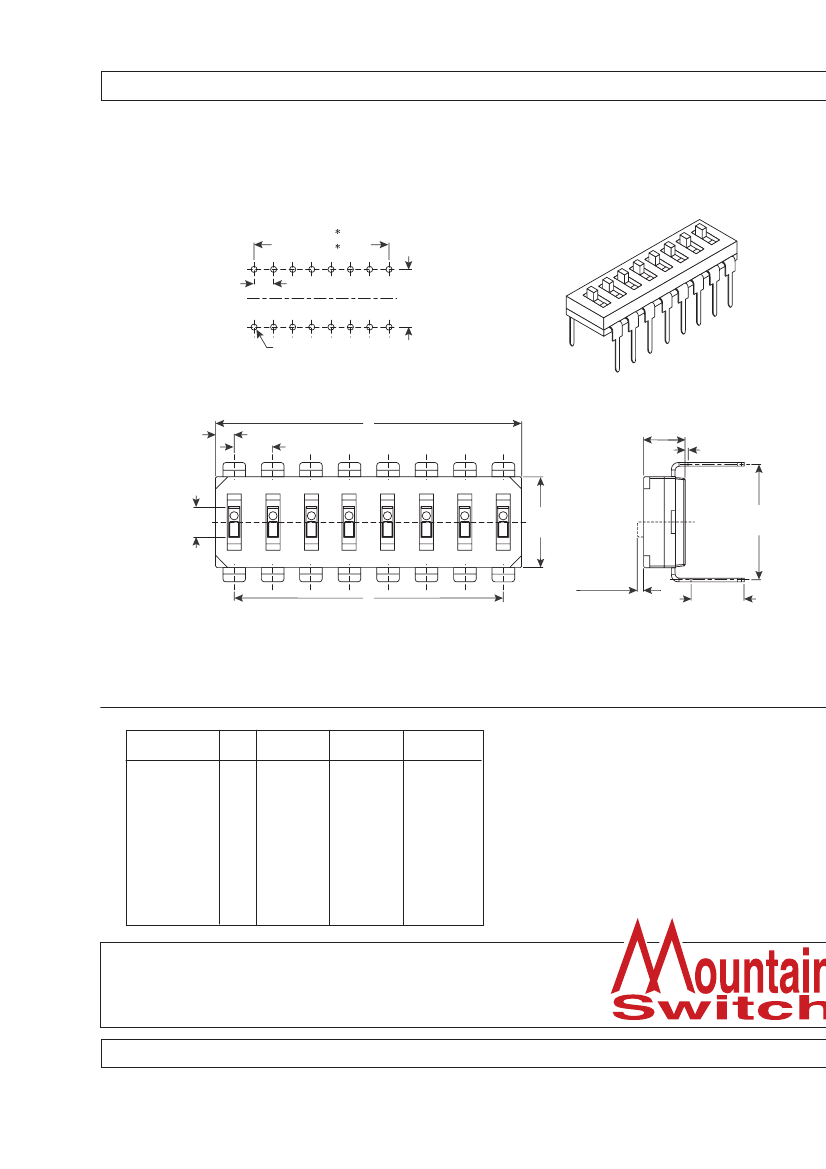

P.C.B. Layout
1
2
1.22 (.048)
2.54 (.10)
A
3
2.54 (.10)
2.80±.30
(.110±.012)
.20 (.008)
ON
DIP
6
(.236)
7.62
(.30)
1
34
2
(.079)
2
3
4
B
5
6
7
8
.40 (.016)
EIR Without
3.50±.25
(.138±.010)
Mouser
Stock No.
106-EI02-EV
106-EI03-EV
106-EI04-EV
106-EI06-EV
106-EI08-EV
106-EI10-EV
106-EIR2-EV
106-EIR3-EV
106-EIR4-EV
106-EIR6T-EV
106-EIR8T-EV
106-EIR10T-EV
No. of
Pos.
2
3
4
6
8
10
2
3
4
6
8
10
Dim A.
mm (In.)
4.98 (.196)
7.52 (.296)
10.06 (.396)
15.14 (.596)
20.22 (.796)
25.3 (.996)
4.98 (.196)
7.52 (.296)
10.06 (.396)
15.14 (.596)
20.22 (.796)
25.3 (.996)
Dim B.
mm (In.)
2.54 (.100)
5.08 (.100)
7.62 (.300)
12.70 (.500)
17.78 (.700)
22.86 (.900)
2.54 (.100)
5.08 (.100)
7.62 (.300)
12.70 (.500)
17.78 (.700)
22.86 (.900)
Actuator
Raised
Raised
Raised
Raised
Raised
Raised
Recessed
Recessed
Recessed
Recessed
Recessed
Recessed
Electrical Specifications:
•
Rating: Non-switching: 100mA/50V DC;
•
Contact resistance: 100mΩ max. (initial)
•
Insulation resistance: 100MΩ min.
Mechanical Specifications:
•
Operating temperature: -20°C ~ +85°C
•
Operation force: 1000gf max.
Note:
•
RoHS Compliant
4
5
6
7
B±.10=2.54 (P-1)
(B±.004=0.1 [P-1])
DIP Switches (Thru-Hole)
106-EI02-EV, 106-EI03-EV, 106-EI04-EV, 106-EI06-EV, 106-EI08-EV,
106-EI10-EV, 106-EIR2-EV, 106-EIR3-EV, 106-EIR4-EV, 106-EIR6T-EV,
106-EIR8T-EV, 106-EIR10T-EV
Available from Mouser Electronics
www.mouser.com
8
Switching: 25mA/24V DC
1-800-346-6873
Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
