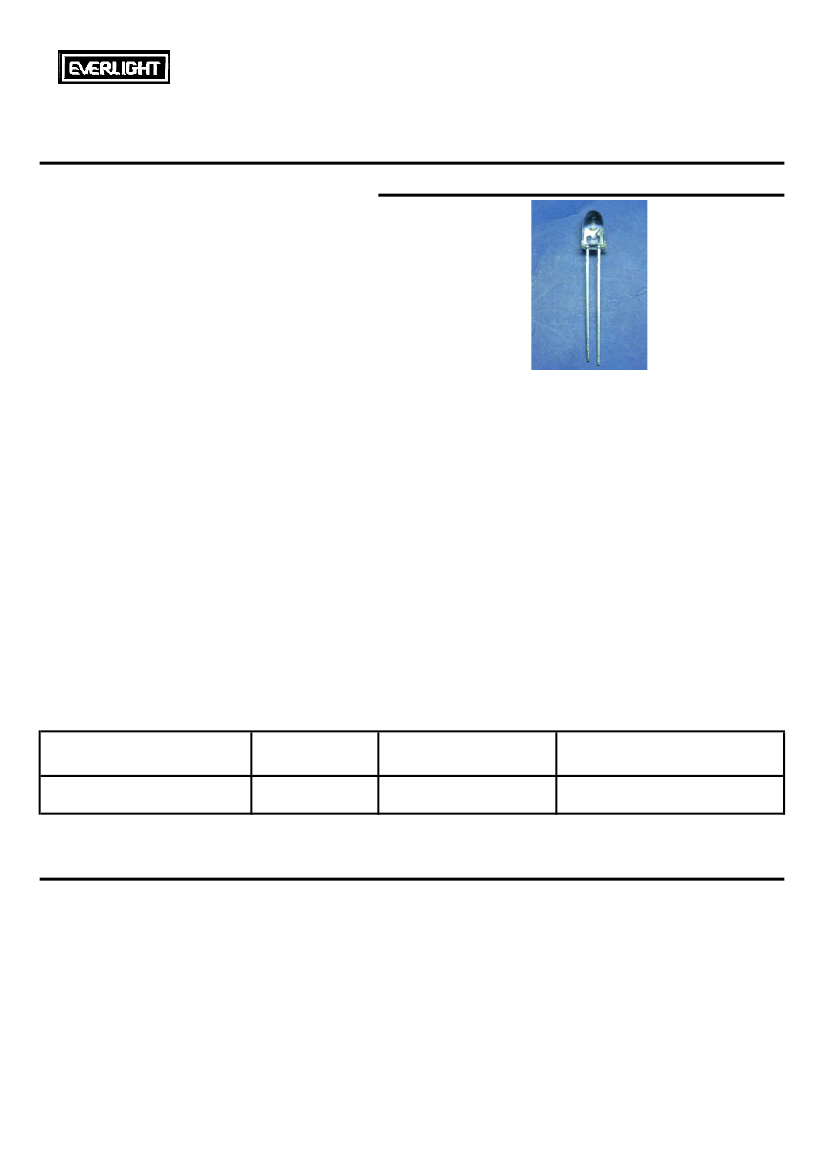

Technical Data Sheet
5.0mm Round Type LED Lamps
383-2SUBC/C470/S400-A4
█
Features :
●
●
●
●
Choice of various viewing angles
Available on tape and reel.
Reliable and robust
Pb free
●
The product itself will remain within RoHS compliant version.
█
Descriptions :
●
The series is specially designed for
applications requiring higher
brightness
●
The led lamps are available with
different colors, intensities.
█
Applications :
●
●
●
●
TV set
Monitor
Telephone
Computer
PART NO.
383-2SUBC/C470/S400-A4
Material
InGaN
Emitted Color
Blue
Lens Color
Water Clear
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDLE-038-213
http : //www.everlight.com
Prepared date: 2005/9/26
Rev.:
1
Page: 1 of 6
Xiuzhen Feng
Prepared by:
Technical Data Sheet
5.0mm Round Type LED Lamps
383-2SUBC/C470/S400-A4
Package Dimensions
Notes:
1. All dimensions are in millimetres
2. The height of flange must be less than 1.5mm(0.059").
3. Without special declared,the tolerance is
±0.25mm.
█ Absolute Maximum Ratings at Ta = 25℃
Parameter
Forward Current
Operating Temperature
Storage Temperature
Electrostatic Discharge
Soldering Temperature
Power Dissipation
Reverse Voltage
Symbol
I
F
Topr
Tstg
ESD
Tsol
Pd
V
R
Rating
25
-40 to +85
-40 to +100
150
260
±
5
110
5
Unit
mA
℃
℃
V
℃
mW
V
Note: *1:Soldering time ≦ 5 seconds.
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDLE-038-213
http : //www.everlight.com
Prepared date:
2005/9/26
Rev.:
1
Prepared by:
Page: 2 of 6
Xiuzhen Feng
Technical Data Sheet
5.0mm Round Type LED Lamps
383-2SUBC/C470/S400-A4
Electro-Optical Characteristics (Ta=25℃)
Parameter
Symbol
Condition
Min.
Typ.
Max.
Unit
Forward Voltage
VF
I
F
=
20
mA
／
3.4
4.0
V
Reverse Current
IR
V
R
=
5
V
／
／
50
μA
Luminous Intensity
Iv
I
F
=
20
mA
1250
2000
／
mcd
Viewing Angle
2θ1/2
I
F
=
20
mA
／
6
／
deg
Peak Wavelength
λp
I
F
=
20
mA
／
468
／
nm
Dominant Wavelength
Spectrum Radiation
Bandwidth
λd
I
F
=
20
mA
／
470
／
nm
△λ
I
F
=
20
mA
／
35
／
nm
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDLE-038-213
http : //www.everlight.com
Prepared date:
2005/9/26
Rev.:
Prepared by:
1
Xiuzhen Feng
Page: 3 of 6
Technical Data Sheet
5.0mm Round Type LED Lamps
383-2SUBC/C470/S400-A4
█

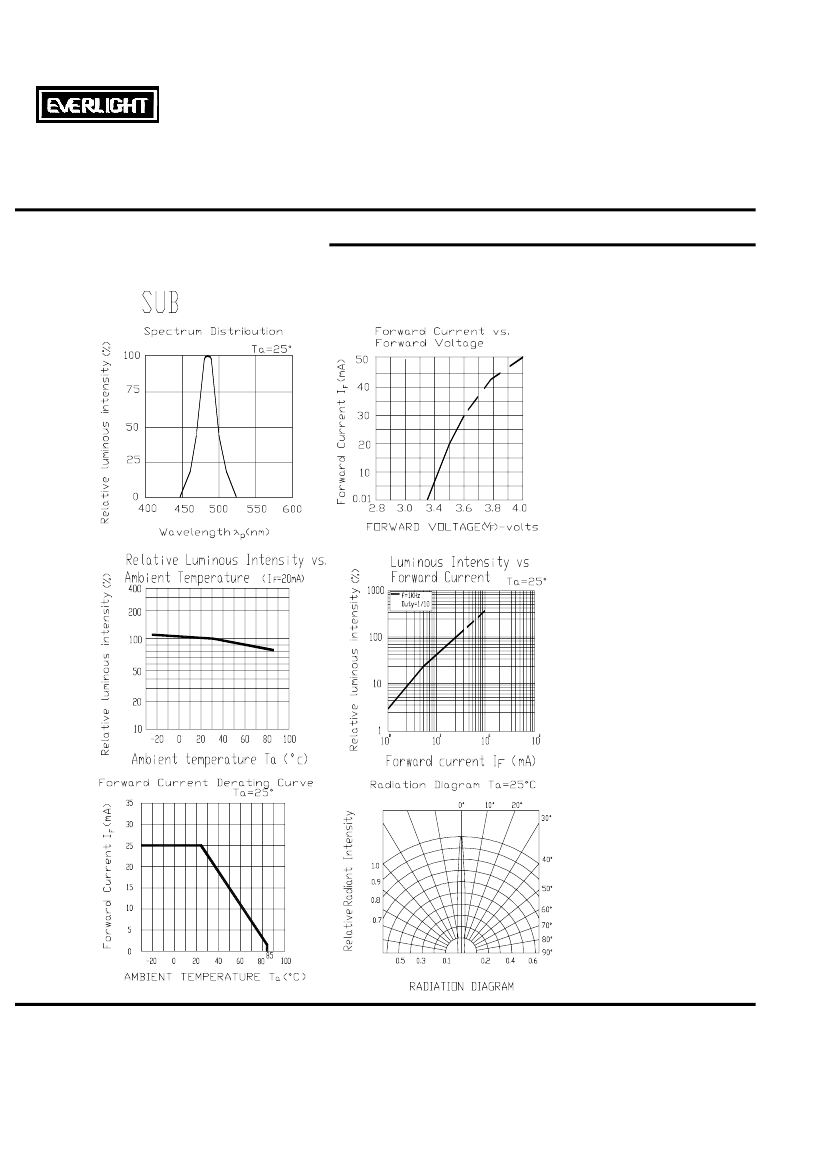

Typical Electro-Optical Characteristic Curves:
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDLE-038-213
http : //www.everlight.com
Prepared date: 2005/9/26
Rev.:
Prepared by:
1
Page: 4 of 6
Xiuzhen Feng
Technical Data Sheet
5.0mm Round Type LED Lamps
383-2SUBC/C470/S400-A4
█
Reliability test items and conditions:
The reliability of products shall be satisfied with items listed below.
Confidence level：97%
LTPD：3%
NO
Item
Test Conditions
Test
Hours/Cycle
10 SEC
Sample Size
Failure Judgment
Criteria
Ac/Re
1
Solder Heat
TEMP : 260℃
±
5 ℃
76 PCS
0/1
2
Temperature Cycle
3
Thermal Shock
High Temperature
Storage
Low Temperature Storage
H : +100℃ 15min
∫ 5 min 300 CYCLES
L : -40℃ 15min
H : +100℃ 5min
∫ 10 sec
300 CYCLES
L : -10℃ 5min
TEMP : 100℃
1000 HRS
76 PCS
0/1
76 PCS
Iv≦Ivt*0.5 or
Vf≧U
or
Vf≦L
0/1
4
76 PCS
0/1
5
TEMP : -40℃
TEMP : 25℃
I
F
= 20mA
85℃ / 85% RH
1000 HRS
76 PCS
0/1
6
7
DC Operating Life
High Temperature /
High Humidity
1000 HRS
1000 HRS
76 PCS
76 PCS
0/1
0/1
Note：Ivt：To test Iv value of the chip before the reliablility test
Iv：The test value of the chip that has completed the reliablility test
U：Upper Specification Limit
L： Lower Specification Limit
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDLE-038-213
http : //www.everlight.com
Prepared date:
2005/9/26
Rev.: 1
Prepared by:
Page: 5 of 6
Xiuzhen Feng
