1. FEATURES
·
·
·
·
·
·
·
·
High intensity with small package, ideal for backlighting
Wide viewing angle ( 120° )
Package Outline (L×W×H)=5.0×5.0×1.5 mm
Technology : InGaN
Color coordinates CIE(x,y) : (0.31,0.31) according to CIE 1931.
Suitable for all SMT assembly methods
Suitable for all soldering methods
Delivery on 12mm tape reels
T5050

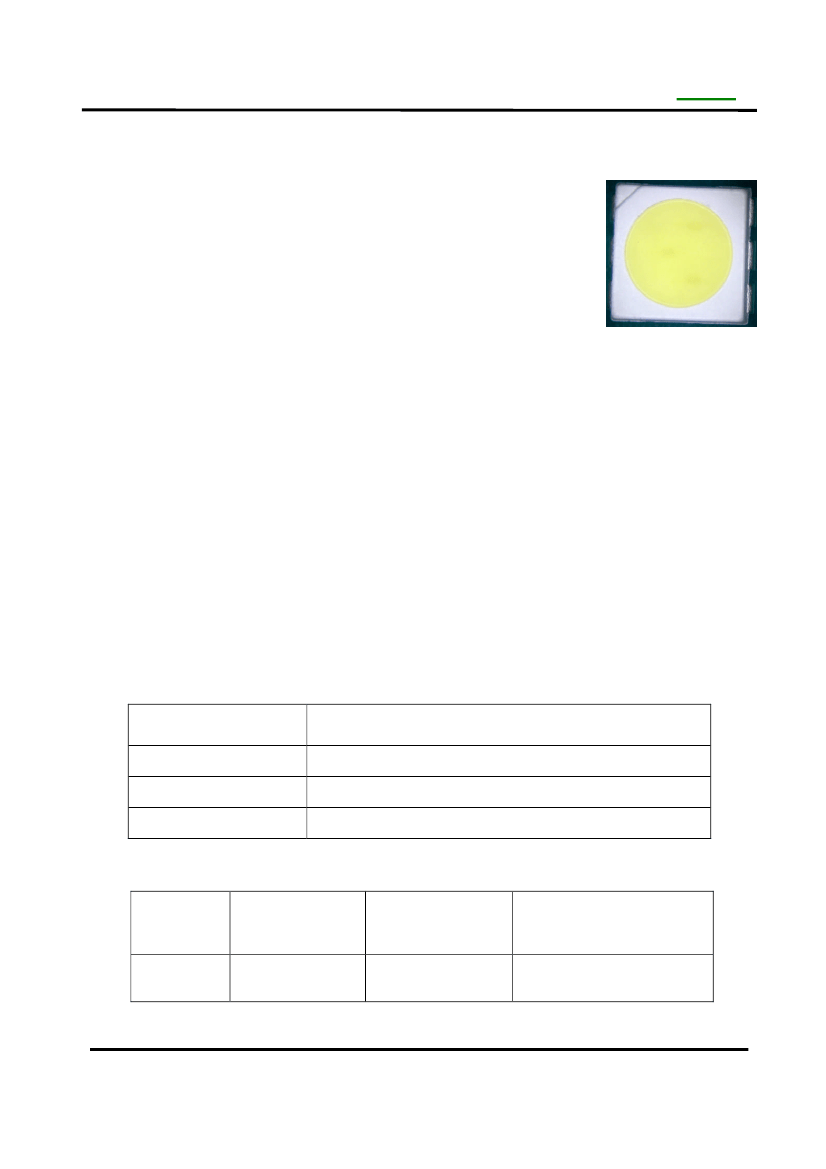

Top View LED with Reflector
2. APPLICATIONS
·
·
·
·
·
·
·
Automotive: indoor/outdoor lighting.
Signal and symbol lightings
Backlighting (Large LCD…..)
All applications in notice high intensities are required
Strobe Light
Channel Letter
Decorative Light
3. DEVICES PACKAGE
ITEM
Package
Encapsulating
Electrodes
MATERIALS
Heat-Resistant Polymer
Heat Resistance Resin
Ag Plating Copper Alloy
Type
T5050
Color of
Emission
White
Color of the Light
Emitting Area
Colored
Luminous intensity
Iv (mcd)
I
F
=20mA
3000 ~ 6000
Doc. No. : RD-EDS-0031
Version 1.0
Date : 2007.01.10
Page: 1 of 14
AVA Technology
5. ABSOLUTE MAXIMUM RATINGS ( T
A
=25℃ )
Parameter
Reverse Voltage
Forward Current
Operating Temperature
Storage Temperature
Soldering Temperature
Power Dissipation
Peak Forward Current
(Duty 1/10 @ 1KHz)
Junction temperature
Thermal Resistance
(Junction to ambient)
Symbol
V
R
I
F
T
opr
T
stg
T
sol
P
D
I
F(peak)
Tj
R
th, JA
Absolute Max. Rating
5
40
-30 ~ +85
-40 ~ +100
260 (for 5 sec)
432 (3 chips ON)
240 (3 chips ON)
110
450
T5050
Unit
V
mA
℃
℃
℃
mW
mA
℃
℃/W
6. ELECTRONIC OPTICAL CHARACTERISTICS
Parameter
Chromaticity coordinate x
acc. To CIE 1931
Chromaticity coordinate y
acc. To CIE 1931
Viewing Angle
Forward Voltage
Leakage Current
Symbol
x
y
2θ
1/2
V
F
IR
Condition
I
F
=20/20/20mA
I
F
=20/20/20mA
I
F
=20/20/20mA
I
F
=20/20/20mA
VR=
-5V
Min.
---
---
---
---
---
Typ. Max. Unit
0.31
0.31
120
3.30
---
---
---
---
3.60
50
---
---
Deg
V
μA
Doc. No. : RD-EDS-0031
Version 1.0
Date : 2007.01.10
Page: 3 of 14
AVA Technology
7. LUMINOUS INTENSITY GROUPS:
Luminous intensity
group
W5
W4
W3
W2
Measurement
condition
Luminous intensity
Iv(mcd)
5000-6000
4250-5000
3600-4250
3000-3600
T5050
I
F
= 20/20/20 mA
* Luminous intensity group includes 4 groups W2 to W5.
* Luminous intensity is tested at a current pulse duration of 25ms and a tolerance of ±
10%
Doc. No. : RD-EDS-0031
Version 1.0
Date : 2007.01.10
Page: 4 of 14
