BM-50J58MD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> BM-50J58MD

BM-50J58MD: Description5 X 8 Dot Matrix LED Display, Ultra Orange, 127mm, DM-14, 14 PIN; CategoryLED optoelectronic/LED photoelectric; File Size380KB，1 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/

Download Datasheet Parametric Compare View All

BM-50J58MD Overview

5 X 8 Dot Matrix LED Display, Ultra Orange, 127mm, DM-14, 14 PIN

BM-50J58MD Parametric

Parameter Name	Attribute value
package instruction	DM-14, 14 PIN
Reach Compliance Code	unknown
color	ULTRA ORANGE
Configuration	COMMON CATHODE, 1 DIGIT
Display height	127 mm
Maximum forward current	0.03 A
Number of functions	1
Optoelectronic device types	5 X 8 DOT MATRIX LED DISPLAY
Base Number Matches	1

Preview

Download Datasheet

View All

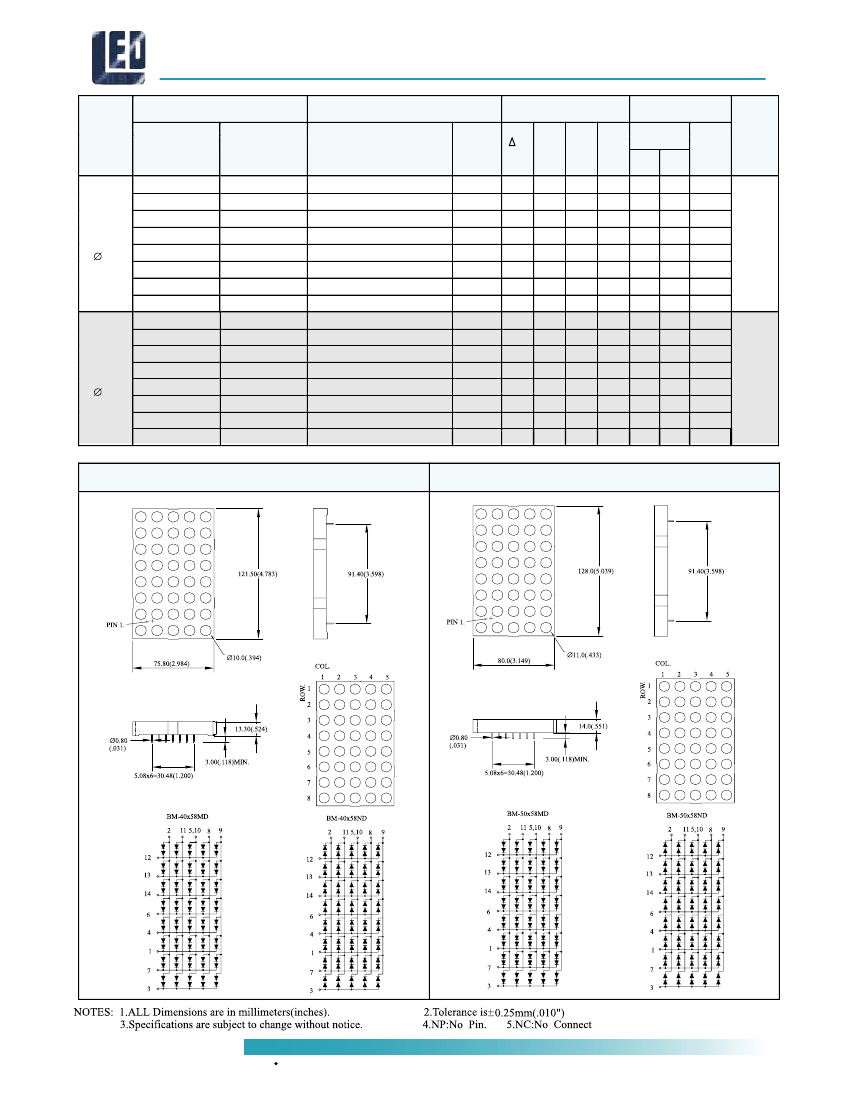

LED Dot Matrix Display

5 x 8 Single Color

Part No.

Digit Size

Column

Common

Anode

BM-40258MD

BM-40458MD

4.78"

High

10.0

BM-40458MA

BM-40658MD

BM-40658MA

BM-40F58MD

BM-40J58MD

BM-40K58MD

BM-50258MD

BM-50458MD

5.00"

High

11.0

BM-50458MA

BM-50658MD

BM-50658MA

BM-50F58MD

BM-50J58MD

BM-50K58MD

Column

Common

Cathode

BM-40258ND

BM-40458ND

BM-40458NA

BM-40658ND

BM-40658NA

BM-40F58ND

BM-40J58ND

BM-40K58ND

BM-50258ND

BM-50458ND

BM-50458NA

BM-50658ND

BM-50658NA

BM-50F58ND

BM-50J58ND

BM-50K58ND

Chip

Material/Emitted

Color

GaP/ GaP/ Yellow Green

GaAsP/GaP/ Hi-Eff.Red

GaAlAs/ SH/ Super Red

GaAlAs/ DDH/ Super Red

AlGaInP/GaAs/ Ultra Orange

AlGaInP/GaAs/ Ultra Yellow

GaP/ GaP/ Yellow Green

GaAsP/GaP/ Hi-Eff.Red

GaAlAs/ SH/ Super Red

GaAlAs/ DDH/ Super Red

AlGaInP/GaAs/ Ultra Orange

AlGaInP/GaAs/ Ultra Yellow

Peak

Wave

Length

p(nm)

568

635

660

620

592

568

635

660

620

592

Electro-optical

Data(At 10mA)

Drawing

Iv. Typ.

No.

(v)

Ifp

Per.Seg.

(nm) (mw) (mA) (mA)

Typ. Max. (mcd)

160

150

4.2

4.0

3.4

4.0

4.2

4.0

3.4

4.0

4.2

5.0

12.0

16.0

20.0

25.0

26.0

12.0

16.0

20.0

25.0

26.0

DM-14

DM-13

Absolute Maximum

Ratings

DM-13

BM-40x58MD

DM-14

BM-50x58MD

AMERICAN BRIGHT

(909) 628-5050 FAX (909) 628-5006

w w w .a me r ica nbr ightle d.co m

DSP-71
