LLUDZS3.6B
THRU
LLUDZS36B
200
mW
Zener Diode
3.6
to
36
Volts
MICROMELF
Features
Saving space
Fits onto SOD-323 footprints
Very tight tolerance on zener breakdown voltage
Micro MELF package
Absolute Maximum Ratings
Symbol
P
D
T
J
T
STG
Parameter
Power dissipation
Junction Temperature
Storage Temperature Range
Rating
200
150
-55 to +150
Unit
mW
o
Cathode Mark
C
C
o
C
B
A
DIMENSIONS
INCHES
MIN
.071
.004
.047
MM
MIN
1.8
.10
1.20
DIM
A
B
C
MAX
.079
.008
.051
MAX
2.0
.20
1.30
NOTE
∅
SUGGESTED SOLDER
PAD LAYOUT
0.039
0.055”
0.030”
www.mccsemi.com
Revision: 1
1 of 5
2007/12/25
LLUDZS3.6B THRU LLUDZS36B
MCC
Micro Commercial Components
TM
Electrical Characteristics
Tj=25
Type
Number
LLUDZS3.6B
LLUDZS3.9B
LLUDZS4.3B
LLUDZS4.7B
LLUDZS5.1B
LLUDZS5.6B
LLUDZS6.2B
LLUDZS6.8B
LLUDZS7.5B
LLUDZS8.2B
LLUDZS9.1B
LLUDZS10B
LLUDZS11B
LLUDZS12B
LLUDZS13B
LLUDZS15B
LLUDZS16B
LLUDZS18B
LLUDZS20B
LLUDZS22B
LLUDZS24B
LLUDZS27B
LLUDZS30B
LLUDZS33B
LLUDZS36B
1)
2)
Zener voltage range
1)
V
Z
(V) @ I
ZT
I
ZT
Min.
Max.
mA
3.60
3.845
5
3.89
4.16
5
4.17
4.43
5
4.55
4.75
5
4.98
5.20
5
5.49
5.73
5
6.06
6.33
5
6.65
6.93
5
7.28
7.60
5
8.02
8.36
5
8.85
9.23
5
9.77
10.21
5
10.76
11.22
5
11.74
12.24
5
12.91
13.49
5
14.34
14.98
5
15.85
16.51
5
17.56
18.35
5
19.52
20.39
5
21.54
22.47
5
23.72
24.78
5
26.19
27.53
5
29.19
30.69
5
32.15
33.79
5
35.07
36.87
5
Maximum zener Impedance
2)
Z
ZT
Z
ZK
I
ZK
Ω
mA
100
1000
1.0
100
1000
1.0
100
1000
1.0
100
800
0.5
80
500
0.5
60
200
0.5
60
100
0.5
40
60
0.5
30
60
0.5
30
60
0.5
30
60
0.5
30
60
0.5
30
60
0.5
30
80
0.5
37
80
0.5
42
80
0.5
50
80
0.5
65
80
0.5
85
100
0.5
100
100
0.5
120
120
0.5
150
150
0.5
200
200
0.5
250
250
0.5
300
300
0.5
Reverse current
1)
I
R
V
R
µA
V
10
1.0
5
1.0
5
1.0
2
1.0
2
1.5
1
2.5
1
3.0
0.5
3.5
0.5
4.0
0.5
5.0
0.5
6.0
0.1
7.0
0.1
8.0
0.1
9.0
0.1
10
0.1
11
0.1
12
0.1
13
0.1
15
0.1
17
0.1
19
0.1
21
0.1
23
0.1
25
0.1
27
Short duration test pulse used to minimize self-heating effect
The zener impedance (Z
ZT
,Z
ZK
) are measure by superimposing a minute alternating current on the regulated current(I
Z
)
www.mccsemi.com
Revision: 1
2 of 5
2007/12/25
LLUDZS3.6B THRU LLUDZS36B
MCC
Micro Commercial Components
TM

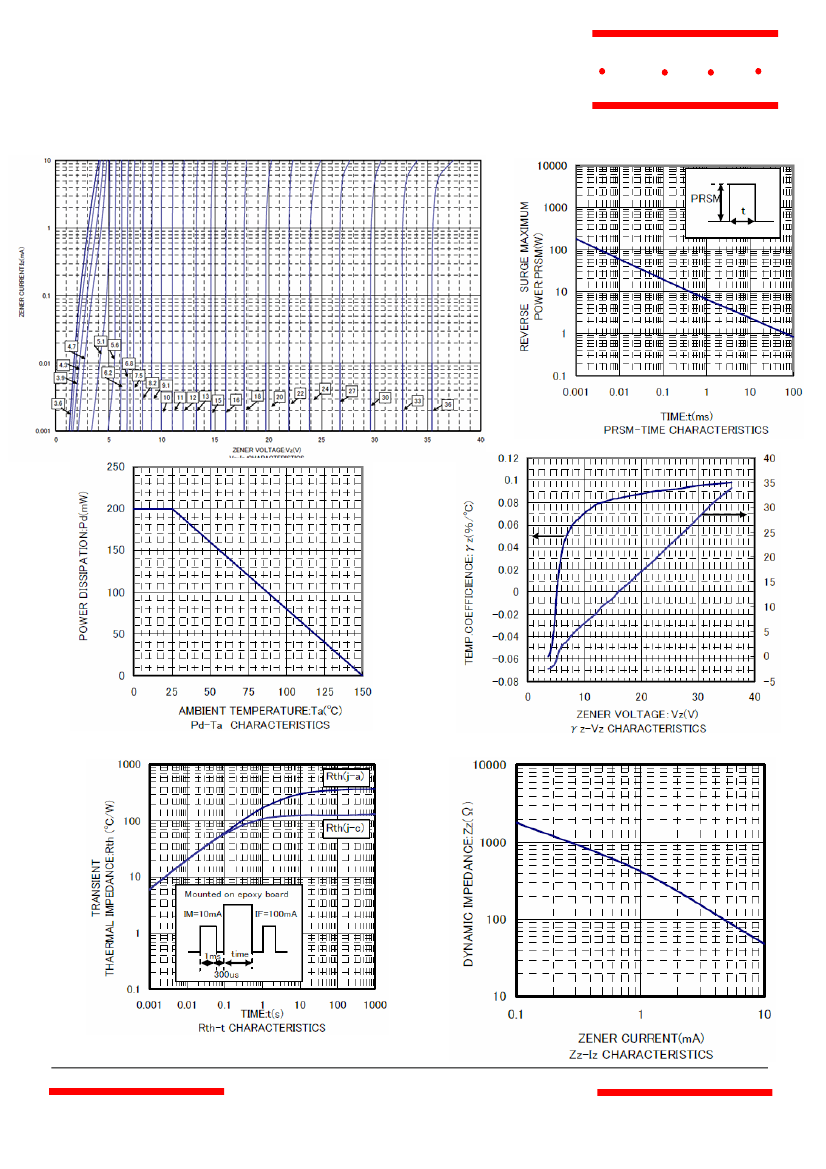

Characteristics
(T
j
=25
unless otherwise specified)
www.mccsemi.com
Revision: 1
3 of 5
2007/12/25
LLUDZS3.6B THRU LLUDZS36B
MCC
Micro Commercial Components
TM

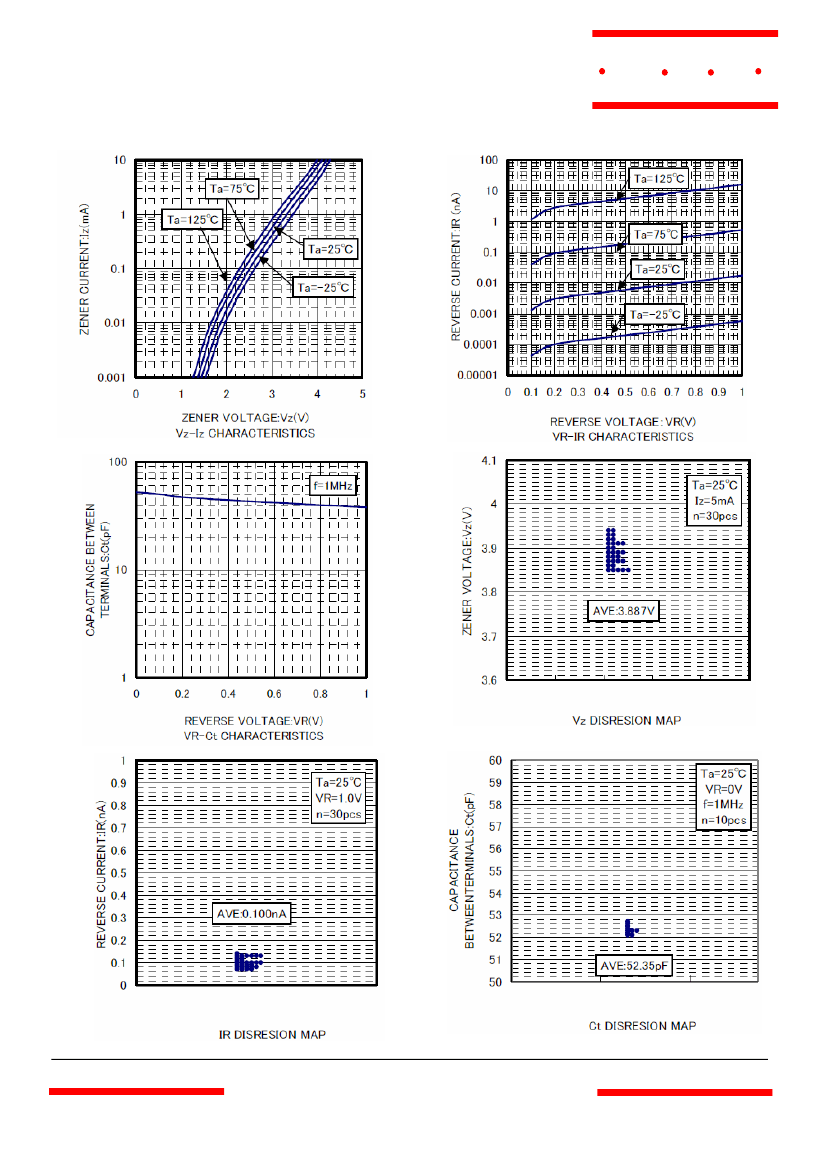

Characteristics
(T
j
=25
unless otherwise specified)
www.mccsemi.com
Revision: 1
4 of 5
2007/12/25
