DPSD16MX72RW-PC100C datasheet, PDF

Datasheet> All Categories > storage> storage> DPSD16MX72RW-PC100C

DPSD16MX72RW-PC100C: DescriptionSynchronous DRAM Module, 16MX72, 6ns, CMOS; Categorystorage storage; File Size124KB，5 Pages; ManufacturerB&B Electronics Manufacturing Company

Download Datasheet Parametric Compare View All

DPSD16MX72RW-PC100C Overview

Synchronous DRAM Module, 16MX72, 6ns, CMOS

DPSD16MX72RW-PC100C Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	FOUR BANK PAGE BURST
Maximum access time	6 ns
Other features	AUTO REFRESH
JESD-30 code	R-XDMA-N168
memory density	1207959552 bit
Memory IC Type	SYNCHRONOUS DRAM MODULE
memory width	72
Number of functions	1
Number of ports	1
Number of terminals	168
word count	16777216 words
character code	16000000
Operating mode	SYNCHRONOUS
organize	16MX72
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	NO
technology	CMOS
Terminal form	NO LEAD
Terminal location	DUAL
Base Number Matches	1

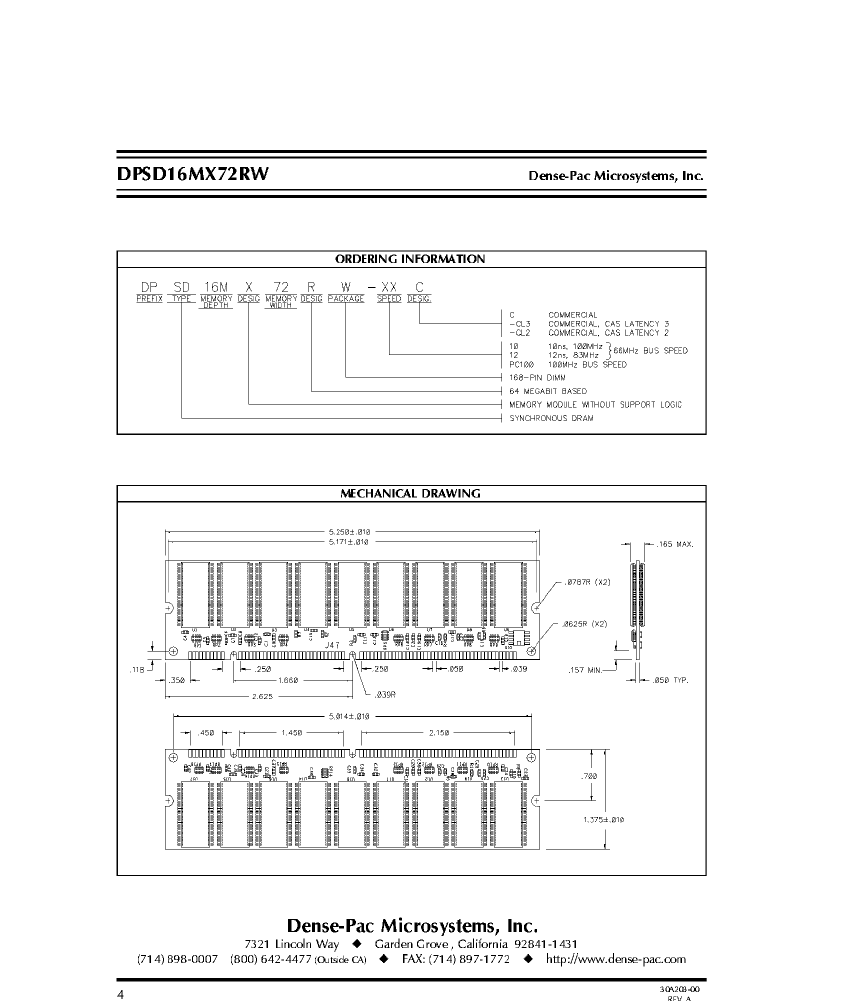

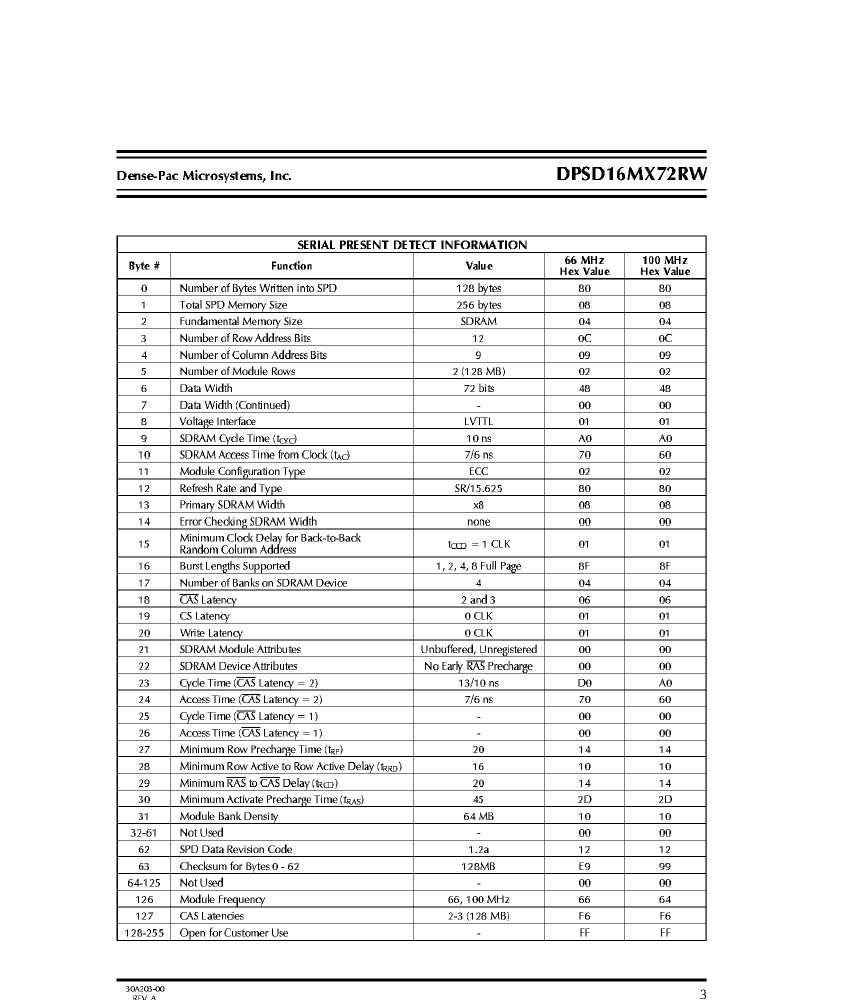

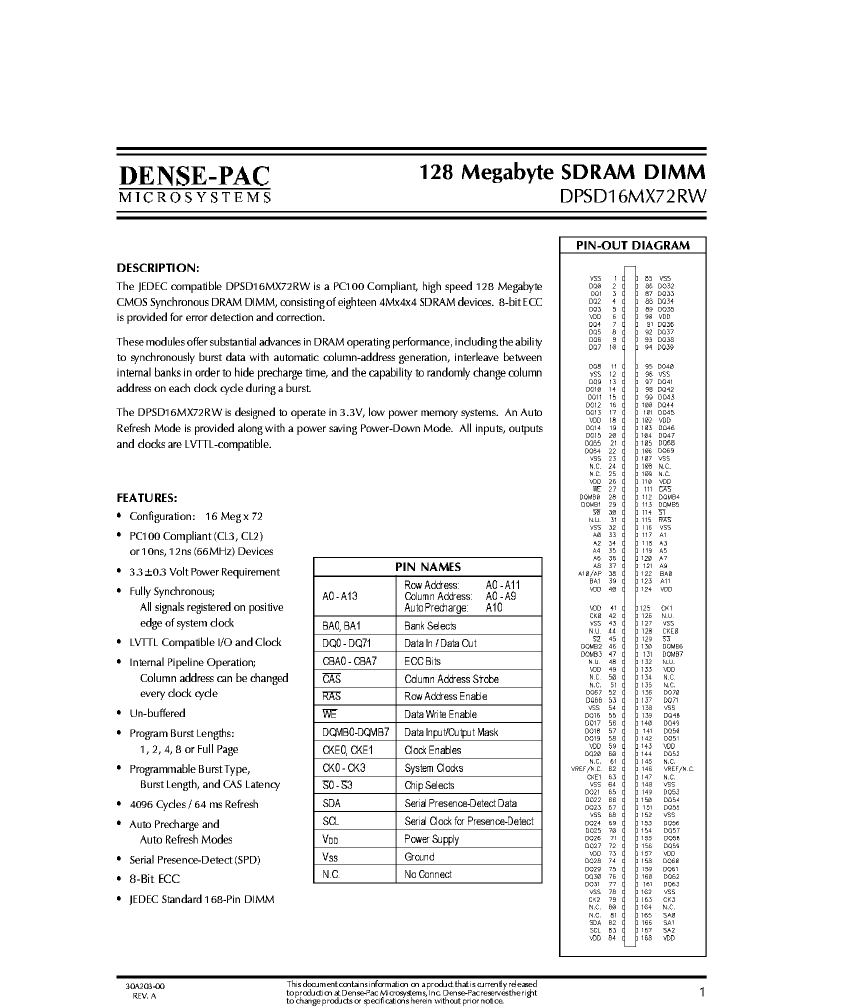

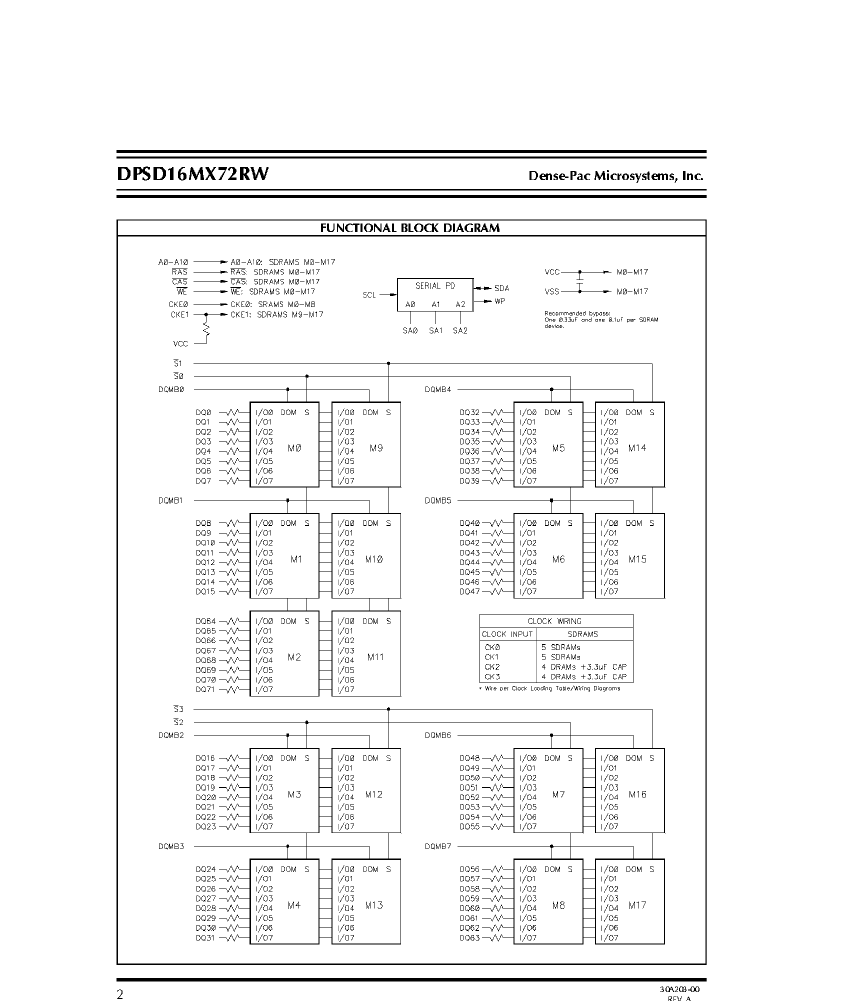

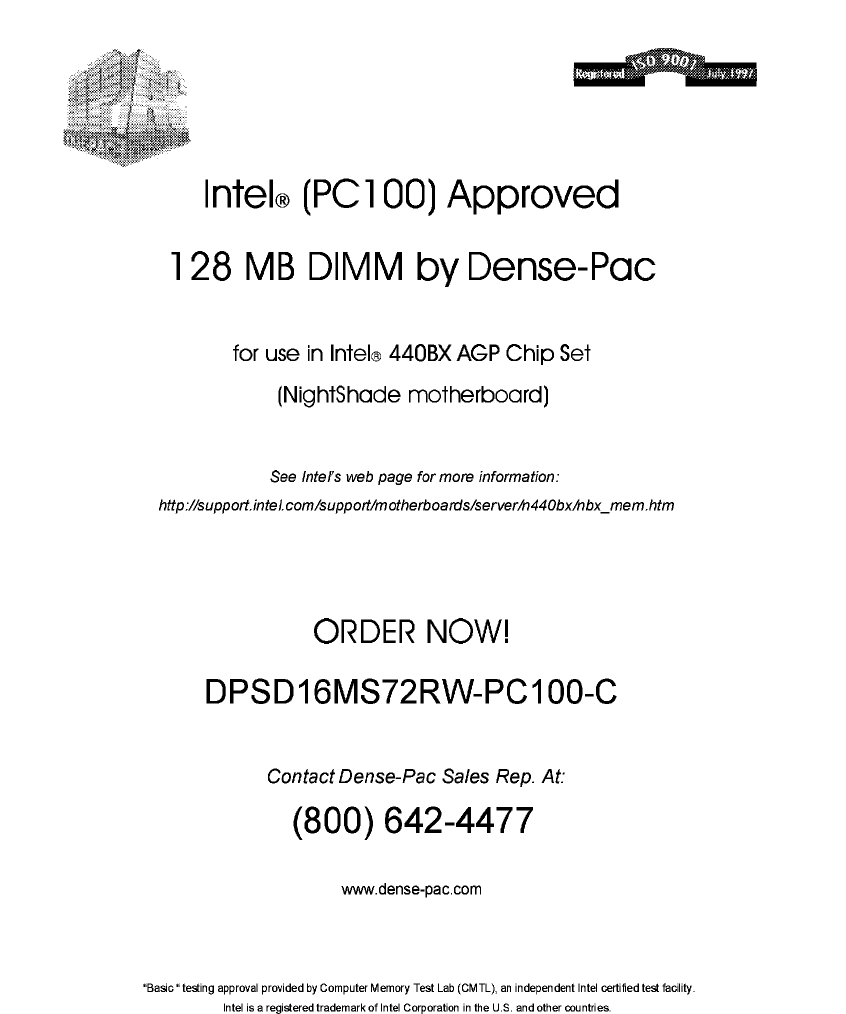

Preview

Download Datasheet

View All

DPSD16MX72RW-PC100C Related Products

	DPSD16MX72RW-PC100C	DPSD16MX72RW-PC100-CL3	DPSD16MX72RW-10-CL3	DPSD16MX72RW-12C	DPSD16MX72RW-12-CL2	DPSD16MX72RW-12-CL3	DPSD16MX72RW-PC100-C	442SA3XCDN	DPSD16MX72RW-10-CL2	DPSD16MX72RW-10C
Description	Synchronous DRAM Module, 16MX72, 6ns, CMOS	Synchronous DRAM Module, 16MX72, 70ns, CMOS, DIMM-168	Synchronous DRAM Module, 16MX72, 70ns, CMOS, DIMM-168	Synchronous DRAM Module, 16MX72, 70ns, CMOS, DIMM-168	Synchronous DRAM Module, 16MX72, 7ns, CMOS, DIMM-168	Synchronous DRAM Module, 16MX72, 70ns, CMOS, DIMM-168	16MX72 SYNCHRONOUS DRAM MODULE, 6ns, DMA168, DIMM-168	Linear Motion 1/4 Watt Composition Slide Controls	Synchronous DRAM Module, 16MX72, 7ns, CMOS, DIMM-168	Synchronous DRAM Module, 16MX72, 7ns, CMOS, DIMM-168
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	-	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-	-	EAR99	EAR99
access mode	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST	-	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST
Maximum access time	6 ns	70 ns	70 ns	70 ns	7 ns	70 ns	6 ns	-	7 ns	7 ns
Other features	AUTO REFRESH	AUTO REFRESH	AUTO REFRESH	AUTO REFRESH	AUTO REFRESH	AUTO REFRESH	AUTO REFRESH	-	AUTO REFRESH	AUTO REFRESH
JESD-30 code	R-XDMA-N168	R-XDMA-N168	R-XDMA-N168	R-XDMA-N168	R-XDMA-N168	R-XDMA-N168	R-XDMA-N168	-	R-XDMA-N168	R-XDMA-N168
memory density	1207959552 bit	1207959552 bit	1207959552 bit	1207959552 bit	1207959552 bit	1207959552 bit	1207959552 bit	-	1207959552 bit	1207959552 bit
Memory IC Type	SYNCHRONOUS DRAM MODULE	SYNCHRONOUS DRAM MODULE	SYNCHRONOUS DRAM MODULE	SYNCHRONOUS DRAM MODULE	SYNCHRONOUS DRAM MODULE	SYNCHRONOUS DRAM MODULE	SYNCHRONOUS DRAM MODULE	-	SYNCHRONOUS DRAM MODULE	SYNCHRONOUS DRAM MODULE
memory width	72	72	72	72	72	72	72	-	72	72
Number of functions	1	1	1	1	1	1	1	-	1	1
Number of ports	1	1	1	1	1	1	1	-	1	1
Number of terminals	168	168	168	168	168	168	168	-	168	168
word count	16777216 words	16777216 words	16777216 words	16777216 words	16777216 words	16777216 words	16777216 words	-	16777216 words	16777216 words
character code	16000000	16000000	16000000	16000000	16000000	16000000	16000000	-	16000000	16000000
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	-	SYNCHRONOUS	SYNCHRONOUS
organize	16MX72	16MX72	16MX72	16MX72	16MX72	16MX72	16MX72	-	16MX72	16MX72
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	-	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	-	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	-	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V	3 V	3 V	3 V	-	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	-	3.3 V	3.3 V
surface mount	NO	NO	NO	NO	NO	NO	NO	-	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	-	CMOS	CMOS
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	-	NO LEAD	NO LEAD
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	-	DUAL	DUAL
Base Number Matches	1	1	1	1	1	1	1	-	-	-
Maker	-	B&B Electronics Manufacturing Company	B&B Electronics Manufacturing Company	B&B Electronics Manufacturing Company	B&B Electronics Manufacturing Company	B&B Electronics Manufacturing Company	-	-	B&B Electronics Manufacturing Company	B&B Electronics Manufacturing Company
Parts packaging code	-	DIMM	DIMM	DIMM	DIMM	DIMM	DIMM	-	DIMM	DIMM
Contacts	-	168	168	168	168	168	168	-	168	168
Maximum operating temperature	-	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	-	70 °C	70 °C
Temperature level	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL
