China Electronics Technology Group Corporation
No.26 Research Institute
44MHz SAW Filter
12MHz Bandwidth
Part Number: LBN04403
www. sipatsaw.com
SIPAT Co., Ltd.
Features
For IF SAW filter
High attenuation
Single-ended operation
Dual In-line Package
RoHS compliant (2002/95/EC), Pb-free
Specifications
Parameter
Center Frequency
Insertion Loss
1 dB Bandwidth
3 dB Bandwidth
40 dB Bandwidth
Passband Variation
Absolute Delay
Ultimate Rejection
Material Temperature coefficient
Substrate Material
Ambient Temperature
Operating Temperature Range
Storage Temperature Range
DC Voltage
Input Power
ESD Class
Package Size
Notes:
1.
2.
All specifications are based on the test circuit shown;
In production, all specifications are measured by Agilent Network analyzer and full 2 port calibration at room
temperature;
3.
Electrical margin has been built into the design to account for the variations due to temperature drift and
manufacturing tolerances;
4.
This is the optimum impedance in order to achieve the performance show.
Unit
MHz
dB
MHz
MHz
MHz
dB
usec
dB
KHz/°C
-
°C
°C
°C
V
dBm
-
Minimum
43.9
-
-
12
-
-
-
50
Typical
44
24.5
11.75
12.78
16.65
0.5
1.49
53
-3.61
128LN
25
Maximum
44.1
25
-
-
17
1
-
-
-40
-45
-
-
0
+85
+105
-
-
1A
10
DIP2712 (27.0x12.8x4.7mm3)
SIPAT Co., Ltd.
( CETC No.26 Research Institute )
#14 Nanping Huayuan Road,
Chongqing, China, 400060
Tel: +86-23-62808818
Part Number
Rev. Date
Ver.
LBN04403
2008-01-21
2.0
Page
1/3
Fax: +86-23-62808382
www.sipatsaw.com / sawmkt@sipat.com
China Electronics Technology Group Corporation
No.26 Research Institute
44MHz SAW Filter
12MHz Bandwidth
Part Number: LBN04403
www. sipatsaw.com
SIPAT Co., Ltd.

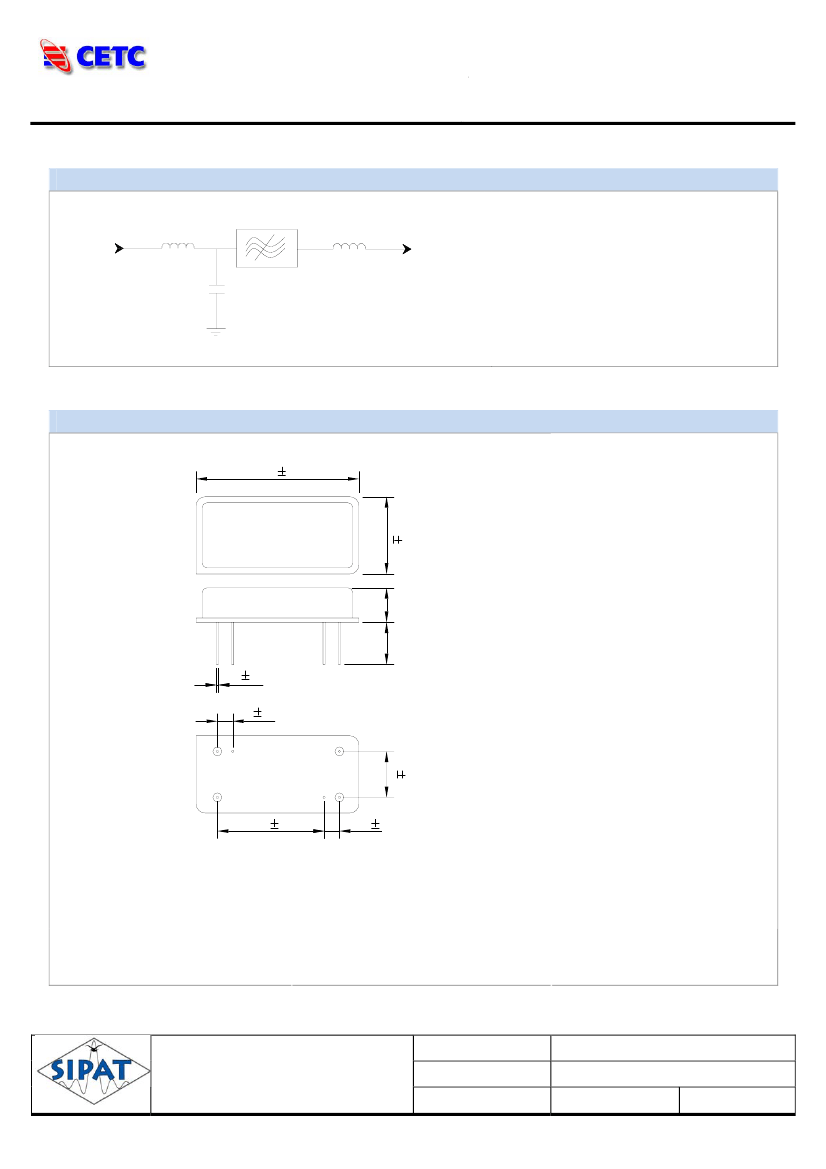

Matching Configuration
L1
L2
L1=560nH L2=270nH
OUTPUT
50
Ω
INPUT
50
Ω
C1=15pF
Source/Load Impedance=50 ohm
C1
Notes - Component values may change depending
on board layout.
Package Dimension
27.00 0.5
Pad Configuration:
SIPAT
LBN04403
07XX
Input
Output
1
5
12.80 0.5
4.7
4.5
Ground All Others
Marking Configuration:
1) SIPAT: Manufacturer Name
2) LBN04403: Part Number
3) 07XX: Date Code
0.45 0.05
2.54 0.2
7.62 0.2
3
6
Package: DIP2712
SIPAT Co., Ltd.
( CETC No.26 Research Institute )
#14 Nanping Huayuan Road,
Chongqing, China, 400060
Tel: +86-23-62808818
2
1
4
5
17.70 0.2
2.54 0.2
Unit: mm
Part Number
Rev. Date
Ver.
LBN04403
2008-01-21
2.0
Page
2/3
Fax: +86-23-62808382
www.sipatsaw.com / sawmkt@sipat.com
China Electronics Technology Group Corporation
No.26 Research Institute
44MHz SAW Filter
12MHz Bandwidth
Part Number: LBN04403
www. sipatsaw.com
SIPAT Co., Ltd.

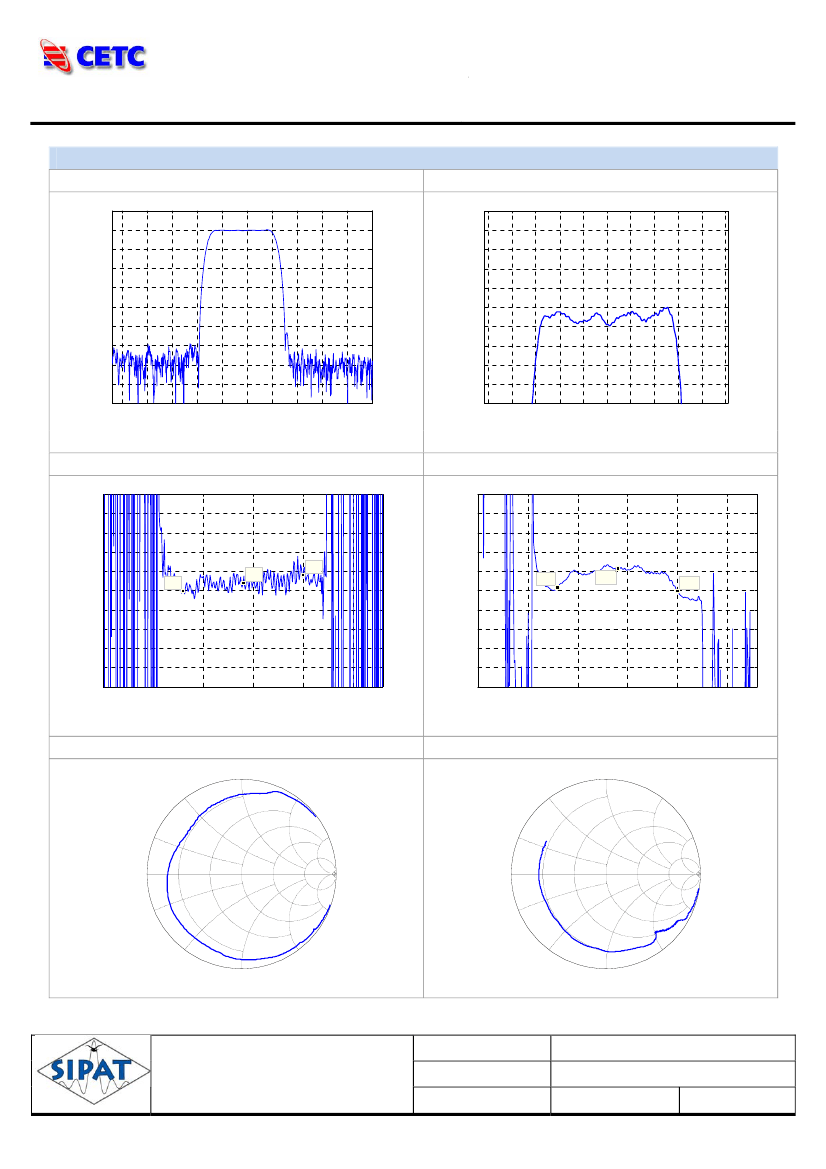

Typical Performance
Frequency Respond
Type Performance
-14.5162
Passband Respond
-22.0162
-22.5162
-23.0162
-23.5162
-24.0162
-24.5162
-25.0162
-25.5162
-26.0162
-26.5162
-24.5162
-34.5162
-44.5162
-54.5162
Magnitude(dB)
-64.5162
-74.5162
-84.5162
-94.5162
-104.5162
-114.5162
20
25
30
35
40
45
Frequency(MHz)
50
55
60
65
70
-27.0162
34
36
38
40
42
44
46
48
50
52
54
Horizontal: 5MHz/Div
Vertical: 10dB/Div
Horizontal: 2MHz/Div
Vertical: 0.5dB/Div
Group Delay Variation(f0±6MHz)
Type Performance
1580
20
Phase Linearity(f0±6MHz)
Type Performance
1560
15
1540
10
1520
X: 50
Y: 1496
5
Group Delay Time(ns)
1500
X: 38
Y: 1479
1480
Degree(deg)
X: 44
Y: 1488
0
X: 38
Y: -4.162
X: 44
Y: 0.7006
X: 50
Y: -5.099
-5
1460
-10
1440
-15
1420
-20
1400
-25
1380
30
35
40
45
Frequency(MHz)
50
55
-30
30
35
40
45
Frequency(MHz)
50
55
Horizontal: 5MHz/Div
Vertical: 20ns/Div
Horizontal: 5MHz/Div
Vertical: 5deg/Div
Smith Chart S11
+j1.0
+j0.5
+j2.0
Smith Chart S22
+j1.0
+j0.5
+j2.0
+j0.2
+j5.0
+j0.2
+j5.0
0.2
0.5
1.0
2.0
5.0
0.2
0.5
1.0
2.0
0.0
∞
5.0
0.0
∞
-j0.2
-j5.0
-j0.2
-j5.0
-j0.5
-j1.0
-j2.0
-j0.5
-j1.0
-j2.0
SIPAT Co., Ltd.
( CETC No.26 Research Institute )
#14 Nanping Huayuan Road,
Chongqing, China, 400060
Tel: +86-23-62808818
Part Number
Rev. Date
Ver.
LBN04403
2008-01-21
2.0
Page
3/3
Fax: +86-23-62808382
www.sipatsaw.com / sawmkt@sipat.com
