ECS-P83X-16.312-AN datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> ECS-P83X-16.312-AN

ECS-P83X-16.312-AN: DescriptionHCMOS Output Clock Oscillator, 16.312MHz Nom, ROHS COMPLIANT, DIP-8/4; CategoryPassive components oscillator; File Size429KB，1 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/; Environmental Compliance

Download Datasheet Parametric View All

ECS-P83X-16.312-AN Overview

HCMOS Output Clock Oscillator, 16.312MHz Nom, ROHS COMPLIANT, DIP-8/4

ECS-P83X-16.312-AN Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT, DIP-8/4
Reach Compliance Code	compliant
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION
maximum descent time	4 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	16.312 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	HCMOS
Output load	30 pF
physical size	13.2mm x 13.2mm x 5.4mm
longest rise time	4 ns
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	NO
maximum symmetry	60/40 %
Base Number Matches	1

Preview

Download Datasheet

View All

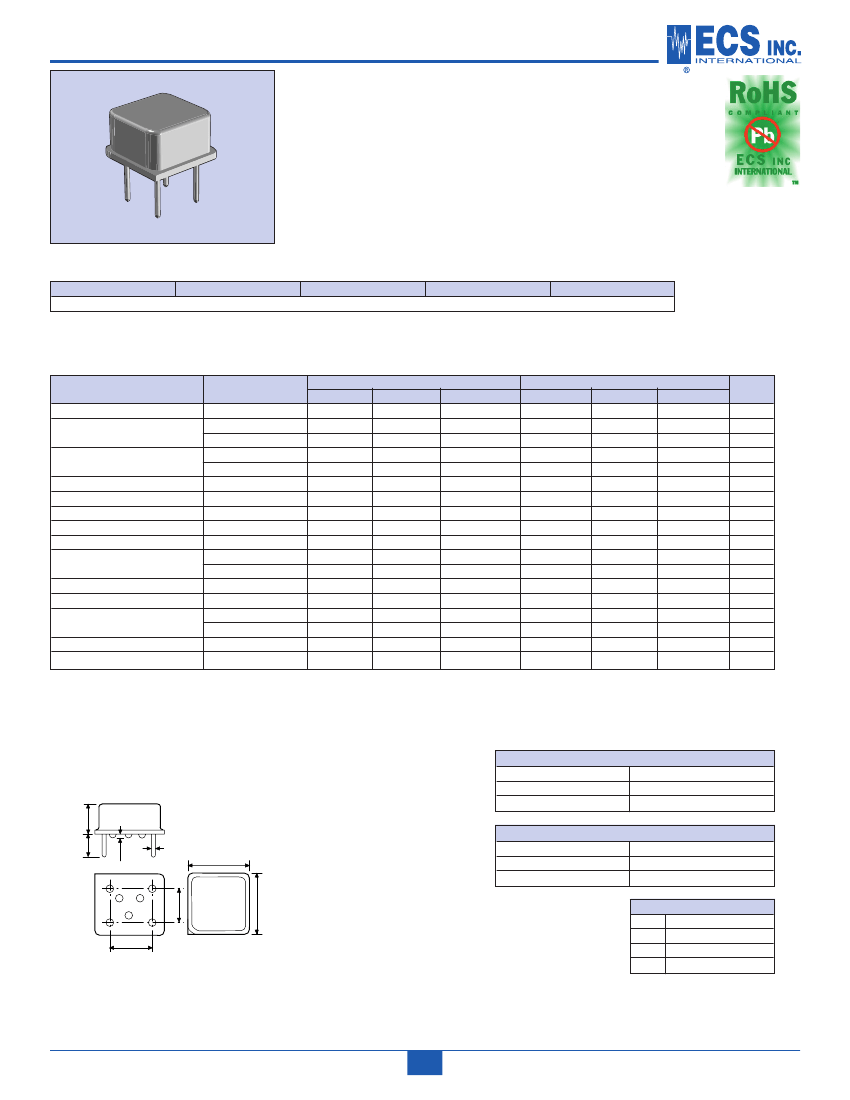

ECS-P83X/P85X

PROGRAMMABLE CLOCK OSCILLATOR

The ECS-P83X (3.3V) and ECS-P85X (5V)

8 pin dip DIP is a twice programmable

crystal controlled oscillator. The standard

8 pin DIP footprint is ideal for existing

PC boards.

FEATURES

• Programmable (1 time)

• 3.3V & 5V options

• PLL technology

• 8 pin DIP footprint

• Extended temp range

• PbFree/RoHS Compliant

PART NUMBERING GUIDE

“EXAMPLE”

PART NUMBER

ECS

–

SERIES

P83X

–

FREQUENCY MHz)

16.312

–

STABILITY

–

EXTENDED TEMP (OPTION)

Sample Part Number: ECS-P83X-16.312-AN

OPERATING CONDITIONS/ELECTRICAL CHARACTERISTICS

PARAMETERS

FREQUENCY RANGE

FREQUENCY STABILITY*

OPERATING TEMPERATURE

STORAGE TEMPERATURE

INPUT VOLTAGE (Vcc)

INPUT CURRENT

OUTPUT SYMMETRY

RISE AND FALL TIMES

JITTER

“0” LEVEL

“1” LEVEL

LOAD (HCMOS)

ENABLE/DISABLE TIME

START-UP TIME

1.0 ~ 50.0 MHz

> 50.1 MHz

Option A

Option B

Standard

Extended (Option N)

CONDITIONS

MIN

1.000

ECS-P83X (3.3V)

TYP

MAX

125.000

±100

±50

+70

+85

+125

+3.63

60/40

±250

±100

0.4

150

MIN

1.000

ECS-P85X (5V)

TYP

MAX

150.000

±100

±50

+70

+85

+125

+5.5

60/40

±250

±100

0.4

100

UNITS

MHz

PPM

˚C

VDC

-40

-55

+2.97

40/60

+3.3

-40

-55

+4.5

40/60

+5.0

at 1/2 Vcc LEVEL

20% Vcc to 80% Vcc

1.0 ~ 33.0 MHz

> 33.1 MHz

±100

±50

2.7

±100

±50

Vcc - 0.5

* Inclusive of 25˚C tolerance, operating temperature range, input voltage change, load change aging, shock and vibration.

PACKAGE DIMENSIONS (mm)

4 min. 5.4 max.

ECS-P83X (3.3V) TRI-STATE CONTROL VOLTAGE

PIN #1 = OPEN

#5 = OUTPUT

PIN #1 = +0.7V MIN

#5 = HIGH IMPEDANCE

PIN #1 = +0.2V MAX

ECS-P85X (5V) TRI-STATE CONTROL VOLTAGE

PIN #1 = OPEN

#5 = OUTPUT

PIN #1 = +2.0V MIN

#5 = HIGH IMPEDANCE

PIN #1 = +0.8V MAX

PIN CONNECTIONS

TRI-STATE

GND

OUTPUT

0.8

0.5

7.62

13.2 max

7.62

Figure 1) Side, Bottom and Top views

ECS, INC. INTERNATIONAL

1105 S. RIDGEVIEW, OLATHE, KS 66062 • 913-782-7787 • 800-237-1041 • FAX 913-782-6991 • WWW.ECSXTAL.COM
