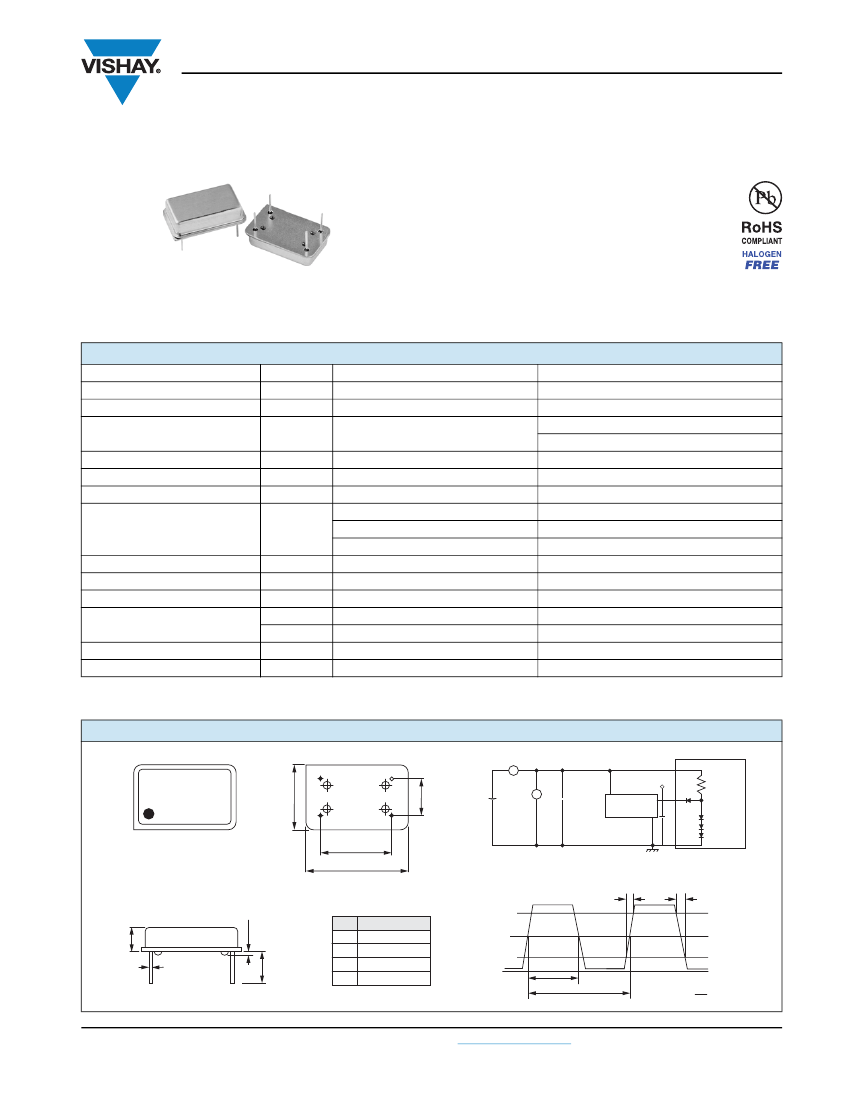

XO-53
Vishay Dale
Full Size Clock Oscillators TTL Compatible
FEATURES
•
•
•
•
•
•
•
•
10 TTL output load
Size: 14 pin full size
Industry standard
Wide frequency range
Low cost
Resistance weld package
Compliant to RoHS Directive 2002/95/EC
Halogen-free according to IEC 61249-2-21 definition
The XO-53 series oscillator is TTL compatible and features
fast rise/fall times with high reliability at low cost. The metal
package with pin 7 case ground acts as shielding to
minimize EMI radiation.
STANDARD ELECTRICAL SPECIFICATIONS
PARAMETER
Frequency range
Frequency stability
(1)
Operating temperature range
Storage temperature range
Power supply voltage
Aging (first year)
Supply current
Output symmetry
Rise time
Fall time
Output voltage
Output load
Start-up time
I
DD
Sym
t
r
t
f
V
OH
V
OL
TTL load
t
s
T
OPR
T
STG
V
DD
SYMBOL
F
O
CONDITION
-
all conditions
-
-
-
25 ºC ± 3 ºC
1.0 MHz to 23.999 MHz
24.000 MHz to 69.999 MHz
70.000 MHz to 100.000 MHz
at 1.4 V
0.4 V to 2.4 V
2.4 V to 0.4 V
-
-
-
-
VALUE
1.0 MHz to 100.000 MHz
± 25 ppm, ± 50 ppm, ± 100 ppm
0 °C to 70 °C
- 40 °C to + 85 °C (option)
- 55 °C to + 125 °C
5.0 V ± 10 %
± 5 ppm
15 mA max.
30 mA max.
60 mA max.
40 %/60 % (45 %/55 % option)
5 ns max.
5 ns max.
2.4 V min.
0.4 V max.
1 TTL to 10 TTL
10 ms max.
Note
(1)
Include: 25 °C tolerance, operating temperature range, input voltage change, aging, load change, shock and vibration
DIMENSIONS
in inches [millimeters]
TTL TEST CIRCUIT
#1
MARKING
AREA
0.508
[12.9] max.
#14
#8
0.600 ± 0.005
[15.24 ± 0.13]
0.803 [20.4] max.
Note
(2)
Includes Stray and Probe Capacitance
#7
0.300 ± 0.005
[7.62 ± 0.13]
A
TEST POINT
+ 5.0 V
V
0.01 µF
#14
#1
#8
#7
RL = 400
Ω
15 pF
(2)
TTL OUTPUT WAVEFORM
0.200
[5.08] max.
0.031 ± 0.003
[0.8 ± 0.1]
V
OH
PIN
#1
#7
#8
#14
CONNECTION
N.C
GND
OUTPUT
V
DD
T
r
T
f
2.4 V
1.4 V
V
OL
T1
T0 = 1/F
o
SYMMETRY =
0.018 ± 0.003
[0.45 ± 0.1]
0.268
[6.80] max.
0.4 V
GND
T1
x 100 %
T0
Document Number: 35023
Revision: 08-Mar-11
For technical questions, contact:
frequency@vishay.com
www.vishay.com
21
