BQ2010PN datasheet, PDF - EEWORLD Datasheet

BQ2010PN: DescriptionPower Supply Management Circuit, Fixed, 1 Channel, CMOS, PDIP16,; CategoryPower/power management The power supply circuit; File Size801KB，19 Pages; ManufacturerBenchmarq Microelectronics Inc

Download Datasheet Parametric Compare View All

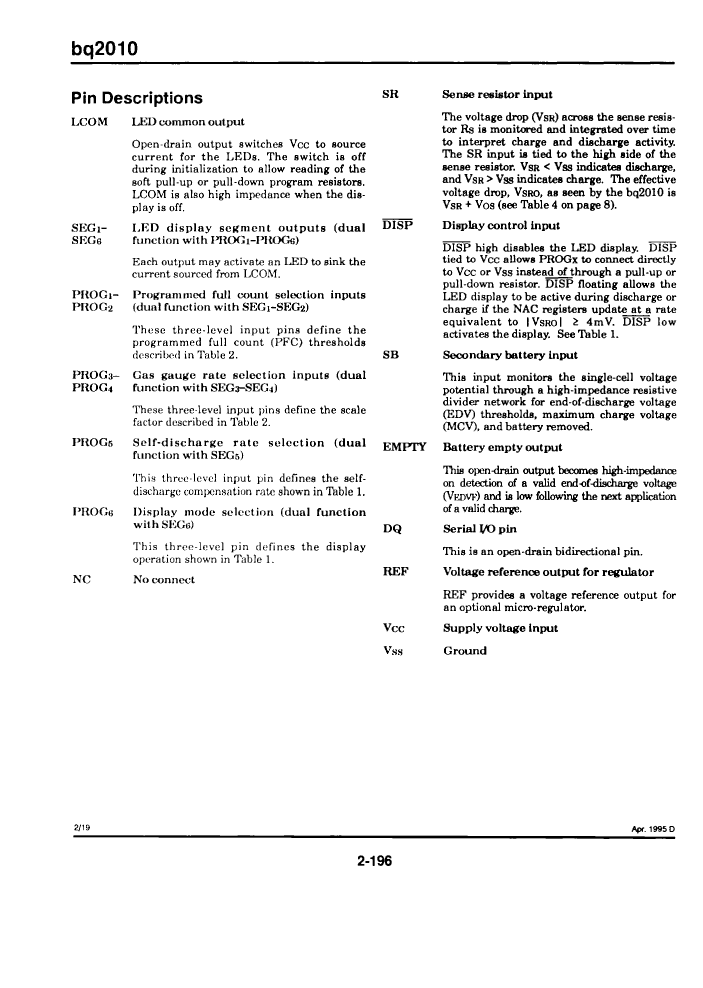

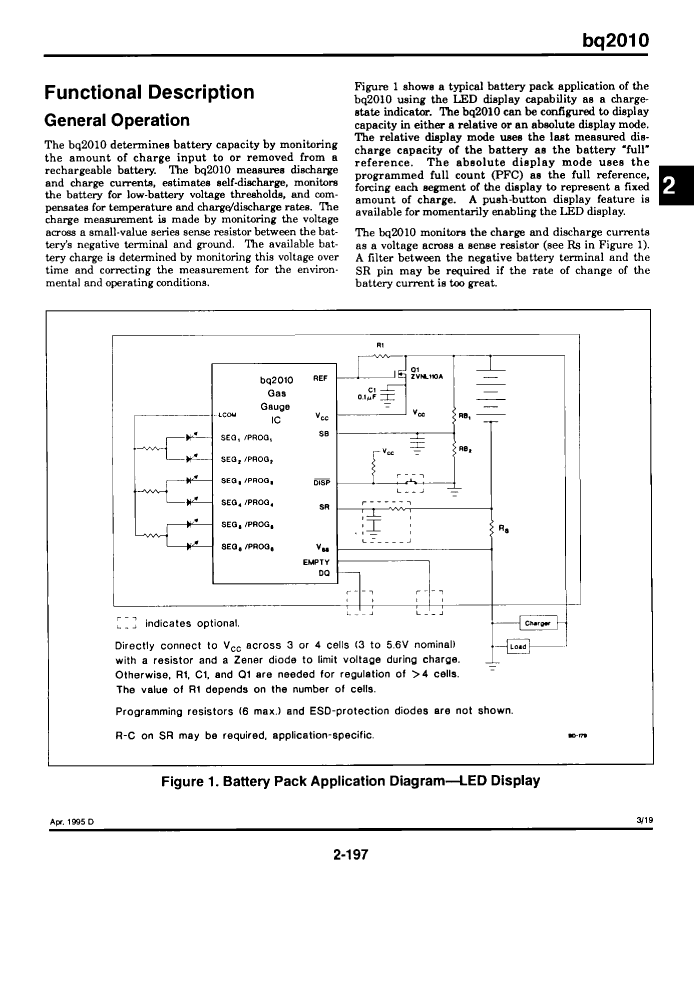

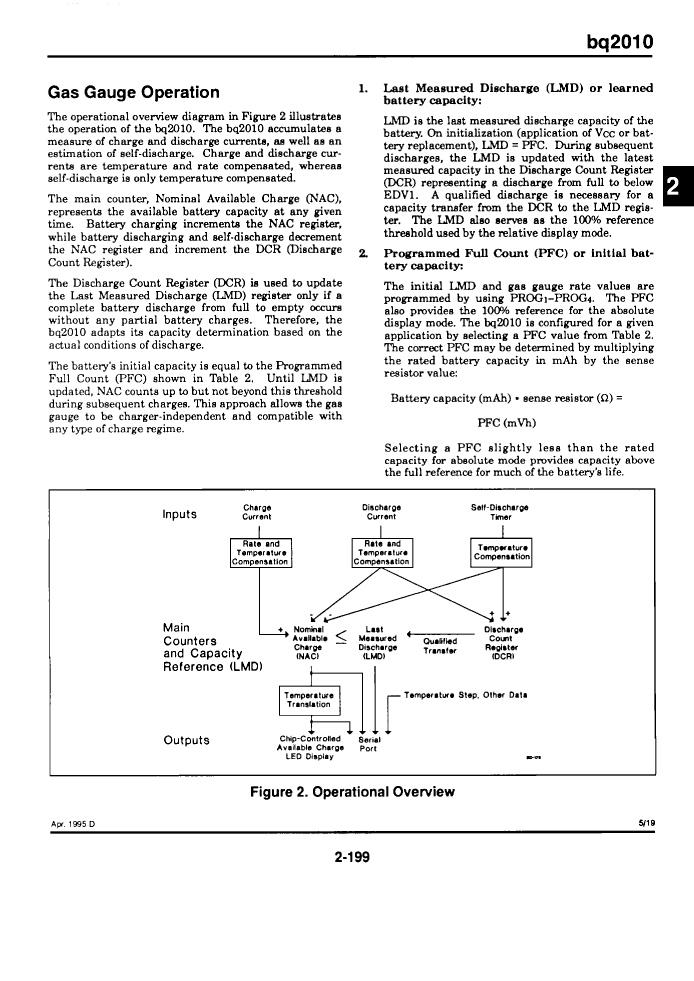

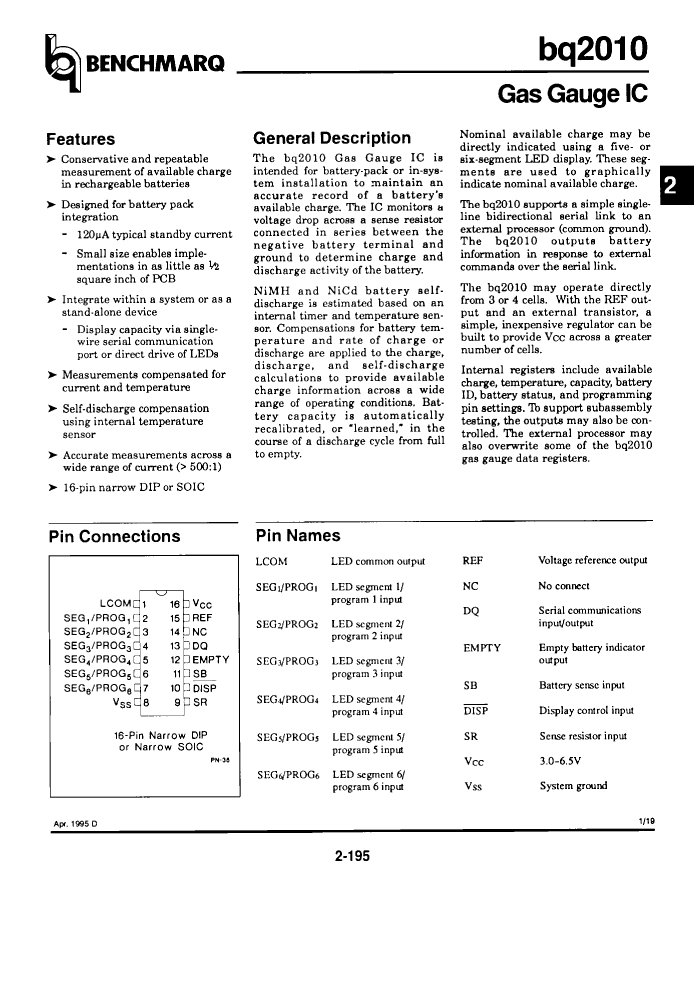

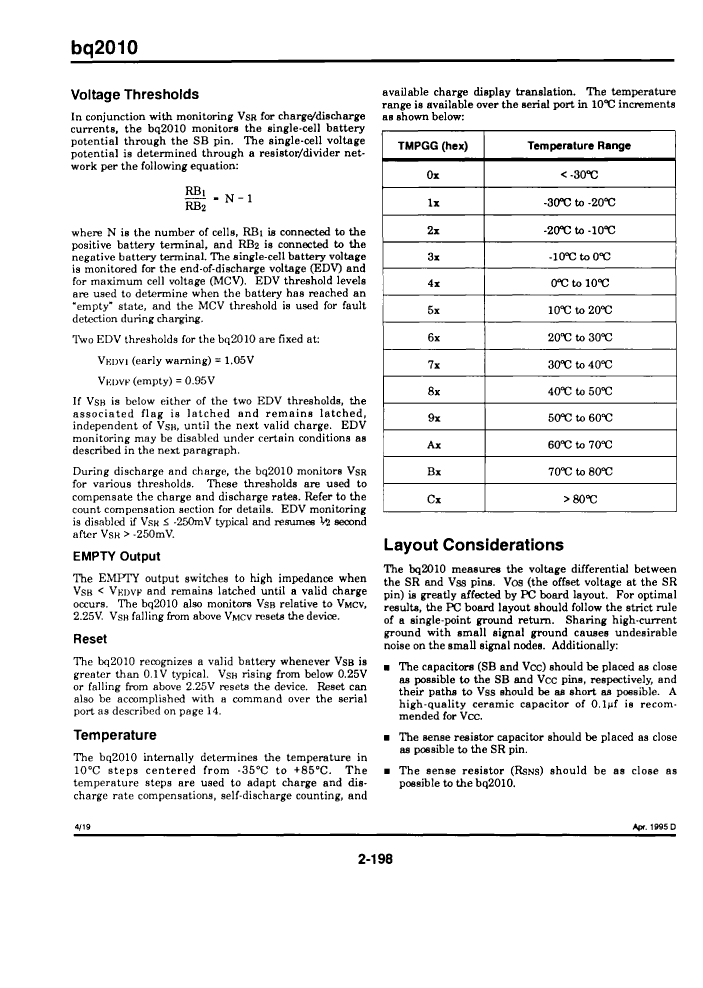

BQ2010PN Overview

Power Supply Management Circuit, Fixed, 1 Channel, CMOS, PDIP16,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
Adjustable threshold	NO
Analog Integrated Circuits - Other Types	POWER SUPPLY MANAGEMENT CIRCUIT
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
Number of channels	1
Number of functions	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3/6.5 V
Certification status	Not Qualified
Maximum supply current (Isup)	0.25 mA
Maximum supply voltage (Vsup)	6.5 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	4.25 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

	BQ2010PN	BQ2010PN-N
Description	Power Supply Management Circuit, Fixed, 1 Channel, CMOS, PDIP16,	Power Supply Management Circuit, Fixed, 1 Channel, CMOS, PDIP16,
Is it Rohs certified?	incompatible	incompatible
Reach Compliance Code	unknown	unknown
Adjustable threshold	NO	NO
Analog Integrated Circuits - Other Types	POWER SUPPLY MANAGEMENT CIRCUIT	POWER SUPPLY MANAGEMENT CIRCUIT
JESD-30 code	R-PDIP-T16	R-PDIP-T16
JESD-609 code	e0	e0
Number of channels	1	1
Number of functions	1	1
Number of terminals	16	16
Maximum operating temperature	70 °C	85 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	3/6.5 V	3/6.5 V
Certification status	Not Qualified	Not Qualified
Maximum supply current (Isup)	0.25 mA	0.25 mA
Maximum supply voltage (Vsup)	6.5 V	6.5 V
Minimum supply voltage (Vsup)	3 V	3 V
Nominal supply voltage (Vsup)	4.25 V	4.25 V
surface mount	NO	NO
technology	CMOS	CMOS
Temperature level	COMMERCIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	1	1
