SIS5D28RN-220 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> SIS5D28RN-220

SIS5D28RN-220: DescriptionGeneral Purpose Inductor, 22uH, 30%, 1 Element, SMD,; CategoryPassive components inductor; File Size67KB，2 Pages; ManufacturerElec & Eltek; Websitehttp://www.eleceltek.com

Download Datasheet Parametric View All

SIS5D28RN-220 Overview

General Purpose Inductor, 22uH, 30%, 1 Element, SMD,

SIS5D28RN-220 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
ECCN code	EAR99
DC Resistance	0.119 Ω
Nominal inductance(L)	22 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	SIS5D28R
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-30 °C
Maximum rated current	0.95 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	30%
Base Number Matches	1

Preview

Download Datasheet

View All

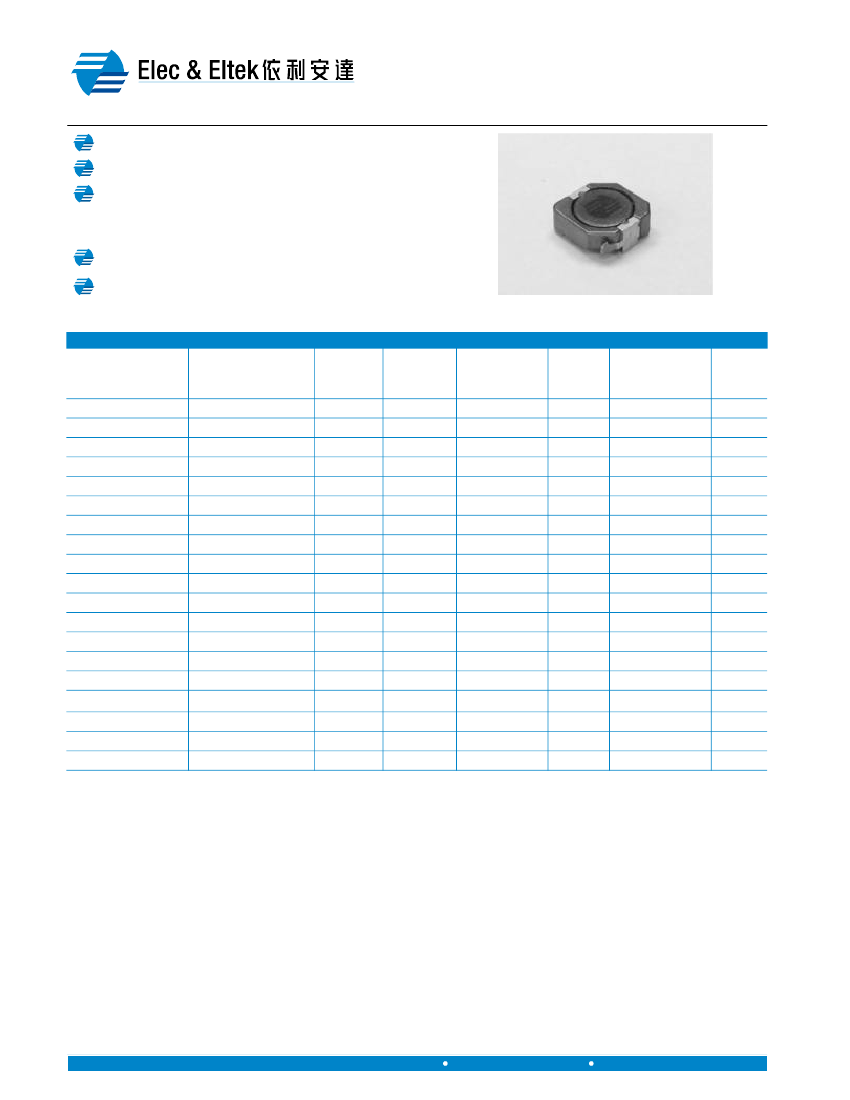

E & E Magnetic Products Limited

SHIELDED SURFACE MOUNT

POWER INDUCTOR

Drum Type, SIS5D28R Series

CHEMATICS

Magnetically Shielded

Miniature in size and high energy storage

Ideal for high current requirements of notebook,

video recorders and other DC-DC conversion

applications

Custom inductance value or tolerance is available

RoHS compliant versions are available

LECTRICAL

PECIFICATION

@ 25

Part

Number

SIS5D28RN-2R5

SIS5D28RN-3R3

SIS5D28RN-4R0

SIS5D28RN-5R0

SIS5D28RN-6R0

SIS5D28RN-8R0

SIS5D28RN-100

SIS5D28RN-120

SIS5D28RN-150

SIS5D28RN-180

SIS5D28RN-220

SIS5D28RN-270

SIS5D28RN-330

SIS5D28RN-390

SIS5D28RN-470

SIS5D28RN-560

SIS5D28RN-680

SIS5D28RN-820

SIS5D28RN-101

RoHS

Part Number

SIS5D28RN-2R5R

SIS5D28RN-3R3R

SIS5D28RN-4R0R

SIS5D28RN-5R0R

SIS5D28RN-6R0R

SIS5D28RN-8R0R

SIS5D28RN-100R

SIS5D28RN-120R

SIS5D28RN-150R

SIS5D28RN-180R

SIS5D28RN-220R

SIS5D28RN-270R

SIS5D28RN-330R

SIS5D28RN-390R

SIS5D28RN-470R

SIS5D28RN-560R

SIS5D28RN-680R

SIS5D28RN-820R

SIS5D28RN-101R

Inductance

(uH)

2.5

3.3

4.0

5.0

6.0

8.0

100

Inductance

Tolerance

±30

Test Frequency

(Hz)

100k

DCR

Ω

Max)

17.6

20.3

27.0

31.1

41.9

49.9

54.0

71.6

82.4

101.5

119.0

146.0

182.5

209.5

229.5

305.0

351.0

418.5

520.0

Rated DC Current

(A)

2.60

2.30

2.10

1.85

1.70

1.50

1.30

1.20

1.10

1.05

0.95

0.85

0.76

0.68

0.60

0.55

0.48

0.45

0.40

Marking

(XYYY)

N2R5

N3R3

N4R0

N5R0

N6R0

N8R0

N100

N120

N150

N180

N220

N270

N330

N390

N470

N560

N680

N820

N101

Notes:

1. Test frequency is specified as the frequency for measuring the inductance.

2. Rated D.C. current indicates the value of the current when the inductance is 35% lower than its initial value

or the current when the temperature rising

∆

T=40 C at D.C. Superposition.

3. Operating temperature range: -30ºC to +100ºC.

4. The part temperature (ambient temperature + temperature rise) should not exceed the upper limit of the

operating temperature under worst case operating conditions. Circuit design, component placement, PWB

trace size and thickness, airflow and other cooling provisions all affect the part temperature. Part

temperature should be verified in the end application.

5. Contact EEMPL for RoHS compliant version availability.

2/F Block A, 94 Tokwawan Road, Kowloon, Hong Kong

Tel: (852) 2765 3888

Fax: (852) 2954 3304

PI090(02)

Revised in 06/07
