A29-1 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> A29-1

Preview

A29-1: DescriptionWide Band Low Power Amplifier, 10MHz Min, 1500MHz Max, 1 Func, TO-8, 4 PIN; CategoryWireless rf/communication Radio frequency and microwave; File Size106KB，1 Pages; ManufacturerMACOM; Websitehttp://www.macom.com; Environmental Compliance

Download Datasheet Parametric View All

A29-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	A29-1	-	-	View	Buy Now

A29-1 Overview

Wide Band Low Power Amplifier, 10MHz Min, 1500MHz Max, 1 Func, TO-8, 4 PIN

A29-1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	TO-8, 4 PIN
Reach Compliance Code	compliant
Other features	HIGH RELIABILITY
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	7.5 dB
Maximum input power (CW)	15.5 dBm
Number of functions	1
Number of terminals	4
Maximum operating frequency	1500 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-54 °C
Package body material	METAL
Encapsulate equivalent code	CAN4,.3
power supply	15 V
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum slew rate	99 mA
Maximum voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

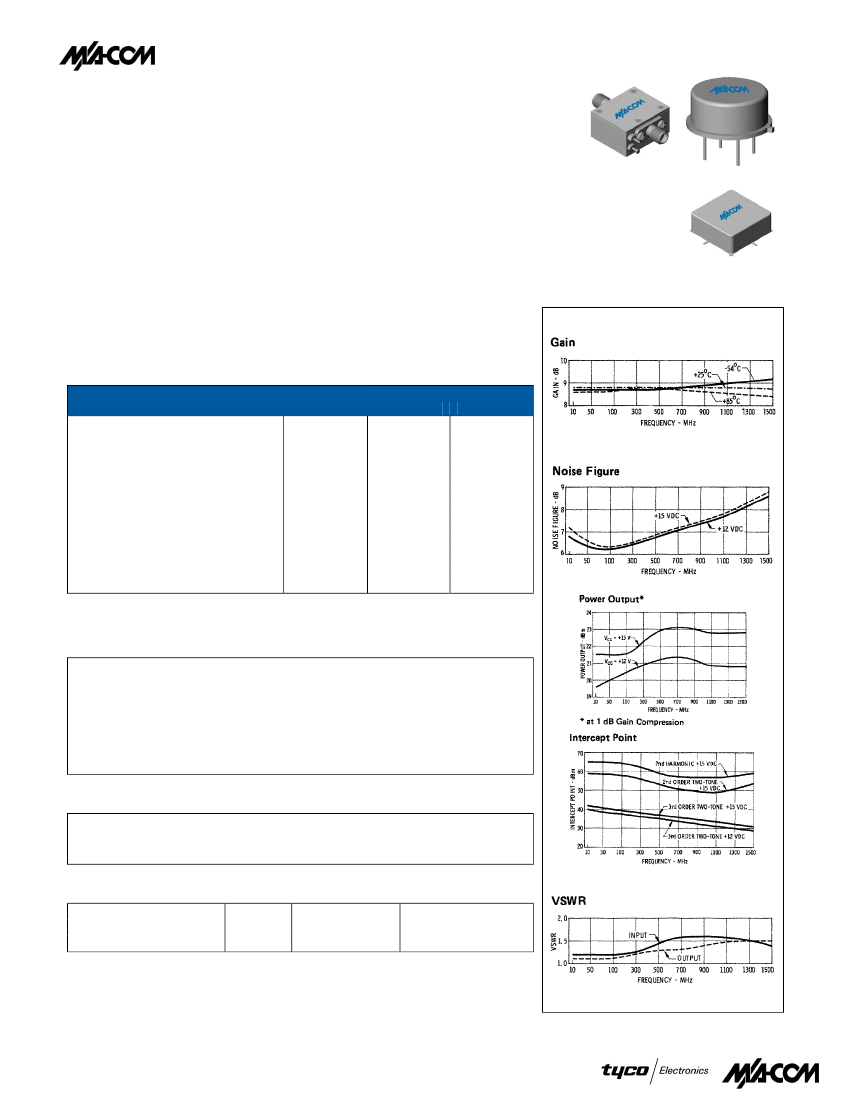

A29-1/SMA29-1

10 TO 1500 MHz

CASCADABLE AMPLIFIER

· HIGH OUTPUT POWER: +22 dBm (TYP.)

· HIGH THIRD ORDER I.P.: +32 dBm (TYP.)

Typical Performance @ 25°C

Specifications (Rev. Date: 1/01)*

Characteristics

Frequency

Small Signal Gain (min.)

Gain Flatness (max.)

Reverse Isolation

Noise Figure (max.)

Power Output @ 1 dB comp. (min.)

IP3

IP2

Second Order Harmonic IP

VSWR Input / Output (max.)

DC Current @ 15 Volts (max.)

Typical

0° to 50°C

°

Guaranteed

-54° to +85°C

°

0.0-1.6 GHz

9.0 dB

±0.2 dB

14 dB

5.5 dB

22.0 dBm

+32 dBm

+49 dBm

+57 dBm

1.6:1 / 1.6:1

90 mA

0.0-1.5 GHz

8.5 dB

±0.5 dB

6.5 dB

20.0 dBm

0.0-1.5 GHz

7.5 dB

±1.0 dB

7.0 dB

19.0 dBm

1.9:1 / 1.9:1

94 mA

2.0:1 / 2.0:1

99 mA

* Measured in a 50-ohm system at +15 Vdc Nominal. Subject to change without notice.

Absolute Maximum Ratings

Storage Temperature

Max. Case Temperature

Max. DC Voltage

Max. Continuous RF Input Power

Max. Short Term RF Input Power (1 minute max.)

Max. Peak Power (3

µsec

max.)

“S” Series Burn-in Temperature (Case)

-62° to +125°C

125°C

+17 Volts

+15.5 dBm

100 mW

0.5 W

125°C

Thermal Data: V

cc

= 15 Vdc

Thermal Resistance

θ

jc

Transistor Power Dissipation P

d

Junction Temperature Rise Above Case T

jc

100°C/W

0.966 W

96°C

Outline Drawings

Package

Figure

Model

TO-8

BG

A29-1

Surface Mount

AA

SMA29-1

SMA Connectorized

CE

CA29-1

Specifications subject to change without notice.

•

North America: 1-800-366-2266

Visit www.macom.com for complete contact and product information.
