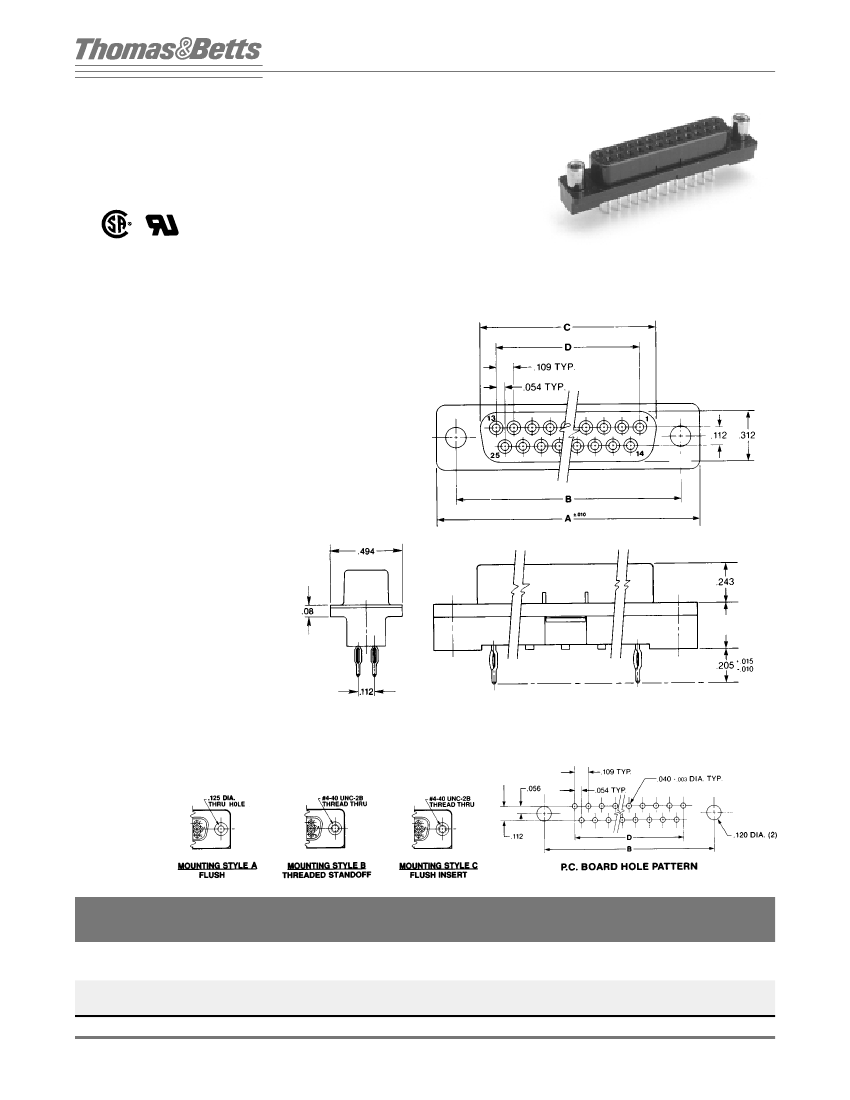

D Subminiature Connector, 9 Contact(s), Female, 0.109 inch Pitch, Press Fit Terminal, Receptacle
| Parameter Name | Attribute value |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | LATCHED, STAGGERED CONFIGURATION |
| body width | 0.494 inch |
| subject depth | 0.237 inch |
| body length | 1.224 inch |
| Body/casing type | RECEPTACLE |
| Connector type | D SUBMINIATURE CONNECTOR |
| Contact point gender | FEMALE |
| Contact material | COPPER ALLOY |
| contact mode | STAGGERED |
| Contact resistance | 10 mΩ |
| Contact style | RND PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 1000VAC V |
| empty shell | NO |
| Filter function | NO |
| IEC compliance | NO |
| Insulation resistance | 5000000000 Ω |
| Insulator color | BLACK |
| insulator material | POLYESTER |
| MIL compliance | NO |
| Manufacturer's serial number | H2R |
| Plug contact pitch | 0.109 inch |
| Match contact row spacing | 0.112 inch |
| Mixed contacts | NO |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 2.8448 mm |
| Rated current (signal) | 5 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Shell material | PLASTIC |
| Housing size | 1/E |
| Terminal length | 0.205 inch |
| Terminal pitch | 2.7686 mm |
| Termination type | PRESS FIT |
| Total number of contacts | 9 |
| UL Flammability Code | 94V-0 |
| Base Number Matches | 1 |
