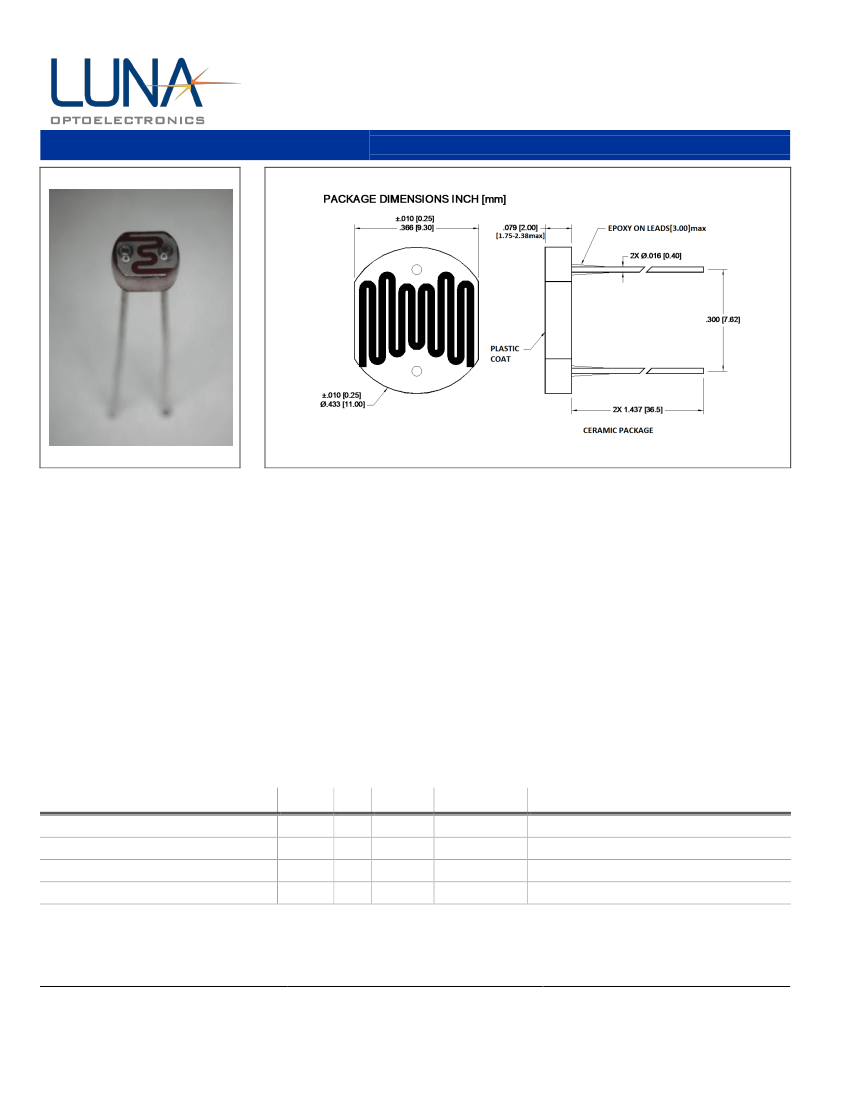

CdS Photoconductive Photocells
PDV-P9008
WWW.LUNAINC.COM
Precision – Control – Results
DESCRIPTION
The
PDV-P9008
are (CdS), Photoconductive photocells designed to
sense light from 400 to 700 nm. These light dependent resistors are
available in a wide range of resistance values. They’re packaged in a two
leaded plastic-coated ceramic header.
FEATURES
Visible light response
Sintered construction
Low cost
RELIABILITY
This Luna high-reliability device is in principle able to meet military test
requirements (Mil-STD-750, Mil-STD-883) after proper screening and
group test.
Contact Luna for recommendations on specific test conditions and
procedures.
APPLICATIONS
Camera exposure
Shutter controls
Night light controls
ABSOLUTE MAXIMUM RATINGS
SYMBOL
Applied Voltage
Continuous Power Dissipation
Operation and Storage Temperature
Soldering Temperature*
* 0.200 inch from base for 3 seconds with heat sink.
MIN
-
-
-30
-
-
-
to
-
MAX
150
90
+75
+260
UNITS
V
mW/°C
V
°C
(TA)= 23°C UNLESS OTHERWISE NOTED
-
-
-
-
Information in this technical datasheet is believed to
be correct and reliable. However, no responsibility is
assumed for possible inaccuracies or omission.
Specifications are subject to change without notice.
Page 1/2
REV 01-04-16
© 2016 Luna Optoelectronics. All rights reserved.
Luna Optoelectronics, 1240 Avenida Acaso, Camarillo CA 93012 • Phone (805) 987-0146 • Fax (805) 484-9935
CdS Photoconductive Photocells
PDV-P9008
WWW.LUNAINC.COM
OPTO-ELECTRICAL PARAMETERS
PARAMETER
Dark Resistance
Illuminated Resistance
Sensitivity
Spectral Application Range
Spectral Application Range
Rise Time
Fall Time
Flooded
Flooded
10 Lux @ 2856 °K
After 10 Lux @ 2856 °K
Precision – Control – Results
T
a
= 23°C
UNLESS NOTED OTHERWISE
TEST CONDITIONS
After 10 sec. @10 Lux @ 2856°K
10 Lux @ 2856°K
MIN
20
10
-
400
-
-
-
TYP
-
-
0.85
-
570
60
25
MAX
-
200
-
700
-
-
-
UNITS
MΩ
KΩ
Lux
nm
ms
ms
MΩ
**R100, R10: cell resistances at 100 Lux and 10 Lux at 2856
K
respectively .
***E100, E10: luminances at 100 Lux and 10 Lux 2856
K
respectively.

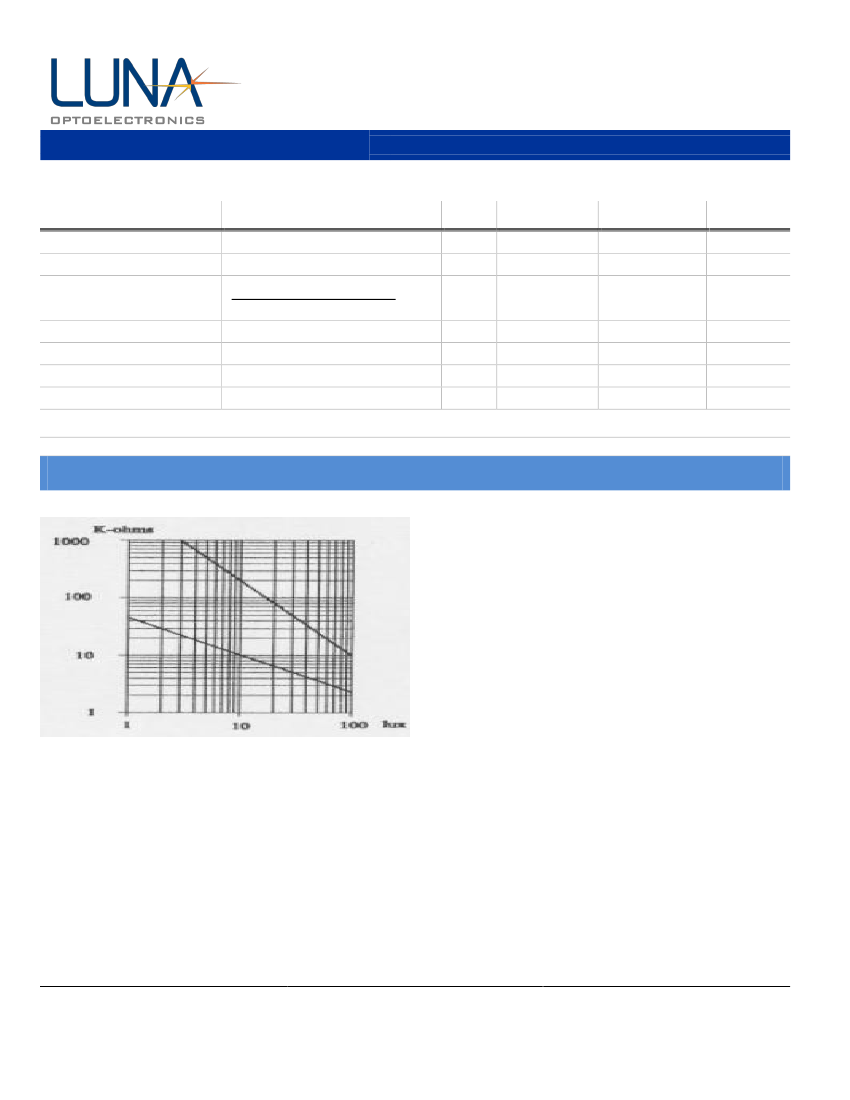

TYPICAL PERFORMANCE
CELL RESISTANCE vs. ILLUMINANCE
