M24308/23-10F datasheet, PDF - EEWORLD Datasheet

M24308/23-10F: DescriptionD Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, Hole .112-.124, Plug; CategoryThe connector The connector; File Size320KB，5 Pages; ManufacturerBel Fuse

Download Datasheet Parametric View All

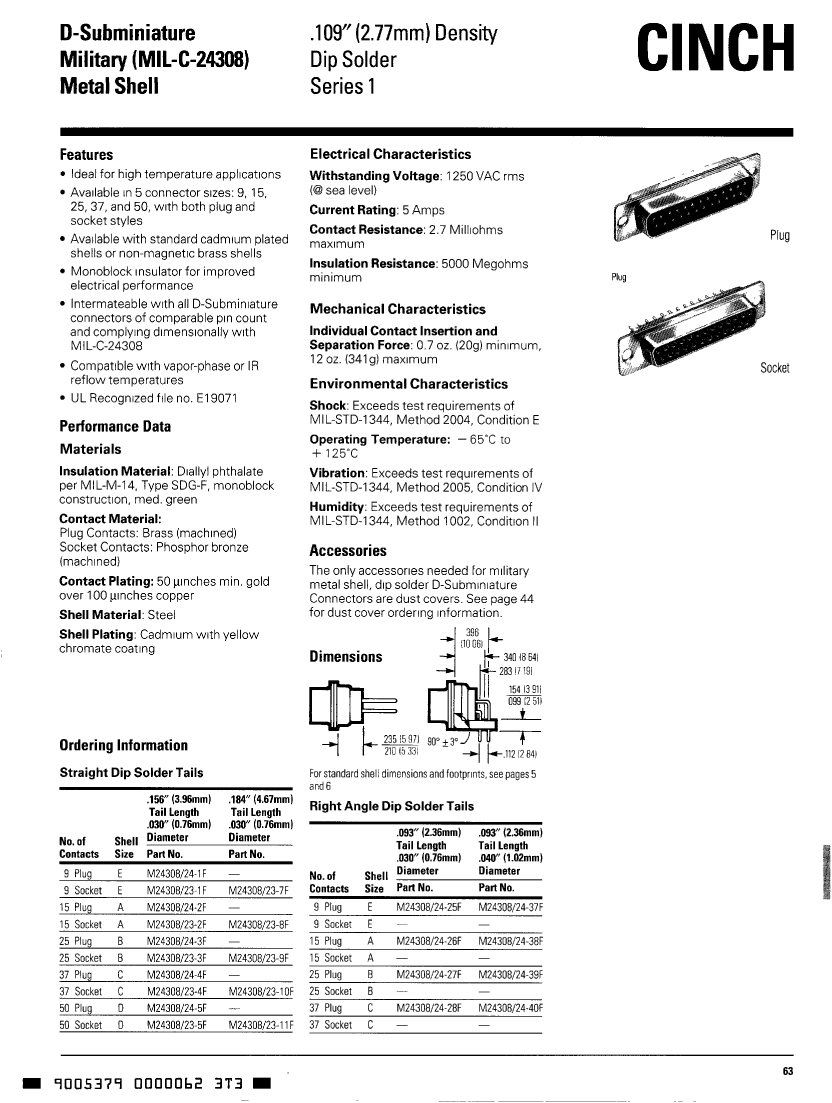

M24308/23-10F Overview

D Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, Hole .112-.124, Plug

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
ECCN code	EAR99

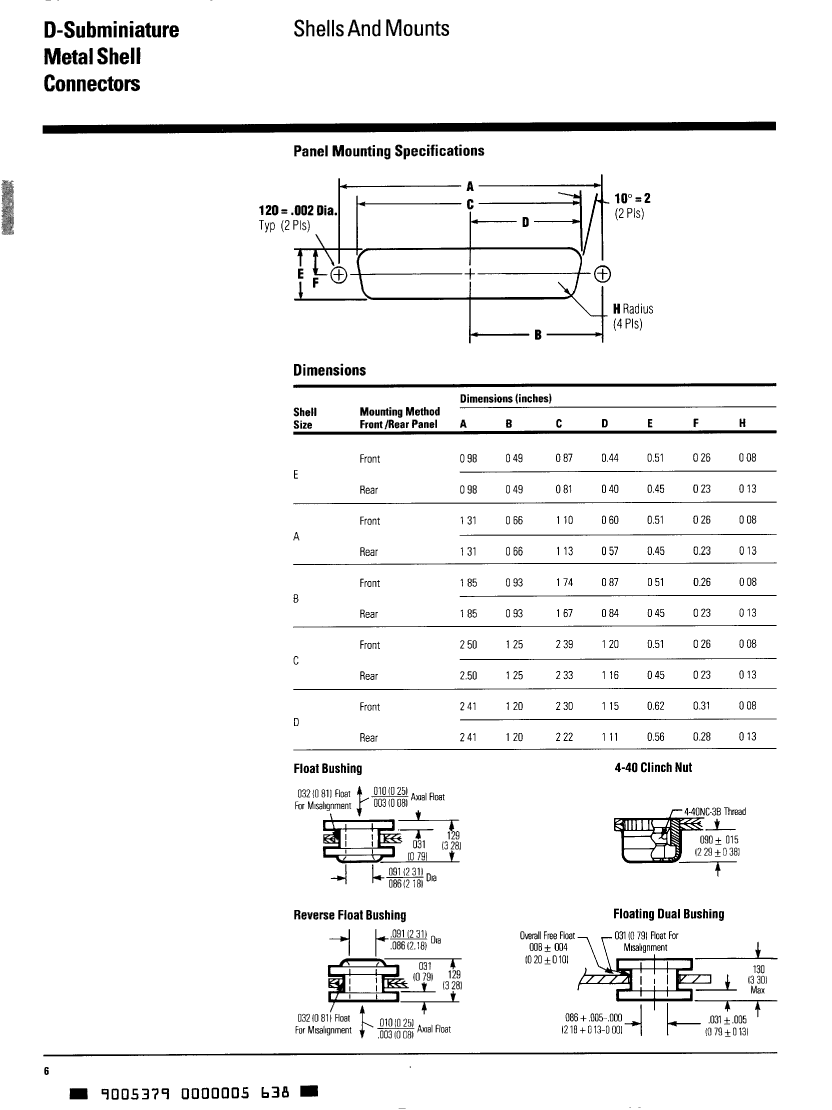

body width	0.494 inch
subject depth	0.28 inch
body length	2.729 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	AU ON CU
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE

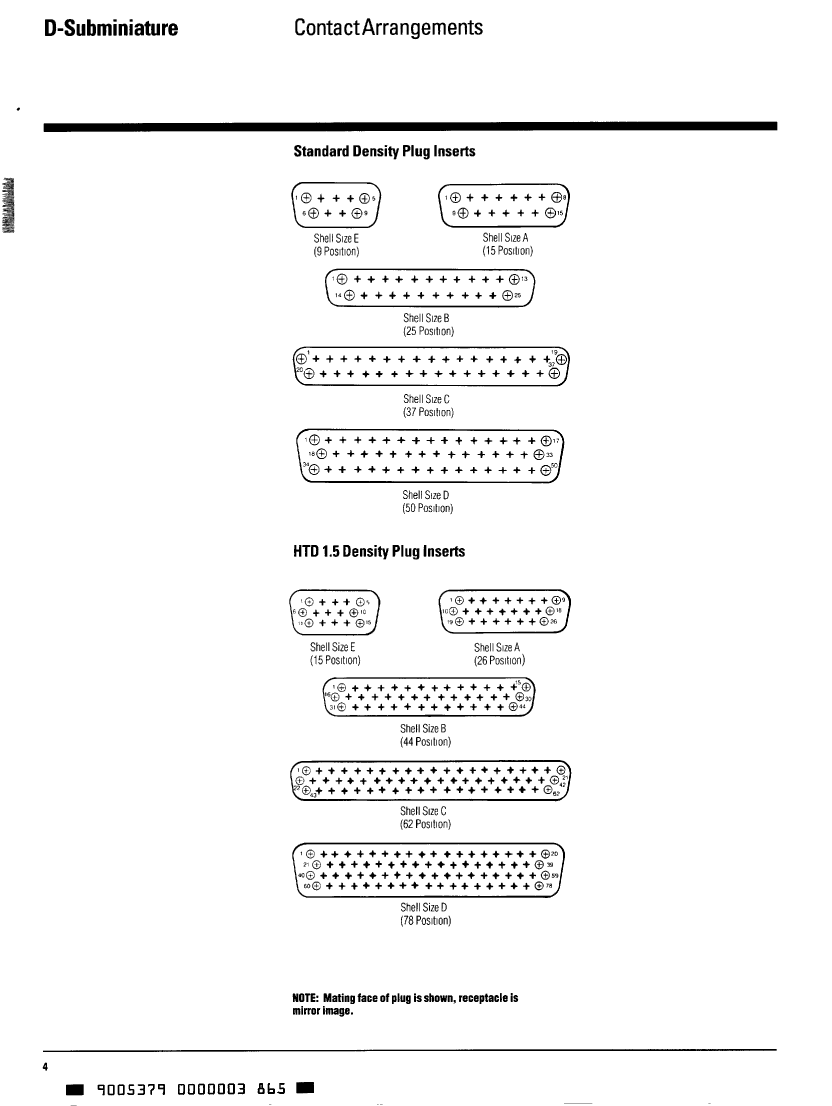

contact mode	STAGGERED
Contact resistance	2.7 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1250VAC V
maximum insertion force	3.336 N
Insulation resistance	5000000000 Ω
Insulator color	GREEN
insulator material	DIALLYL PHTHALATE
MIL compliance	YES
Plug contact pitch	0.109 inch
Match contact row spacing	0.109 inch
Installation option 1	HOLE .112-.124
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C

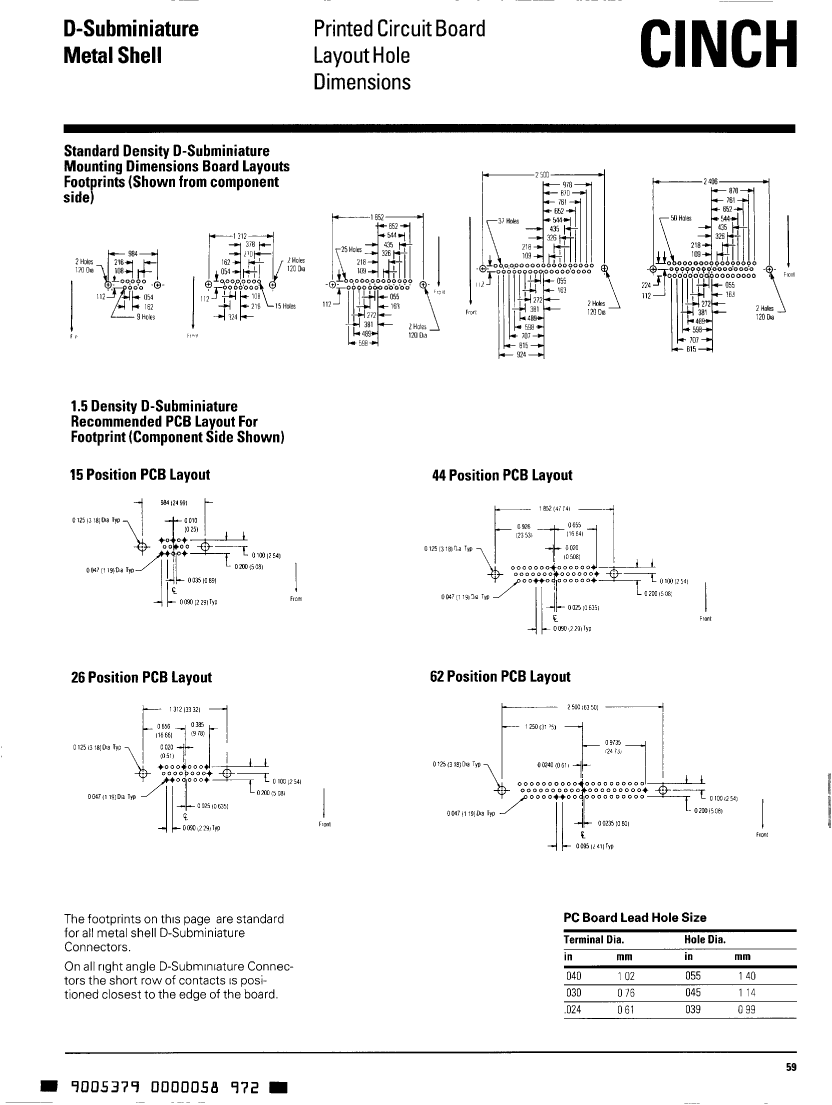

PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	50u inch
Rated current (signal)	5 A
reliability	MIL-C-24308
Shell surface	CADMIUM/YELLOW CHROMATE
Shell material	STEEL
Terminal length	0.184 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	37
Evacuation force-minimum value	.1946 N
Base Number Matches	1
