CR150DM10 datasheet, PDF - EEWORLD Datasheet

CR150DM10: DescriptionSilicon Controlled Rectifier, 175000mA I(T), 500V V(DRM); CategoryAnalog mixed-signal IC Trigger device; File Size222KB，6 Pages; ManufacturerPOWEREX; Websitehttp://www.pwrx.com/Home.aspx

Download Datasheet Parametric View All

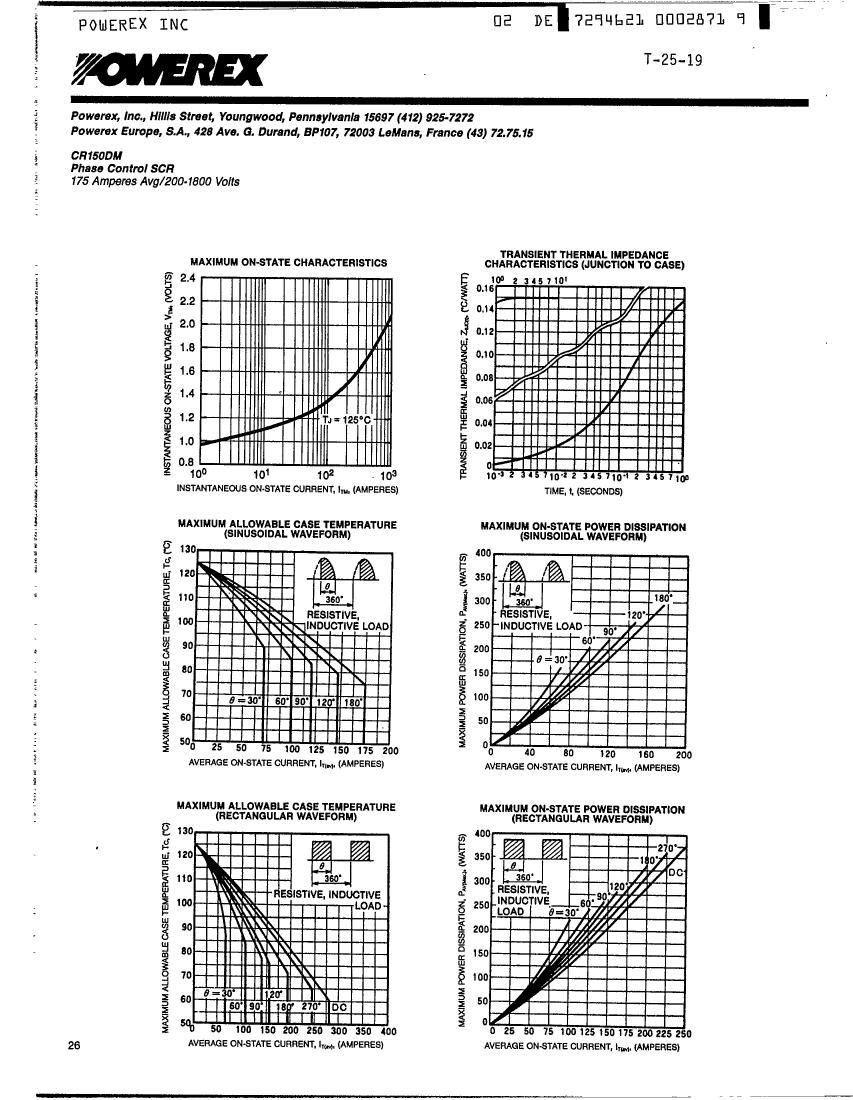

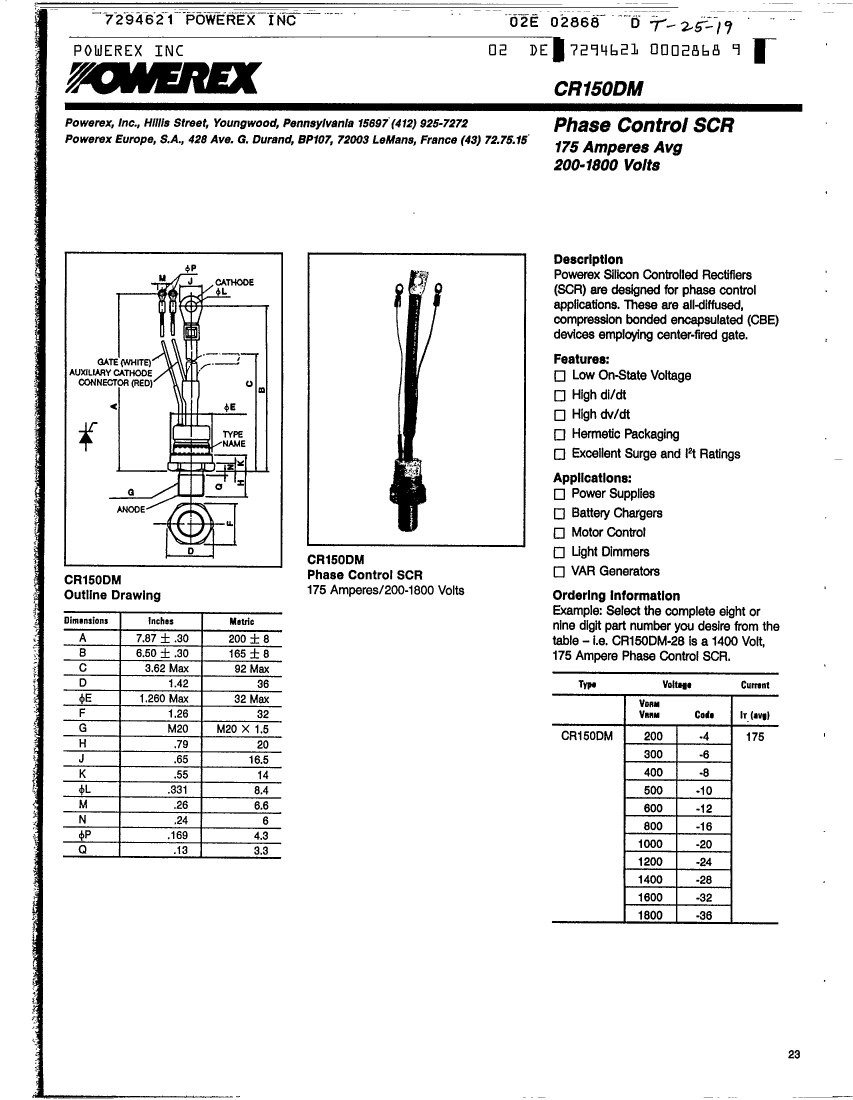

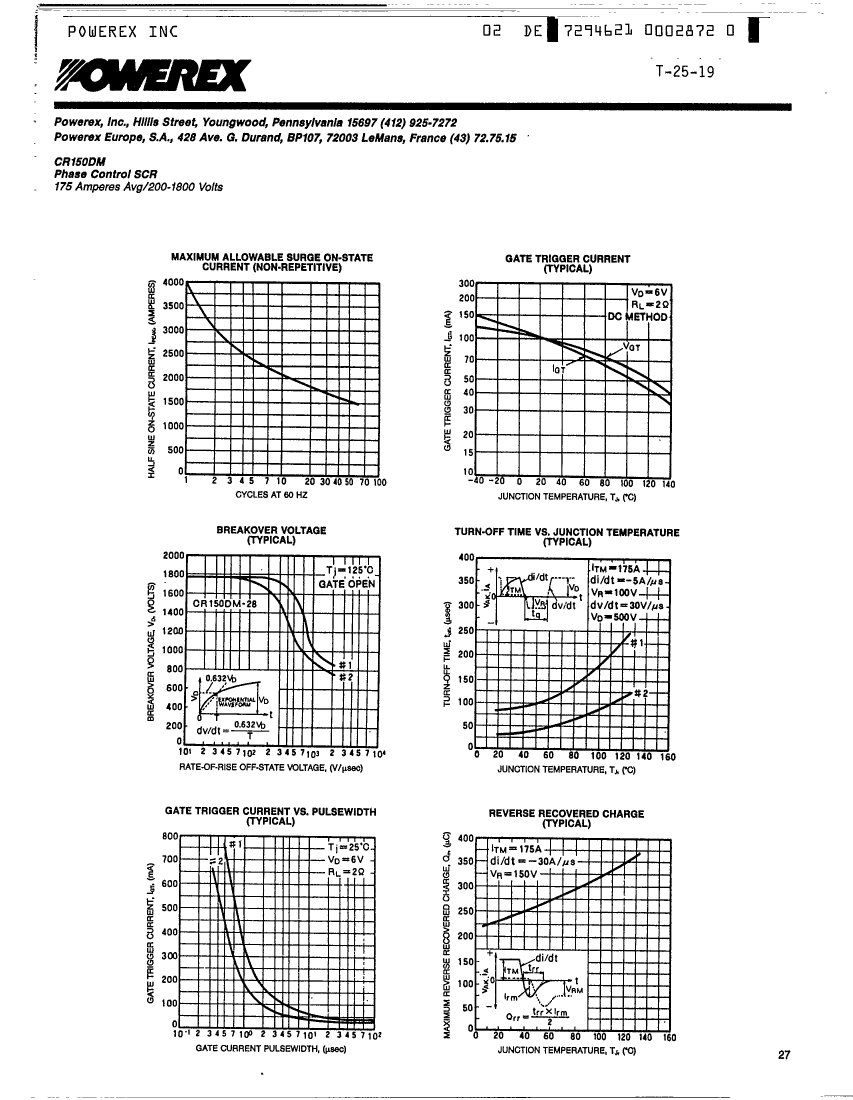

CR150DM10 Overview

Silicon Controlled Rectifier, 175000mA I(T), 500V V(DRM)

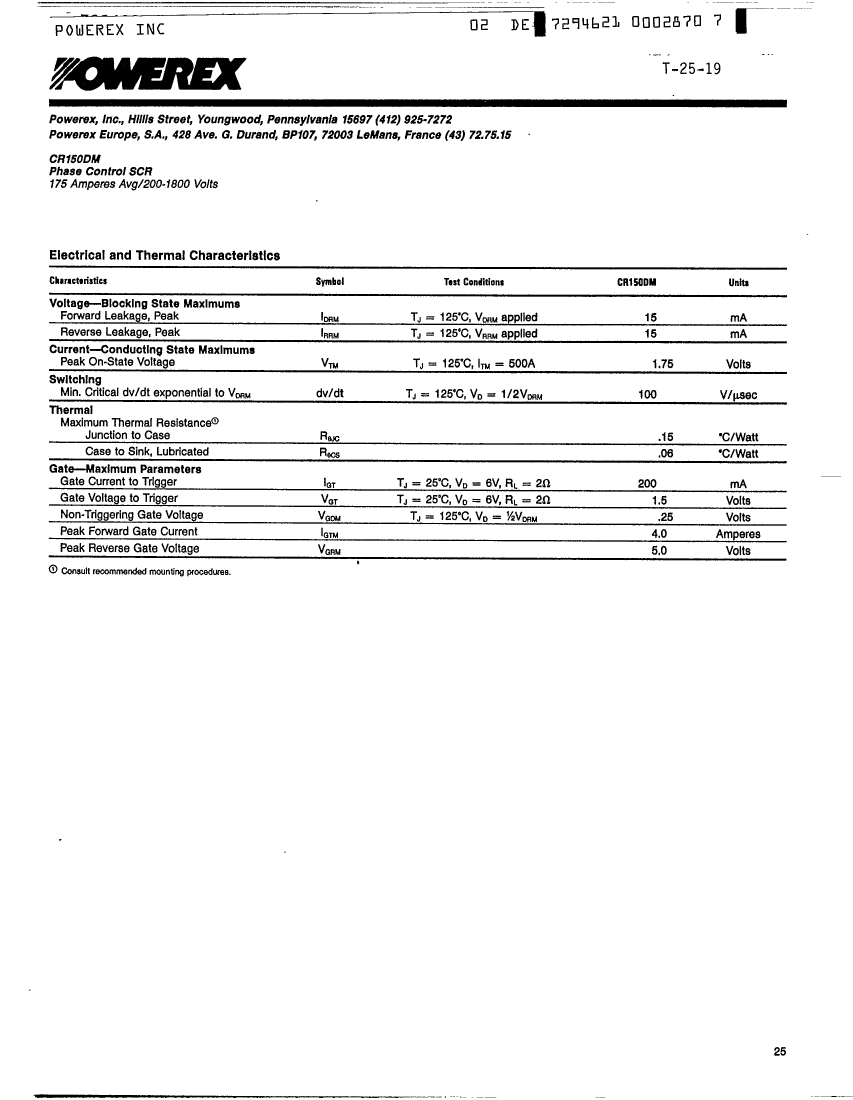

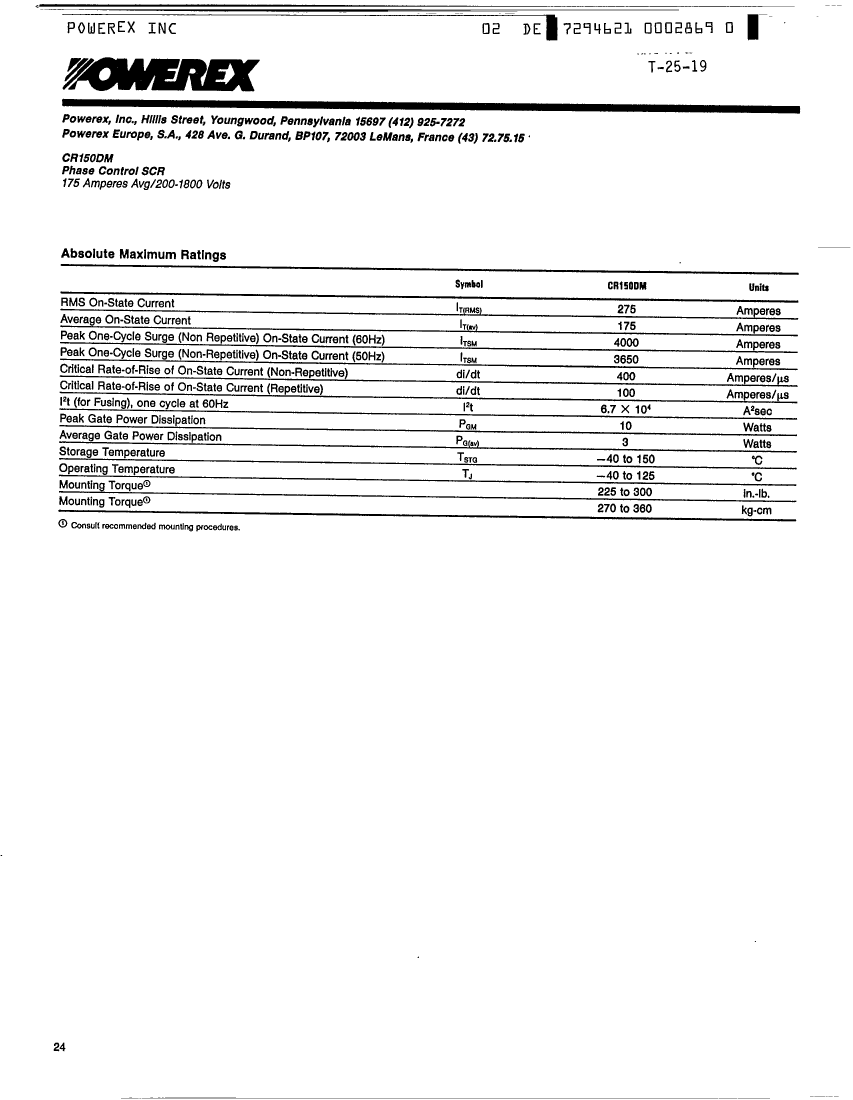

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Critical rise rate of minimum off-state voltage	100 V/us
Maximum DC gate trigger current	200 mA
Maximum DC gate trigger voltage	1.5 V
Maximum leakage current	15 mA
On-state non-repetitive peak current	4000 A
Maximum on-state current	175000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-45 °C
Off-state repetitive peak voltage	500 V
surface mount	NO
Trigger device type	SCR
Base Number Matches	1
