M39012/16-0017 datasheet, PDF - EEWORLD Datasheet

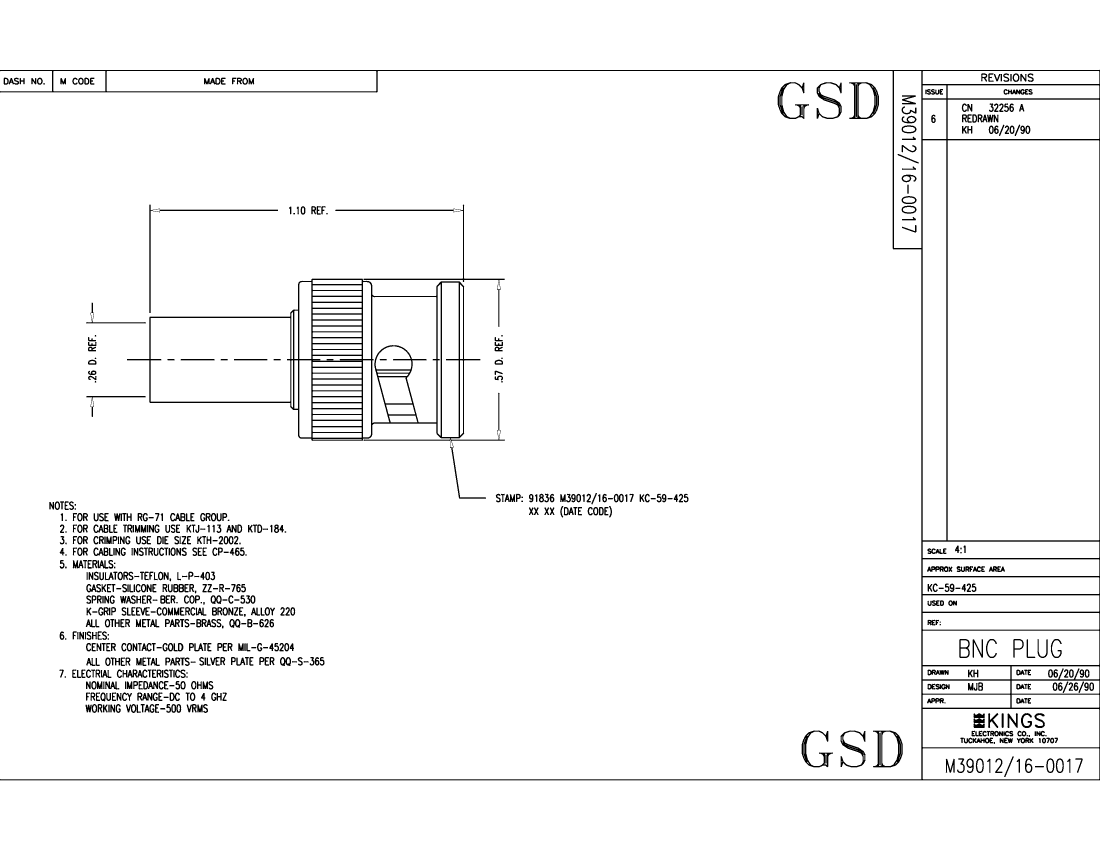

M39012/16-0017: DescriptionRF BNC Connector, Male, Cable Mount, Crimp Terminal, Plug; CategoryThe connector The connector; File Size28KB，1 Pages; ManufacturerKings Electronics

Download Datasheet Parametric Compare View All

M39012/16-0017 Overview

RF BNC Connector, Male, Cable Mount, Crimp Terminal, Plug

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	APPLICABLE CABLES: RG 71; RG 71A; RG 71B/U
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF BNC CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	YES
Manufacturer's serial number	M39012/16-0017
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	4 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP
Base Number Matches	1

	M39012/16-0017	KC-59-425
Description	RF BNC Connector, Male, Cable Mount, Crimp Terminal, Plug	RF BNC Connector, Male, Cable Mount, Crimp Terminal, Plug
Reach Compliance Code	unknown	unknown
Other features	APPLICABLE CABLES: RG 71; RG 71A; RG 71B/U	APPLICABLE CABLE : RG 71
Body/casing type	PLUG	PLUG
Characteristic impedance	50 Ω	50 Ω
Connector type	RF BNC CONNECTOR	RF BNC CONNECTOR
Contact to complete cooperation	GOLD	GOLD
Contact completed and terminated	GOLD	GOLD
Contact point gender	MALE	MALE
Coupling type	BAYONET	BAYONET
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4	e4
MIL compliance	YES	NO
Manufacturer's serial number	M39012/16-0017	KC-59-425
Installation method	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE
Maximum operating frequency	4 GHz	4 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO
Termination type	CRIMP	CRIMP
Base Number Matches	1	1
