FQ3225B: DescriptionAll Quartz SMD Crystal; File Size190KB，2 Pages; ManufacturerFOX [Fox Electronics]

Download Datasheet View All

FQ3225B Overview

All Quartz SMD Crystal

Preview

Download Datasheet

View All

All Quartz SMD Crystal

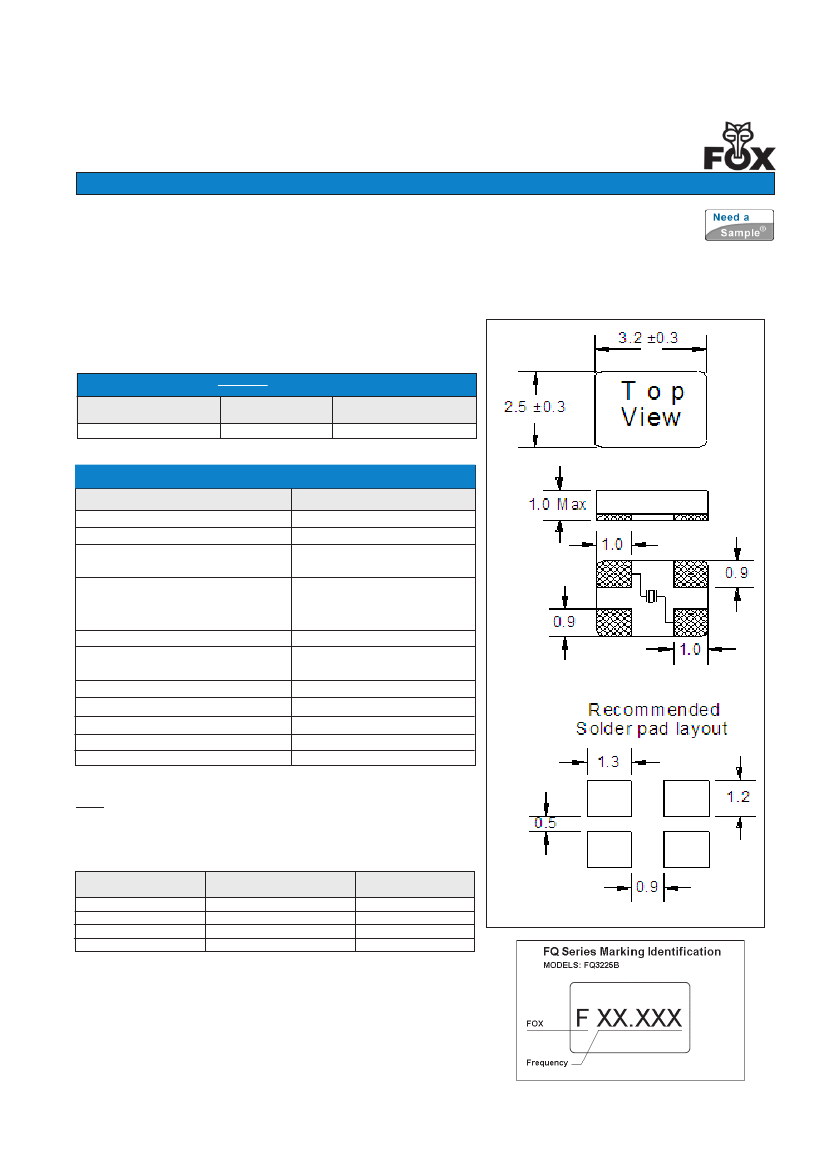

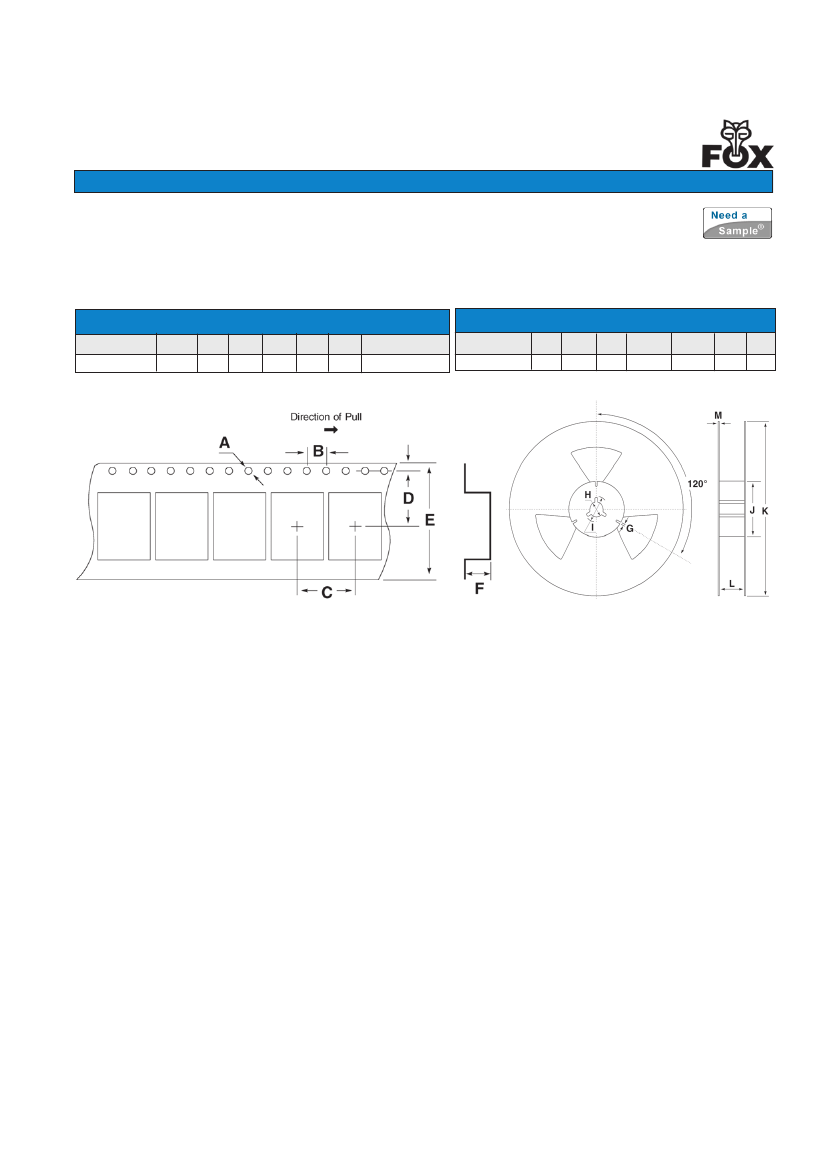

Model: FQ3225B Series

Page 1 of 2

RoHS Compliant / Pb Free

Rev. 11/9/2007

http://www.foxonline.com/need_a_sample.htm

FEATURES

• Surface Mount All Quartz

• Low Cost

• Ultra Low Profile

• Fundamental

• Tape and Reel (1,000 pcs STD)

PART NUMBER SELECTION

•• PART NUMBER

Learn More - Internet Required

Part Number

820-Frequency-xxxxx

Model Number

FQ3225B

Frequency Range (MHz)

16.000 ~ 50.000

• STANDARD SPECIFICATIONS

PARAMETERS

Frequency Range

(Fo)

Frequency Tolerance @ 25ºC

Frequency Stability, ref @ 25ºC

Over Operating Temp Range

Temperature Range

Operating (T

OPR

)

Storage

STG

)

Shunt Capacitance

(Co)

Load Capacitance

)

Drive Level

Aging per year

Maximum Soldering Temp / Temp

Moisture Sensitivity Level (MSL)

Termination Finish

MAX

(unless otherwise noted)

16.000 ~ 50.000 MHz

±50 PPM

-10ºC

~ +70ºC

-55ºC ~ +125ºC

7 pF

7 pF ~ Series

(Customer Specified)

0.1 mW

±5 PPM

260ºC / 10 Seconds

Other tolerances, stabilities & operating temperature ranges available. Consult Fox Customer

Service for specific requirements.

NOTE:

The above specifications, having been carefully prepared and checked, is believed to be

accurate at the time of publication; however , no responsibility is assumed by Fox Electronics

for inaccuracies.

If you have any questions, please call Customer Support at 1-888-GET-2-FOX.

All specifications subject to change without notice.

Frequency Range

(MHz)

16.000 ~ 20.000

20.000+ ~ 25.000

25.000+ ~ 30.000

30.000+ ~ 50.000

Operating Mode

Fundamental

Max ESR

Ω

100

All dimensions are in millimeters.

FOXElectronics

5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554

http://www.foxonline.com

EMEA

Tel/Fax: +44 .1767.312632 |

Asia

Hong Kong Tel: +852.2854.4285 Fax +852.2854.4282 |

Taiwan

Tel: +886.2.22073427 Fax +886.2.22073486

Japan

Tel: +81.3.3374/2079 Fax: +81.3.3374.5221
