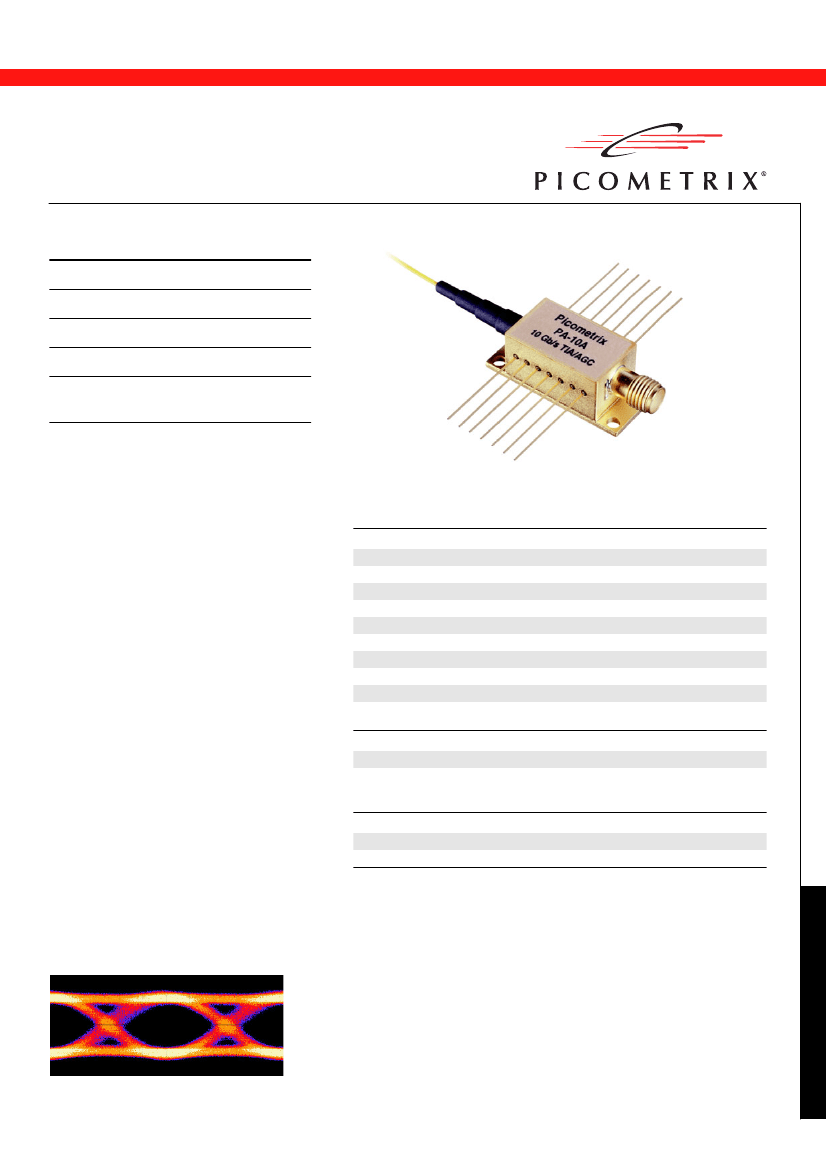

PA-10A
• PIN/TIA/AGC receiver
• High sensitivity, -18 dBm
Product Bulletin (Preliminary) • February 2002
• High data rate, up to 10.7 Gb/s
• 1200–1650 nm wavelength range
• 14-pin SMA or dual GPO
butterfly package
The
PA-10A
is a -18 dBm sensitivity
receiver module with an integrated
automatic gain control amplifier for
OC-192 / STM-64 transmission system
receive applications up to 10.7 Gb/s.
It couples a high responsivity (1 A/W),
back-illuminated PIN photodiode, usable
from 1200 nm to 1650 nm, with an internal
500 V/A transimpedance gain stage and a
>20 dB automatic gain control amplifier.
This combination produces a receiver with
an 9 GHz bandwidth and an adjustable
conversion gain of up to 6000 V/W.
The single-coaxial output module is
available with an SMA output connector and
the differential output module is available
with dual GPO output connectors, in a
compact, 14-pin butterfly package with
single-mode fiber input. The receiver meets
Telcordia GR-468 qualification standards.
1
2
Specifications
Wavelength range
Bandwidth (-3dB electrical)
Low frequency cutoff
1
Sensitivity
2
Overload
Responsivity @ 1550 nm
Conversion gain (single ended)
Output Return Loss (< 8 GHz)
Optical Return Loss
Power dissipation
Minimum
1200
8
30
0
0.9
5000
Typical
9
-18
+1
1.0
6000
Maximum
1650
Units
nm
GHz
kHz
-17
dBm
dBm
A/W
V/W
-10
-30
4
dB
dB
W
DC Electrical
Photodiode voltage
TIA voltage
AGC voltage
+8
+7.6
-8.4
+10
+8
-8
+15
+8.5
-7.6
V
V
V
Mechanical
Package type
Operating temperature
Storage temperature
Output is DC coupled
10
-10
BER, PRBS 2
23
-1
14-pin butterfly with SMA
0
-40
+70
+85
°C
°C

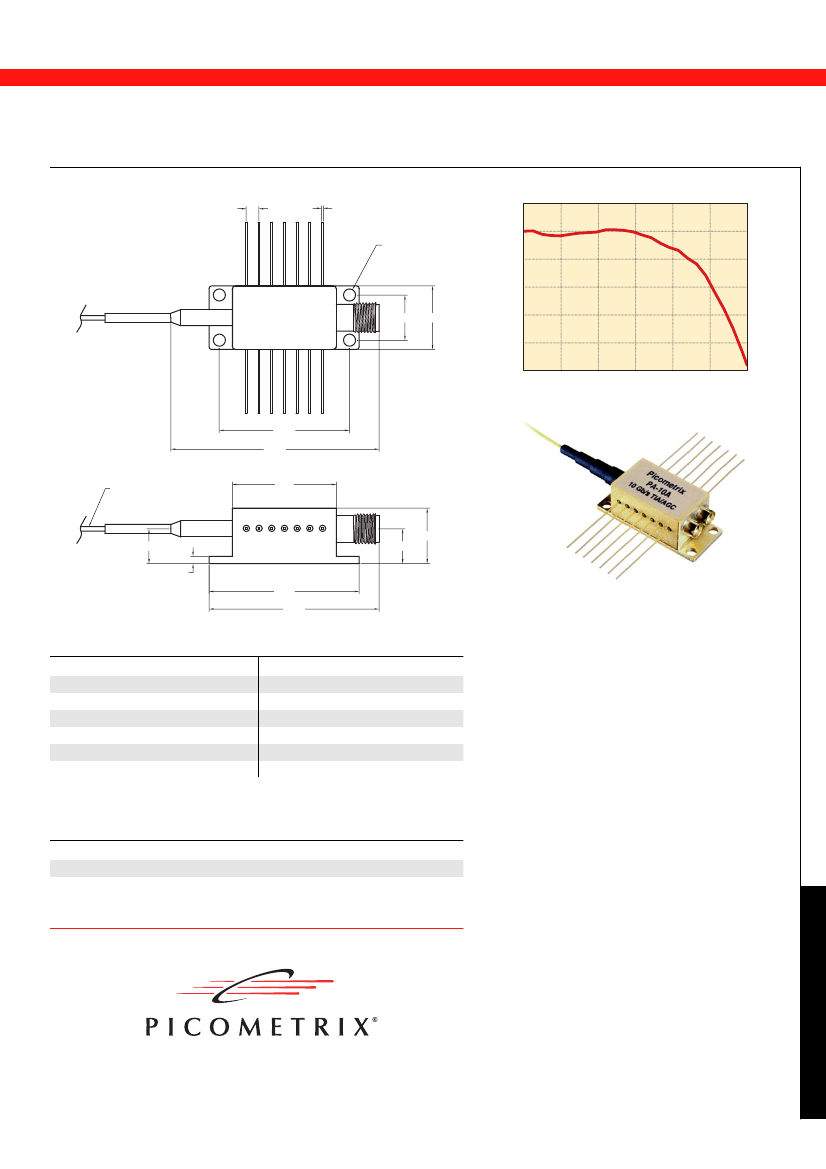

PA-10A
Eye pattern taken at 10 Gb/s data rate
with -10 dBm optical input power.
Product Specifications
.100 TYP.
.015±.003 TYP.
3
0
CLEARANCE HOLE
(ø.095)
Electrical (dB)
4X #2–56
-3
-6
-9
14
8
.354
1
7
.500
-12
-15
0
2
4
6
8
10
12
Frequency (GHz)
1.025
1.638
Single-mode fiber
with 900µm buffer
(1 meter typical)
.820
.437
.273
.059
1.181
1.336
.273
Photo: Dual GPO output connector module
[14DGPO]
Pin Description
1
2
3
4
5
6
7
NC
GND
V
TIA
AGC
V
EE
Peak Det.
NC
Pin Description
8
9
10
11
12
13
14
NC
Peak Det. Ref.
V
EE
NAGC
V
PD
GND
NC
Application Notes
Electrostatic discharge (ESD) will cause permanent
damage to the product. Please avoid any ESD to the
input pins or output connector. Use standard ESD
protective equipment when handling this product.
Temperature and fiber restrictions are as follows:
Lead soldering: 250°C for no more than 10 seconds
Fiber feed-through tube: 120°C
Fiber pull force: 10 N
Fiber bending radius: 1 inch or less
Exceeding these conditions can cause permanent
damage to the device.
PA-10A Ordering Information
Base model
Option format
Package options
Fiber connector options
PA-10A
/Package/Fiber connector
14DGPO or 14SMA
FC or SC
Quality Vision
As a leader in ultrafast optical receivers, Picometrix
is committed to providing the highest quality
ultrafast products on the market. This quality vision
commits us to continually improving our product
designs and manufacturing processes, in order to
ensure the highest level of customer satisfaction.
The company maintains a stringent quality control
program to ensure that all products meet or
surpass customer requirements.
PA-10A
Picometrix, Inc.
• PO Box 130243
Ann Arbor, MI • 48113-0243
734-998-4501 • 734-998-3474 fax
www.picometrix.com
© 2002 Picometrix, Inc. All rights reserved. Specifications
and output data subject to change without notice.
PB-PA-10A-0202-A
