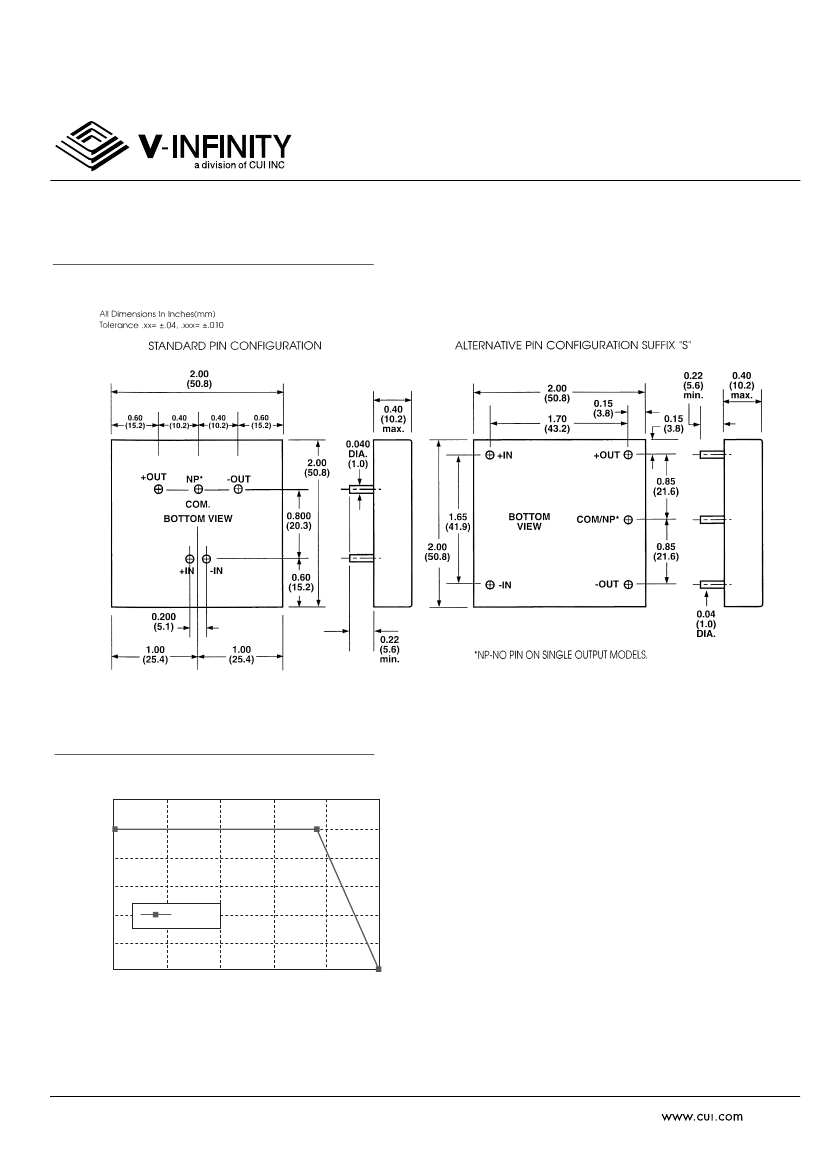

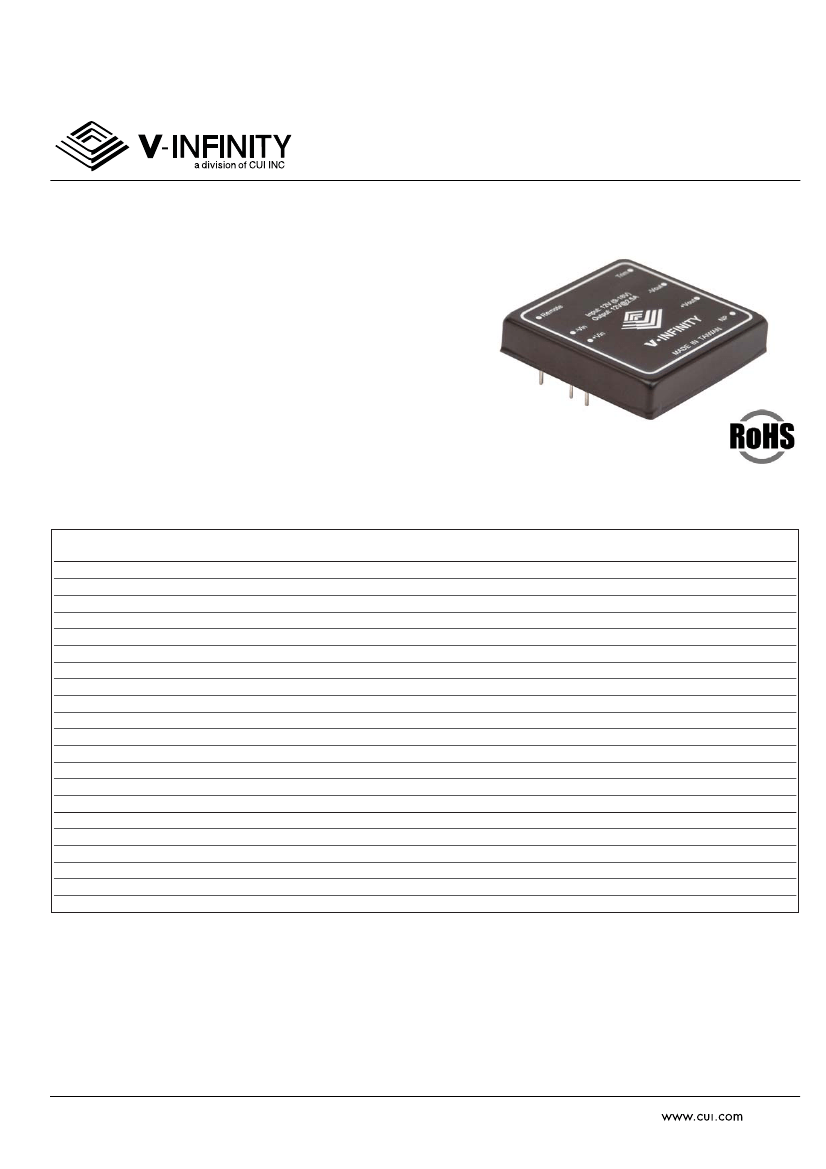

PART NUMBER:
VCDB15 series
DESCRIPTION:
DC/DC converter
features
·
15W isolated output
·2:1 input range
·efficiency to 82%
·200 KHz switching frequency
·six-sided shield
·regulated outputs
·Pi input filter
·continuous short circuit protection
·meets EN55022 class B, conducted
model
number
VCDB15-D12-S3R3
VCDB15-D12-S5
VCDB15-D12-S12
VCDB15-D12-S15
VCDB15-D12-D12
VCDB15-D12-D15
VCDB15-D12-D5
VCDB15-D24-S3R3
VCDB15-D24-S5
VCDB15-D24-S12
VCDB15-D24-S15
VCDB15-D24-D12
VCDB15-D24-D15
VCDB15-D24-D5
VCDB15-D48-S3R3
VCDB15-D48-S5
VCDB15-D48-S12
VCDB15-D48-S15
VCDB15-D48-D12
VCDB15-D48-D15
VCDB15-D48-D5
input
voltage
9-18VDC
9-18VDC
9-18VDC
9-18VDC
9-18VDC
9-18VDC
9-18VDC
18-36VDC
18-36VDC
18-36VDC
18-36VDC
18-36VDC
18-36VDC
18-36VDC
36-72VDC
36-72VDC
36-72VDC
36-72VDC
36-72VDC
36-72VDC
36-72VDC
output
voltage
3.3VDC
5VDC
12VDC
15VDC
±12VDC
±15VDC
±5VDC
3.3VDC
5VDC
12VDC
15VDC
±12VDC
±15VDC
±5VDC
3.3VDC
5VDC
12VDC
15VDC
±12VDC
±15VDC
±5VDC
output
current
3000mA
3000mA
1250mA
1000mA
±625mA
±500mA
±1500mA
3000mA
3000mA
1250mA
1000mA
±625mA
±500mA
±1500mA
3000mA
3000mA
1250mA
1000mA
±625mA
±500mA
±1500mA
input current
no load
30mA
30mA
30mA
30mA
35mA
35mA
35mA
15mA
15mA
20mA
20mA
25mA
25mA
25mA
20mA
10mA
15mA
15mA
20mA
20mA
20mA
full load
1178mA
1660mA
1625mA
1625mA
1620mA
1620mA
1620mA
557mA
812mA
772mA
772mA
780mA
780mA
780mA
271mA
390mA
381mA
381mA
386mA
386mA
386mA
efficiency
70%
75%
78%
78%
77%
77%
77%
74%
78%
81%
81%
80%
80%
80%
76%
80%
82%
82%
81%
81%
81%
