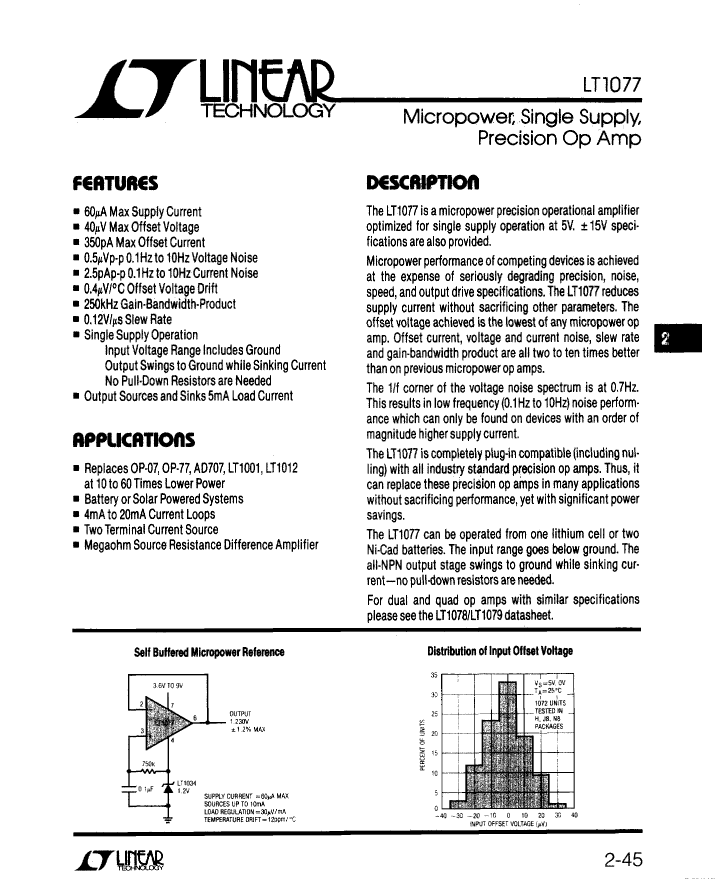

Basic information of LT1077MH/883B amplifier:
LT1077MH/883B is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are METAL CAN, TO-5, 8 PIN
LT1077MH/883B amplifier core information:
The minimum operating temperature of the LT1077MH/883B is -55 °C and the maximum operating temperature is 125 °C. Its maximum average bias current is 0.013 µA

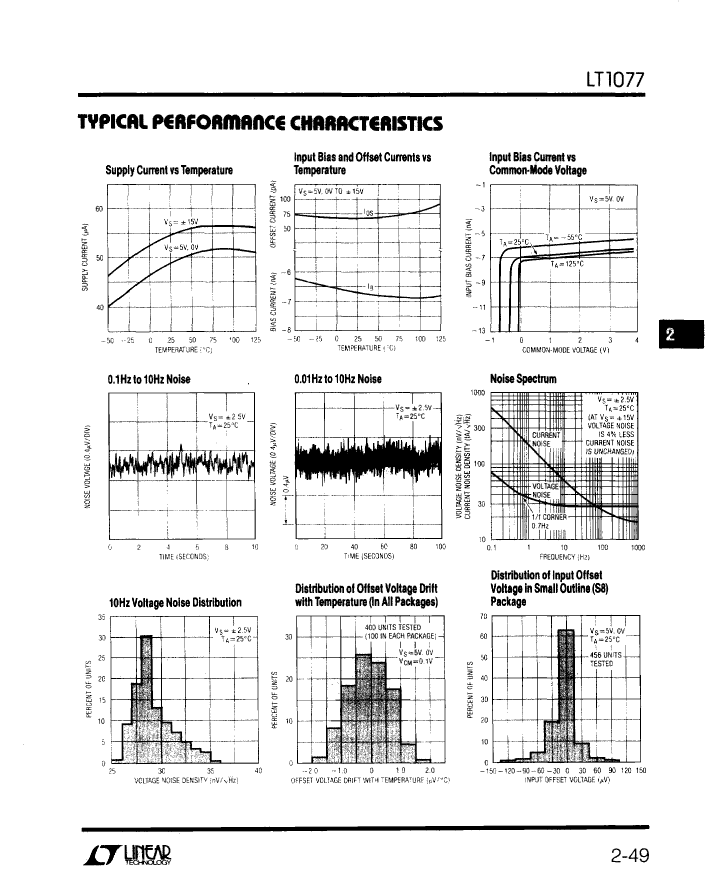

How to simply check the efficiency of an amplifier? Looking at its slew rate, the LT1077MH/883B has a nominal slew rate of 0.12 V/us. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the LT1077MH/883B gain becomes 0.707 times the low-frequency gain is 250 kHz.
The nominal supply voltage of the LT1077MH/883B is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of the LT1077MH/883B is 450 µV (Input offset voltage: the compensation voltage added between the two input terminals to make the op amp output terminal 0V (or close to 0V).)

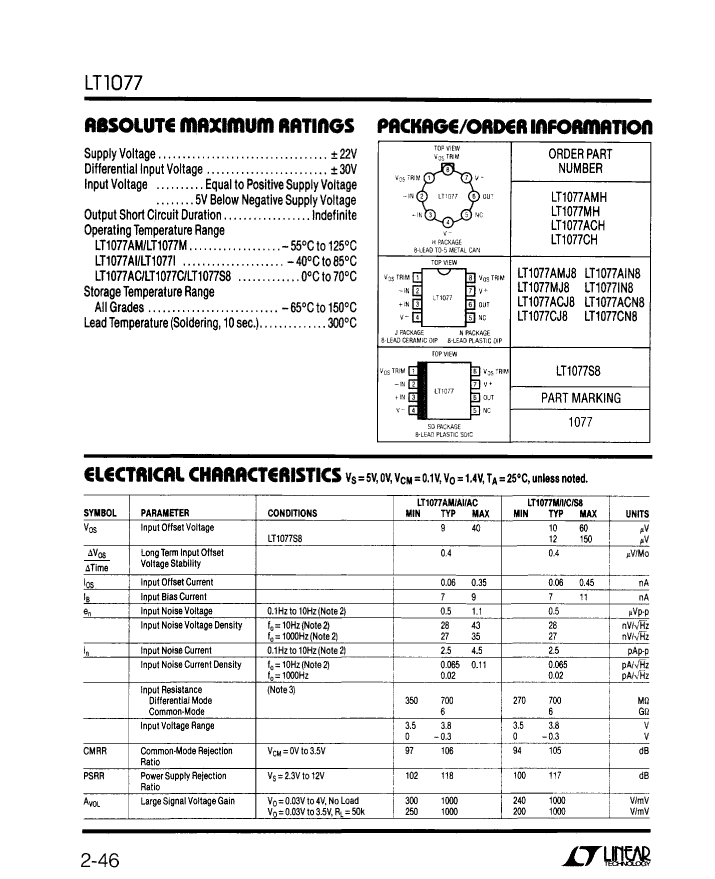

Relevant dimensions of LT1077MH/883B:
LT1077MH/883B has 8 terminals. Its terminal position type is: BOTTOM. Total pins: 8
LT1077MH/883B amplifier other information:
Its temperature grade is: MILITARY. The LT1077MH/883B is not Rohs certified. The corresponding JESD-30 code is: O-MBCY-W8. The corresponding JESD-609 code is: e0. The package code of LT1077MH/883B is: TO-5.
The material of the LT1077MH/883B package is mostly METAL. And its package shape is ROUND. The LT1077MH/883B package pin format is: CYLINDRICAL. Its terminal form is: WIRE.
Basic information of LT1077MH/883B amplifier:
LT1077MH/883B is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are METAL CAN, TO-5, 8 PIN
LT1077MH/883B amplifier core information:
The minimum operating temperature of the LT1077MH/883B is -55 °C and the maximum operating temperature is 125 °C. Its maximum average bias current is 0.013 µA
How to simply check the efficiency of an amplifier? Looking at its slew rate, the LT1077MH/883B has a nominal slew rate of 0.12 V/us. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the LT1077MH/883B gain becomes 0.707 times the low-frequency gain is 250 kHz.
The nominal supply voltage of the LT1077MH/883B is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of the LT1077MH/883B is 450 µV (Input offset voltage: the compensation voltage added between the two input terminals to make the op amp output terminal 0V (or close to 0V).)
Relevant dimensions of LT1077MH/883B:
LT1077MH/883B has 8 terminals. Its terminal position type is: BOTTOM. Total pins: 8
LT1077MH/883B amplifier other information:
Its temperature grade is: MILITARY. The LT1077MH/883B is not Rohs certified. The corresponding JESD-30 code is: O-MBCY-W8. The corresponding JESD-609 code is: e0. The package code of LT1077MH/883B is: TO-5.
The material of the LT1077MH/883B package is mostly METAL. And its package shape is ROUND. The LT1077MH/883B package pin format is: CYLINDRICAL. Its terminal form is: WIRE.

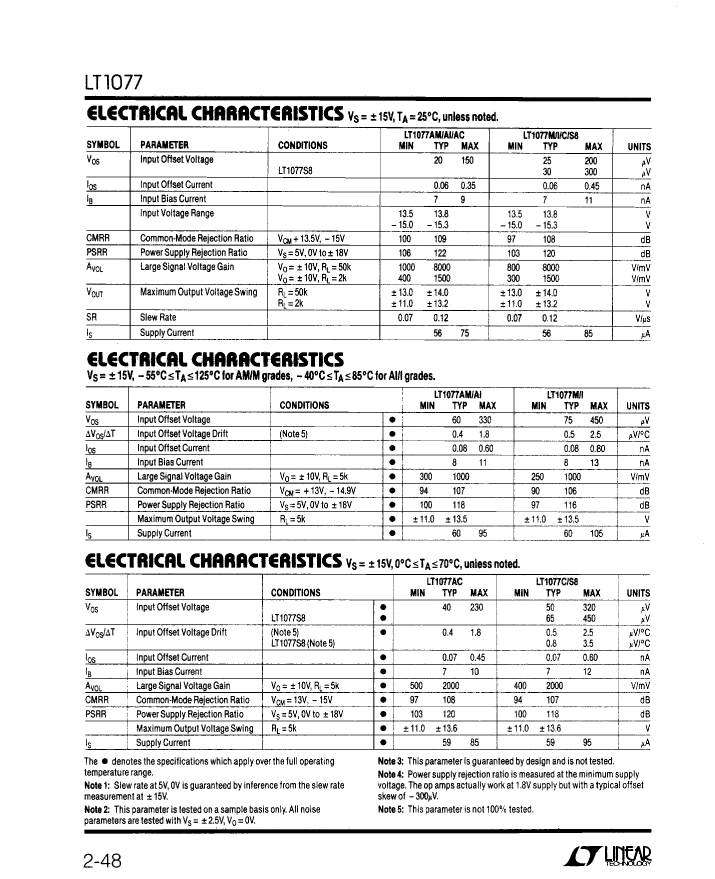

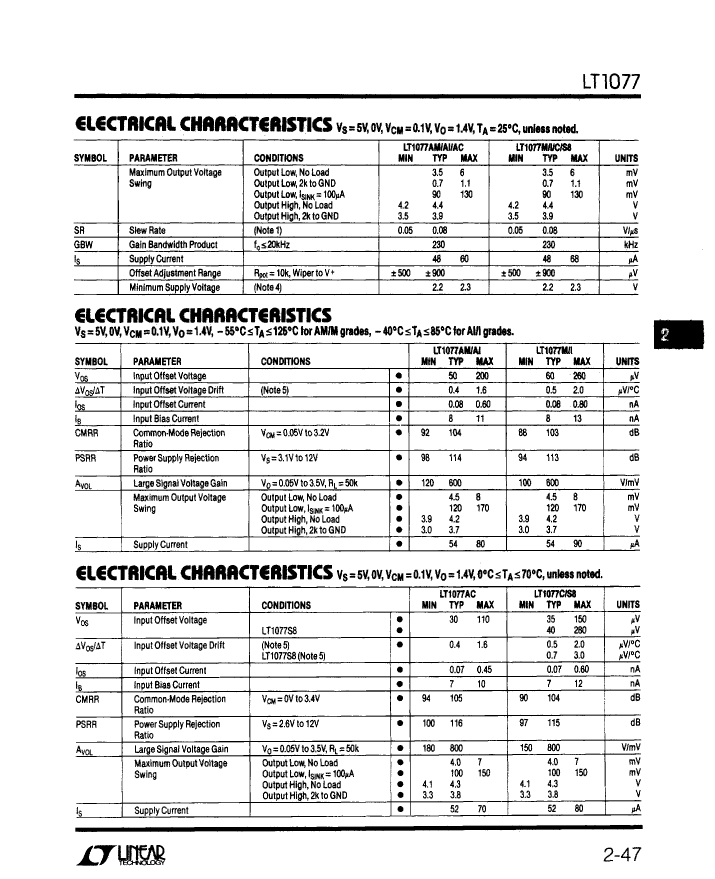

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Parts packaging code | TO-5 |
| package instruction | METAL CAN, TO-5, 8 PIN |
| Contacts | 8 |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Maximum average bias current (IIB) | 0.013 µA |
| Nominal Common Mode Rejection Ratio | 106 dB |
| Maximum input offset voltage | 450 µV |
| JESD-30 code | O-MBCY-W8 |
| JESD-609 code | e0 |
| Negative supply voltage upper limit | -22 V |
| Nominal Negative Supply Voltage (Vsup) | -15 V |
| Number of functions | 1 |
| Number of terminals | 8 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | METAL |
| encapsulated code | TO-5 |
| Package shape | ROUND |
| Package form | CYLINDRICAL |
| Certification status | Not Qualified |
| Nominal slew rate | 0.12 V/us |
| Supply voltage upper limit | 22 V |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | NO |
| technology | BIPOLAR |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | WIRE |
| Terminal location | BOTTOM |
| Nominal Uniform Gain Bandwidth | 250 kHz |
| Base Number Matches | 1 |
| LT1077MH/883B | LT1077AMH/883B | LT1077MJ8/883B | LT1077AMJ8/883B | |
|---|---|---|---|---|
| Description | IC OP-AMP, 450 uV OFFSET-MAX, 0.25 MHz BAND WIDTH, MBCY8, METAL CAN, TO-5, 8 PIN, Operational Amplifier | IC OP-AMP, 330 uV OFFSET-MAX, 0.25 MHz BAND WIDTH, MBCY8, METAL CAN, TO-5, 8 PIN, Operational Amplifier | IC OP-AMP, 450 uV OFFSET-MAX, 0.25 MHz BAND WIDTH, CDIP8, CERDIP-8, Operational Amplifier | IC OP-AMP, 330 uV OFFSET-MAX, 0.25 MHz BAND WIDTH, CDIP8, CERDIP-8, Operational Amplifier |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible |
| Parts packaging code | TO-5 | TO-5 | DIP | DIP |
| package instruction | METAL CAN, TO-5, 8 PIN | METAL CAN, TO-5, 8 PIN | CERDIP-8 | CERDIP-8 |
| Contacts | 8 | 8 | 8 | 8 |
| Reach Compliance Code | compliant | compliant | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER |
| Maximum average bias current (IIB) | 0.013 µA | 0.011 µA | 0.013 µA | 0.011 µA |
| Nominal Common Mode Rejection Ratio | 106 dB | 107 dB | 106 dB | 107 dB |
| Maximum input offset voltage | 450 µV | 330 µV | 450 µV | 330 µV |
| JESD-30 code | O-MBCY-W8 | O-MBCY-W8 | R-GDIP-T8 | R-GDIP-T8 |
| JESD-609 code | e0 | e0 | e0 | e0 |
| Negative supply voltage upper limit | -22 V | -22 V | -22 V | -22 V |
| Nominal Negative Supply Voltage (Vsup) | -15 V | -15 V | -15 V | -15 V |
| Number of functions | 1 | 1 | 1 | 1 |
| Number of terminals | 8 | 8 | 8 | 8 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C |
| Package body material | METAL | METAL | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED |
| encapsulated code | TO-5 | TO-5 | DIP | DIP |
| Package shape | ROUND | ROUND | RECTANGULAR | RECTANGULAR |
| Package form | CYLINDRICAL | CYLINDRICAL | IN-LINE | IN-LINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Nominal slew rate | 0.12 V/us | 0.12 V/us | 0.12 V/us | 0.12 V/us |
| Supply voltage upper limit | 22 V | 22 V | 22 V | 22 V |
| Nominal supply voltage (Vsup) | 15 V | 15 V | 15 V | 15 V |
| surface mount | NO | NO | NO | NO |
| technology | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | WIRE | WIRE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal location | BOTTOM | BOTTOM | DUAL | DUAL |
| Nominal Uniform Gain Bandwidth | 250 kHz | 250 kHz | 250 kHz | 250 kHz |
| Base Number Matches | 1 | 1 | 1 | - |
