Specification
Part No: MA07812
Product Description
Description:
Product family:
Category:
Order code:
32.0MHz GSX-333/113BF SM Crystal
GSX-333
SM Quartz Crystal
MA07812
Features
Additional Information
For further information regarding packaging, construction,
material composition, soldering profile and environment,
please refer to
GSX-333 Product Information sheet
For dimensions, refer to package drawing:
D0262-A
«
«
«
Metal lid can be grounded to minimise EMI
Seam sealed for excellent long-term stability
Ultra-miniature for maximum space saving
Electrical Specifications
Parameter
Nominal frequency:
Calibration tolerance:
Temperature stability:
Operating temperature range:
Storage temperature range:
Circuit condition:
Static capacitance (C
0
):
Oscillation mode:
Equivalent series resistance:
Test drive level:
Value
32.0MHz
±10ppm max
±10ppm max
-30 to +85°C
-40 to +85°C
12pF
3.0pF max
Fundamental
50
max
Notes
At 25°C ±3°C
Referred to frequency at 25°C
10µW
Tel:
+44 1460 256 100
Issue 01 - 24 Nov 2005
Fax:
+44 1460 256 101
E-mail:
sales@golledge.com
Web:
www.golledge.com

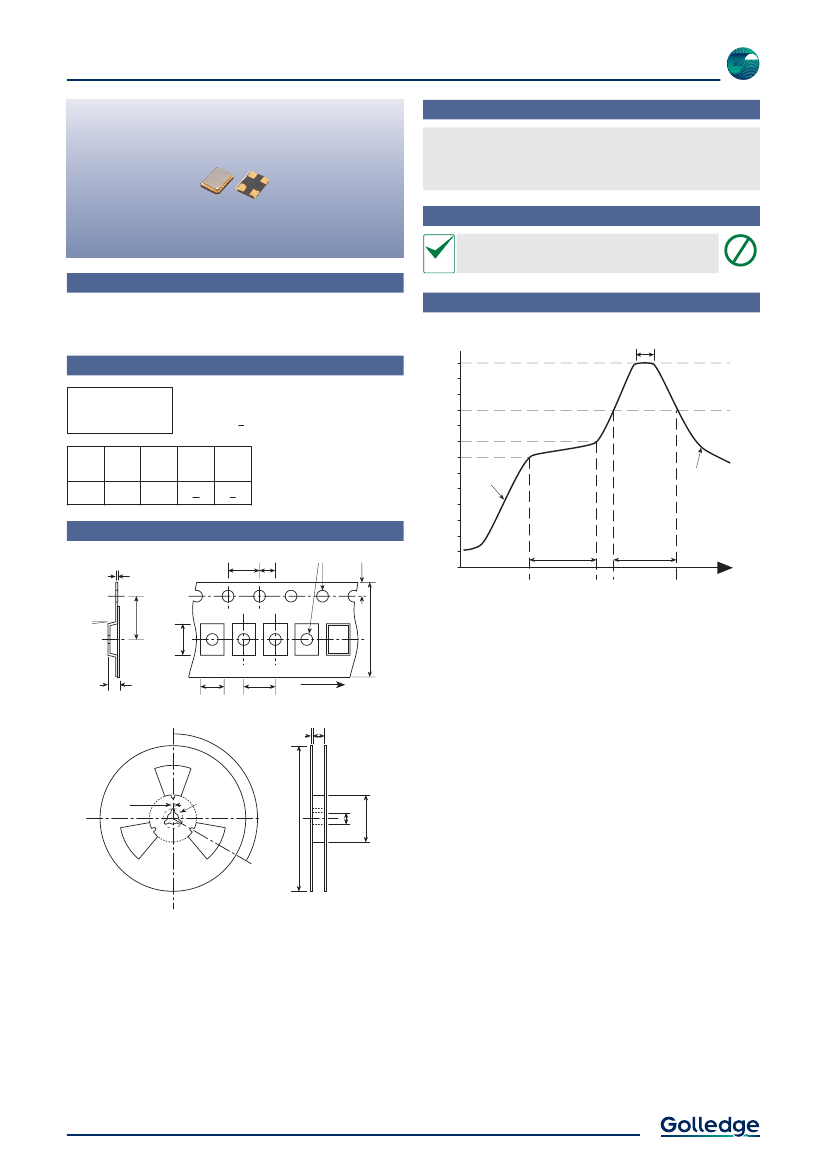

Product Information
Construction
GSX-333
«
«
Ceramic body with gold-plated pads
Metal lid, seam sealed
Composition
RoHS
2002/95/EC
This product is lead-free, and is fully compliant with
the RoHS directive 2002/95/EC
Pb
LeadFree
Packaging & Handling
Production quantities supplied on T & R, 1k or 3k pcs per reel.
Small quantities may be supplied on tape (no reel), or in bulk.
Soldering Profile
°C
10s max
Marking
FREQUENCY
T DC
Year
Code
Marking type: Laser
DC = Date code in YW, as shown below
Example: “zd” = 2004 week 30
Week codes:
A ~ Z: weeks 1 to 26
a ~ z: weeks 27 to 52
260
200
2001 2002 2003 2004
2005 2006 2007 2008
Z
z
Z
z
100
5°C/s max
5°C/s max
Tape & Reel Specification
4.0
±0.05
2.0
1.50Ø
1.75
Preheat
140~160°C
0
60~90s max
Heat
> 200°C
50~60s max
Slow
cooldown
Time
0.3
5°
±0.05
MARK
5.5
Maximum solder resistance: 260°C x 10 secs x 2.
3.8
12.0
±0.3
1.1
2.8
4.0
3.0
120°
FEED
12.4
+2.0
-0.0
1.50
20.2Ø
330Ø
13Ø
100Ø
Not to scale. Dimensional tolerances ±0.1mm unless otherwise stated
Tel:
+44 1460 256 100
28 Mar 2005
Fax:
+44 1460 256 101
E-mail:
sales@golledge.com
Web:
www.golledge.com
