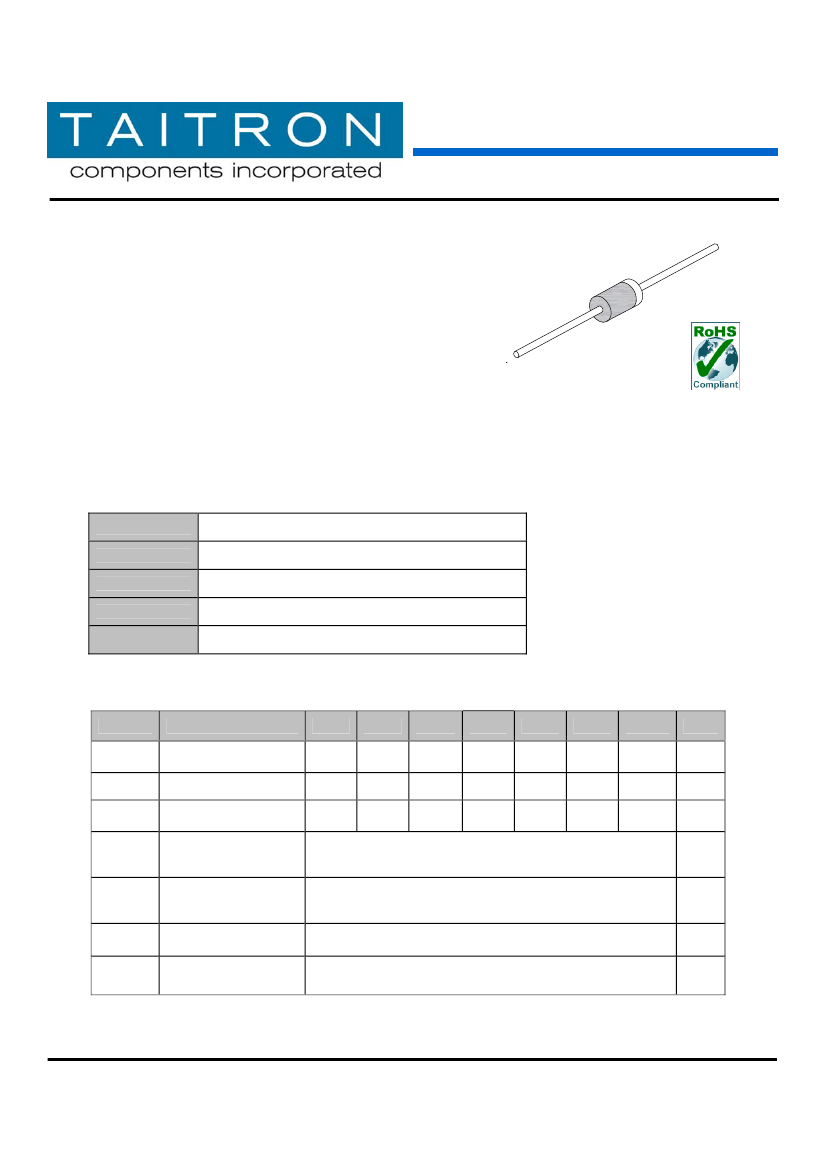

3.0A STANDARD RECTIFIER
T3A05 – T3A100
3.0A Standard Rectifier
Features
•
•
•
•
Low Forward Voltage Drop
High Current Capability
High Surge Current Capability
High Reliability
DO-201AD
•
High Temperature Soldering Guaranteed 260°C/10 seconds
/.375" (9.5mm) lead length, 5lbs (2.3kg) tension
•
RoHS compliant
Mechanical Data
Case:
Epoxy:
Terminals:
Polarity:
Weight:
Molded Plastic
Meets UL 94V-0 flammability rating
Axial leads, solderable per MIL-STD-202, Method 208
Cathode indicated by color band
0.042 Ounce, 1.2 gram
Maximum Ratings
(T
Ambient
=25ºC unless noted otherwise)
Symbol
Description
Maximum Repetitive
Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking
Voltage
Maximum Average
Forward Rectified
Current @Ta=75° C
Peak Forward Surge
Current (Note1)
Operating Junction
Temperature Range
Storage Temperature
Range
T3A05
50
35
50
T3A10
100
70
100
T3A20
200
140
200
T3A40
400
280
400
3.0
T3A60
600
420
600
T3A80
800
560
800
T3A100
1000
700
1000
Unit
V
V
V
A
V
RRM
V
RMS
V
DC
I
O(AV)
I
FSM
T
J
T
STG
200
-55 to +125
-55 to +150
A
°C
°C
TAITRON COMPONENTS INCORPORATED
www.taitroncomponents.com
Tel:
Fax:
(800)-TAITRON (800)-824-8766 (661)-257-6060
(800)-TAITFA
(800)-824-8329 (661)-257-6415
Rev. A/JJ 2007-06-15
Page 1 of 6
3.0A Standard Rectifier
T3A05 – T3A100
Electrical Characteristics
(T
Ambient
=25ºC unless noted otherwise)
Symbol
Description
Maximum Forward
Voltage @
I
F=3.0A
Maximum DC
Reverse Current at
Rated DC Blocking
Voltage
Typical Junction
Capacitance (Note2)
Maximum Thermal
Resistance (Note3)
T3A05
T3A10
T3A20
T3A40
1.0
T3A60
T3A80
T3A100
Unit
V
5.0
50
30
µA
uA
pf
V
F
I
R
C
J
T
A=25° C
T
A=100° C
R
θ-JA
Note:
20
° C/W
1. 8.3ms single half sine-wave superimposed on rated load (JEDEC method)
2. Measured at 1MHz and applied reverse voltage of 4.0Volts D.C.
3. Thermal resistance from junction to ambient at .375" (9.5mm) lead length.
Typical Characteristics Curves
I
FSM
Instantaneous
Forward current
(A)

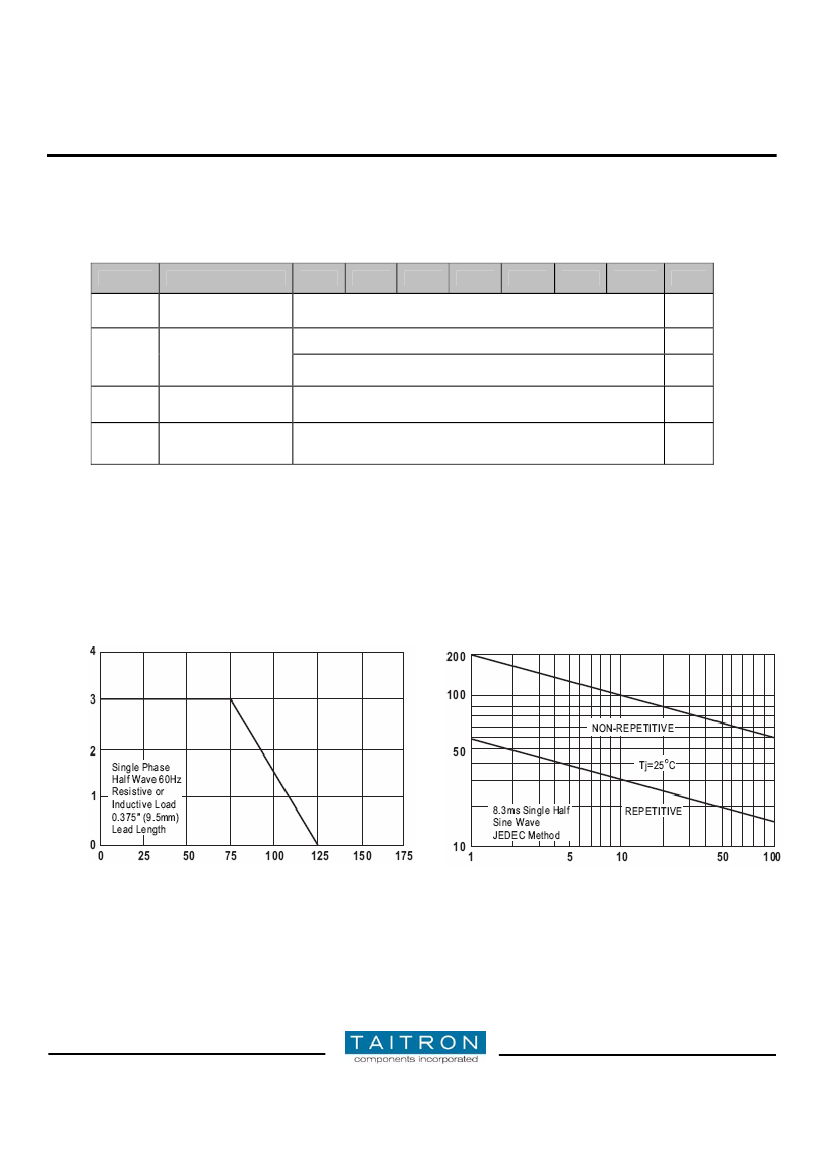

Fig.1- Forward Current Derating Curve
Fig.2-Max. Non-Repetitive Forward Surge Current
I
O(AV)
Average Forward Current
(A)
Ambient Temperature T
a
(°C)
Number of Cycles at 60Hz
Rev. A/JJ 2007-06-15
www.taitroncomponents.com
Page 2 of 5
3.0A Standard Rectifier
T3A05 – T3A100

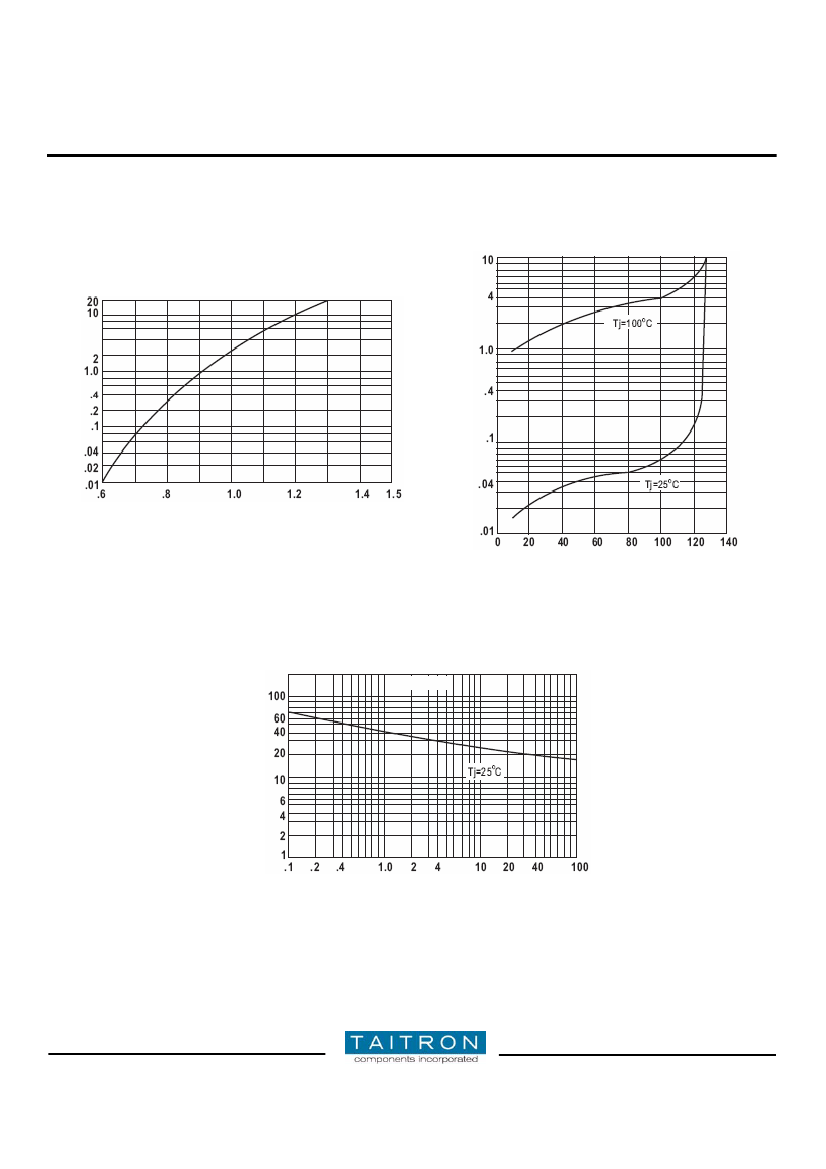

Fig.4- Typical Reverse Characteristics
I
R
Instantaneous Reverse current
(µA)
I
F
Instantaneous Forward current
(A)
Fig.3-Typical Instantaneous Forward
Characteristics
V
F
Instantaneous Forward Voltage (V)
Percentage of Peak Reverse Voltage (%)
Fig.5-Typical junction capacitance
C
J
Junction Capacitance (pF)
Reverse Voltage (V)
Rev. A/JJ 2007-06-15
www.taitroncomponents.com
Page 3 of 5
3.0A Standard Rectifier
T3A05 – T3A100
Dimensions in inches (mm)
DO-201AD
Rev. A/JJ 2007-06-15
www.taitroncomponents.com
Page 4 of 5
3.0A Standard Rectifier
T3A05 – T3A100
