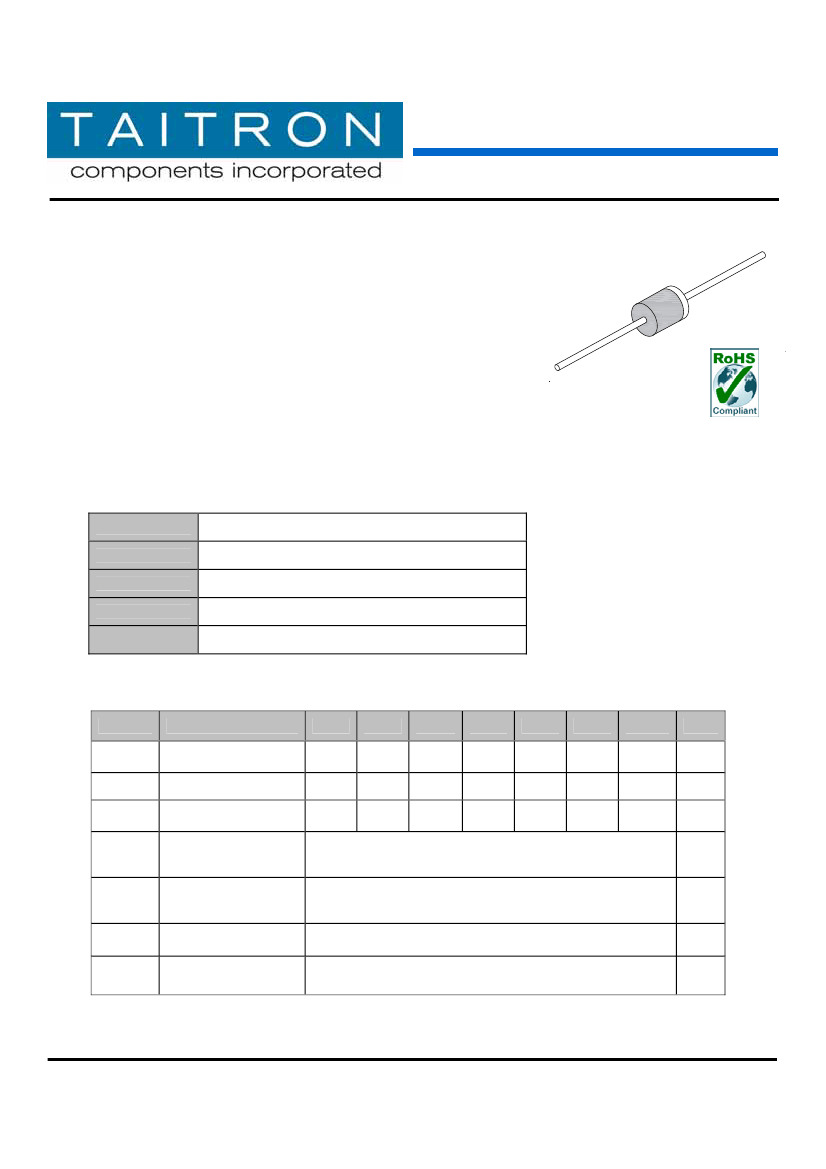

6.0A STANDARD RECTIFIER
T6A05 – T6A100
6.0A Standard Rectifier
Features
•
•
•
•
Low Forward Voltage Drop
Low Reverse Leakage
High Surge Current Capability
High Reliability
T6
•
High Temperature Soldering Guaranteed 260°C/10 seconds
/.375" (9.5mm) lead length, 5lbs (2.3kg) tension
•
RoHS compliant
Mechanical Data
Case:
Epoxy:
Terminals:
Polarity:
Weight:
Molded Plastic
Meets UL 94V-0 flammability rating
Axial leads, solderable per MIL-STD-202E, Method 208C
Cathode indicated by color band
0.06 ounce, 1.7grams
Maximum Ratings
(T
Ambient
=25ºC unless noted otherwise)
Symbol
Description
Maximum Repetitive
Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking
Voltage
Maximum Average
Forward Rectified
Current @Ta=60° C
Peak Forward Surge
Current (Note1)
Operating Junction
Temperature Range
Storage Temperature
Range
T6A05
50
35
50
T6A10
100
70
100
T6A20
200
140
200
T6A40
400
280
400
6.0
T6A60
600
420
600
T6A80
800
560
800
T6A100
1000
700
1000
Unit
V
V
V
A
V
RRM
V
RMS
V
DC
I
O(AV)
I
FSM
T
J
T
STG
250
-65 to +150
-65 to +150
A
°C
°C
TAITRON COMPONENTS INCORPORATED
www.taitroncomponents.com
Tel:
Fax:
(800)-TAITRON (800)-824-8766 (661)-257-6060
(800)-TAITFA
(800)-824-8329 (661)-257-6415
Rev. A/JJ 2007-06-15
Page 1 of 6
6.0A Standard Rectifier
T6A05 – T6A100
Electrical Characteristics
(T
Ambient
=25ºC unless noted otherwise)
Symbol
Description
Maximum Forward
Voltage @
I
F=6.0A
Maximum DC
Reverse Current at
Rated DC Blocking
Voltage
Typical Junction
Capacitance (Note2)
Maximum Thermal
Resistance (Note3)
T6A05
T6A10
T6A20
T6A40
0.95
T6A60
T6A80
T6A100
Unit
V
5.0
µA
50
100
pf
V
F
I
R
C
J
R
θ-JA
Note:
T
A=25° C
T
A=100° C
10
° C/W
1. 8.3ms single half sine-wave superimposed on rated load (JEDEC method)
2. Measured at 1MHz and applied reverse voltage of 4.0Volts D.C.
3. Thermal resistance from junction to ambient at .375" (9.5mm) lead length.
Typical Characteristics Curves
I
FSM
Instantaneous
Forward current
(A)

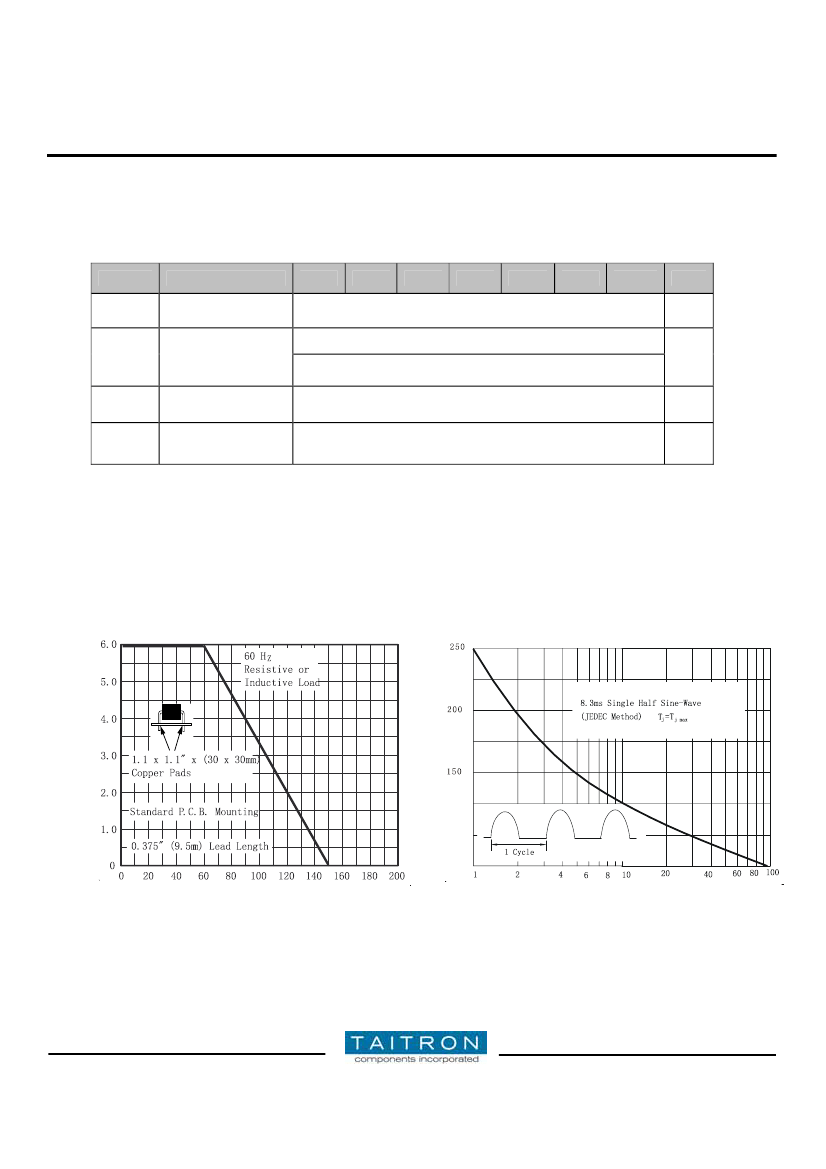

Fig.1- Forward Current Derating Curve
Fig.2-Max. Non-Repetitive Forward Surge Current
I
O(AV)
Average Forward Current
(A)
Ambient Temperature T
a
(°C)
Number of Cycles at 60Hz
Rev. A/JJ 2007-06-15
www.taitroncomponents.com
Page 2 of 6
6.0A Standard Rectifier
T6A05 – T6A100

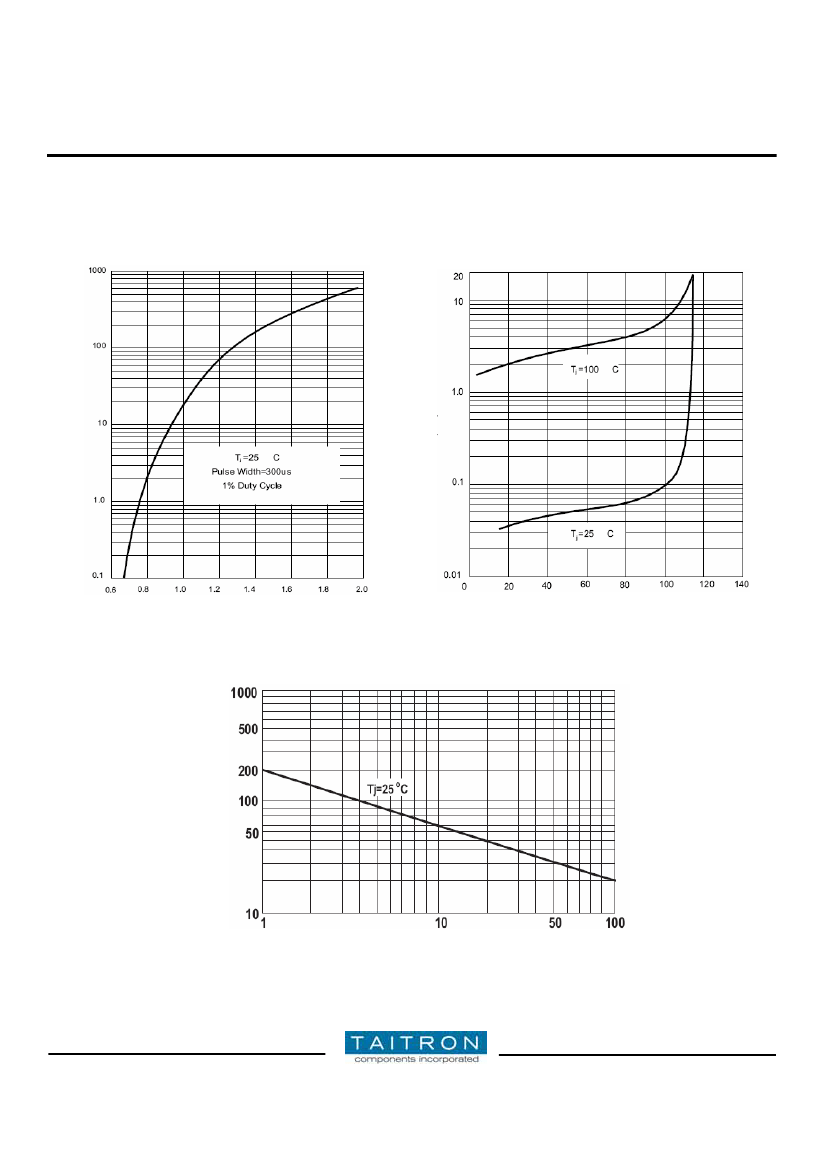

Fig.3-Typical Instantaneous Forward Characteristics
Fig.4- Typical Reverse Characteristics
V
F
Instantaneous Forward Voltage (V)
I
R
Instantaneous Reverse current
(µA)
I
F
Instantaneous Forward current
(A)
Percentage of Peak Reverse Voltage (%)
Fig.5-Typical junction capacitance
C
J
Junction Capacitance (pF)
Reverse Voltage (V)
Rev. A/JJ 2007-06-15
www.taitroncomponents.com
Page 3 of 6
6.0A Standard Rectifier
T6A05 – T6A100

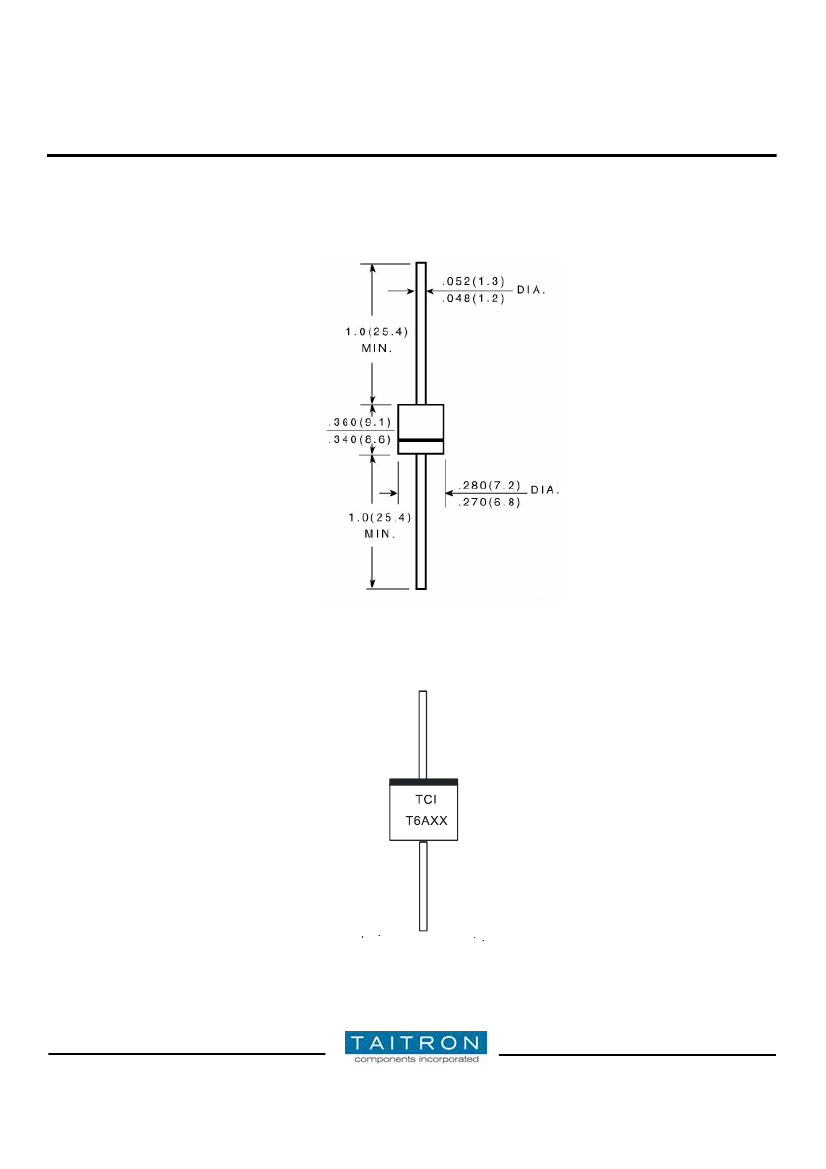

Dimensions in inches (mm)
T6
Marking Information:
Rev. A/JJ 2007-06-15
www.taitroncomponents.com
Page 4 of 6
6.0A Standard Rectifier
T6A05 – T6A100
Packing Information:

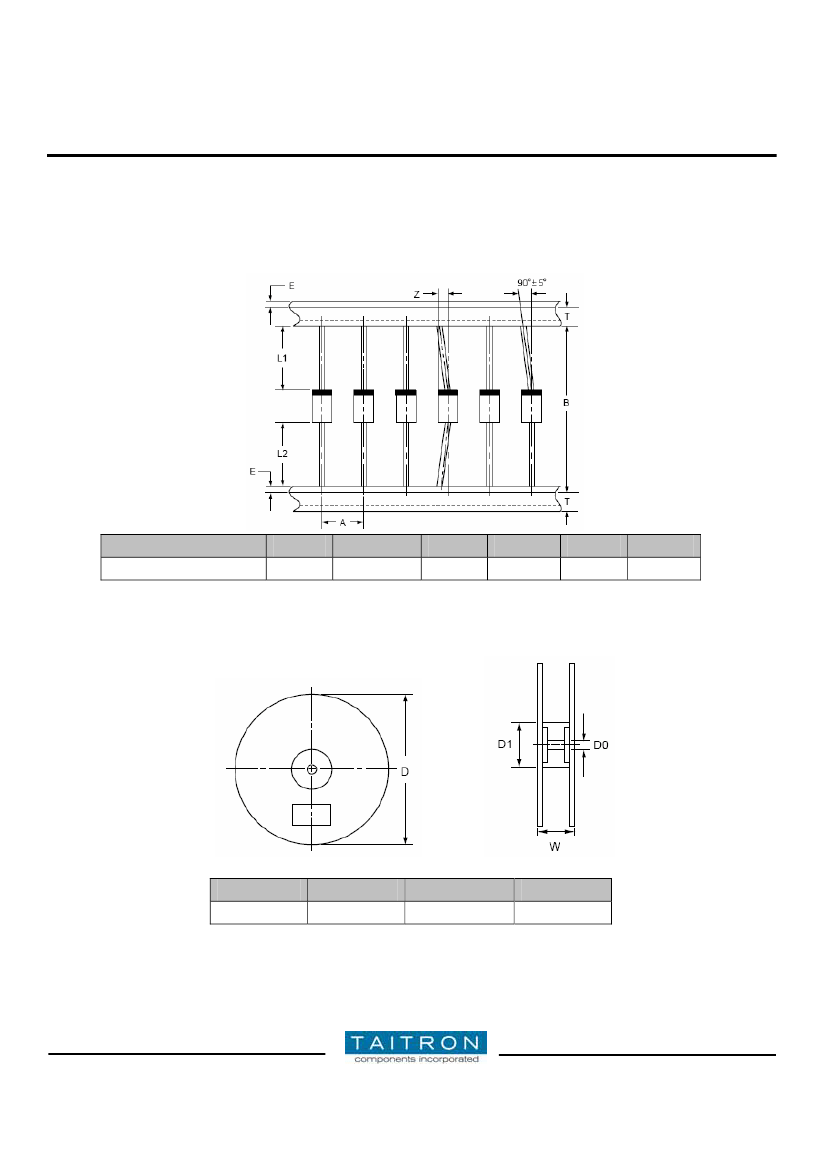

Carrier Tape Dimensions
(in mm)
Components Outline
T6
A
10±0.5
B
52.4+1.5/-0.4
| L1- L2|
Max.1.0
T
6.0±0.4
E
Max.0.8
Z
Max.1.2
Reel Dimensions
(in mm)
D
330.0
D0
30.0±5.0
D1
85.7±5.0
W
79.0±1.0
Rev. A/JJ 2007-06-15
www.taitroncomponents.com
Page 5 of 6
