1.0A Sintered Glass Passivated
Fast Recovery Rectifier
TCDR1DW – TCDR1MW
1.0A Sintered Glass Passivated Fast Recovery Rectifier
Features
•
•
•
•
Low power loss, High efficiency
For surface mounted applications
High current capability
High surge capacity
C1206
•
Plastic package has UL Flammability Classification 94V-0
•
RoHS Compliance
Mechanical Data
Case:
Terminals:
Polarity:
Mounting Position:
Weight:
Packed with FRP substrate and epoxy underfilled
Pure Tin plated (Lead-Free), solderable per MIL-STD-750, Method 2026
Laser marking
Any
0.02 gram
Maximum Ratings and Electrical Characteristics
(T
A
=25ºC unless otherwise noted)
Symbol
Description
Max. Repetitive Peak
Reverse Voltage
Max. RMS Voltage
Max. DC Blocking
Voltage
Average Forward
Rectified Current
Peak Forward Surge
Current
Max. Forward Voltage
TCDR
1DW
200
140
200
TCDR
1GW
400
280
400
TCDR
1JW
600
420
600
1.0
30
1.3
1
TCDR
1KW
800
560
800
TCDR
1MW
1000
700
1000
Unit
V
V
V
A
A
V
μA
μA
μA
300
95
40
nS
°C / W
T
A
=25°C
T
A
=125°C
T
A
=150°C
I
F
=0.5A, I
R
=1.0A,
Irr=0.25A.
Junction to ambient
See Fig.1
Conditions
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
Reverse Current
@ VR = VRRM
Max. Reverse
Recovery Time
Thermal Resistance
30
50
T
rr
Rth
JA
Rth
JL
200
TAITRON COMPONENTS INCORPORATED
www.taitroncomponents.com
Tel: (800)-TAITRON
Fax: (800)-TAITFAX
(800)-824-8766
(800)-824-8329
(661)-257-6060
(661)-257-6415
Rev. B/AH 2007-12-07
Page 1 of 6
1.0A Sintered Glass Passivated Fast Recovery Rectifier
TCDR1DW – TCDR1MW
Symbol
Description
Diode Junction
Capacitance
TCDR
1DW
TCDR
1GW
TCDR
1JW
15
TCDR
1KW
TCDR
1MW
Unit
pF
Conditions
f=1MHz
V
R
= 4V
C
J
Operating Junction
T
J,
T
STG
and Storage
Temperature Range
-65 to +175
°C
Typical Characteristics Curves
Fig.1- Forward Current Derating Curve
Peak Forward Surge Current, (A)
Average Forward Current, (A)
Fig.2- Maximum Non-Repetitive Forward Surge Current
Lead Temperature (° C)
Number of Cycles At 60Hz
Instantaneous Reverse Leakage Current, (µA)
Fig.3- Typical Forward Characteristics
Instantaneous Forward Current, (A)
Fig.4-Typical Reverse Characteristics
Instantaneous Forward Voltage (V)
Percent of Rated Peak Reverse Voltage (%)
Rev. B/AH 2007-12-07
www.taitroncomponents.com
Page 2 of 6
1.0A Sintered Glass Passivated Fast Recovery Rectifier
TCDR1DW – TCDR1MW

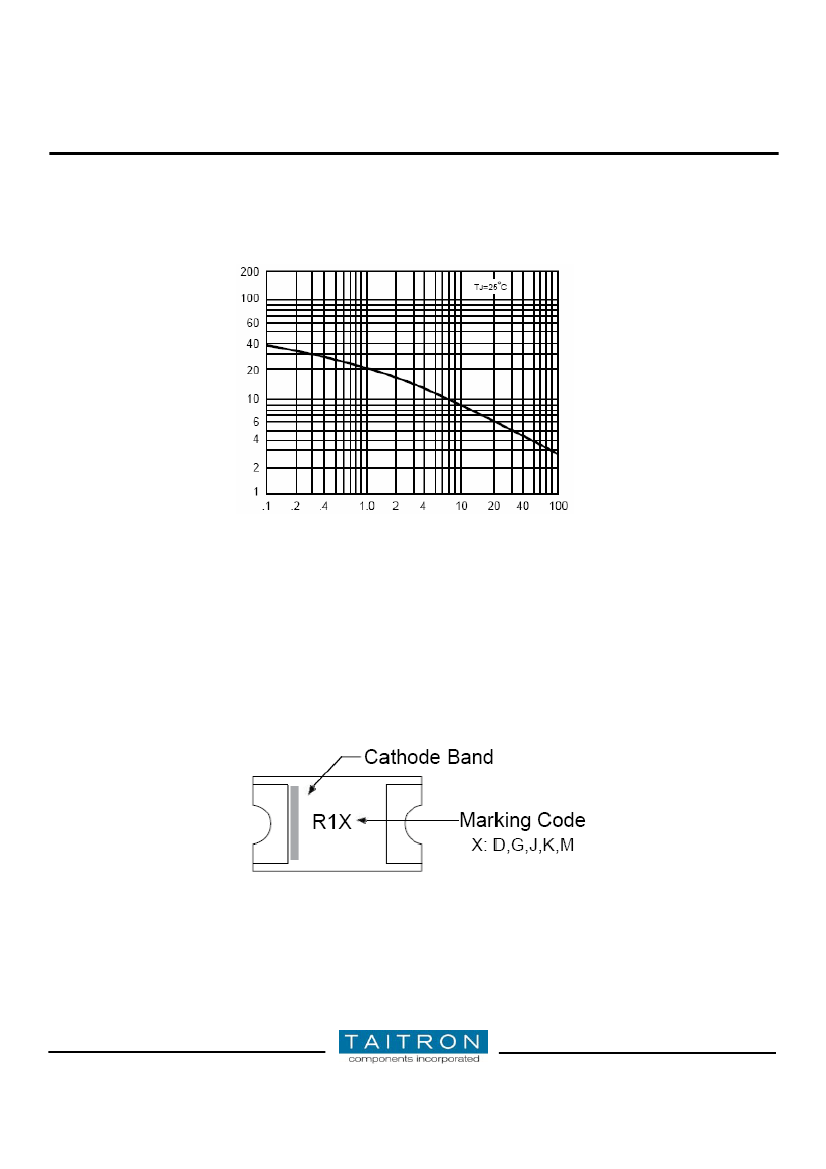

Fig.5-Typical Junction Capacitance
Junction Capacitance, (pF)
Reverse Voltage (V)
Marking Information:
Rev. B/AH 2007-12-07
www.taitroncomponents.com
Page 3 of 6
1.0A Sintered Glass Passivated Fast Recovery Rectifier
TCDR1DW – TCDR1MW
Dimensions in inches (mm)
C1206
Packing Information in mm
Product Type
1206
D
P0
1.50±0.1 4.00±0.1
B1
T
8.20max. 0.40max.
P
4.00±0.1
T2
1.75±0.1
W
E
12.00±0.3 1.75±0.1
D1
F
1.50min. 5.50±0.05
A0
2.20±0.1
K0
1.28±0.1
B0
3.65±0.1
P2
2.0±0.1
Rev. B/AH 2007-12-07
www.taitroncomponents.com
Page 4 of 6
1.0A Sintered Glass Passivated Fast Recovery Rectifier
TCDR1DW – TCDR1MW
Packing Quantity Information:
Quantity
-TR70 Tape & Reel
PCS per Reel
3000
PCS per Carton
90000
Carton Size Information:
-TR70 Tape & Reel
400X207X240 (in mm)
Reel Dimensions in mm
ΦA
178±2.0
ΦB
50min.
ΦC
13.0±0.5
W
18.7max.
T
14.4max.
Rev. B/AH 2007-12-07
www.taitroncomponents.com
Page 5 of 6
