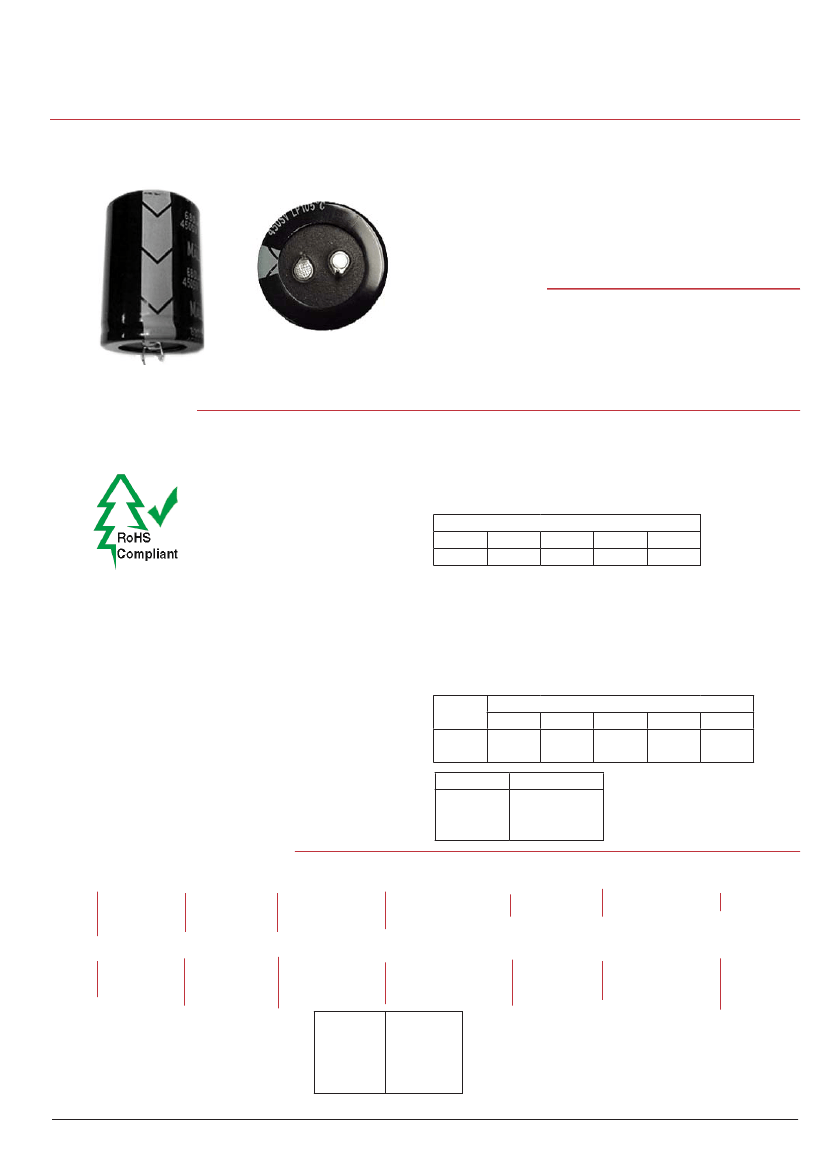

Type LPW
85 ºC Snap-In Aluminum Electrolytic Capacitors
Low Voltage, High Value Capacitors
Type LPW radial leaded snap-in aluminum electro-
lytic capacitors are a compact design for high density
packaging and is ideal for low voltage, general purpose
input filtering applications.
Highlights
•
•
•
•
•
Capacitance Range:
Voltage Range:
Capacitance tolerance:
Operating Temperature Range:
Dissipation Factor
Low voltage
High Capacitance
85 ºC
Good for input filtering in consumer applications
22 to 35 mm diameter with 10 mm lead spacing
Specifications
820 to 22,000 µF
10 to 100 Vdc
±20%
–40 ºC to +85 ºC
DF at 120 Hz, +25 ºC
Vdc
DF %
10 -16
30
25 - 35
25
50 - 63
20
100
15
Complies with the EU Directive
2002/95/EC requirement restricting
the use of Lead (Pb), Mercury (Hg),
Cadmium (Cd), Hexavalent chromium
(Cr(VI)), PolyBrominated Biphenyls
(PBB) and PolyBrominated Diphenyl
Ethers (PBDE).
For values that are >1000 µF, the DF (%) increases
2% for every additional 1000 µF
DC Leakage Test:
I ≤.03CV ir 3 mA
C = capacitance in µF
V = rated voltage
I = leakage current in µA
Ripple Multipliers
60 Hz
0.90
0.90
120 Hz
1.00
1.00
1 kHz
1.05
1.15
10 kHz
1.10
1.20
100 kHz
1.10
1.20
Frequency Ripple Multipliers:
Rated
Vdc
10 to 35
50 to 100
Temperature Ripple Multipliers:
Temperature Ripple Multiplier
+70 ºC
+60 ºC
+45 ºC
1.20
1.30
1.55
Part Numbering System
LPW
332
M
1J
Q
Case Diameter
25
Case
Length
V-W
Case Type &
Terminals
Type
Cap
Tolerance
Voltage
Code
LPW
821 = 820 µF
332 = 3300 µF
103 = 10,000 µF
±20%
1A = 10 Vdc 1H = 50 Vdc
1C = 16 Vdc 1J = 63 Vdc
1E = 25 Vdc 2A = 100 Vdc
1V = 35 Vdc
N = 22 mm
O = 25 mm
P = 30 mm
Q = 35 mm
25 = 25 mm
V = Vented Case
— =
Dash
W = Snap-In
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Type LPW
85 ºC Snap-In Aluminum Electrolytic Capacitors

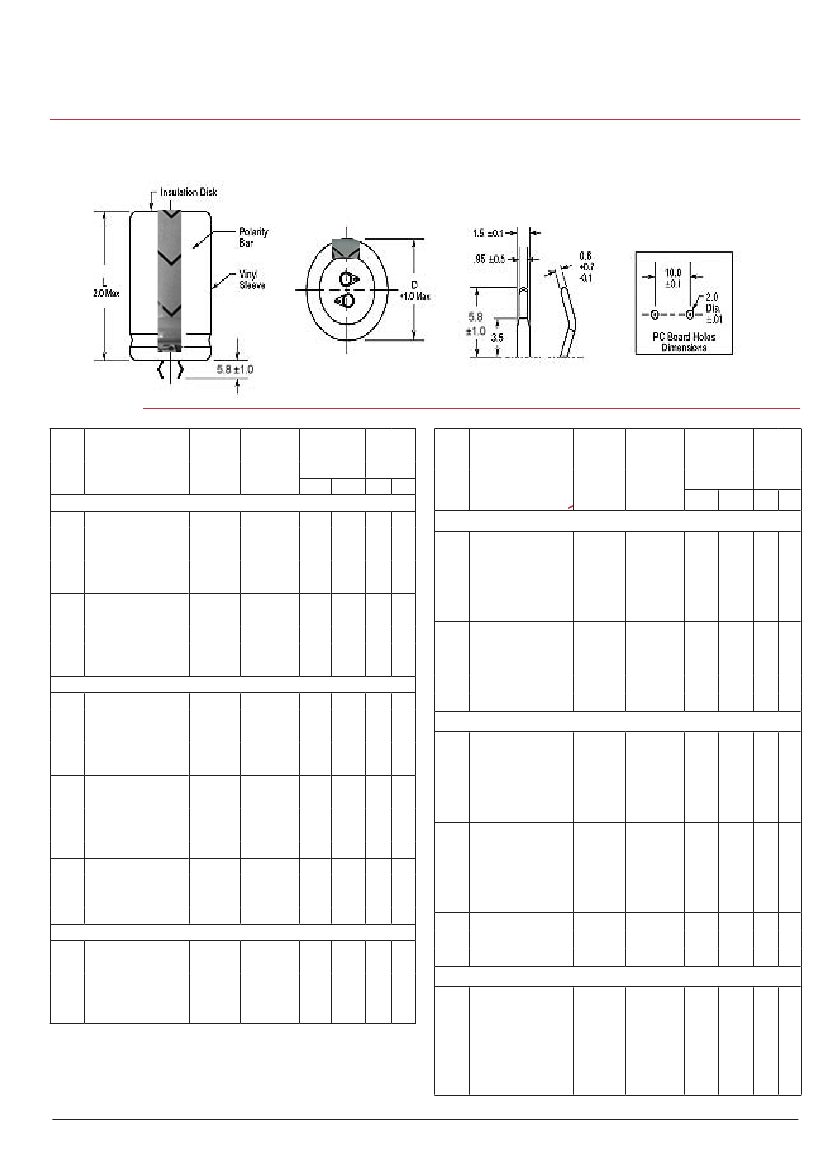

Outline Drawing
(Arrow Indicates Ground Lead)
(Dimension in Millimeters)
Ratings
Cap
(µF)
8,200
8,200
10,000
10,000
12,000
12,000
15,000
15,000
22,000
22,000
4,700
4,700
6,800
6,800
8,200
8,200
10,000
10,000
12,000
12,000
15,000
15,000
22,000
22,000
3,300
3,300
4,700
4,700
6,800
Max ESR Max Ripple
Catalog
@ 120 Hz @ 120 Hz
Part Number
+25 ºC
+85 ºC
(Ω)
(A)
10 Vdc; 13 Vdc Surge
LPW822M1AN25V-W
0.101
2.39
LPW822M1AO25V-W
0.101
2.46
LPW103M1AN30V-W
0.083
2.69
LPW103M1AO25V-W
0.083
2.57
LPW123M1AN30V-W
0.083
2.81
LPW123M1AP25V-W
0.083
2.84
LPW153M1AN35V-W
0.066
3.14
LPW153M1AP25V-W
0.066
2.97
LPW223M1AN45V-W
0.045
3.79
LPW223M1AP30V-W
0.045
3.45
16 Vdc; 20 Vdc Surge
LPW472M1CN25V-W
0.141
1.81
LPW472M1CO25V-W
0.141
2.21
LPW682M1CN25V-W
0.122
2.40
LPW682M1CO25V-W
0.122
2.47
LPW822M1CN30V-W
0.101
2.70
LPW822M1CP25V-W
0.101
2.73
LPW103M1CN35V-W
0.083
3.00
LPW103M1CP25V-W
0.083
2.84
LPW123M1CN40V-W
0.069
3.30
LPW123M1CP30V-W
0.069
3.16
LPW153M1CN45V-W
0.055
3.62
LPW153M1CQ25V-W
0.055
3.55
LPW223M1CO45V-W
0.038
4.25
LPW223M1CQ30V-W
0.038
4.37
25 Vdc; 32 Vdc Surge
LPW332M1EN25V-W
0.176
2.03
LPW332M1EO25V-W
0.176
2.09
LPW472M1EN30V-W
0.159
2.49
LPW472M1EO25V-W
0.159
2.31
LPW682M1EN35V-W
0.110
2.87
Size
(Inches)
D
L
0.866
0.984
0.866
0.984
0.866
1.181
0.866
1.181
0.866
1.181
0.866
0.984
0.866
0.984
0.866
1.181
0.866
1.181
0.866
1.181
0.866
1.378
0.984
1.378
0.866
0.984
0.866
0.984
0.866
0.984
0.984
1.181
0.984
1.181
0.984
1.378
0.984
1.772
1.181
0.984
0.984
0.984
0.984
1.181
0.984
1.378
0.984
1.575
1.181
1.772
0.984
1.772
1.181
0.984
0.984
1.181
0.984
1.378
Size
(mm)
D
L
22
25
22
25
22
30
22
30
22
30
22
25
22
25
22
30
22
30
22
30
22
35
25
35
22
25
22
25
22
25
25
30
25
30
25
35
25
45
30
25
25
25
25
30
25
35
25
40
30
45
25
45
30
25
25
30
25
35
Max ESR Max Ripple
Catalog
Cap
(µF)
6,800
8,200
8,200
10,000
10,000
12,000
12,000
15,000
15,000
22,000
3,300
3,300
4,700
4,700
6,800
6,800
8,200
8,200
10,000
10,000
12,000
12,000
15,000
2,200
2,200
3,300
3,300
4,700
4,700
Part Number
@ 120 Hz
+25 ºC
(Ω)
@ 120 Hz
+85 ºC
(A)
D
1.181
0.866
1.181
0.866
1.181
0.866
1.378
0.984
1.378
1.181
0.866
0.984
0.866
1.181
0.866
1.181
0.866
1.378
0.984
1.378
0.984
1.378
1.181
0.866
0.984
0.866
1.181
0.866
1.378
Size
(Inches)
L
0.984
1.575
1.181
1.772
1.181
1.969
1.181
1.772
1.181
1.969
0.984
0.984
1.181
0.984
1.575
1.181
1.772
1.181
1.772
1.181
1.969
1.378
1.772
0.984
0.984
1.378
0.984
1.575
0.984
Size
(mm)
D
30
22
30
22
30
22
35
25
35
30
22
25
22
30
22
30
22
35
25
35
25
35
30
22
25
22
30
22
35
L
25
40
30
45
30
50
30
45
30
50
25
25
30
25
40
30
45
30
45
30
50
35
45
25
25
35
25
40
25
25 Vdc; 32 Vdc Surge
LPW682M1EP25V-W
0.110
2.72
LPW822M1EN40V-W
0.091
3.16
LPW822M1EP30V-W
0.091
3.03
LPW103M1EN45V-W
0.075
3.45
LPW103M1EP30V-W
0.075
3.14
LPW123M1EN50V-W
0.062
3.74
LPW123M1EQ30V-W
0.062
3.75
LPW153M1EO45V-W
0.050
3.78
LPW153M1EQ30V-W
0.050
3.89
LPW223M1EP50V-W
0.034
4.94
35 Vdc; 44 Vdc Surge
LPW332M1VN25V-W
0.176
2.04
LPW332M1VO25V-W
0.176
2.10
LPW472M1VN30V-W
0.123
2.41
LPW472M1VP25V-W
0.123
2.44
LPW682M1VN40V-W
0.085
2.98
LPW682M1VP30V-W
0.085
2.86
LPW822M1VN45V-W
0.071
3.25
LPW822M1VQ30V-W
0.071
3.42
LPW103M1VO45V-W
0.058
3.41
LPW103M1VQ30V-W
0.058
3.51
LPW123M1VO50V-W
0.048
3.68
LPW123M1VQ35V-W
0.048
3.84
LPW153M1VP45V-W
0.039
4.08
50 Vdc; 63 Vdc Surge
LPW222M1HN25V-W
0.226
1.92
LPW222M1HO25V-W
0.226
1.98
LPW332M1HN35V-W
0.151
2.51
LPW332M1HP25V-W
0.151
2.38
LPW472M1HN40V-W
0.106
2.89
LPW472M1HQ25V-W
0.106
2.99
