Thermal Sensors MOXIE
®
(NTC)
FEATURES
– high sensitivity
– quick reaction
– hysteresis approx. 3–6 °C
– excellent reliablility
– long service life
– no selecting, no adjusting
– no corrosion of contact surface
as semi-conductor
– no +/– polarity
– can be used as logical control element
– isolated casing
– easy installation
– can be delivered in chip form

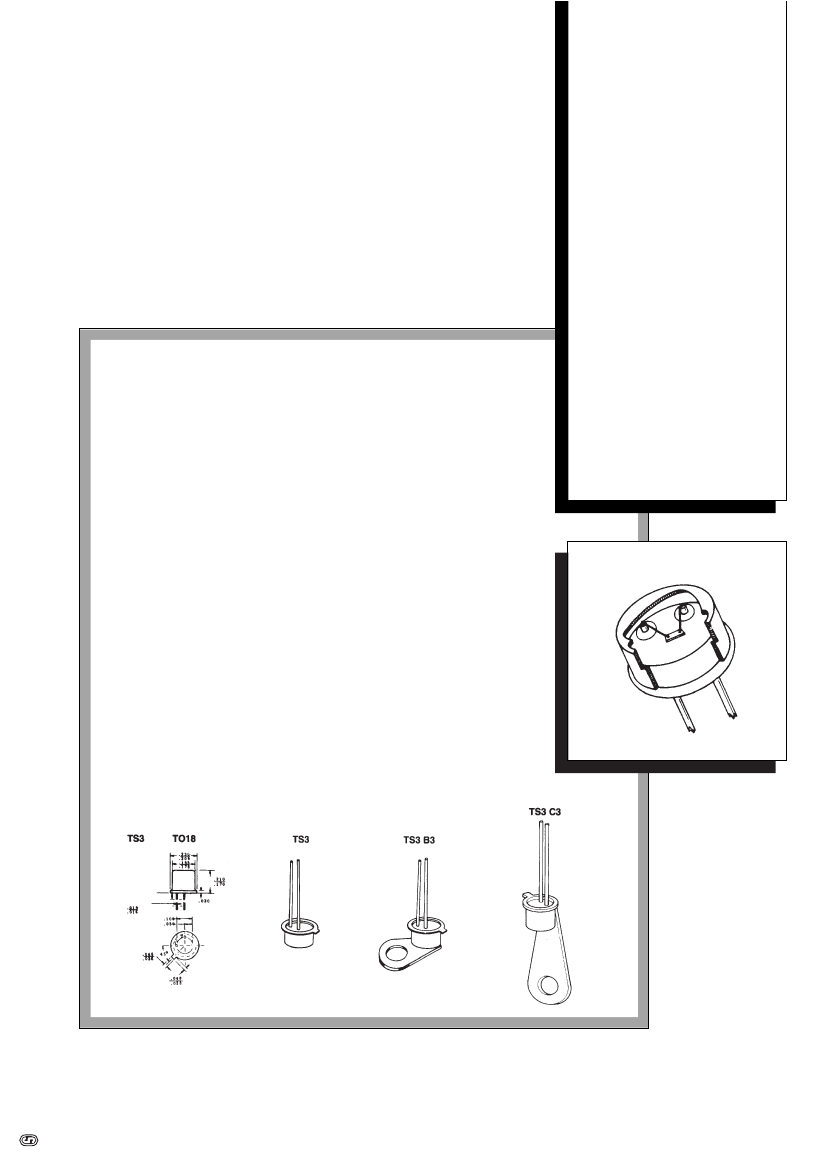

TS3
TS3 B3
TS3 C3
CONSTRUCTION

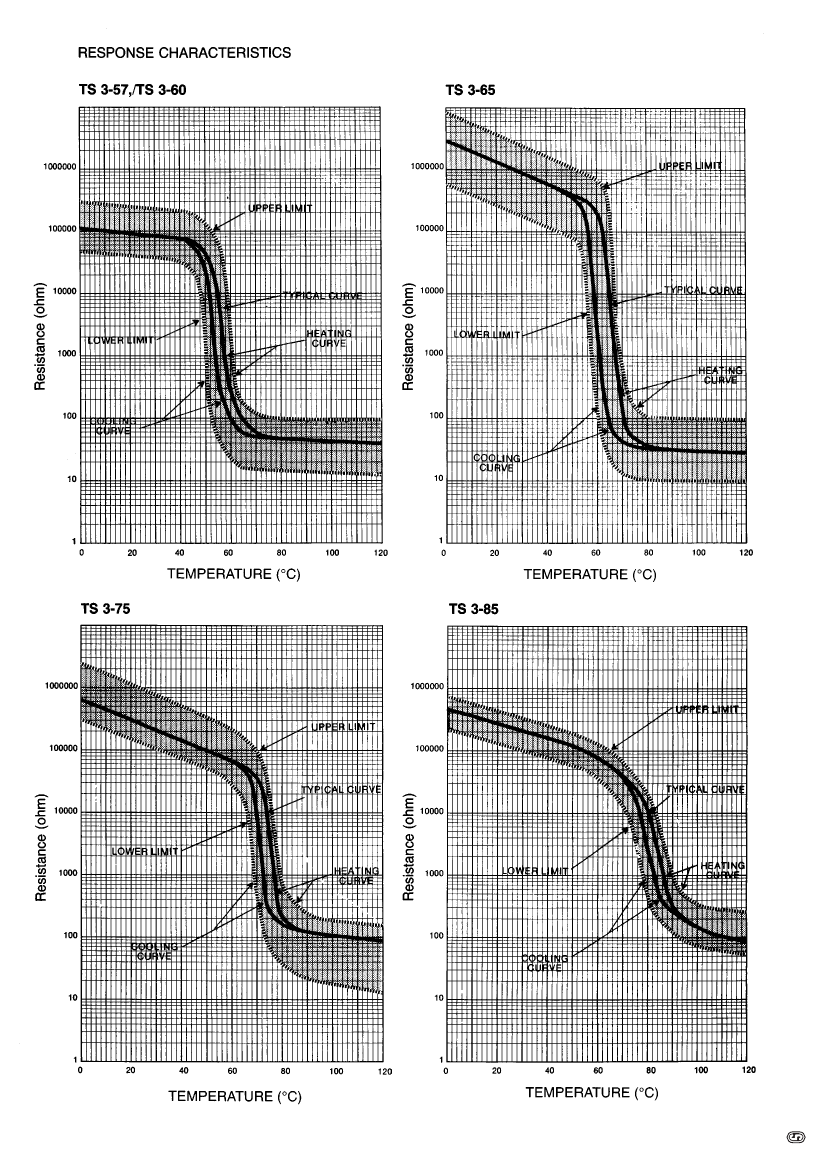

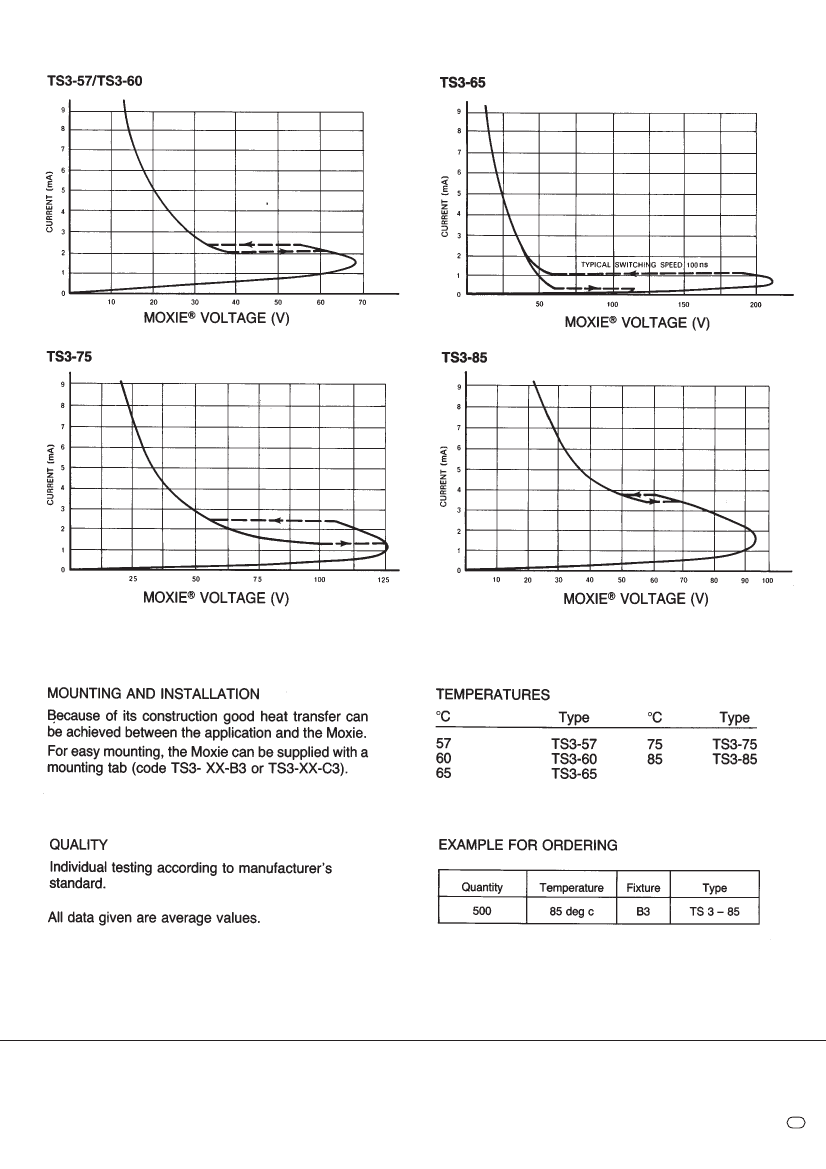

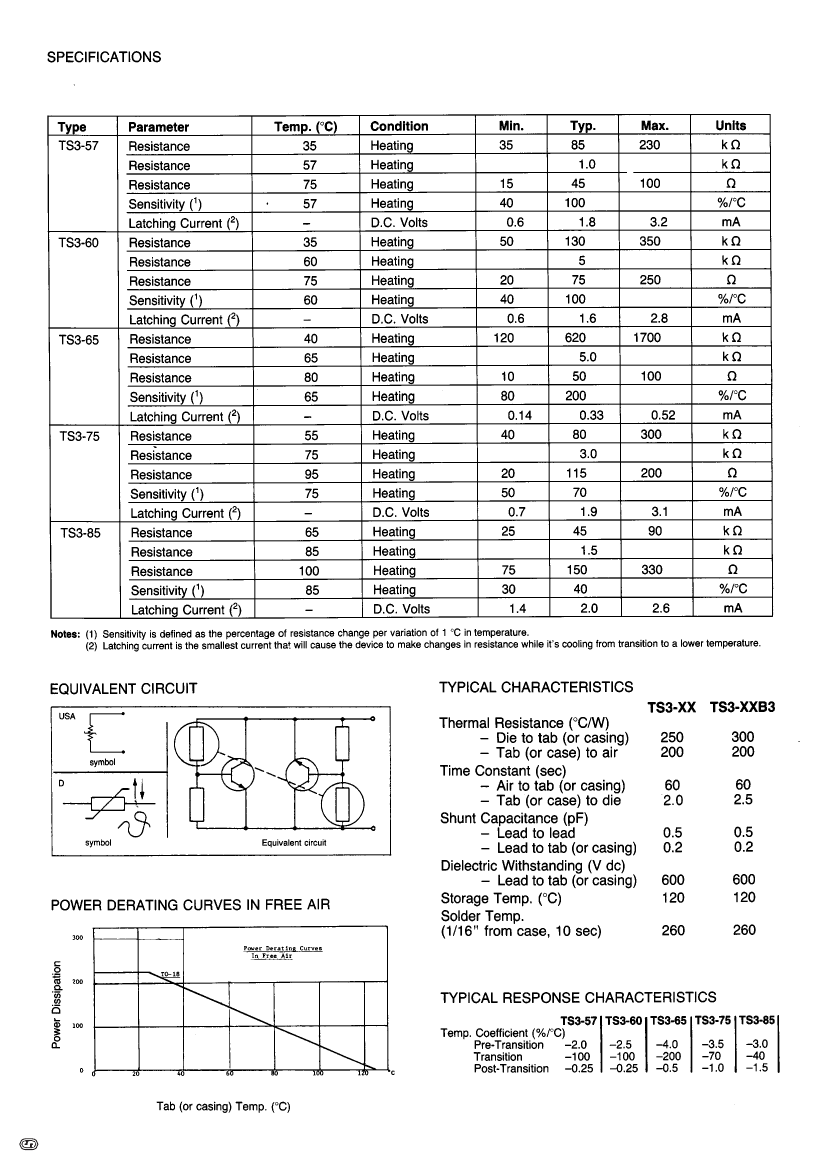

Moxies are a family of variable resistance thermal sensors having a
highly specific “transition region”. Within this transition region the devices
typically exhibit a negative temperature coefficient ranging from 40 % per
°C to 300 % per °C. Below the transition region they exhibit a linear
“thermistor” characteristic of –2 to –4%/ °C.
Moxies are available in a TO – 18 transistor package (code TS 3) with two
lead-wires, or as individual, trimmed clips.
The Moxie is a solid state component produced by thin film technology.
A sapphire die is mounted on a gold plated header and connected to the
therminals by gold-wire bonding.
APPLICATIONS
Sensors for temperature protection, control and limiting.
Voltage, current and frequency limiters in electronics.
Examples:
Overtemperature protector for power semi-conductors, such as transi-
stors, power output stages, amplifiers.
Temperature control of electronic appliances and electric equipment.
Temperature sensor for signalling systems and fire detectors .
Control of componentry in industrial and entertainment electronics.
Protection of electronic circuits, such as computers or battery chargers.

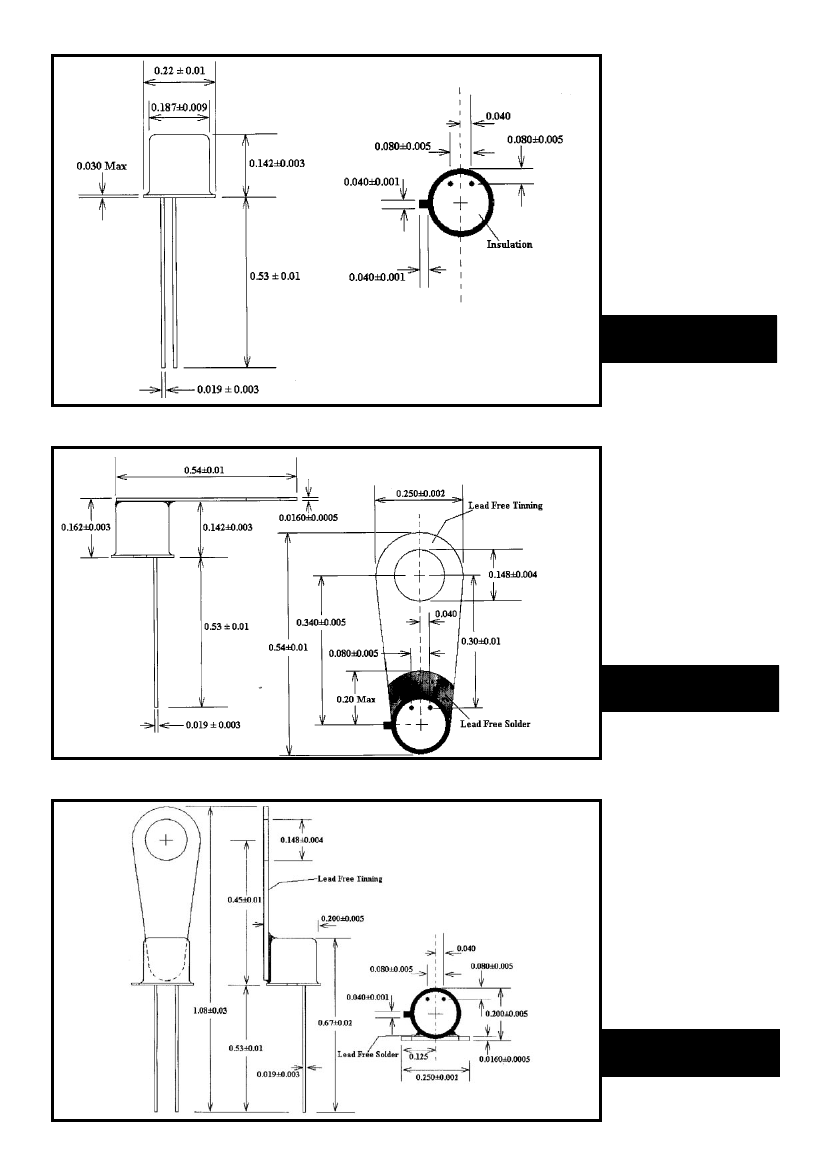

DIMENSIONS
TS3
10-04-01
1000-Y-600
CANTHERM
8415 Mountain Sights Avenue • Montreal (Quebec), H4P 2B8, Canada
Tel: (514) 739-3274 • 1-800-561-7207 • Fax: (514) 739-290
E-mail : sales@cantherm.com • Website: www.cantherm.com
Technical data and availability are subject to change without notice.
