IRKJ101-14 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> IRKJ101-14

IRKJ101-14: DescriptionRectifier Diode, 1 Phase, 2 Element, 100A, 1400V V(RRM), Silicon, POWER, ADD-A-PAK-3; CategoryDiscrete semiconductor diode; File Size428KB，11 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/

Download Datasheet Parametric Compare View All

IRKJ101-14 Overview

Rectifier Diode, 1 Phase, 2 Element, 100A, 1400V V(RRM), Silicon, POWER, ADD-A-PAK-3

IRKJ101-14 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	R-PUFM-X3
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LEAKAGE CURRENT IS NOT AT 25 DEG C
application	HIGH VOLTAGE POWER
Shell connection	ISOLATED

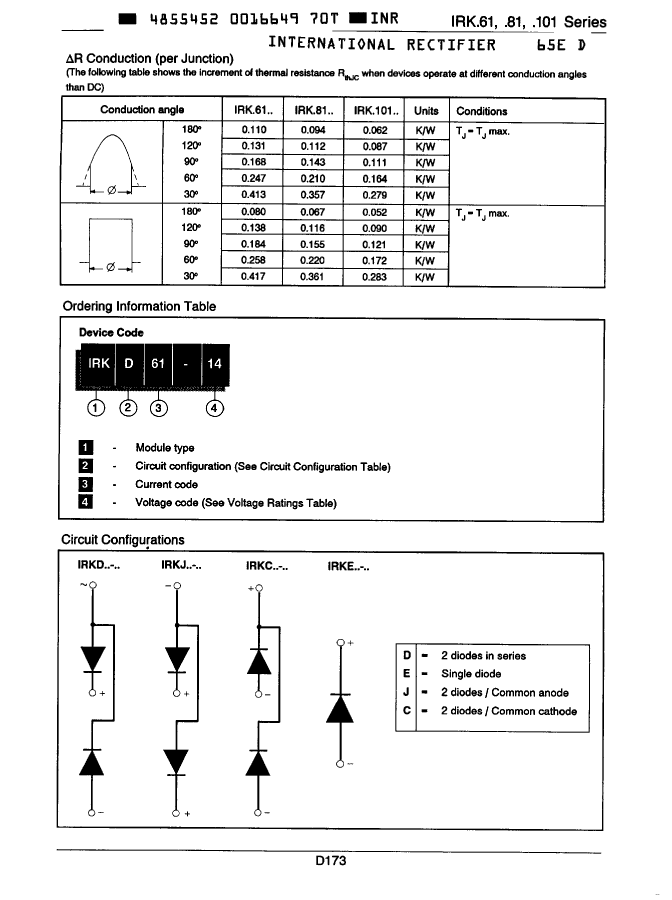

Configuration	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.34 V
JESD-30 code	R-PUFM-X3
JESD-609 code	e0
Maximum non-repetitive peak forward current	2110 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Maximum output current	100 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	1400 V
Maximum reverse current	10000 µA
surface mount	NO
Terminal surface	TIN LEAD
Terminal form	UNSPECIFIED
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

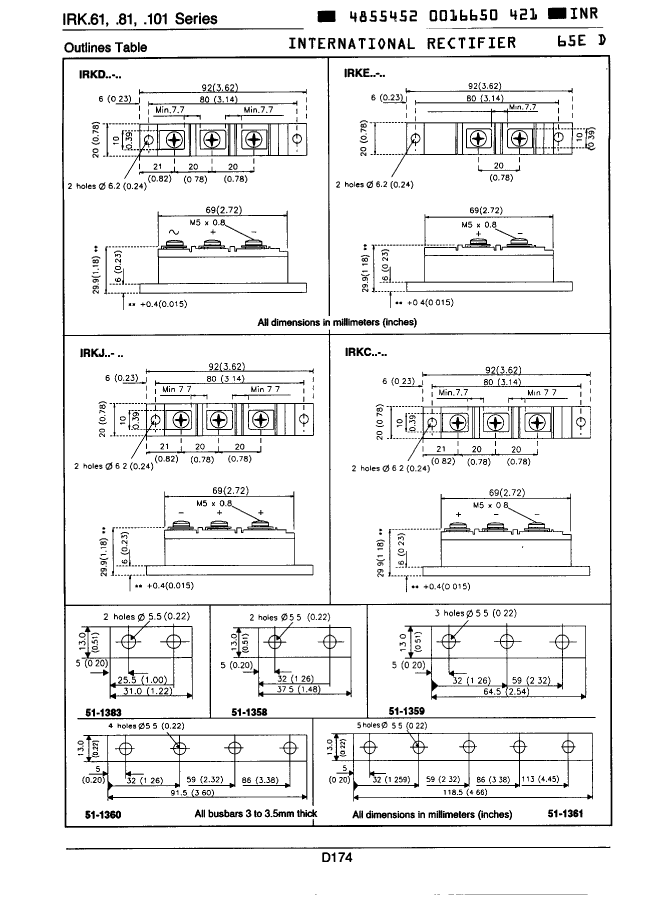

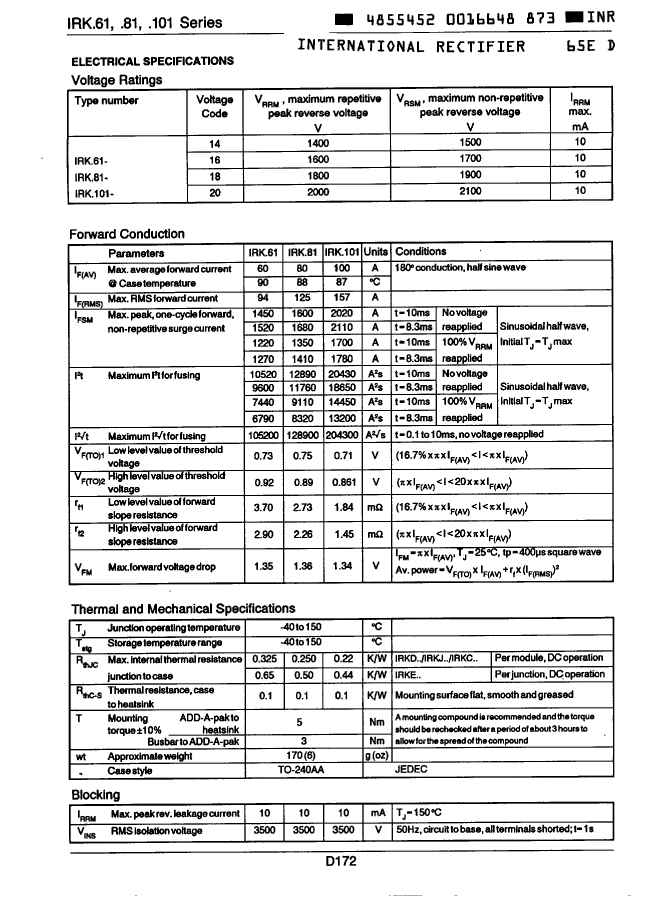

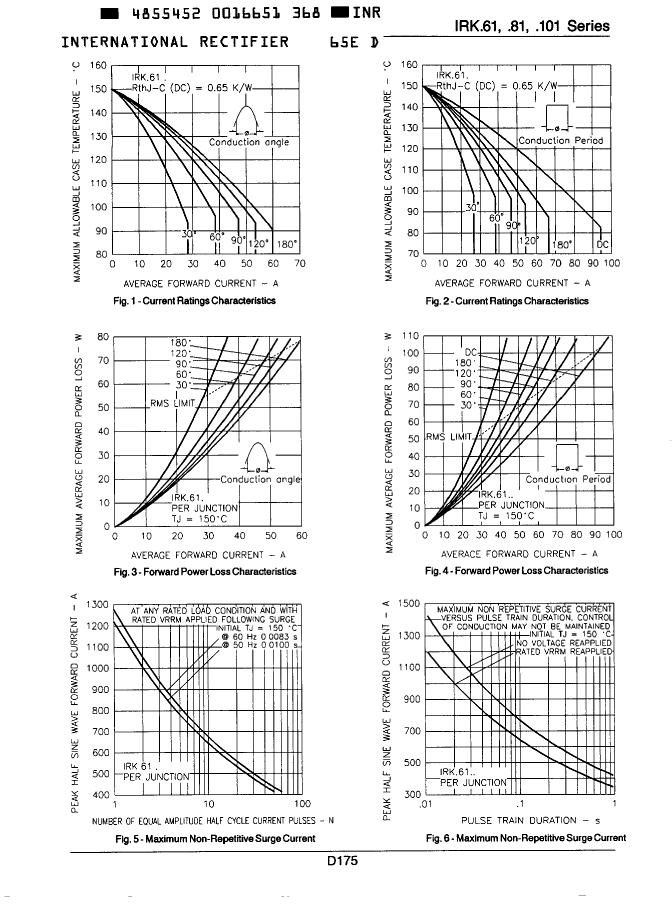

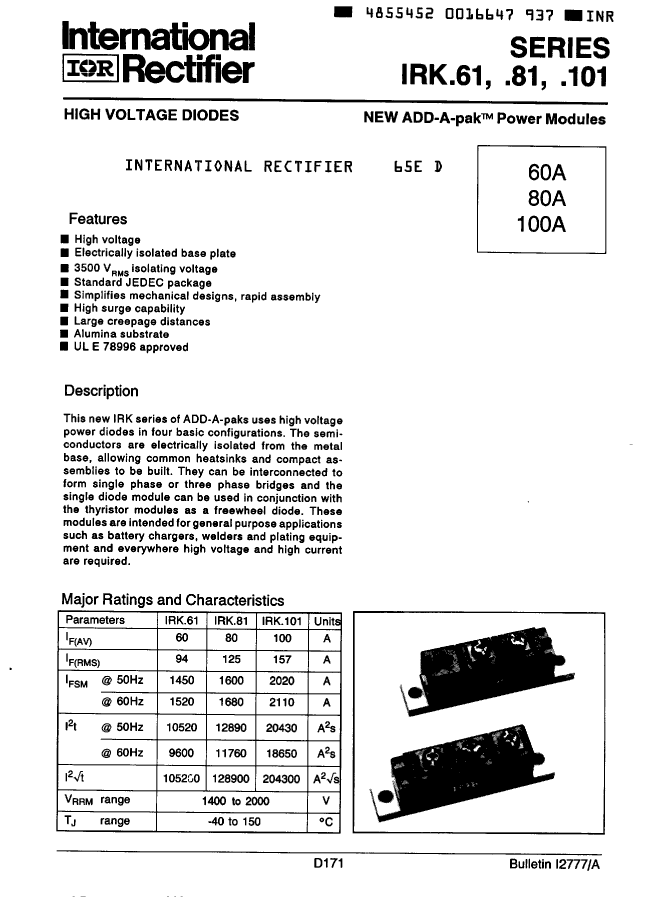

Preview

Download Datasheet

View All

IRKJ101-14 Related Products

	IRKJ101-14	IRKJ81-20	IRKJ81-14	IRKJ61-20
Description	Rectifier Diode, 1 Phase, 2 Element, 100A, 1400V V(RRM), Silicon, POWER, ADD-A-PAK-3	Rectifier Diode, 1 Phase, 2 Element, 80A, 2000V V(RRM), Silicon, POWER, ADD-A-PAK-3	Rectifier Diode, 1 Phase, 2 Element, 80A, 1400V V(RRM), Silicon, POWER, ADD-A-PAK-3	60A, 2000V, SILICON, RECTIFIER DIODE, POWER, ADD-A-PAK-3
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
package instruction	R-PUFM-X3	R-PUFM-X3	R-PUFM-X3	POWER, ADD-A-PAK-3
Contacts	3	3	3	3
Reach Compliance Code	compliant	compliant	unknown	unknown
Other features	LEAKAGE CURRENT IS NOT AT 25 DEG C	LEAKAGE CURRENT IS NOT AT 25 DEG C	LEAKAGE CURRENT IS NOT AT 25 DEG C	LEAKAGE CURRENT IS NOT AT 25 DEG C
application	HIGH VOLTAGE POWER	HIGH VOLTAGE POWER	HIGH VOLTAGE POWER	HIGH VOLTAGE POWER
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	COMMON ANODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.34 V	1.36 V	1.36 V	1.35 V
JESD-30 code	R-PUFM-X3	R-PUFM-X3	R-PUFM-X3	R-PUFM-X3
Maximum non-repetitive peak forward current	2110 A	1680 A	1680 A	1520 A
Number of components	2	2	2	2
Phase	1	1	1	1
Number of terminals	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output current	100 A	80 A	80 A	60 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	1400 V	2000 V	1400 V	2000 V
Maximum reverse current	10000 µA	10000 µA	10000 µA	10000 µA
surface mount	NO	NO	NO	NO
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	UPPER	UPPER	UPPER	UPPER
ECCN code	EAR99	EAR99	EAR99	-
Maker	-	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）
