LQT60X1 datasheet, PDF - EEWORLD Datasheet

LQT60X1: DescriptionOscillator,; CategoryPassive components oscillator; File Size398KB，2 Pages; ManufacturerAVX

Download Datasheet Parametric Compare View All

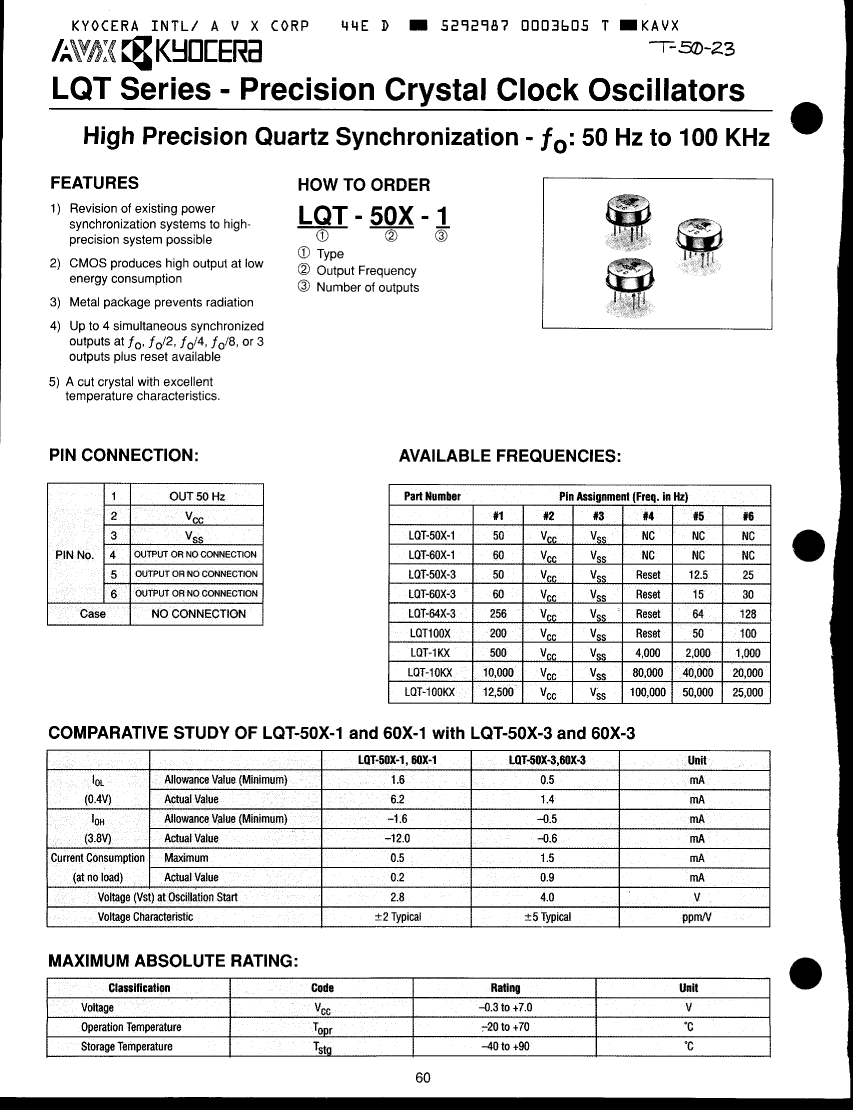

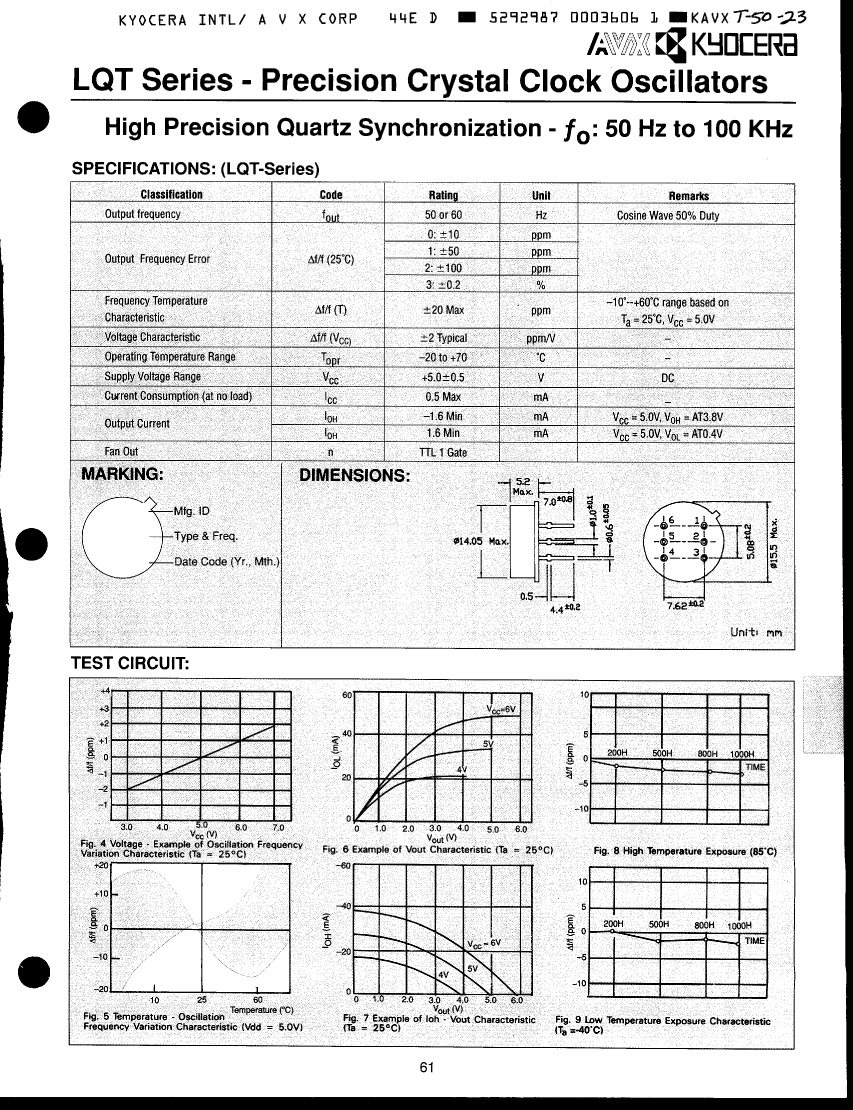

LQT60X1 Overview

Oscillator,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
Frequency Adjustment - Mechanical	NO
frequency stability	20%
Installation features	THROUGH HOLE MOUNT
Number of terminals	6
Nominal operating frequency	0.06 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	CMOS
Output load	1 TTL
physical size	15.5mm x 5.2mm
Maximum slew rate	0.5 mA
surface mount	NO
Base Number Matches	1

	LQT60X1	LQT100KX	LQT100X	LQT1KX	LQT50X1	LQT50X3	LQT10KX	LQT60X3
Description	Oscillator,	Oscillator,	Oscillator,	Oscillator,	Oscillator,	Oscillator,	Oscillator,	Oscillator,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Frequency Adjustment - Mechanical	NO	NO	NO	NO	NO	NO	NO	NO
frequency stability	20%	20%	20%	20%	20%	20%	20%	20%
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Number of terminals	6	6	6	6	6	6	6	6
Nominal operating frequency	0.06 MHz	100 MHz	0.1 MHz	1 MHz	0.05 MHz	0.05 MHz	0.01 MHz	0.06 MHz
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Oscillator type	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Output load	1 TTL	1 TTL	1 TTL	1 TTL	1 TTL	1 TTL	1 TTL	1 TTL
physical size	15.5mm x 5.2mm	15.5mm x 5.2mm	15.5mm x 5.2mm	15.5mm x 5.2mm	15.5mm x 5.2mm	15.5mm x 5.2mm	15.5mm x 5.2mm	15.5mm x 5.2mm
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Base Number Matches	1	1	1	1	1	1	-	-
