MS3116P8-3P datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> MS3116P8-3P

Preview

MS3116P8-3P: DescriptionMIL Series Connector, 3 Contact(s), Aluminum Alloy, Male, Solder Terminal, Plug,; CategoryThe connector The connector; File Size59KB，1 Pages; ManufacturerEsterline Technologies Corporation

Download Datasheet Parametric View All

MS3116P8-3P Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MS3116P8-3P	-	-	View	Buy Now

MS3116P8-3P Overview

MIL Series Connector, 3 Contact(s), Aluminum Alloy, Male, Solder Terminal, Plug,

MS3116P8-3P Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STANDARD: MIL-C 26482
Back shell type	SOLID
Body/casing type	PLUG
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	TIN LEAD
Contact point gender	MALE
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Environmental characteristics	CHEMICAL/ENVIRONMENT/VIBRATION RESISTANT
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	PANEL
Options	GENERAL PURPOSE
Shell surface	CADMIUM PLATED
Shell material	ALUMINUM ALLOY
Housing size	8
Termination type	SOLDER
Total number of contacts	3
Base Number Matches	1

Preview

Download Datasheet

View All

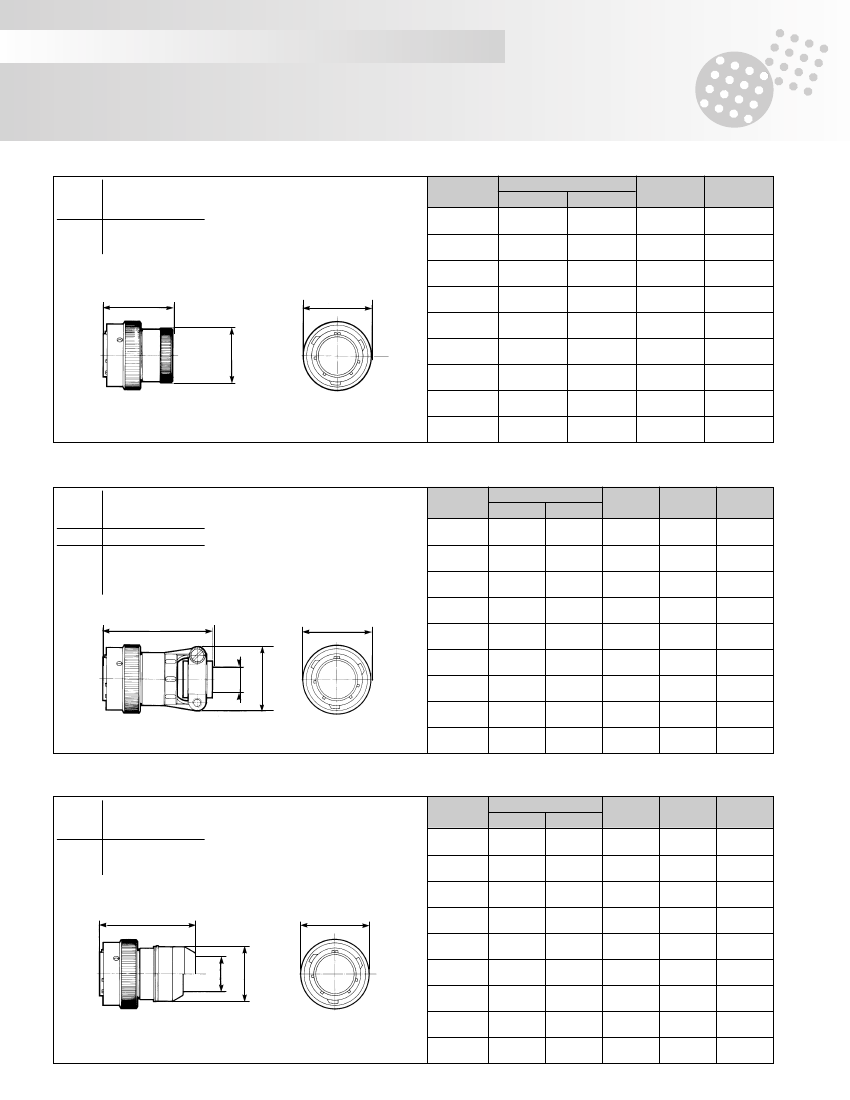

26482 Series I

Solder Connectors

Plug with backnut

solder

06 E

crimp

06 R

HE 301 B 06 R

MS 3126 E

HE 301 B 06 E

MS 3116 E

shell size

08

10

12

L

øA

14

16

øD

18

20

22

24

L Max

solder

32.54

1.281

crimp

32.00

1.260

A

Max

19.05

.750

D

Max

13.50

.531

32.54

1.281

32.00

1.260

21.80

.858

16.70

.657

32.54

1.281

32.00

1.260

26.15

1.030

19.90

.783

32.54

1.281

32.00

1.260

29.35

1.156

23.40

.921

32.54

1.281

32.00

1.260

32.50

1.280

26.60

1.047

32.54

1.281

32.00

1.260

35.30

1.390

29.60

1.165

33.30

1.311

32.10

1.264

38.85

1.530

32.70

1.287

33.30

1.311

32.10

1.264

42.05

1.656

36.00

1.417

33.30

1.311

32.10

1.264

45.10

1.776

39.10

1.539

Plug with straight cable clamp

solder

06 EC

06 AC

crimp

06 RC

HE 301 B 06 EC

MS 3116 F

HE 301 B 06 AC

HE 301 B 06 RC

MS 3126 F

VG 95328 K

L

øA

16

18

øG

D

20

22

24

shell size

08

10

12

14

L Max

solder

crimp

48.00

1.890

A

Max

19.05

.750

D

Max

19.90

.783

G

3.50

.138

47.30

1.862

48.00

1.890

47.30

1.862

21.80

.858

21.50

.846

5.00

.197

48.00

1.890

47.30

1.862

26.15

1.030

25.00

.984

8.20

.323

48.00

1.890

47.30

1.862

29.35

1.156

27.80

1.094

10.00

.394

51.00

2.008

50.50

1.988

32.50

1.280

29.40

1.157

13.00

.512

51.00

2.008

50.50

1.988

35.30

1.390

35.30

1.390

16.00

.630

52.00

2.047

50.20

1.976

38.85

1.530

35.30

1.390

16.00

.630

52.00

2.047

50.20

1.976

42.05

1.656

41.10

1.618

19.30

.760

52.00

2.047

50.20

1.976

45.10

1.776

42.40

1.669

20.60

.811

Plug with straight backshell for potting

solder

06 P

crimp

06 RP

HE 301 B 06 RP

MS 3126 P

HE 301 B 06 P

MS 3116 P

shell size

08

10

12

L

øA

14

16

øG

øD

18

20

22

24

L Max

solder

crimp

36.20

1.425

A

Max

19.05

.750

D

Max

15.34

.604

G

Max

10.46

.412

42.10

1.657

36.20

1.425

42.10

1.657

21.80

.858

17.70

.697

13.55

.533

36.20

1.425

42.10

1.657

26.15

1.030

21.69

.854

13.96

.550

36.20

1.425

42.10

1.657

29.35

1.156

23.90

.941

17.42

.686

36.20

1.425

42.10

1.657

32.50

1.280

27.00

1.063

20.56

.809

37.70

1.484

45.40

1.787

35.30

1.390

30.50

1.201

23.66

.931

42.40

1.669

50.00

1.969

38.85

1.530

33.65

1.325

23.92

.942

42.40

1.669

50.00

1.969

42.05

1.656

37.10

1.461

25.52

1.005

42.85

1.687

50.00

1.969

45.10

1.776

40.00

1.575

32.00

1.260
