EMR31D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> EMR31D

EMR31D: Description5mmx22mm LIGHT BAR; CategoryLED optoelectronic/LED photoelectric; File Size161KB，4 Pages; ManufacturerSUNLED; Websitehttp://www.sunled.com/; Environmental Compliance

Download Datasheet Parametric View All

EMR31D Overview

5mmx22mm LIGHT BAR

EMR31D Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUNLED
package instruction	ROHS COMPLIANT, PLASTIC PACKAGE-8
Reach Compliance Code	compli
Date Of I	1994-01-01
Other features	IC COMPATIBLE
color	RED
Configuration	SEPARATE, 4 ELEMENTS
Maximum forward current	0.03 A
Lens type	DIFFUSED
Nominal luminous intensity	59.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	8 mm

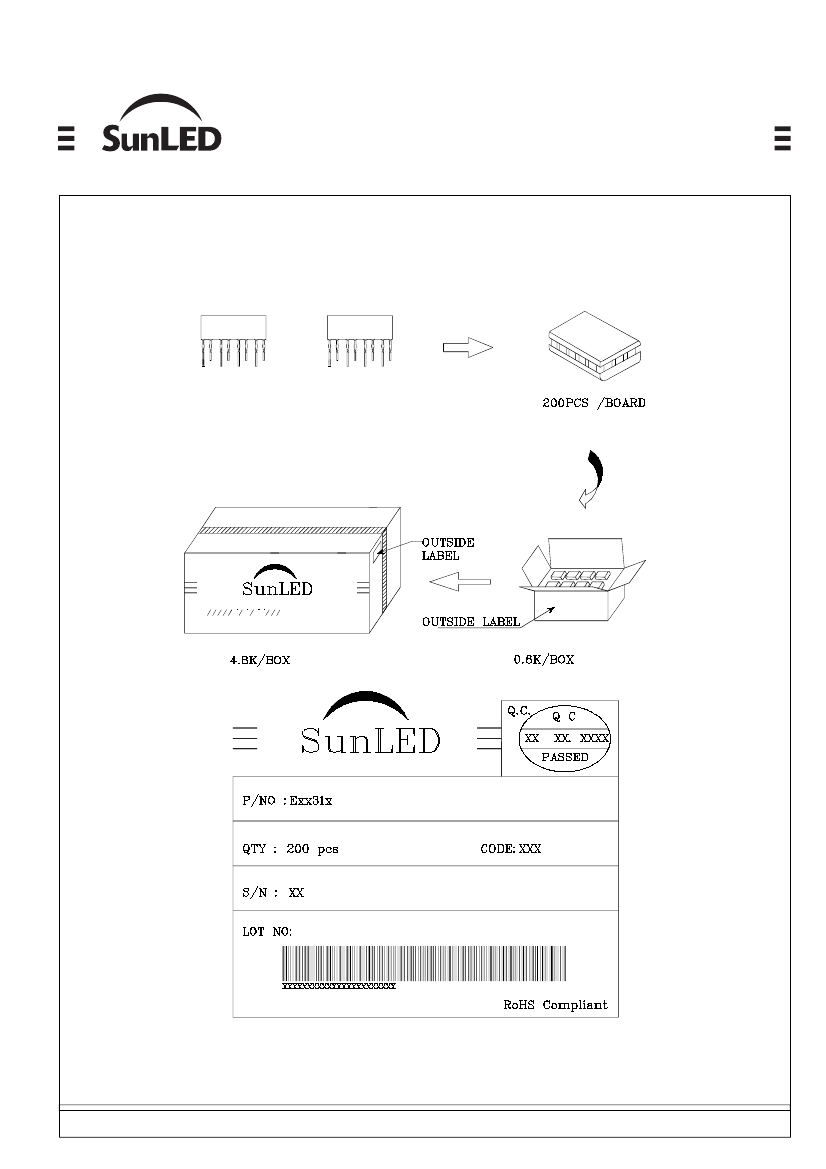

method of packing	BOX
peak wavelength	660 nm
shape	RECTANGULAR
size	22 mm
surface mount	NO
Terminal pitch	2.54 mm
perspective	120 deg

Preview

Download Datasheet

View All

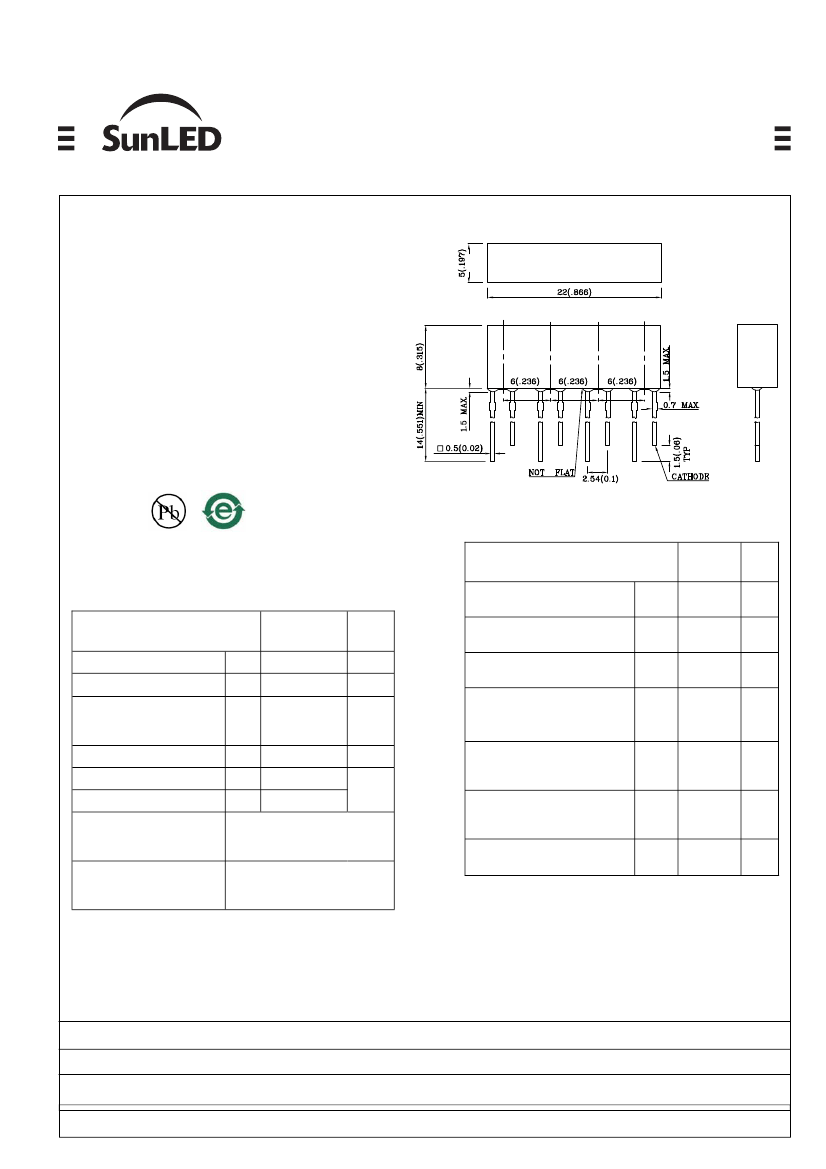

www.SunLED.com

Part Number

EMR31D

5mmx22mm LIGHT BAR

PRELIMINARY SPEC

Features

UNIFORM LIGHT EMITTING AREA.

EASILY MOUNTED ON P.C. BOARDS OR

INDUSTRY STANDARD SOCKETS.

FLUSH MOUNTABLE.

EXCELLENT ON/OFF CONTRAST.

CAN BE USED WITH PANELS AND LEGEND MOUNTS.

MECHANICALLY RUGGED.

I.C. COMPATIBLE.

BOTTOM SURFACE OF EPOXY IS NOT FLAT.

RoHS COMPLIANT.

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ± 0.25(0.01") unless otherwise noted.

3.Specifications are subject to change without notice.

Absolute Maximum Ratings

=25°C)

Reverse Voltage

Forward Current

Forward Current (Peak)

1/10 Duty Cycle

0.1ms Pulse Width

Power Dissipation

Operating Temperature

Storage Temperature

Lead Solder Temperature

[2mm Below Package Base]

Lead Solder Temperature

[5mm Below Package Base]

Tstg

(GaAlAs)

155

-40 ~ +85

260°C For 3 Seconds

Unit

°C

Operating Characteristics

=25°C)

Forward Voltage (Typ.)

=20mA)

Forward Voltage (Max.)

=20mA)

Reverse Current (Max.)

=5V)

Wavelength Of Peak Emission

(Typ.)

=20mA)

Wavelength Of Dominant

Emission (Typ.)

=20mA)

Spectral Line Full Width At

Half-Maximum (Typ.)

=20mA)

Capacitance (Typ.)

=0V, f=1MHz)

(GaAlAs)

1.85

2.5

Unit

660

640

Δλ

260°C For 5 Seconds

Part

Number

Emitting

Color

Emitting

Material

Lens-color

Luminous

Intensity

(IF=20mA)

mcd

min.

typ.

Wavelength

Viewing

Angle

1/2

EMR31D

Red

GaAlAs

Red Diffused

660

120°

Published Date : MAR 20.2008

Drawing No : SDSA3739

Checked : B.L.LIU

P.1/4
