LM2901HDT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> LM2901HDT

LM2901HDT: DescriptionHigh temperature low power quad voltage comparators; CategoryAnalog mixed-signal IC Amplifier circuit; File Size282KB，9 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

LM2901HDT Overview

High temperature low power quad voltage comparators

LM2901HDT Parametric

Parameter Name	Attribute value
Brand Name	STMicroelectronics
Is it Rohs certified?	conform to
Maker	STMicroelectronics
Parts packaging code	SOIC
package instruction	SO-14
Contacts	14
Reach Compliance Code	compliant
ECCN code	EAR99
Amplifier type	COMPARATOR
Maximum average bias current (IIB)	0.4 µA
Maximum bias current (IIB) at 25C	0.25 µA
Maximum input offset voltage	15000 µV
JESD-30 code	R-PDSO-G14
JESD-609 code	e4
length	8.65 mm
Negative supply voltage upper limit
Nominal Negative Supply Voltage (Vsup)
Number of functions	4
Number of terminals	14
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP14,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Nominal response time	1300 ns
Maximum seat height	1.75 mm
Maximum slew rate	2.5 mA
Supply voltage upper limit	36 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	AUTOMOTIVE
Terminal surface	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	3.9 mm
Base Number Matches	1

Preview

Download Datasheet

View All

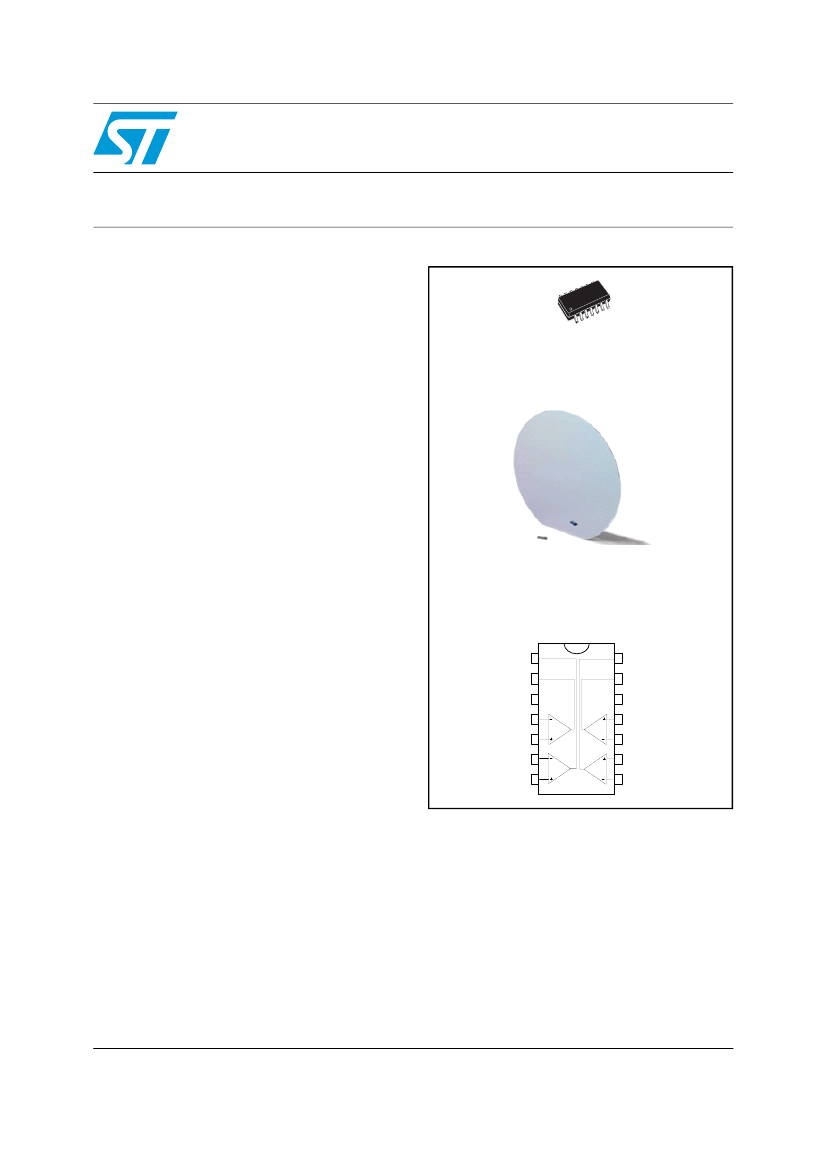

LM2901H

High temperature low power quad voltage comparators

Features

■

Wide single supply voltage range or dual

supplies for all devices: +2 V to +36 V or ±1 V

to ±18 V

Very low supply current (1.1 mA) independent

of supply voltage (1.4 mW/comparator at +5 V)

Low input bias current: 25 nA typ.

Low input offset current: ±5 nA typ.

Input common-mode voltage range includes

ground

Low output saturation voltage:

250 mV typ. (I

= 4 mA)

Differential input voltage range equal to the

supply voltage

TTL, DTL, ECL, MOS, CMOS compatible

outputs

■

SO-14

(Plastic micropackage)

Wafer form

Description

This device consists of four independent precision

voltage comparators. All these comparators are

designed specifically to operate from a single

power supply over a wide range of voltages.

Operation from split power supplies is also

possible.

These comparators also have a unique

characteristic in that the input common-mode

voltage range includes ground even though

operated from a single power supply voltage.

Pin connections

(top view)

Output 2 1

Output 1 2

CC 3

Output 3

Output 4

Non-inverting input 4

Inverting input 4

Non-inverting input 3

Inverting input 3

Inverting input 1

Non-inverting input 1

Inverting input 2

Non-inverting input 2

April 2008

Rev 4

1/9

www.st.com

LM2901HDT Related Products

	LM2901HDT	JLM2901H-I6D1	LM2901HD	LM2901H_08	LM2901H	LM2901HYD
Description	High temperature low power quad voltage comparators	High temperature low power quad voltage comparators	High temperature low power quad voltage comparators	High temperature low power quad voltage comparators	High temperature low power quad voltage comparators	High temperature low power quad voltage comparators
Parts packaging code	SOIC	WAFER	SOIC	-	-	SOIC
package instruction	SO-14	DIE,	SOP, SOP14,.25	-	-	SOP, SOP14,.25
Contacts	14	14	14	-	-	14
Reach Compliance Code	compliant	compli	compli	-	-	compli
ECCN code	EAR99	EAR99	EAR99	-	-	EAR99
Amplifier type	COMPARATOR	COMPARATOR	COMPARATOR	-	-	COMPARATOR
Maximum average bias current (IIB)	0.4 µA	0.4 µA	0.4 µA	-	-	0.4 µA
Maximum input offset voltage	15000 µV	15000 µV	15000 µV	-	-	15000 µV
JESD-30 code	R-PDSO-G14	R-XUUC-N14	R-PDSO-G14	-	-	R-PDSO-G14
Number of functions	4	4	4	-	-	4
Number of terminals	14	14	14	-	-	14
Maximum operating temperature	150 °C	150 °C	150 °C	-	-	150 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-	-	-40 °C
Package body material	PLASTIC/EPOXY	UNSPECIFIED	PLASTIC/EPOXY	-	-	PLASTIC/EPOXY
encapsulated code	SOP	DIE	SOP	-	-	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	-	RECTANGULAR
Package form	SMALL OUTLINE	UNCASED CHIP	SMALL OUTLINE	-	-	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	-	-	Not Qualified
Nominal response time	1300 ns	1300 ns	1300 ns	-	-	1300 ns
Supply voltage upper limit	36 V	36 V	36 V	-	-	36 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	-	-	5 V
surface mount	YES	YES	YES	-	-	YES
Temperature level	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	-	-	AUTOMOTIVE
Terminal form	GULL WING	NO LEAD	GULL WING	-	-	GULL WING
Terminal location	DUAL	UPPER	DUAL	-	-	DUAL
