Part Number:
LM2BB12W
www.SunLED.com
T-1 3/4 (5mm) SOLID STATE LAMP
PRELIMINARY SPEC
Features
LOW POWER CONSUMPTION.
POPULAR T-1 3/4 DIAMETER PACKAGE.
GENERAL PURPOSE LEADS.
RELIABLE AND RUGGED.
LONG LIFE - SOLID STATE RELIABILITY.
AVAILABLE ON TAPE AND REEL.
RoHS COMPLIANT.
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
DISCHARGE
SENSITIVE
DEVICES
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ± 0.25(0.01") unless otherwise noted.
3.Specifications are subject to change without notice.
Absolute Maximum Ratings
(T
A
=25°C)
Reverse Voltage
Forward Current
Forward Current (peak)
1/10 Duty Cycle
0.1ms Pulse Width
Power Dissipation
Operating Temperature
Storage Temperature
V
R
I
F
i
FS
P
T
T
A
Tstg
M2BB
(InGaN)
5
30
100
111
-40 ~ +85
-40 ~ +85
1000
260°C For 3 Seconds
260°C For 5 Seconds
Unit
V
mA
mA
mW
°C
V
Operating Characteristics
(T
A
=25°C)
Forward Voltage (Typ.)
(I
F
=20mA)
Forward Voltage (Max.)
(I
F
=20mA)
Reverse Current (Max.)
(V
R
=5V)
Wavelength Of Peak
Emission (Typ.)
(I
F
=20mA)
Wavelength Of Dominant
Emission (Typ.)
(I
F
=20mA)
Spectral Line Full Width
At Half-Maximum (Typ.)
(I
F
=20mA)
Capacitance (Typ.)
(V
F
=0V, f=1MHz)
Luminous
Intensity
(IF=20mA)
mcd
min.
LM2BB12W
Blue
InGaN
Water Clear
2800
typ.
5490
458
20°
V
F
V
F
I
R
M2BB
(InGaN)
3.2
3.7
10
Unit
V
V
uA
λ
P
458
nm
λ
D
465
nm
Electrostatic Discharge Threshold
(HBM)
Lead Solder Temperature
[2mm Below Package Base]
Lead Solder Temperature
[5mm Below Package Base]
Δλ
22
nm
C
110
pF
Part
Number
Emitting
Color
Emitting
Material
Lens-color
Wavelength
nm
λ
P
Viewing
Angle
2
θ
1/2
Published Date : MAR 26, 2008
Drawing No : SDSA6602
V1
Checked : B.L.LIU
P.1/4
Part Number:
LM2BB12W
www.SunLED.com
T-1 3/4 (5mm) SOLID STATE LAMP
M2BB
Published Date : MAR 26, 2008
Drawing No : SDSA6602
V1
Checked : B.L.LIU
P.2/4
Part Number:
LM2BB12W
www.SunLED.com
T-1 3/4 (5mm) SOLID STATE LAMP
Remarks:
If special sorting is required (e.g. binning based on forward voltage, Luminous intensity / luminous flux, or wavelength),
the typical accuracy of the sorting process is as follows:
1. Wavelength: +/-1nm
2. Luminous intensity / luminous flux: +/-15%
3. Forward Voltage: +/-0.1V
Note: Accuracy may depend on the sorting parameters.
Published Date : MAR 26, 2008
Drawing No : SDSA6602
V1
Checked : B.L.LIU
P.3/4
Part Number:
LM2BB12W
www.SunLED.com
T-1 3/4 (5mm) SOLID STATE LAMP

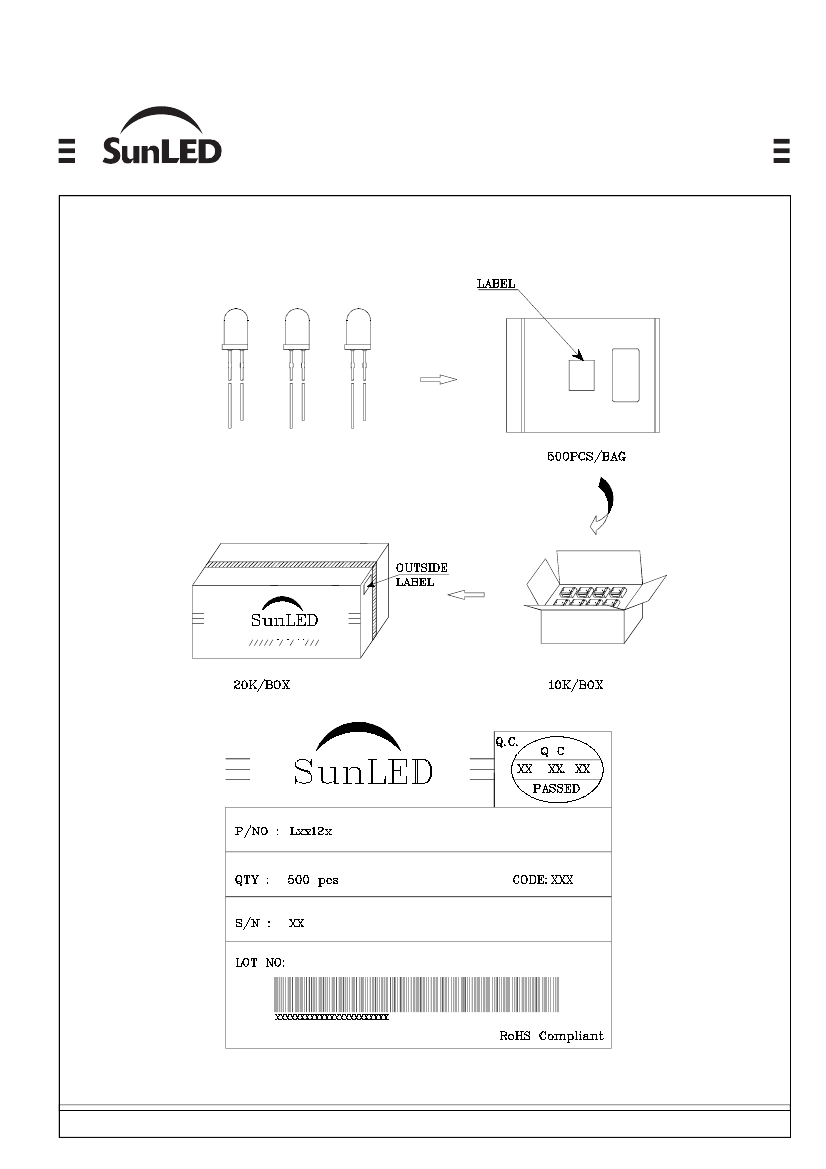

PACKING & LABEL SPECIFICATIONS
LM2BB12W
Published Date : MAR 26, 2008
Drawing No : SDSA6602
V1
Checked : B.L.LIU
P.4/4
