RF AMPLIFIER
MODEL
TR9189
Features
!
!
!
!
Higher Output Power: 25.5 dBm Typical
High Gain: 23 dB Typical
Operating Temp. - 55 ºC to +85 ºC
Environmental Screening Available
Available as:
TR9189, 4 Pin TO-8B (T8)
RN9189, 4 Pin .525” Sq. Surface Mount (SM19)
WN9189, 10 Pin .625” Sq. Gullwing (SG4)
BR9189, Connectorized Housing (H2)
Typical Intermodulation Performance at 25 º C
Second Order Harmonic Intercept Point ....... +50 dBm (Typ.)
Second Order Two Tone Intercept Point ........ +45 dBm (Typ.)
Third Order Two Tone Intercept Point ............ +35 dBm (Typ.)
Specifications
CHARACTERISTIC
Frequency
Gain (dB)
Power @ 1 dB
Comp. (dBm)
Reverse
Isolation (dB)
VSWR
In
Out
Noise figure (dB)
Power
Vdc
mA
TYPICAL
Ta= 25 ºC
10 - 400 MHz
23
+25.5
-32
1.8:1
1.8:1
5.0
+15
205
MIN/MAX
Ta = -55 ºC to +85 ºC
10 - 400 MHz
22 Min.
+24.5 Min.
-31 Max.
2.0:1 Max.
2.0:1 Max.
6.0 Max.
+15
220 Max.
Maximum Ratings
Ambient Operating Temperature .............. -55ºC to + 100 ºC
Storage Temperature ............................... -62ºC to + 125 ºC
Case Temperature ................................................. + 95 ºC
DC Voltage ......................................................... + 17 Volts
Continuous RF Input Power ................................. + 10 dBm
Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)
Maximum Peak Power .................... 0.5 Watt (3
µsec
Max.)
Note: Care should always be taken to effectively ground the case of each unit.

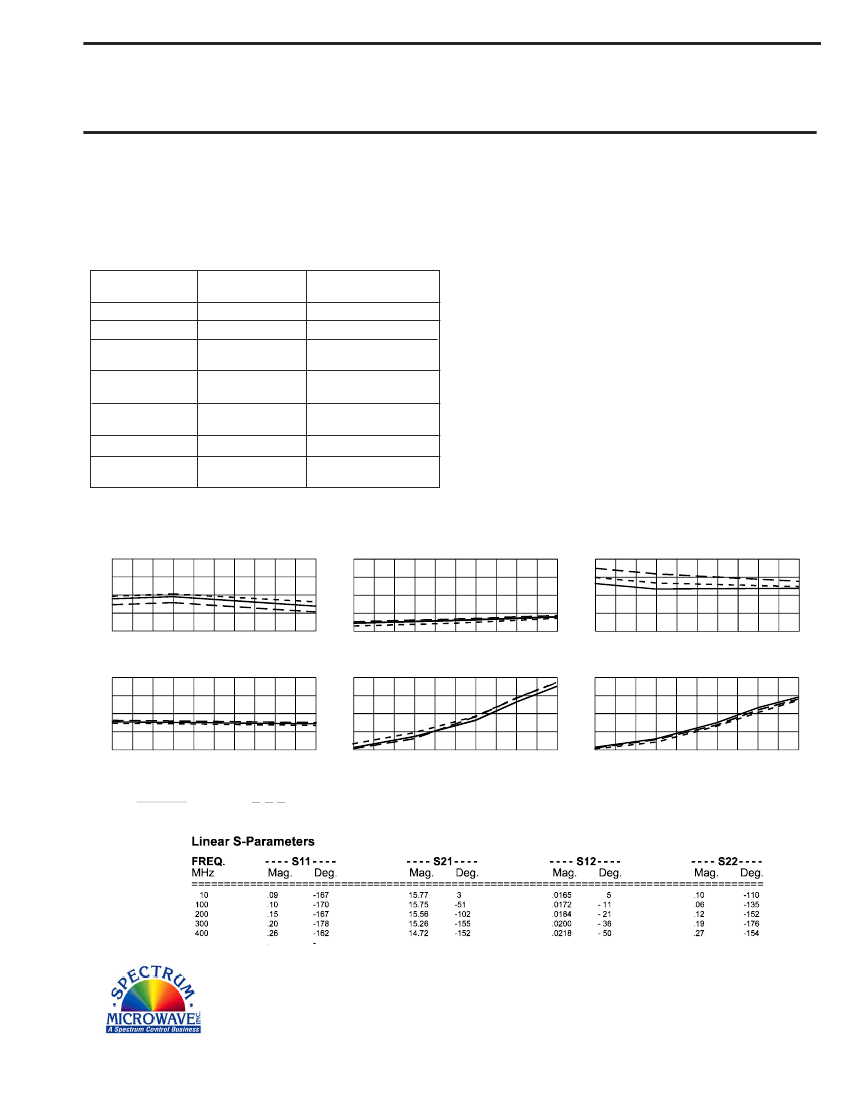

Typical Performance Data
26
25
24
23
22
Start 10 MHz
Stop 400 MHz
Gain (dB)
0
- 10
- 20
- 30
- 40
Reverse Isolation (dB)
6
4
2
Noise Figure (dB)
Start 10 MHz
Stop 400 MHz
Start 10 MHz
Stop 400 MHz
+28
+27
+26
+25
+24
1 dB Comp. (dBm)
2.0
1.5
1.0
Input VSWR
2.0
1.5
1.0
Output VSWR
Start 10 MHz
Stop 400 MHz
Start 10 MHz
Stop 400 MHz
Start 10 MHz
Stop 400 MHz
Legend
+ 25 ºC
+ 85 ºC - - - - - - -55 ºC
Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532
3/30/04
www.spectrummicrowave.com
Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001
