LUGR59M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> LUGR59M

LUGR59M: DescriptionT-1 3/4 (5mm) BI-COLOR INDICATOR LAMP; CategoryLED optoelectronic/LED photoelectric; File Size206KB，5 Pages; ManufacturerSUNLED; Websitehttp://www.sunled.com/; Environmental Compliance

Download Datasheet Parametric View All

LUGR59M Overview

T-1 3/4 (5mm) BI-COLOR INDICATOR LAMP

LUGR59M Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUNLED
package instruction	ROHS COMPLIANT PACKAGE-3
Reach Compliance Code	compli
ECCN code	EAR99
Other features	IC COMPATIBLE
color	RED/GREEN
Configuration	COMMON CATHODE, 2 ELEMENTS
Maximum forward current	0.03 A
Lens type	DIFFUSED WHITE
Nominal luminous intensity	59.0/49.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	3
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	DUAL COLOR LED
total height	8.6 mm

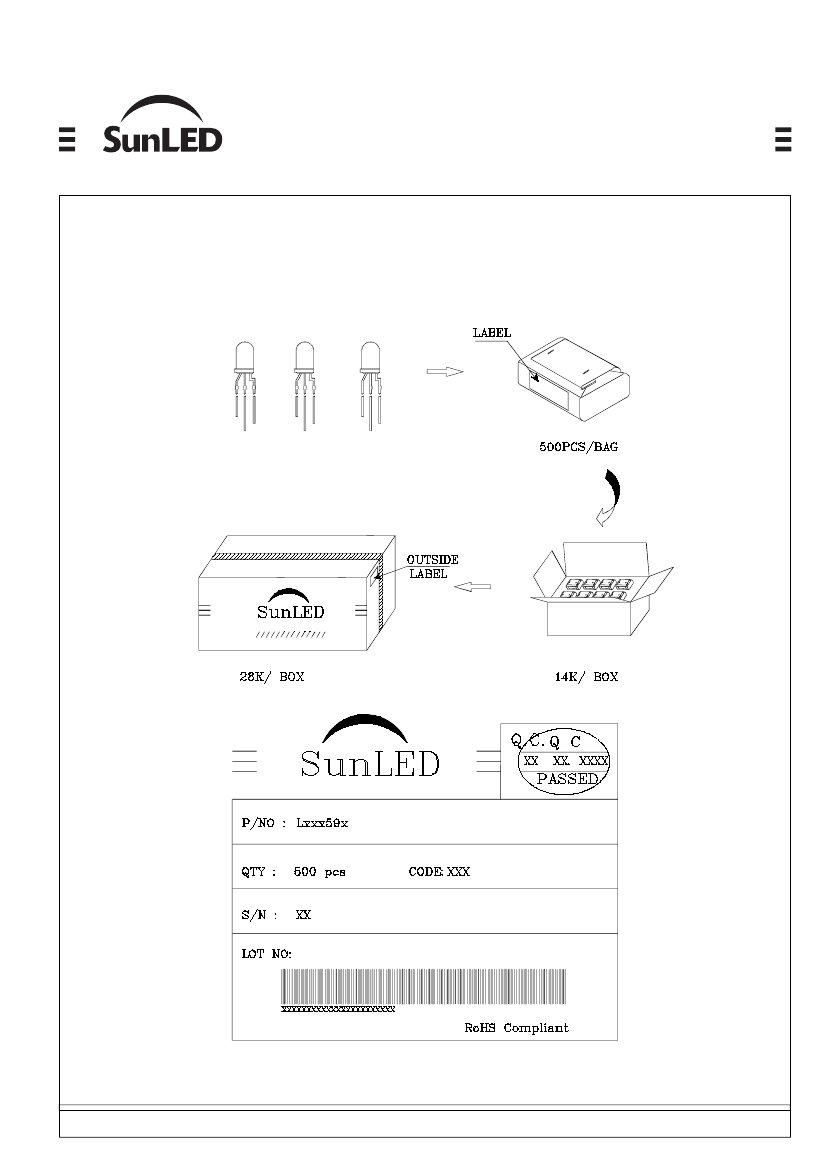

method of packing	BOX/BAG
peak wavelength	627/565 nm
shape	ROUND
size	5 mm
surface mount	NO
T code	T-1 3/4
Terminal pitch	2.54 mm
perspective	60 deg

Preview

Download Datasheet

View All

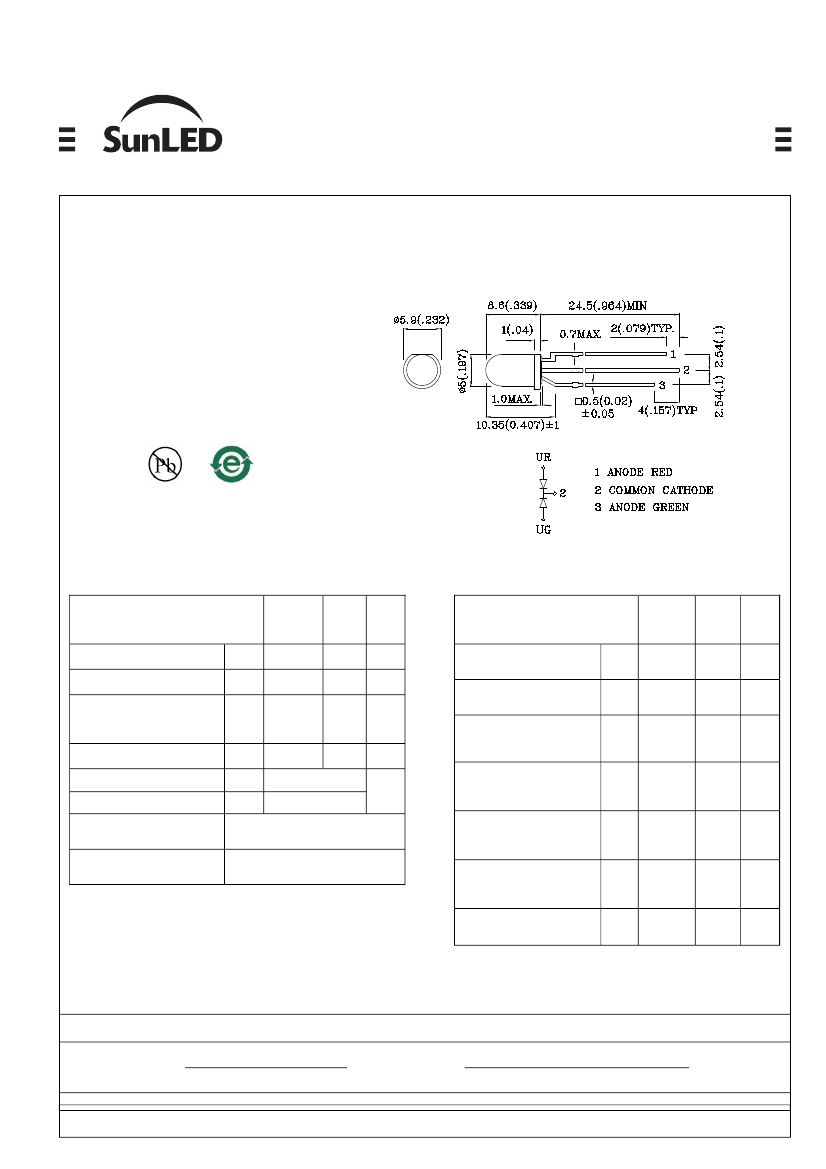

Part Number :

LUGR59M

www.SunLED.com

T-1 3/4 (5mm) BI-COLOR INDICATOR LAMP

Features

UNIFORM LIGHT OUTPUT.

LOW POWER CONSUMPTION

3 LEADS WITH ONE COMMON LEAD.

I.C. COMPATIBLE.

LONG LIFE - SOLID STATE RELIABILITY.

RoHS COMPLIANT.

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ± 0.25(0.01") unless otherwise noted.

3. Specifications are subject to change without notice

Absolute Maximum Ratings

=25°C)

Reverse Voltage

Forward Current

Forward Current (Peak)

1/10 Duty Cycle

0.1ms Pulse Width

Power Dissipation

Operating Temperature

Storage Temperature

Lead Solder Temperature

[2mm Below Package Base]

Lead Solder Temperature

[5mm Below Package Base]

Tstg

(GaAsP/

GaP)

160

(GaP)

140

62.5

Unit

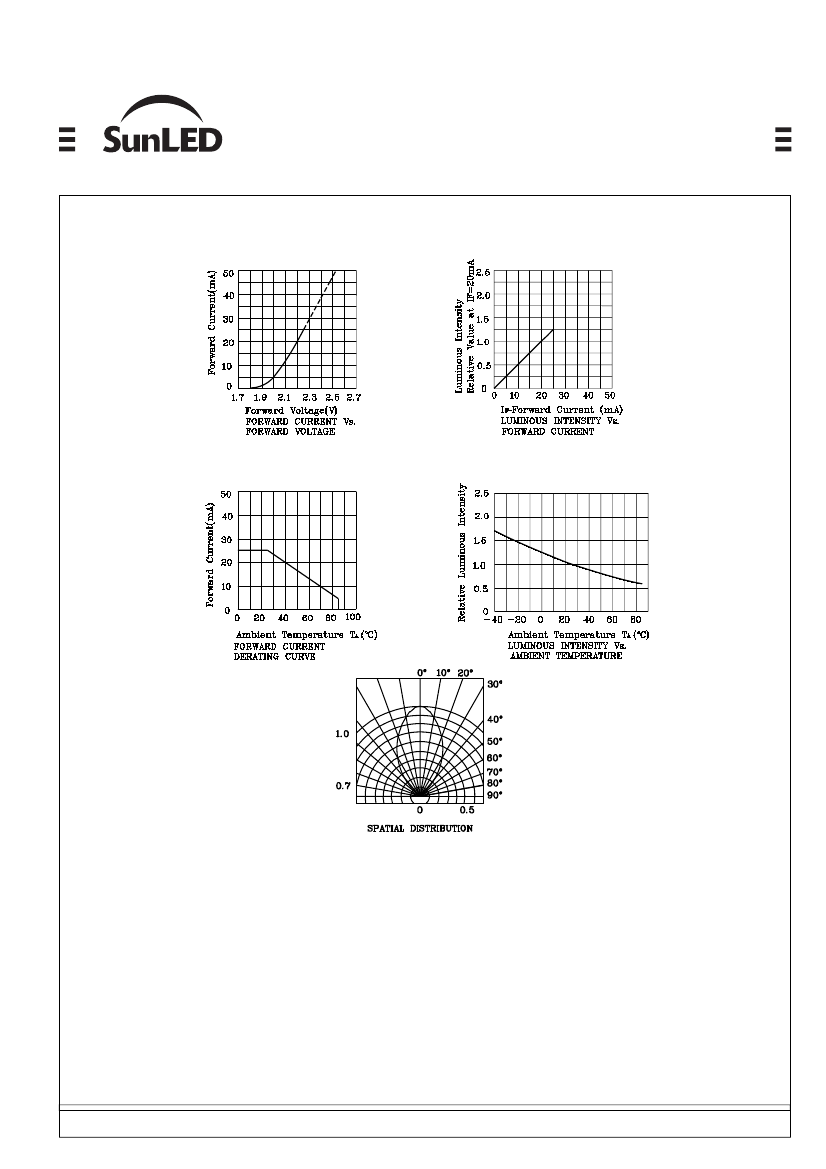

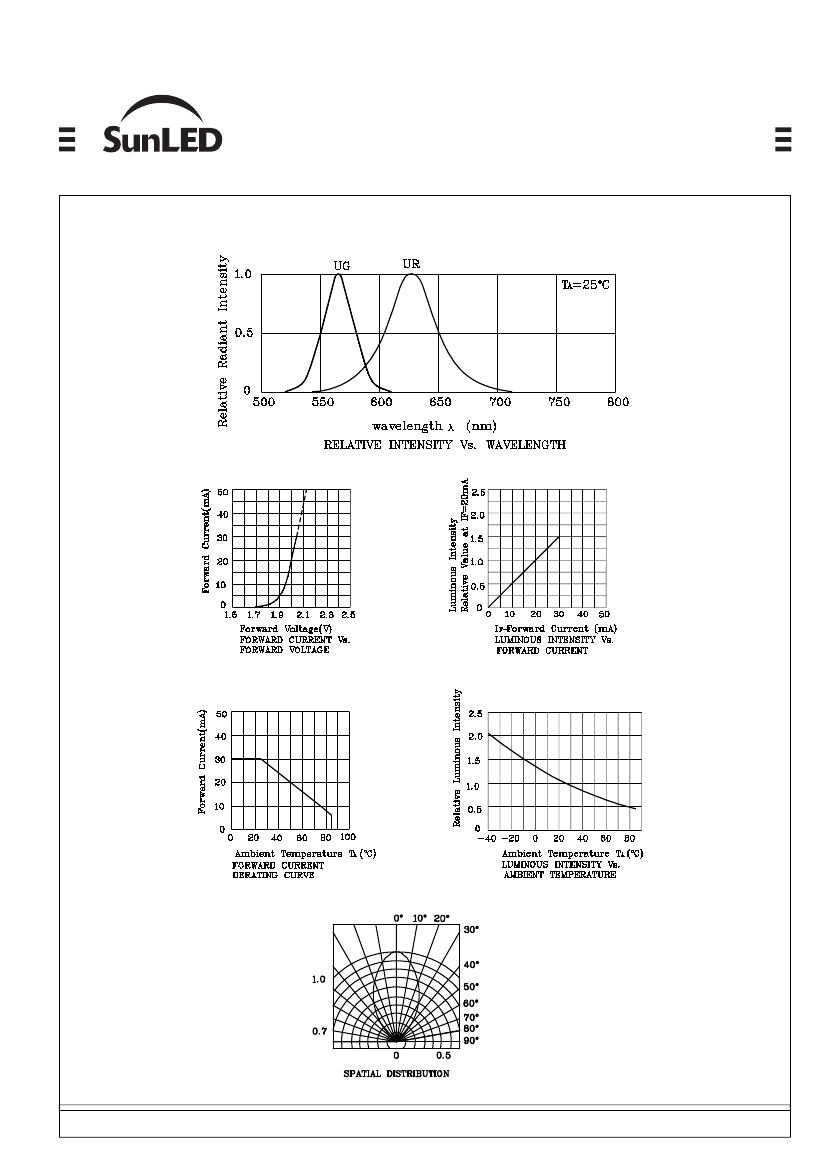

Operating Characteristics

=25°C)

Forward Voltage (Typ.)

=20mA)

Forward Voltage (Max.)

=20mA)

Reverse Current (Max.)

=5V)

Wavelength Of Peak

Emission (Typ.)

=20mA)

Wavelength Of Dominant

Emission (Typ.)

=20mA)

Spectral Line Full Width

At Half-Maximum (Typ.)

=20mA)

Capacitance (Typ.)

=0V, f=1MHz)

Luminous

Intensity

(IF=20mA)

mcd

min.

typ.

(GaAsP/

GaP)

2.0

2.5

(GaP)

2.2

2.5

Unit

-40 ~ +85

260°C For 3 Seconds

260°C For 5 Seconds

627

565

625

568

Δλ

Part

Number

Emitting

Color

Emitting

Material

Lens-color

Wavelength

Viewing

Angle

1/2

LUGR59M

Red

Green

GaAsP/GaP

GaP

White Diffused

627

565

Published Date : MAR 19,2008

Drawing No :SDSA1197

Checked : B.L.LIU

P.1/5
