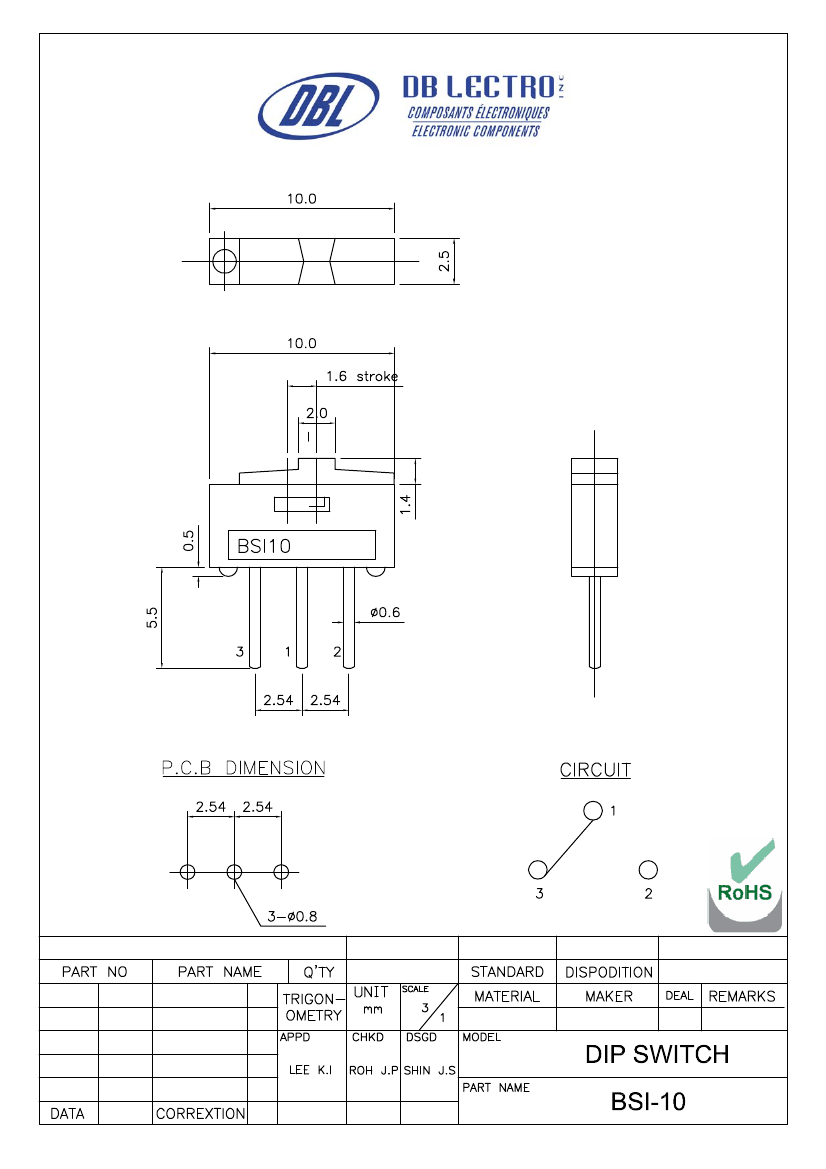

1. Electrical Characteristics.
1-1. Rating : AC, DC 12V 0.5A∼24V 0.3A. (Minimum current: 1mA)
1-2. Contact Resistance : Max 30mΩ
1-3. Insulation Resistance : Min 10,000MΩ, at DC 500V
1-4. Withstanding Voltage : 1min at AC 500V
2. Mechanical Characteristics.
2-1. Operating Force : Max 800gf
2-2. Angle of Lever Throw
2-3. Insulator
2-3-1. Case : Glass Fiber Reinforce Polyamide (UL94 V-0)
2-3-2. Slide : Glass Fiber Reinforce Polyamide (UL94 V-0)
2-4. Terminal : Nickel(Ni 0.2μ) Gold Plate(Au 0.05μ)
3. Life Test.
3-1. Test Condition : Operations at a rate of 15-20Cycle 1minute
3-1-1. with load : 1,000 Cycles
3-1-2. without load : 1,000 Cycles
3-2. Operating Force : With +10%, -40% of Initial Value
3-3. Contact Resistance : Max 30mΩ
4. Environmental Characteristics.
4-1. Operating Temperature : -40℃ to +85℃
4-2. Storage Temperature : -40℃ to +85℃
4-3. Humidity Test
4-3-1. Test Conditions : Measured 1Hour After Exposure to Ambient
After 96Hour Exposure at 40±2℃, 90-95%R.H
4-3-2. Insulation Resistance : Min 10,00MΩ, at DC 500V
4-3-3. Withstanding Voltage : 1min at AC 500V
4-4. Saline Spray Test : 24 hours
5. Solder Conditions.
5-1. Within 5 sec. at 270℃
6. RoHS Compliant
DB LECTRO Inc. 3755 Place Java, Suite 140, Brossard, Québec, J4Y 0E4, Canada - T: 1-450-444-1424 / F: 1-450-444-4714 / www.dblectro.com
