M74HC190

4 BIT SYNCHRONOUS UP/DOWN COUNTERS

HIGH SPEED :

MAX

= 44 MHz (TYP.) at V

= 6V

LOW POWER DISSIPATION:

=4µA(MAX.) at T

=25°C

HIGH NOISE IMMUNITY:

NIH

= V

NIL

= 28 % V

(MIN.)

SYMMETRICAL OUTPUT IMPEDANCE:

| = I

= 4mA (MIN)

BALANCED PROPAGATION DELAYS:

PLH

≅

PHL

WIDE OPERATING VOLTAGE RANGE:

(OPR) = 2V to 6V

PIN AND FUNCTION COMPATIBLE WITH

74 SERIES 190

DIP

SOP

TSSOP

ORDER CODES

PACKAGE

DIP

SOP

TSSOP

TUBE

M74HC190B1R

M74HC190M1R

DESCRIPTION

The M74HC190 is an high speed CMOS 4-BIT

SYNCHRONOUS

UP/DOWN

COUNTER

MOS technology.

fabricated with silicon gate C

State changes of the counter are synchronous

with the LOW-to-HIGH transition of the Clock

Pulse Input.

An asynchronous parallel load input overrides

counting and loads the data present on the DATA

inputs into the flip-flops, which makes it possible to

use the circuits as programmable counters. A

count enable input serves as the carry/borrow

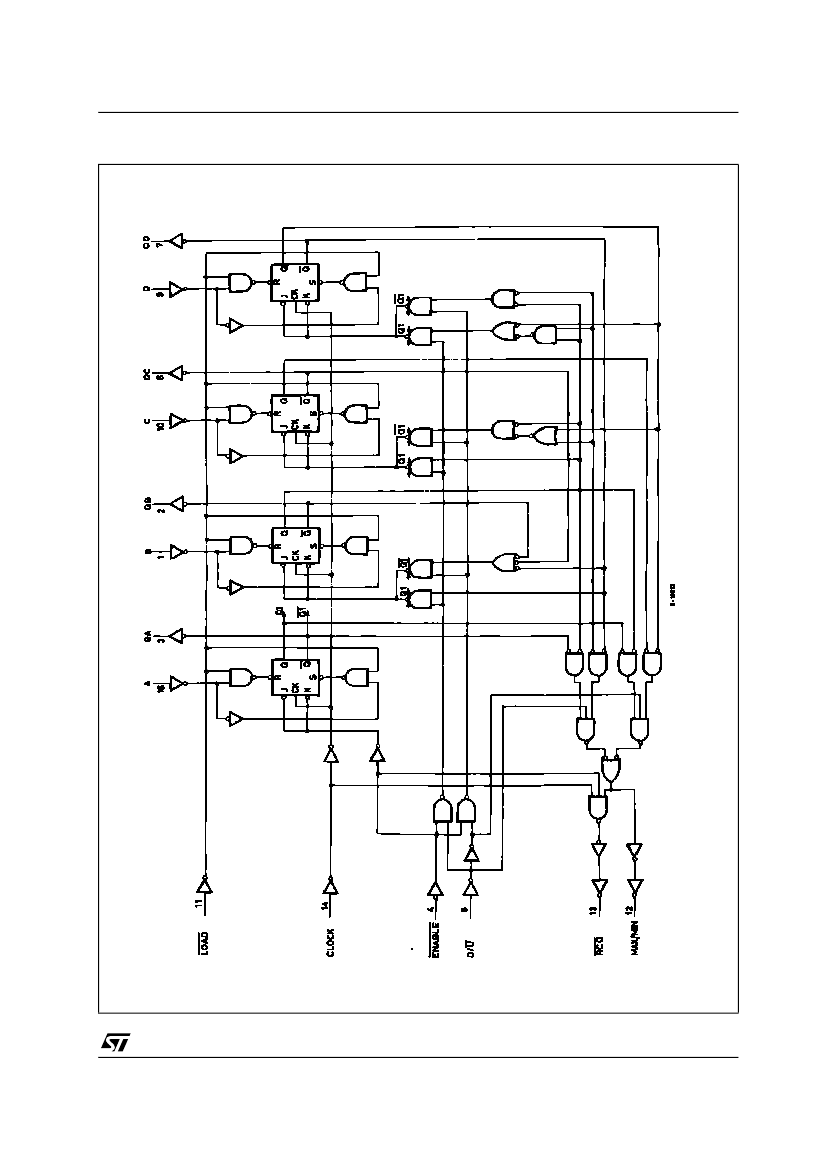

PIN CONNECTION AND IEC LOGIC SYMBOLS

-O

input in multi-stage counters. Control input, Down/

Up, determines whether a circuit counts up or

down. A MAX/MIN output and a Ripple Clock

output provide overflow/underflow indication and

make possible a variety of methods for generating

carry/borrow signals in multi-stage counter

applications.

All inputs are equipped with protection circuits

against static discharge and transient excess

voltage.

M74HC190RM13TR

M74HC190TTR

T&R

August 2001

1/14

M74HC190 Related Products

	M74HC190	M74HC190_01	M74HC190M1R	M74HC190B1R	M74HC190TTR	M74HC190RM13TR
Description	4 BIT SYNCHRONOUS UP/DOWN COUNTERS	4 BIT SYNCHRONOUS UP/DOWN COUNTERS	4 BIT SYNCHRONOUS UP/DOWN COUNTERS	4 BIT SYNCHRONOUS UP/DOWN COUNTERS	4 BIT SYNCHRONOUS UP/DOWN COUNTERS	4 BIT SYNCHRONOUS UP/DOWN COUNTERS
Is it Rohs certified?	-	-	conform to	conform to	incompatible	conform to
Maker	-	-	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics
Parts packaging code	-	-	SOIC	DIP	TSSOP	SOIC
package instruction	-	-	SOP, SOP16,.25	DIP, DIP16,.3	TSSOP, TSSOP16,.25	SOP, SOP16,.25
Contacts	-	-	16	16	16	16
Reach Compliance Code	-	-	compli	compli	_compli	compli
Other features	-	-	TCO OUTPUT	TCO OUTPUT	TCO OUTPUT	TCO OUTPUT
Counting direction	-	-	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL
series	-	-	HC/UH	HC/UH	HC/UH	HC/UH
JESD-30 code	-	-	R-PDSO-G16	R-PDIP-T16	R-PDSO-G16	R-PDSO-G16
JESD-609 code	-	-	e4	e3	e0	e4
Load capacitance (CL)	-	-	50 pF	50 pF	50 pF	50 pF
Load/preset input	-	-	YES	YES	YES	YES
Logic integrated circuit type	-	-	DECADE COUNTER	DECADE COUNTER	DECADE COUNTER	DECADE COUNTER
Maximum Frequency@Nom-Su	-	-	17000000 Hz	17000000 Hz	17000000 Hz	17000000 Hz
MaximumI(ol)	-	-	0.004 A	0.004 A	0.004 A	0.004 A
Operating mode	-	-	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Number of digits	-	-	4	4	4	4
Number of functions	-	-	1	1	1	1
Number of terminals	-	-	16	16	16	16
Maximum operating temperature	-	-	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-	-	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	-	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	-	-	SOP	DIP	TSSOP	SOP
Encapsulate equivalent code	-	-	SOP16,.25	DIP16,.3	TSSOP16,.25	SOP16,.25
Package shape	-	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	-	-	SMALL OUTLINE	IN-LINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE
method of packing	-	-	TUBE	TUBE	TAPE AND REEL	TAPE AND REEL
Peak Reflow Temperature (Celsius)	-	-	NOT SPECIFIED	245	NOT SPECIFIED	NOT SPECIFIED
power supply	-	-	2/6 V	2/6 V	2/6 V	2/6 V
propagation delay (tpd)	-	-	270 ns	270 ns	270 ns	270 ns
Certification status	-	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	-	-	1.75 mm	5.1 mm	1.2 mm	1.75 mm
Maximum supply voltage (Vsup)	-	-	6 V	6 V	6 V	6 V
Minimum supply voltage (Vsup)	-	-	2 V	2 V	2 V	2 V
Nominal supply voltage (Vsup)	-	-	4.5 V	4.5 V	4.5 V	4.5 V
surface mount	-	-	YES	NO	YES	YES
technology	-	-	CMOS	CMOS	CMOS	CMOS
Temperature level	-	-	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	-	-	Nickel/Palladium/Gold (Ni/Pd/Au)	Matte Tin (Sn)	Tin/Lead (Sn/Pb)	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal form	-	-	GULL WING	THROUGH-HOLE	GULL WING	GULL WING
Terminal pitch	-	-	1.27 mm	2.54 mm	0.65 mm	1.27 mm
Terminal location	-	-	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Trigger type	-	-	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
width	-	-	3.9 mm	7.62 mm	4.4 mm	3.9 mm
minfmax	-	-	20 MHz	20 MHz	20 MHz	20 MHz
