Leaded or Surface Mount Quartz Crystal
FEATURES
•
Standard HC-49/US or HC-49/US SM Low
Profile Package Options
•
Stable Frequency Over Temperature and
Drive Level
•
Fundamental and 3
rd
Overtone Crystals
•
Frequency Range 3.5 – 60 MHz
•
Frequency Tolerance, ±30 ppm Standard
•
Frequency Stability, ±50 ppm Standard
•
Operating Temperature, –20°C to +70°C
•
Tape & Reel Packaging Available
•
RoHS/Green Compliant
ATS/ATS-SM
DESCRIPTION

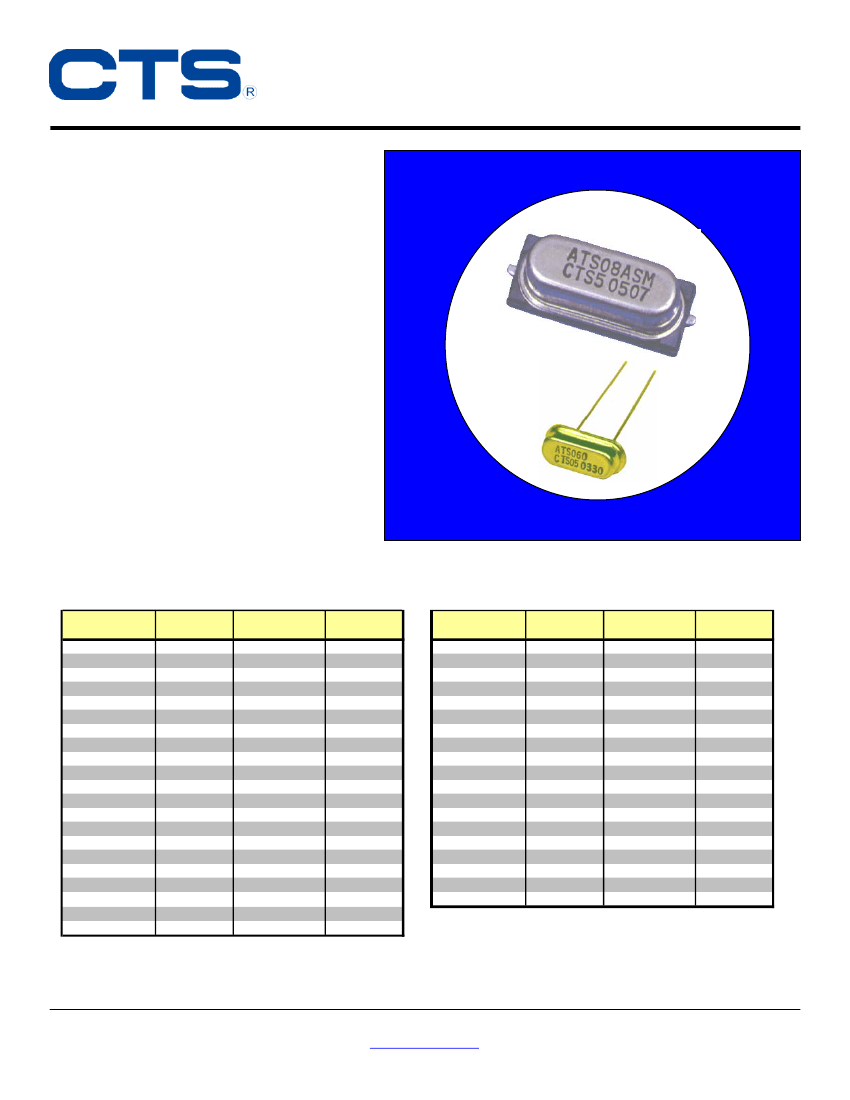

The ATS/ATS-SM crystal series offers excellent
long-term stability and reliability in a proven
resistance-weld metal package. The excellent
shock performance makes it suitable for
microprocessor, telecommunication, consumer
electronic and networking applications.
STANDARD PART NUMBERS AVAILABLE @ CTS DISTRIBUTORS
ATS
PART NUMBER
ATS036
ATS037
ATS040
ATS042
ATS050
ATS060
ATS08A
ATS098
ATS100
ATS111
ATS120
ATS122
ATS143
ATS15A
ATS160
ATS16A
ATS200
ATS204
ATS245
ATS250
ATS25A
FREQUENCY
(MHz)
ATS-SM
LOAD
OPERATING
CAPACITANCE
MODE
Fundamental
18 pF
20 pF
Fundamental
20 pF
Fundamental
20 pF
Fundamental
20 pF
Fundamental
20 pF
Fundamental
20 pF
Fundamental
20 pF
Fundamental
Series
Fundamental
20 pF
Fundamental
Series
Fundamental
20 pF
Fundamental
Series
Fundamental
20 pF
Fundamental
Series
Fundamental
20 pF
Fundamental
Series
Fundamental
20 pF
Fundamental
Series
Fundamental
Series
Fundamental
20 pF
Fundamental
PART NUMBER
ATS036SM
ATS037SM
ATS040SM
ATS042SM
ATS050SM
ATS060SM
ATS08ASM
ATS098SM
ATS100SM
ATS10ASM
ATS111SM
ATS120SM
ATS122SM
ATS143SM
ATS15ASM
ATS160SM
ATS200SM
ATS204SM
ATS245SM
FREQUENCY
(MHz)
3.579545
3.686400
4.000000
4.915200
5.068800
6.000000
8.000000
9.830400
10.000000
11.059200
12.000000
12.288000
14.318180
15.360000
16.000000
16.000000
20.000000
20.480000
24.576000
25.000000
25.000000
3.579545
3.686400
4.000000
4.915200
5.068800
6.000000
8.000000
9.830400
10.000000
10.000000
11.059200
12.000000
12.288000
14.318180
15.360000
16.000000
20.000000
20.480000
24.576000
LOAD
OPERATING
CAPACITANCE
MODE
18 pF
Fundamental
20 pF
Fundamental
20 pF
Fundamental
20 pF
Fundamental
20 pF
Fundamental
20 pF
Fundamental
20 pF
Fundamental
20 pF
Fundamental
Series
Fundamental
20 pF
Fundamental
20 pF
Fundamental
Series
Fundamental
20 pF
Fundamental
Series
Fundamental
20 pF
Fundamental
Series
Fundamental
Series
Fundamental
20 pF
Fundamental
Series
Fundamental
Contact your authorized CTS distributor for availability.
Document No. 008-0309-0
Page 1 - 5
Rev. C
٠ ٠ ٠
CTS Electronic Components, Inc.
٠
171 Covington Drive
٠
Bloomingdale, IL 60108
٠ ٠ ٠
٠ ٠ ٠
www.ctscorp.com
٠ ٠ ٠
Low Cost Quartz Crystal
ATS/ATS-SM
ADDITIONAL PART NUMBERS AVAILABLE FROM CTS
ATS
PART NUMBER
ATS04A
ATS061
ATS073
ATS080
ATS10A
ATS099
ATS12A
ATS125
ATS123
ATS124
ATS127
ATS126
ATS135
ATS14A
ATS16A
ATS169
ATS184
ATS18A
ATS196
ATS19A
ATS20A
ATS20B
ATS22A
ATS240
ATS24A
ATS24B
ATS320
ATS32A
ATS400
ATS40A
FREQUENCY
(MHz)
ATS-SM
LOAD
OPERATING
CAPACITANCE
MODE
Series
Fundamental
20 pF
Fundamental
20 pF
Fundamental
Series
Fundamental
20 pF
Fundamental
Series
Fundamental
20 pF
Fundamental
Series
Fundamental
20 pF
Fundamental
Series
Fundamental
20 pF
Fundamental
Series
Fundamental
20 pF
Fundamental
20 pF
Fundamental
20 pF
Fundamental
20 pF
Fundamental
Series
Fundamental
20 pF
Fundamental
Series
Fundamental
20 pF
Fundamental
20 pF
Fundamental
50 pF
Fundamental
20 pF
Fundamental
Series
Fundamental
20 pF
Fundamental
20 pF
Fundamental
Series
3
RD
Overtone
20 pF
3
RD
Overtone
Series
3
RD
Overtone
20 pF
3
RD
Overtone
PART NUMBER
ATS04ASM
ATS061SM
ATS073SM
ATS080SM
ATS099SM
ATS12ASM
ATS125SM
ATS123SM
ATS124SM
ATS127SM
ATS126SM
ATS135SM
ATS14ASM
ATS16ASM
ATS16BSM
ATS169SM
ATS184SM
ATS18ASM
ATS196SM
ATS19ASM
ATS20ASM
ATS20BSM
ATS22ASM
ATS240SM
ATS24ASM
ATS24BSM
ATS250SM
ATS25ASM
ATS320SM
ATS32ASM
ATS400SM
ATS40ASM
FREQUENCY
(MHz)
4.000000
6.144000
7.372800
8.000000
10.000000
9.830400
12.000000
12.288000
12.296000
12.296000
12.352000
12.352000
13.500000
14.318180
16.000000
16.934400
18.432000
18.432000
19.660800
19.660800
20.000000
20.000000
22.118400
24.000000
24.000000
24.579000
32.000000
32.000000
40.000000
40.000000
4.000000
6.144000
7.372800
8.000000
9.830400
12.000000
12.288000
12.296000
12.296000
12.352000
12.352000
13.500000
14.318180
16.000000
16.000000
16.934400
18.432000
18.432000
19.660800
19.660800
20.000000
20.000000
22.118400
24.000000
24.000000
24.576000
25.000000
25.000000
32.000000
32.000000
40.000000
40.000000
LOAD
OPERATING
CAPACITANCE
MODE
Series
Fundamental
20 pF
Fundamental
20 pF
Fundamental
Series
Fundamental
Series
Fundamental
20 pF
Fundamental
Series
Fundamental
20 pF
Fundamental
Series
Fundamental
20 pF
Fundamental
Series
Fundamental
20 pF
Fundamental
20 pF
Fundamental
20 pF
Fundamental
18 pF
Fundamental
20 pF
Fundamental
Series
Fundamental
20 pF
Fundamental
Series
Fundamental
20 pF
Fundamental
20 pF
Fundamental
50 pF
Fundamental
20 pF
Fundamental
Series
Fundamental
20 pF
Fundamental
20 pF
Fundamental
Series
Fundamental
20 pF
Fundamental
Series
3
RD
Overtone
20 pF
3
RD
Overtone
Series
3
RD
Overtone
20 pF
3
RD
Overtone
Contact your local CTS Representative or CTS Customer Service for availability.
ADDITIONAL ORDERING INFORMATION
Available Standard Product Options
ATS
-
PRODUCT OPTIONS
INS - Insulation Spacer
1 - Radial Taping (Ammopak) *
FREQUENCY
Product Frequency Code. Refer to
Product Part Number Tables.
* Standard packaging is bulk in a bag.
ATS
SM -
PRODUCT OPTIONS
1 or T - Tape and Reel
Packaging **
FREQUENCY
Product Frequency Code. Refer to
Product Part Number Tables.
** Standard packaging is tape and reel. CTS Distributors
may use –T for Tape and Reel indicator.
NON-Standard Ordering Options
Custom performance characteristics and lead trim requirements available upon request. Use form C052 to detail non-standard parameters.
Contact your local CTS Representative or CTS Customer Service for assistance.
Document No. 008-0309-0
Page 2 - 5
Rev. C
٠ ٠ ٠
CTS Electronic Components, Inc.
٠
171 Covington Drive
٠
Bloomingdale, IL 60108
٠٠٠
Low Cost Quartz Crystal
ATS/ATS-SM
ELECTRICAL CHARACTERISTICS
PARAMETER
Operating Mode
Crystal Cut
Frequency Range
Frequency Tolerance @ 25°C
Frequency Stability Tolerance
(Operating Temperature Range, Referenced to 25°C Reading)
Electrical Parameters
VALUE
Fundamental or 3
rd
Overtone
AT-Cut
3.5 MHz to 60.0 MHz
± 30 ppm Standard *
± 50 ppm Standard *
-20°C to +70°C *
-55°C to +125°C
See ESR Table
See Standard Part Number Tables *
7.0 pF Maximum
10 µW Typical, 100 µW Maximum
+255°C ± 5°C, 10 Seconds Maximum
Operating Temperature Range
Storage Temperature Range
Equivalent Series Resistance
Load Capacitance or Resonance Mode
Shunt Capacitance (C
0
)
Drive Level
Reflow Condition, per JEDEC J-STD-020
* Custom requirements are available upon request. Use form C052 to communicate crystal parameters.
Contact your local CTS Representative or CTS Customer Service for assistance.
EQUIVALENT SERIES RESISTANCE TABLE
FREQUENCY RANGE
3.50 MHz - < 4.00 MHz
4.00 MHz - < 5.00 MHz
5.00 MHz - < 8.00 MHz
8.00 MHz - < 12.00 MHz
12.00 MHz - < 20.00 MHz
20.00 MHz - < 30.00 MHz
27.00 MHz - 60.00 MHz
MODE of OSCILLATION
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
3
RD
Overtone
ESR Maximum
150 Ohms
120 Ohms
80 Ohms
60 Ohms
40 Ohms
30 Ohms
80 Ohms

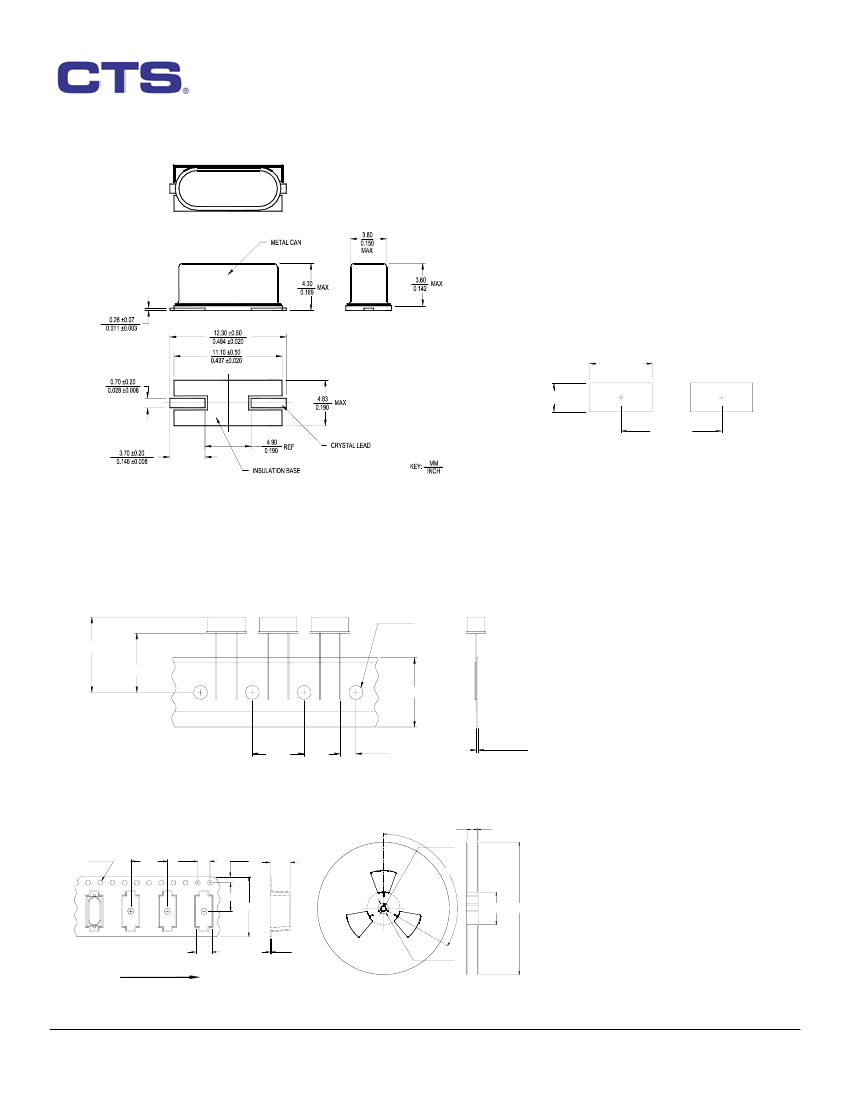

MECHANICAL SPECIFICATIONS
ATS PACKAGE DRAWING
ATSXXX
CTS** YYWW
MARKING INFORMATION
1. CTS Part Number.
2. ** - Manufacturing Site Code.
3. YYWW – Date Code, YY – year, WW – week.
4. Complete CTS part number, frequency value and
date code information must appear on bag and
box labels.
NOTES
1. Lead finish (e1), SnAgCu.
Document No. 008-0309-0
Page 3 - 5
Rev. C
٠ ٠ ٠
CTS Electronic Components, Inc.
٠
171 Covington Drive
٠
Bloomingdale, IL 60108
٠٠٠
Low Cost Quartz Crystal
ATS/ATS-SM
MECHANICAL SPECIFICATIONS
ATS-SM PACKAGE DRAWING
ATSXXXSM
CTS** YYWW
MARKING INFORMATION
1. CTS Part Number.
2. ** - Manufacturing Site Code.
3. YYWW – Date Code, YY – year, WW – week.
4. Complete CTS part number, frequency value and
date code information must appear on reel and
box labels.
NOTES
1.
Lead finish (e1), SnAgCu.
SUGGESTED SOLDER PAD GEOMETRY
0.217 [5.50]
0.059 [1.50]
0.335 [8.50]
Key: Inch [mm]
PACKAGING INFORMATION
ATS Taping (Ammopak)
DIMENSIONS IN MILLIMETERS
Ø4.00
22.50 Max
18.00
18.00
12.70
3.81
0.90 Max
ATS-SM Tape and Reel
DIMENSIONS IN MILLIMETERS
24.40
Ø13.00
2.00
Ø1.55
12.00
4.00
1.75
4.35
120°
11.50
24.00
Ø80
Ø330
5.10
DIRECTION OF FEED
0.40
Ø21.00
Document No. 008-0309-0
Page 4 - 5
Rev. C
٠ ٠ ٠
CTS Electronic Components, Inc.
٠
171 Covington Drive
٠
Bloomingdale, IL 60108
٠٠٠
Low Cost Quartz Crystal
ATS/ATS-SM
ENVIRONMENTAL SPECIFICATIONS
Temperature Cycle:
Mechanical Shock:
Sinusoidal Vibration:
Gross Leak:
Fine Leak:
Resistance to Solder Heat:
High Temperature Operating Bias:
Frequency Aging:
Insulation Resistance:
Moisture Sensitivity Level:
400 cycles from –55°C to +125°C, 10 minute dwell at each temperature, 1
minute transfer time between temperatures.
1,500g’s, 0.5mS duration, ½ sinewave, 3 shocks each direction along 3
mutually perpendicular planes (18 total shocks).
0.06 inches double amplitude, 10 to 55 Hz and 20g’s, 55 to 2,000 Hz, 3 cycles
each in 3 mutually perpendicular planes (9 times total).
No leak shall appear while immersed in an FC40 or equivalent liquid at
+125°C for 20 seconds.
Mass spectrometer leak rates less than 2x10
-8
ATM cc/sec air equivalent.
Product must survive 3 reflows of +260°C peak, 10 seconds maximum.
2,000 hours at +125°C, disregarding frequency shift.
1,000 hours at +85°C, maximum ±5 ppm shift.
500M Ohms @ 100V
DC
±15V
DC
.
Level 1 per JEDEC J-STD-020.
QUALITY AND RELIABILITY
Quality systems meet or exceed the requirements of ISO 9000:2000 standards.
Document No. 008-0309-0
Page 5 - 5
Rev. C
٠ ٠ ٠
CTS Electronic Components, Inc.
٠
171 Covington Drive
٠
Bloomingdale, IL 60108
٠٠٠
京公网安备 11010802033920号
EEWORLD
