DBL154GC1G Overview

Bridge Rectifier Diode, 1.5A, 400V V(RRM),

DBL154GC1G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	R-PDIP-T4
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	UL RECOGNIZED
Minimum breakdown voltage	400 V
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
JESD-30 code	R-PDIP-T4
Maximum non-repetitive peak forward current	50 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	1.5 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Guideline	AEC-Q101
Maximum repetitive peak reverse voltage	400 V
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

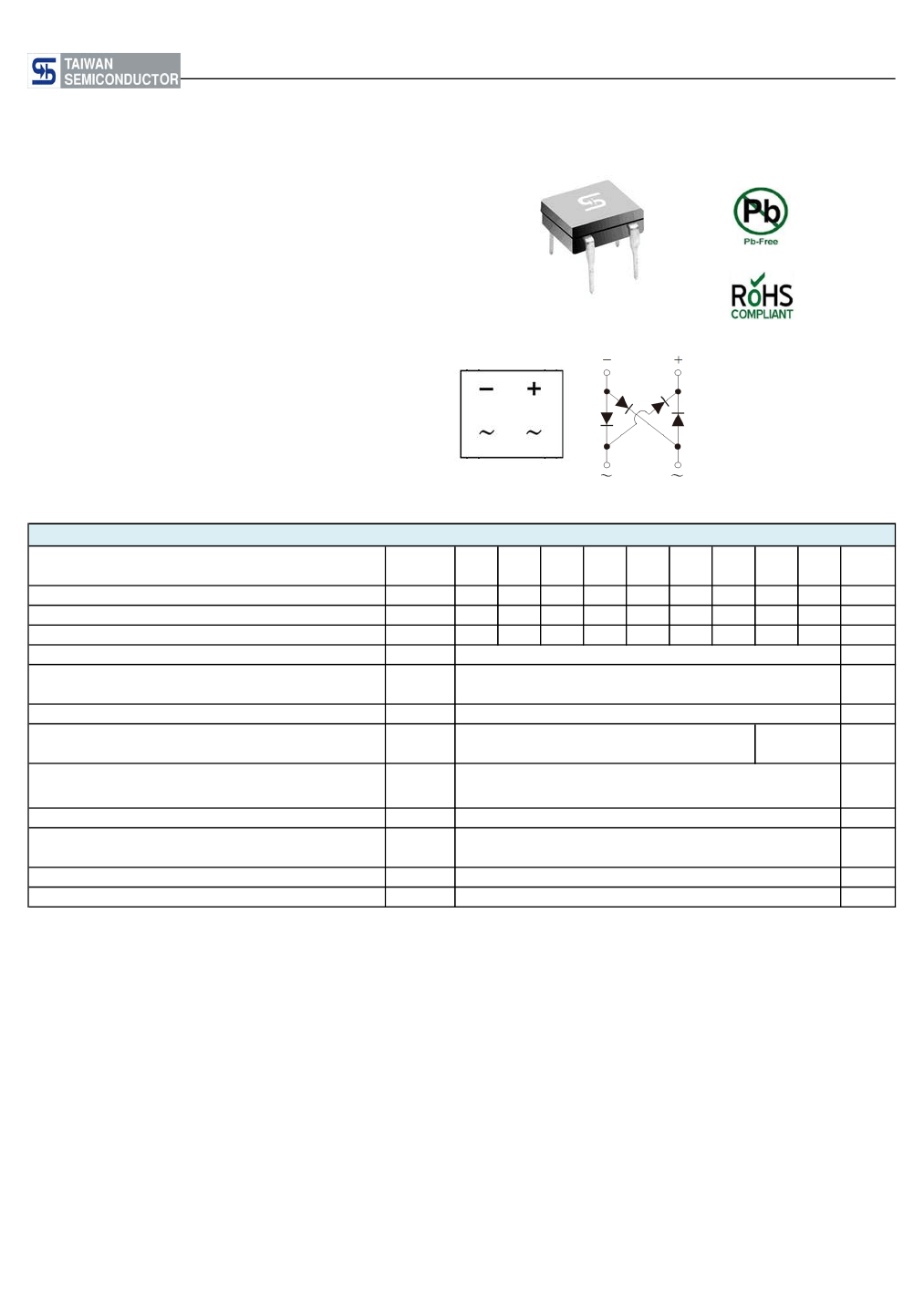

DBL151G thru DBL159G

Taiwan Semiconductor

CREAT BY ART

FEATURES

- Ideal for automated placement

- Reliable low cost construction utilizing molded plastic technique

- High surge current capability

- UL Recognized File # E-326854

- Compliant to RoHS Directive 2011/65/EU and

in accordance to WEEE 2002/96/EC

- Halogen-free according to IEC 61249-2-21 definition

- AEC-Q101 qualified

Glass Passivated Bridge Rectifiers

DBL

MECHANICAL DATA

Case:

Molded plastic body

Molding compound, UL flammability classification rating 94V-0

Packing code with suffix "G" means green compound (halogen-free)

Terminal:

Matte tin plated leads, solderable per JESD22-B102

Meet JESD 201 class 2 whisker test

Polarity:

Polarity as marked on the body

Weight:

0.36 g (approximately)

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

=25°C unless otherwise noted)

PARAMETER

Maximum repetitive peak reverse voltage

Maximum RMS voltage

Maximum DC blocking voltage

Maximum average forward rectified current

Peak forward surge current, 8.3 ms single half sine-wave

superimposed on rated load

Rating for fusing (t<8.3ms)

Maximum instantaneous forward voltage (Note 1)

= 1.5 A

Maximum DC reverse current

at rated DC blocking voltage

=25°C

=125°C

SYMBOL

RRM

RMS

F(AV)

FSM

θJL

θJA

STG

1.1

500

- 55 to +150

DBL

100

DBL

200

140

200

DBL

400

280

400

DBL

600

420

600

1.5

10.3

1.25

DBL

800

560

800

DBL

1000

700

1000

DBL

1200

840

1200

DBL

1400

980

1400

151G 152G 153G 154G 155G 156G 157G 158G 159G

UNIT

μA

°C/W

°C

Typical junction capacitance per leg (Note 2)

Typical thermal resistance

Operating junction temperature range

Storage temperature range

Note 1: Pulse Test with PW=300μs,1% Duty Cycle

Note 2: Measure at 1.0MHz and Applied Reverse Voltage of 4.0 Volts D.C.

Document Number: DS_D1410051

Version: J14
