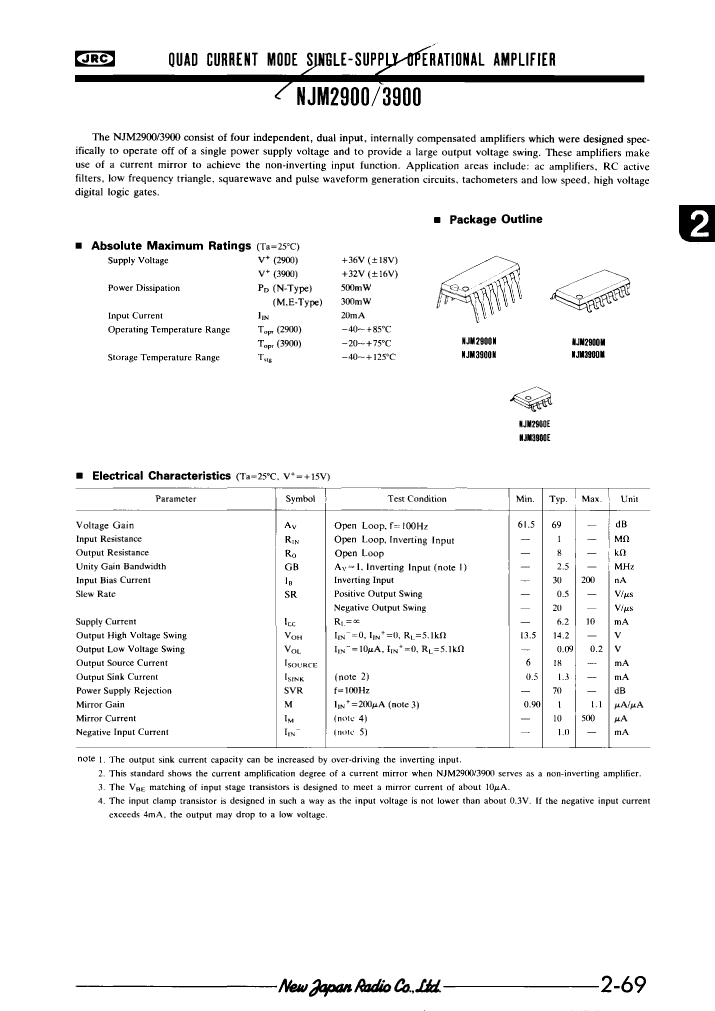

NJM2900E-(T2): DescriptionNJM2900E-(T2) amplifier basic information: NJM2900E-(T2) is an OPERATIONAL AMPLIFIER. The commonly used packaging method is SOP, NJM2900E-(T2) amplifier core information: The minimum operating temperature of NJM2900E-(T2) is -40 °C and the maximum operating temperature is 85 °C. Its maximum average bias current is 0.2 µA The maximum slew rate of NJM2900E-(T2) given by the manufacturer is 10 mA. When the op amp is used in closed loop, under a specified closed-loop gain (usually 1 or 2, 10, etc.), the gain of NJM2900E-(T2) becomes The frequency when it is 0.707 times the low frequency gain is 2500 kHz. The nominal supply voltage of NJM2900E-(T2) is 15 V. Relevant dimensions of NJM2900E-(T2): The width of NJM2900E-(T2) is: 3.9 mm and the length is 5 mm. NJM2900E-(T2) has 8 terminals. Its terminal position type is: DUAL. Terminal pitch is 1.27 mm. Total pins: 8 NJM2900E-(T2) amplifier other information: Its temperature grade is: INDUSTRIAL. The corresponding JESD-30 code is: R-PDSO-G8. The packaging code of NJM2900E-(T2) is: SOP. NJM2900E-(T2) packaging materials are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR. NJM2900E-(T2) package pin formats are: SMALL OUTLINE. Its terminal forms are: GULL WING. The maximum seat height is 1.8 mm.; CategoryAnalog mixed-signal IC Amplifier circuit; File Size112KB，4 Pages; ManufacturerNew Japan Radio Co., Ltd..; Alternative parts：NJM2900E-(T2)

Download Datasheet Parametric Compare View All

NJM2900E-(T2) Overview

NJM2900E-(T2) amplifier basic information:

NJM2900E-(T2) is an OPERATIONAL AMPLIFIER. The commonly used packaging method is SOP,

NJM2900E-(T2) amplifier core information:

The minimum operating temperature of NJM2900E-(T2) is -40 °C and the maximum operating temperature is 85 °C. Its maximum average bias current is 0.2 µA

The maximum slew rate of NJM2900E-(T2) given by the manufacturer is 10 mA. When the op amp is used in closed loop, under a specified closed-loop gain (usually 1 or 2, 10, etc.), the gain of NJM2900E-(T2) becomes The frequency when it is 0.707 times the low frequency gain is 2500 kHz.

The nominal supply voltage of NJM2900E-(T2) is 15 V.

Relevant dimensions of NJM2900E-(T2):

The width of NJM2900E-(T2) is: 3.9 mm and the length is 5 mm. NJM2900E-(T2) has 8 terminals. Its terminal position type is: DUAL. Terminal pitch is 1.27 mm. Total pins: 8

NJM2900E-(T2) amplifier other information:

Its temperature grade is: INDUSTRIAL. The corresponding JESD-30 code is: R-PDSO-G8. The packaging code of NJM2900E-(T2) is: SOP. NJM2900E-(T2) packaging materials are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR.

NJM2900E-(T2) package pin formats are: SMALL OUTLINE. Its terminal forms are: GULL WING. The maximum seat height is 1.8 mm.

NJM2900E-(T2) Parametric

Parameter Name	Attribute value
Parts packaging code	SOIC
package instruction	SOP,
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.2 µA
JESD-30 code	R-PDSO-G8
length	5 mm
Number of functions	4
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum seat height	1.8 mm
Maximum slew rate	10 mA
Nominal supply voltage (Vsup)	15 V
surface mount	YES
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Nominal Uniform Gain Bandwidth	2500 kHz
width	3.9 mm
Base Number Matches	1

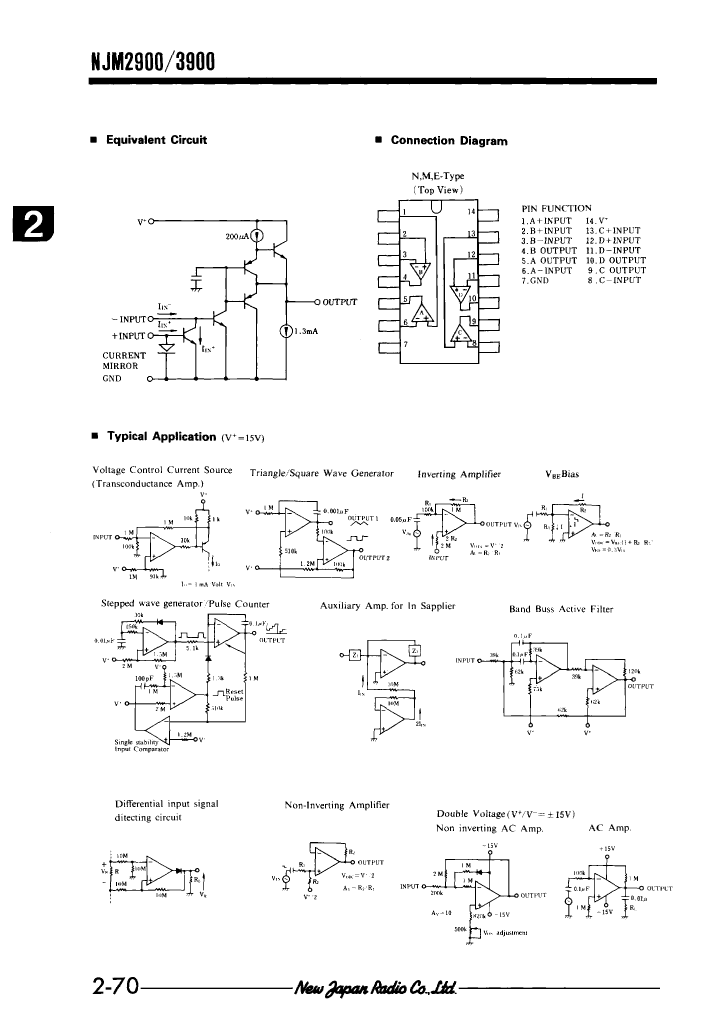

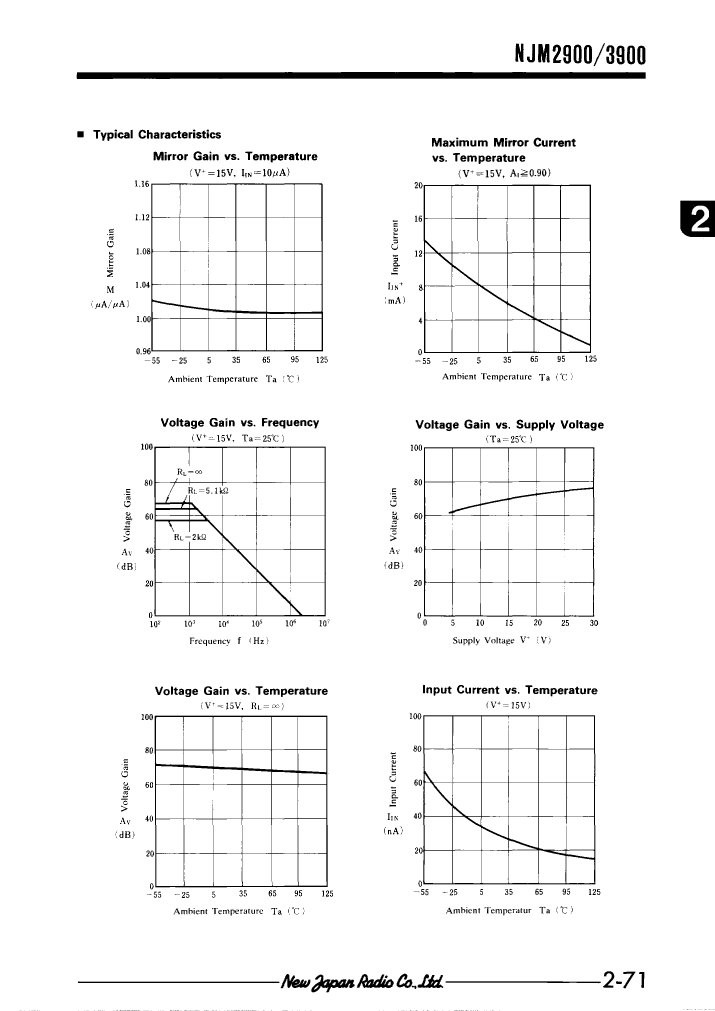

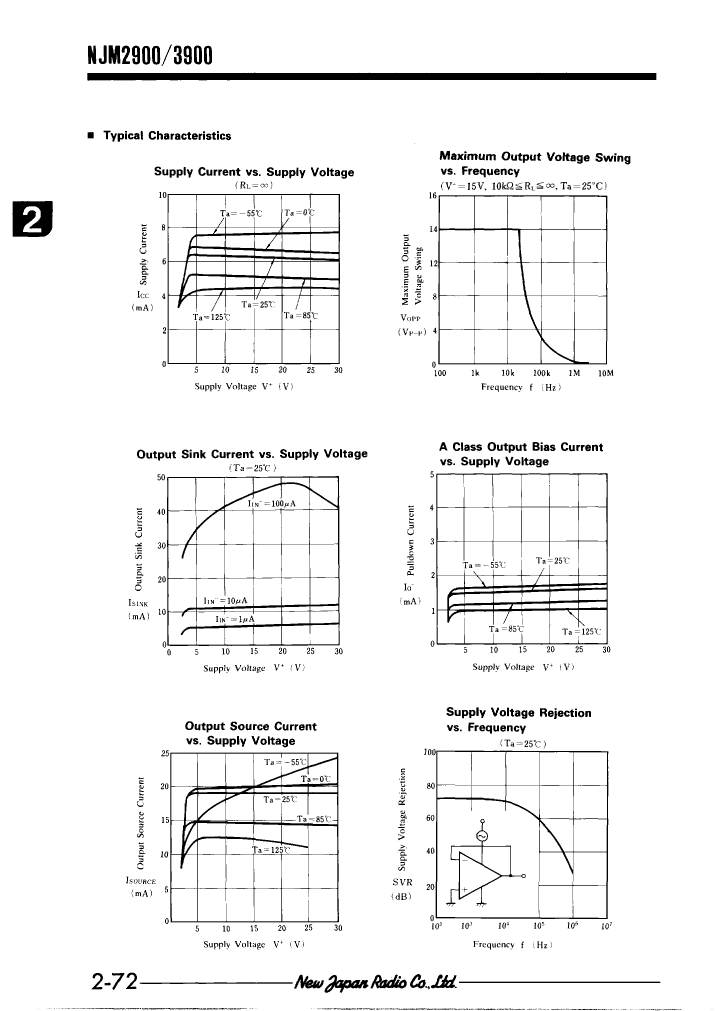

Preview

Download Datasheet

View All

NJM2900E-(T2) Related Products

	NJM2900E-(T2)	NJM2900E-(T1)	NJM2900E-(TE1)	NJM2900E-(TE2)	NJM3900E-(TE1)	NJM3900E-(T1)	NJM3900E-(T2)	NJM3900E-(TE2)
Description	Operational Amplifier, 4 Func, BIPolar, PDSO8, PLASTIC, EMP-8	Operational Amplifier, 4 Func, BIPolar, PDSO8, PLASTIC, EMP-8	Operational Amplifier, 4 Func, BIPolar, PDSO8, PLASTIC, EMP-8	Operational Amplifier, 4 Func, BIPolar, PDSO8, PLASTIC, EMP-8	Operational Amplifier, 4 Func, BIPolar, PDSO8, PLASTIC, EMP-8	Operational Amplifier, 4 Func, BIPolar, PDSO8, PLASTIC, EMP-8	Operational Amplifier, 4 Func, BIPolar, PDSO8, PLASTIC, EMP-8	Operational Amplifier, 4 Func, BIPolar, PDSO8, PLASTIC, EMP-8
Parts packaging code	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC
package instruction	SOP,	SOP,	SOP,	SOP,	SOP,	SOP,	SOP,	SOP,
Contacts	8	8	8	8	8	8	8	8
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.2 µA	0.2 µA	0.2 µA	0.2 µA	0.2 µA	0.2 µA	0.2 µA	0.2 µA
JESD-30 code	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8
length	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm
Number of functions	4	4	4	4	4	4	4	4
Number of terminals	8	8	8	8	8	8	8	8
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	75 °C	75 °C	75 °C	75 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-20 °C	-20 °C	-20 °C	-20 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	SOP	SOP	SOP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.8 mm	1.8 mm	1.8 mm	1.8 mm	1.8 mm	1.8 mm	1.8 mm	1.8 mm
Maximum slew rate	10 mA	10 mA	10 mA	10 mA	10 mA	10 mA	10 mA	10 mA
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Nominal Uniform Gain Bandwidth	2500 kHz	2500 kHz	2500 kHz	2500 kHz	2500 kHz	2500 kHz	2500 kHz	2500 kHz
width	3.9 mm	3.9 mm	3.9 mm	3.9 mm	3.9 mm	3.9 mm	3.9 mm	3.9 mm
