BRUS210F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BRUS210F

BRUS210F: DescriptionBridge Rectifier Diode, 1 Phase, 10.5A, 200V V(RRM), Silicon; CategoryDiscrete semiconductor diode; File Size82KB，2 Pages; ManufacturerEDI [Electronic devices inc.]

Download Datasheet Parametric Compare View All

BRUS210F Overview

Bridge Rectifier Diode, 1 Phase, 10.5A, 200V V(RRM), Silicon

BRUS210F Parametric

Parameter Name	Attribute value
package instruction	O-PUFM-D4
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	UL RECOGNIZED
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V
JESD-30 code	O-PUFM-D4
Maximum non-repetitive peak forward current	100 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Maximum output current	10.5 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	200 V
Maximum reverse recovery time	0.05 µs
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER
Base Number Matches	1

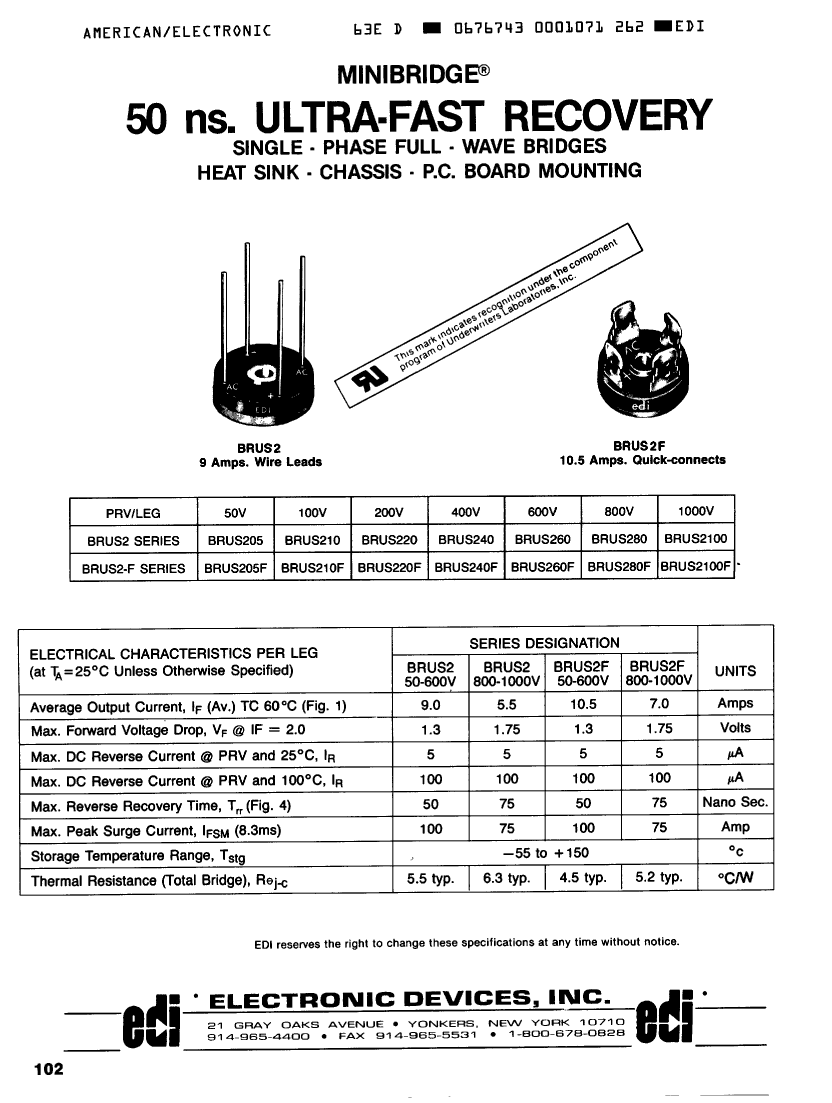

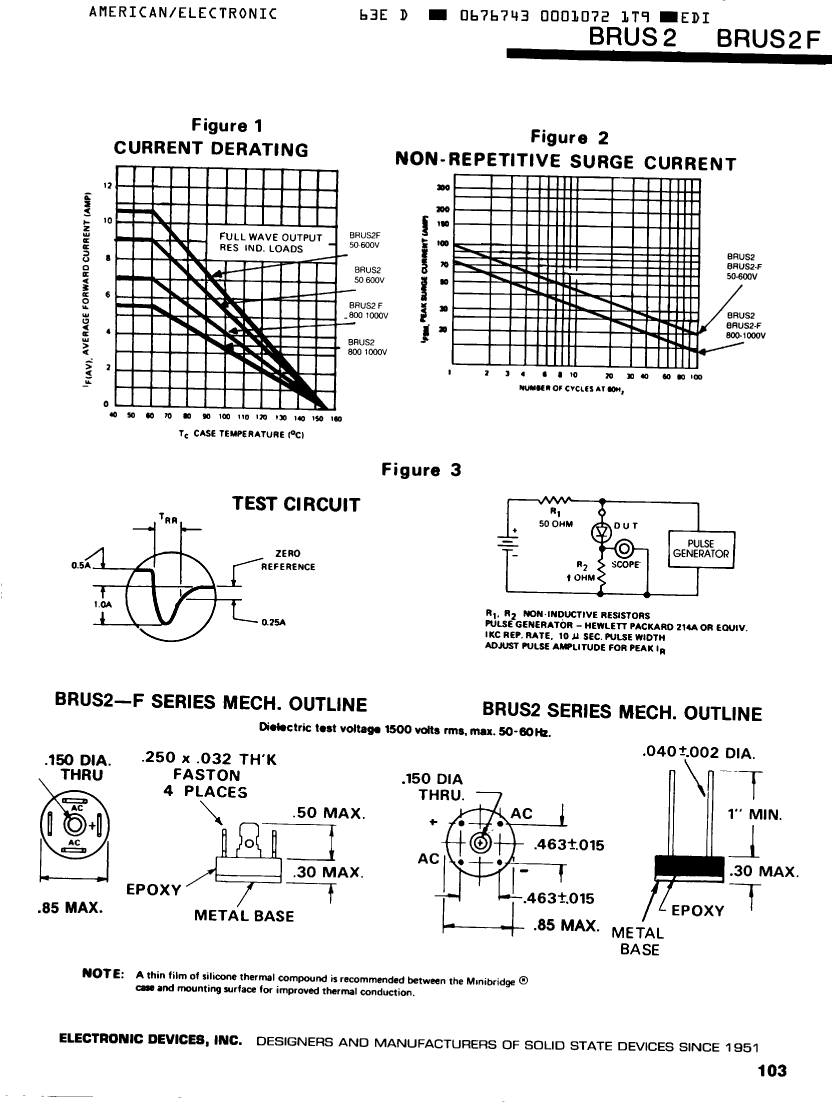

Preview

Download Datasheet

View All

BRUS210F Related Products

	BRUS210F	BRUS240	BRUS2100	BRUS260F	BRUS260	BRUS280	BRUS220F	BRUS205
Description	Bridge Rectifier Diode, 1 Phase, 10.5A, 200V V(RRM), Silicon	Bridge Rectifier Diode, 1 Phase, 9A, 500V V(RRM), Silicon	Bridge Rectifier Diode, 1 Phase, 5.5A, 1000V V(RRM), Silicon	Bridge Rectifier Diode, 1 Phase, 10.5A, 600V V(RRM), Silicon	Bridge Rectifier Diode, 1 Phase, 9A, 600V V(RRM), Silicon	Bridge Rectifier Diode, 1 Phase, 5.5A, 800V V(RRM), Silicon	Bridge Rectifier Diode, 1 Phase, 10.5A, 400V V(RRM), Silicon	Bridge Rectifier Diode, 1 Phase, 9A, 100V V(RRM), Silicon
package instruction	O-PUFM-D4	O-PUFM-W4	O-PUFM-W4	O-PUFM-D4	O-PUFM-W4	O-PUFM-W4	O-PUFM-D4	O-PUFM-W4
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V	1.3 V	1.75 V	1.3 V	1.3 V	1.75 V	1.3 V	1.3 V
JESD-30 code	O-PUFM-D4	O-PUFM-W4	O-PUFM-W4	O-PUFM-D4	O-PUFM-W4	O-PUFM-W4	O-PUFM-D4	O-PUFM-W4
Maximum non-repetitive peak forward current	100 A	100 A	75 A	100 A	100 A	75 A	100 A	100 A
Number of components	4	4	4	4	4	4	4	4
Phase	1	1	1	1	1	1	1	1
Number of terminals	4	4	4	4	4	4	4	4
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	10.5 A	9 A	5.5 A	10.5 A	9 A	5.5 A	10.5 A	9 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	200 V	500 V	1000 V	600 V	600 V	800 V	400 V	100 V
Maximum reverse recovery time	0.05 µs	0.05 µs	0.075 µs	0.05 µs	0.05 µs	0.075 µs	0.05 µs	0.05 µs
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	SOLDER LUG	WIRE	WIRE	SOLDER LUG	WIRE	WIRE	SOLDER LUG	WIRE
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Base Number Matches	1	1	1	1	1	1	1	1
Other features	UL RECOGNIZED	UL RECOGNIZED	-	UL RECOGNIZED	UL RECOGNIZED	-	UL RECOGNIZED	UL RECOGNIZED
