#FSLM2520-R22K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> #FSLM2520-R22K

#FSLM2520-R22K: DescriptionGeneral Purpose Inductor, 0.22uH, 10%, 1 Element, SMD, CHIP, ROHS COMPLIANT; CategoryPassive components inductor; File Size176KB，2 Pages; ManufacturerTOKO, INC.; Websitehttps://www.murata.com/; Environmental Compliance

Download Datasheet Parametric View All

#FSLM2520-R22K Overview

General Purpose Inductor, 0.22uH, 10%, 1 Element, SMD, CHIP, ROHS COMPLIANT

#FSLM2520-R22K Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
DC Resistance	0.3 Ω
Nominal inductance(L)	0.22 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	LLM2520
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Minimum quality factor (at nominal inductance)	30
Maximum rated current	0.43 A
self resonant frequency	390 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	25.2 MHz
Tolerance	10%
Base Number Matches	1

Preview

Download Datasheet

View All

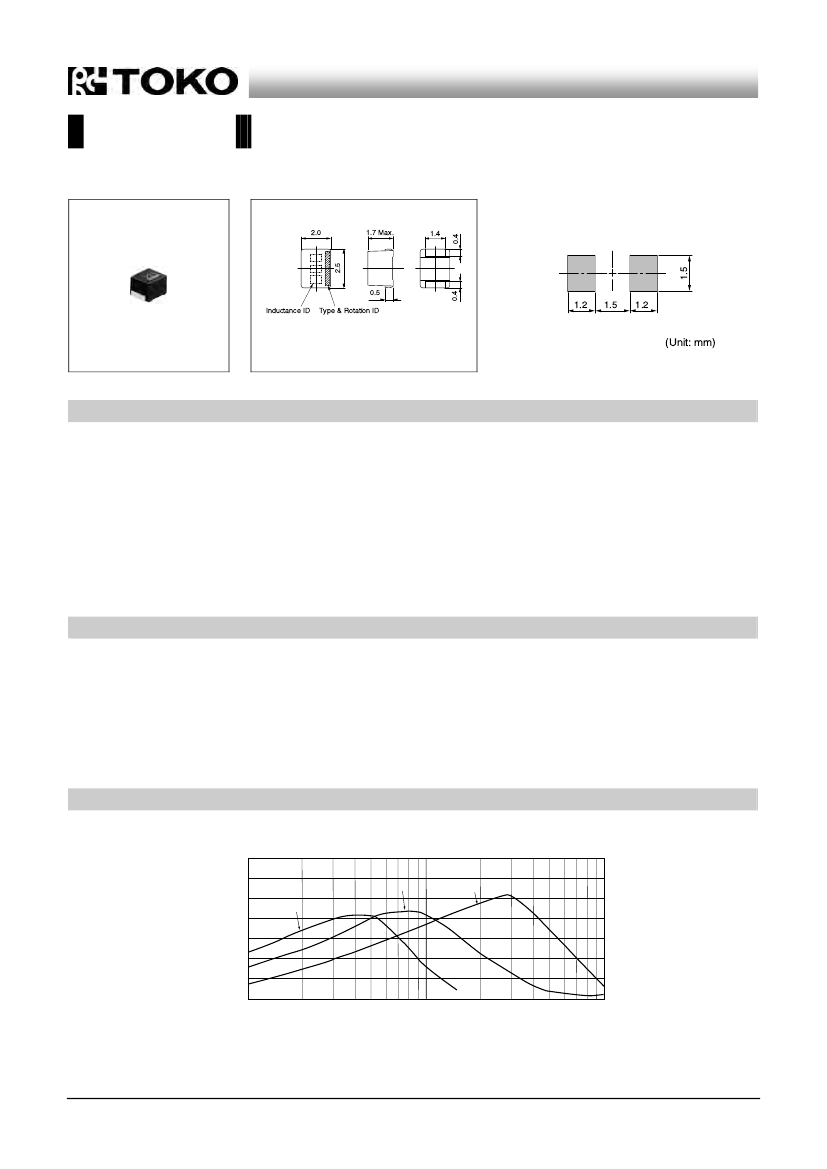

Wire Wound Chip Inductors

巻線チップインダクタ

LLM2520

(Previous name FSLM2520)

Inductance Range:

0.1~220H (E-12)

Recommended patterns

0.4

2.0

1.7 Max.

1.4

推奨パターン図

2.5

0.4

0.5

Inductance ID

Type & Rotation ID

1.2

1.5

1.2

(Unit: mm)

FEATURES

特長



巻線½構造の面実装小型チップインダクタ



各種電子機器の信号処理用として、セットの薄½化、

高密度実装への対応に最適



½背½1.7mm

Max. (1.6mm Typ.)



0.1½220Hまでの幅広いインダクタンス範囲



リフロはんだ付けが可½



角½外装、金属端子構造による高い実装信頼性と優れた

機械的、耐候的信頼性



RoHS指令対応



Wire-wound miniature chip inductor most suitable for

surface mount.



It is recommended for wide general use for signal

conditioning in a variety of electronic equipment.



Low profile 1.7mm Max height. (1.6mm Typ.)



Wide inductance range from 0.1 to 220H.



Superior solderability and high heat-resistance for reflow

soldering.



Excellent environmental and mechanical stability.



RoHS compliant.

ELECTRICAL CHARACTERISTICS



Inductance Range



Inductance Tolerance

電気的特性



インダクタンス範囲



インダクタンス許容差



インダクタンス温度係数



½用温度範囲



保存温度範囲

（テーピング状態）

0.1½220H (E-12シリーズ）

J級 ;

5%

K級 ;

10%

750ppm/°C Max.

－40°C½＋85°C

（－40°C½＋60°C）

0.1~220H (E-12 Series)

J ;



K ;



10%



Inductance Temperature Coefficient 750ppm/°C Max.



Operating Temperature Range -40°C~+85°C



Storge Temperature Range

-40°C~+85°C

(In case of taping used)

(-40°C~+60°C)

EXAMPLES OF CHARACTERISTICS

代表特性例

Q vs Frequency

4.7μH

4.7µH

47μH

47µH

0.47µH

0.47μH

100

Frequency (MHz)

1.5

continued on next page

次頁へ続く
