Part Number:
ZURMG98W
www.SunLED.com

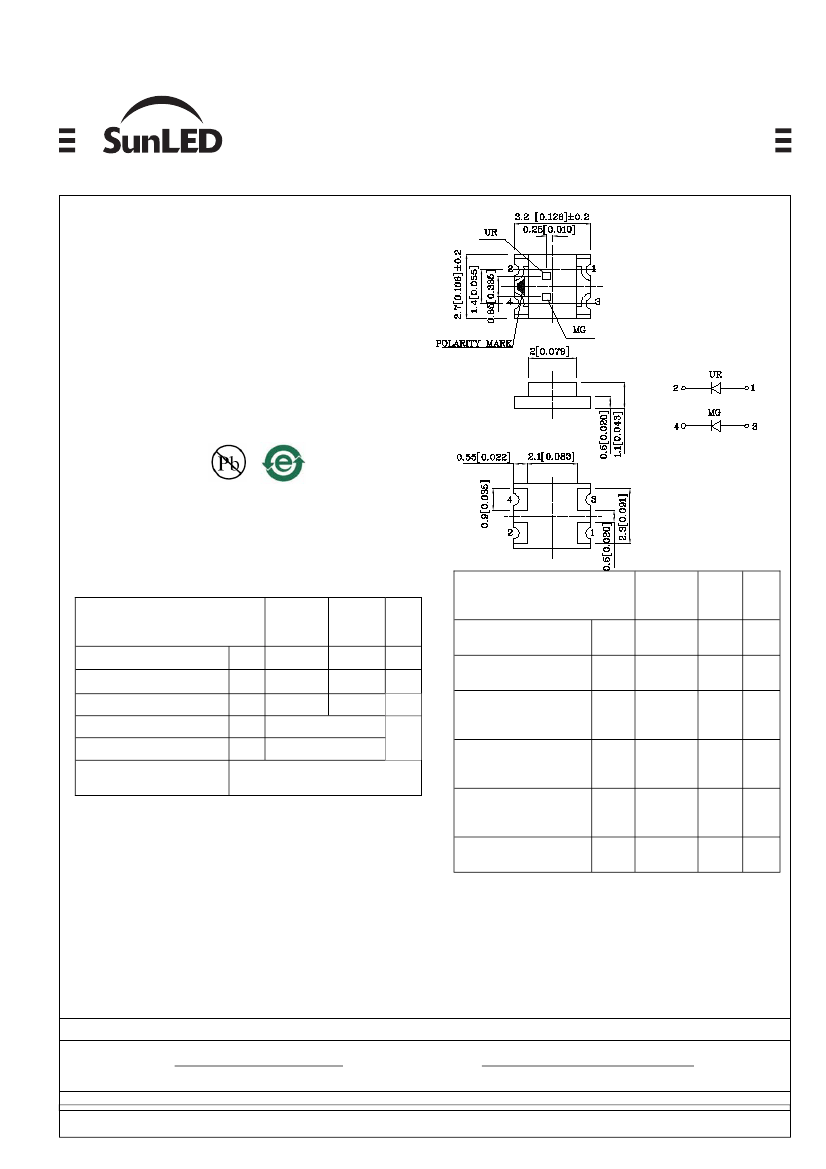

3.2x2.7mm SURFACE MOUNT LED LAMP
PRELIMINARY SPEC
Features
3.2mmx2.7mm SMT LED, 1.1mm THICKNESS.
BI -COLOR,LOW POWER CONSUMPTION.
WIDE VIEWING ANGLE.
IDEAL FOR BACKLIGHT AND INDICATOR.
VARIOUS COLORS AND LENS TYPES AVAILABLE.
PACKAGE : 2000PCS / REEL.
MOISTURE SENSITIVITY LEVEL : LEVEL 3.
RoHS COMPLIANT.
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ± 0.1(0.004") unless otherwise noted.
3. Specifications are subject to change without notice
.
UR
(GaAsP/
GaP)
I
F
i
FS
P
T
T
A
Tstg
30
160
75
Operating Characteristics
(T
A
=25°C)
Unit
mA
mA
mW
°C
Forward Voltage (Typ.)
(I
F
=20mA)
Forward Voltage (Max.)
(I
F
=20mA)
Wavelength of Peak
Emission (Typ.)
(I
F
=20mA)
Wavelength of Dominant
Emission (Typ.)
(I
F
=20mA)
Spectral Line Full Width
At Half-Maximum (Typ.)
(I
F
=20mA)
Capacitance (Typ.)
(V
F
=0V, f=1MHz)
V
F
V
F
UR
(GaAsP/
GaP)
2.0
2.5
MG
(GaP)
2.2
2.5
Unit
Absolute maximum ratings
(T
A
=25°C)
Forward Current
Forward Current (Peak)
Power Dissipation
Operating Temperature
Storage Temperature
Lead Solder Temperature
[2mm Below Package Base]
MG
(GaP)
25
140
62.5
V
V
-40 ~ +85
-40 ~ +85
260°C For 3~5 Seconds
λ
P
627
565
nm
λ
D
625
568
nm
Δλ
45
30
nm
C
15
15
pF
Part
Number
Emitting
Color
Emitting
Material
Lens-color
Luminous
Intensity
(IF=20mA)
mcd
min.
typ.
14
14
Wavelength
nm
λ
P
Viewing
Angle
2
θ
1/2
ZURMG98W
Red
Green
GaAsP/GaP
GaP
Water Clear
4
4
627
565
100°
Published Date : JAN 15,2008
Drawing No : SDSA4558
V3
Checked : B.L.LIU
P.1/5
Part Number:
ZURMG98W
www.SunLED.com
3.2x2.7mm SURFACE MOUNT LED LAMP

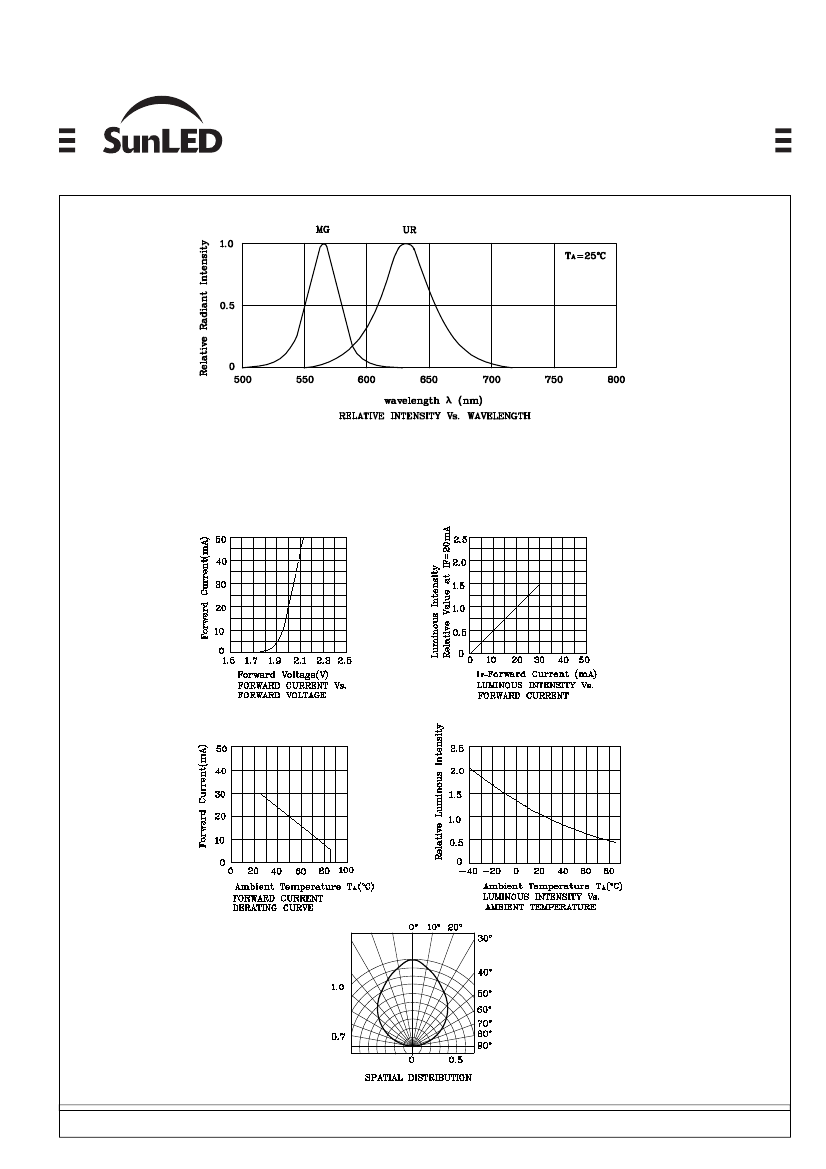

UR
Published Date : JAN 15,2008
Drawing No : SDSA4558
V3
Checked : B.L.LIU
P.2/5
Part Number:
ZURMG98W
www.SunLED.com
3.2x2.7mm SURFACE MOUNT LED LAMP

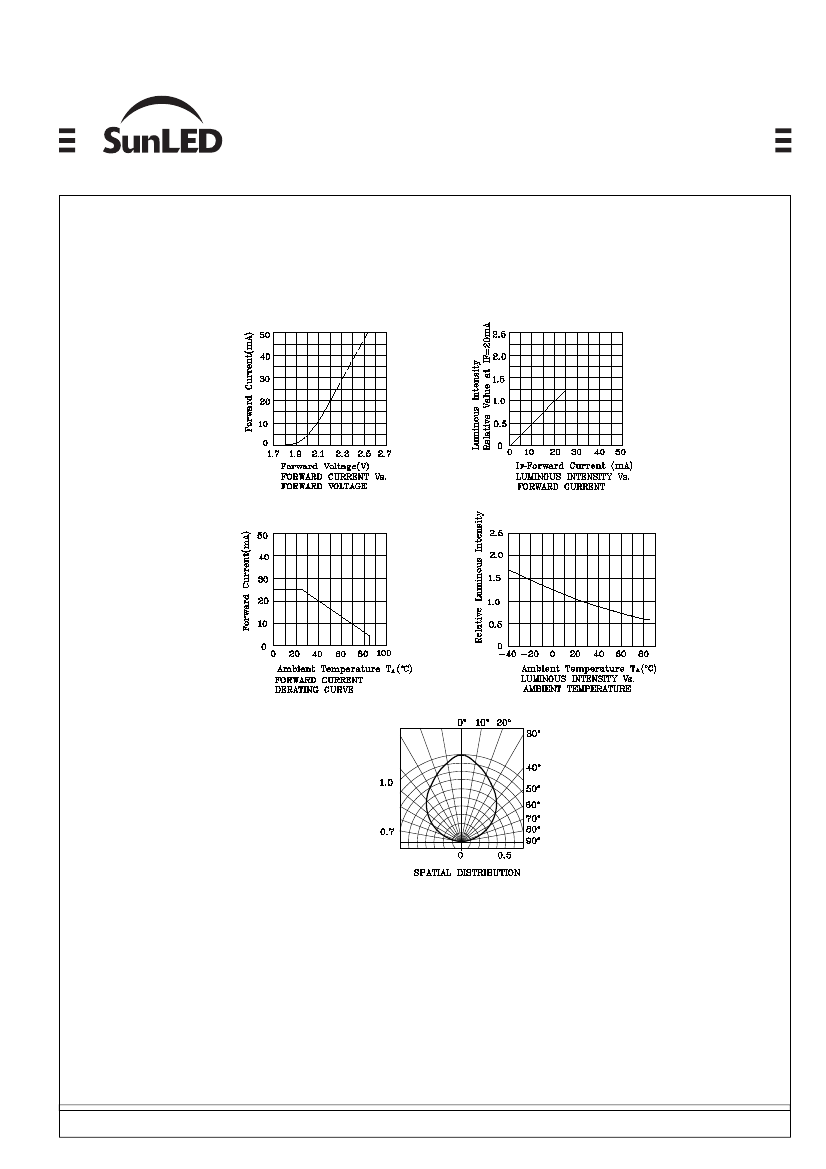

MG
Published Date : JAN 15,2008
Drawing No : SDSA4558
V3
Checked : B.L.LIU
P.3/5
Part Number:
ZURMG98W
www.SunLED.com
3.2x2.7mm SURFACE MOUNT LED LAMP

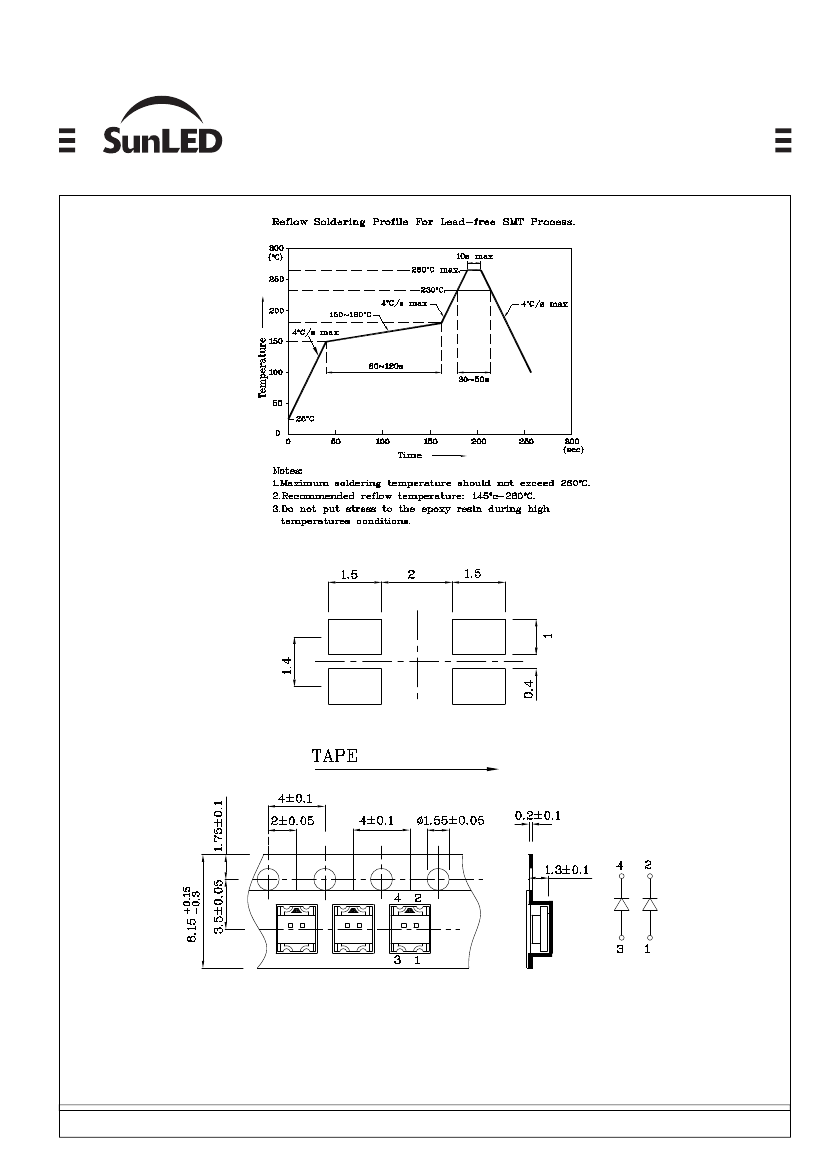

Recommended Soldering Pattern (Units: mm ; Tolerance: ± 0.1)
Tape Specification (Units : mm)
Remarks:
If special sorting is required (e.g. binning based on forward voltage, Luminous intensity / luminous flux, or wavelength),
the typical accuracy of the sorting process is as follows:
1. Wavelength: +/-1nm
2. Luminous Intensity / Luminous Flux: +/-15%
3. Forward Voltage: +/-0.1V
Note: Accuracy may depend on the sorting parameters.
Published Date : JAN 15,2008
Drawing No : SDSA4558
V3
Checked : B.L.LIU
P.4/5
Part Number:
ZURMG98W
www.SunLED.com
3.2x2.7mm SURFACE MOUNT LED LAMP

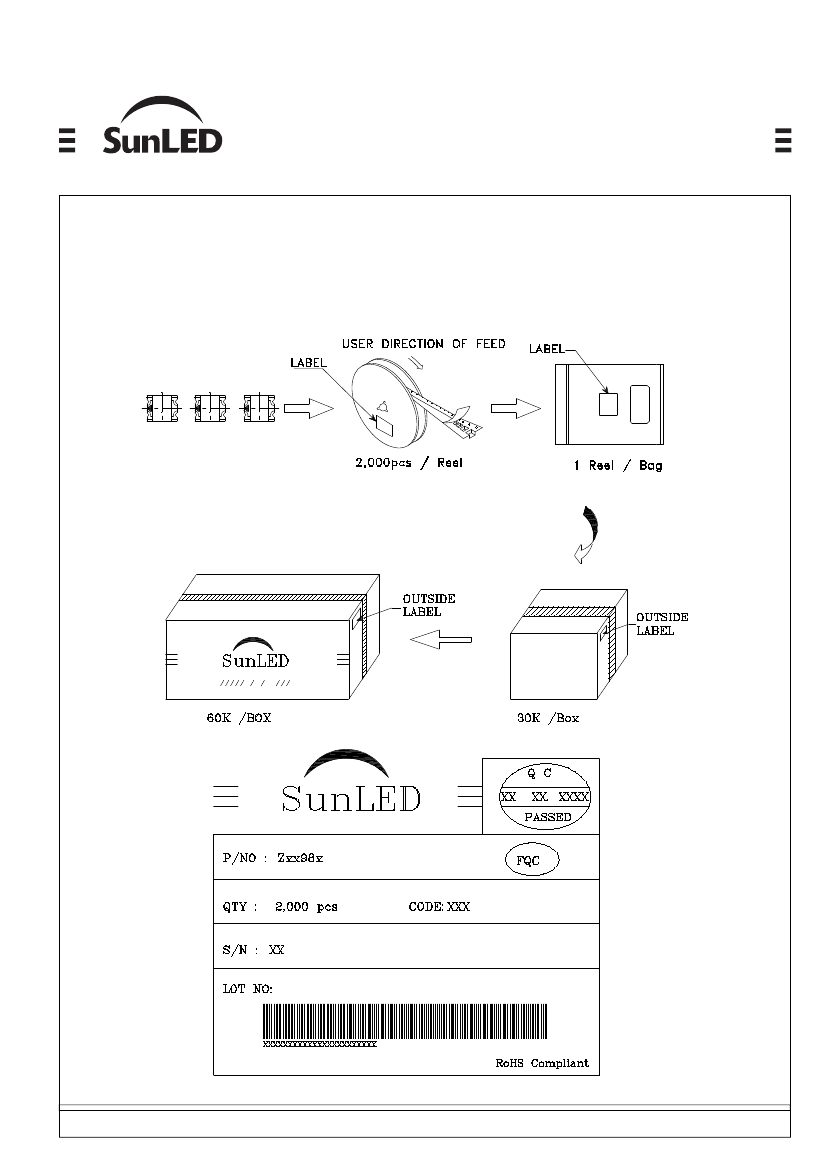

PACKING & LABEL SPECIFICATIONS
ZURMG98W
Published Date : JAN 15,2008
Drawing No : SDSA4558
V3
Checked : B.L.LIU
P.5/5
